Disposable Plastic Glass Machine

Supplier: Ruian City Litai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr litai jia
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	L8500W2200H3100mm	Main selling point:	High speed and low energy consumption
Air pressure (MPa):	0.8 MPa	Supply capacity:	10 sets per month
Packaging Details:	wooden packaging	Heating power (kW):	98 kW
Certification:	CE ISO9001	Applicable industries:	Food and Beverage Factory, Food Store, Food and Beverage Store
Power (KW):	140	Processing type:	Heating, forming and cutting in one, plastic thermoforming machine
Mechanical test report:	if	port:	Ningbo/Shanghai
Drive System:	Positive and negative hydraulic pressure	Core Components Warranty:	1 year
Feeding method:	automatic feeding	Product Category:	plastic cup
Forming width (mm):	750 mm	Forming length (mm):	480 mm
Production speed (cycles/min):	30	Warranty:	1 year
Air consumption (L/min):	3000L/min	Marketing Type:	New Products 2022
Function:	Custom Cup/Glass Making Machine	Video external inspection:	if
Maximum forming height (mm):	125 mm	After-sales service provided:	Engineers can repair machinery overseas
Water consumption (L/min):	11.7 L/min	Plate thickness (mm):	0.3 - 1.8 mm
Plastic Type:	Hip, PVC, PS, PP, PET	brand:	Litai Machinery
Showroom location:	Egypt, Turkey, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, Algeria, Bangladesh, South Africa, Tajikistan, Malaysia, Australia	Voltage:	custom
Model:	4 pillars	payment terms:	L/C,Western Union,T/T
place of origin; place of origin:	Zhejiang, China	Key words:	Disposable glass machine
Weight (tons):	6.5 tons	controlled:	Smart touch screen
Packaging Preview:		Core components:	PLC, Gearbox, Motor, Pressure Vessel, Pump
Health status:	new	Type of machine:	Plastic Thermoforming Machine

Product parameters

technical parameter
Model	TQC-750	TQC-650B
maximum. forming area	750*480mm	650*320mm
maximum. Forming depth	125mm (custom height)
Sheet thickness	0.3-1.8mm
Sheet width	760mm	650mm
maximum. Forming speed	35 times/min
air pressure	0.6-0.8mpa
Air consumption	3.0m³/min	2.0m³/min
water consumption	0.7m³/h	0.5m³/h
rated power	140Kw	98Kw
energy used	98Kw	69kW
power supply	AC 380V, 50Hz, three-phase four-wire
aspect	L8500W2200H3100mm	L6000W2000H2700mm
weight	About 6.5T	about 5T

Main parts of the machine
Touch screen/PLC	Siemens (Germany)
servo motor	Yaskawa (Japan)
AC Contactor/Circuit Breaker	Schneider (France)
proximity switch	Rockwell (USA)
Solenoid directional valve/electromagnetic relief valve/balance valve	Yuken (Taiwan)
Intermediate relay	IDEC (Japan)
Intermediate relay base	Omron (Japan)
Forming valve	CKD (Japan)
The electromagnetic valve	SMC (Japan) / Mindman (Taiwan)

Product Description

application:

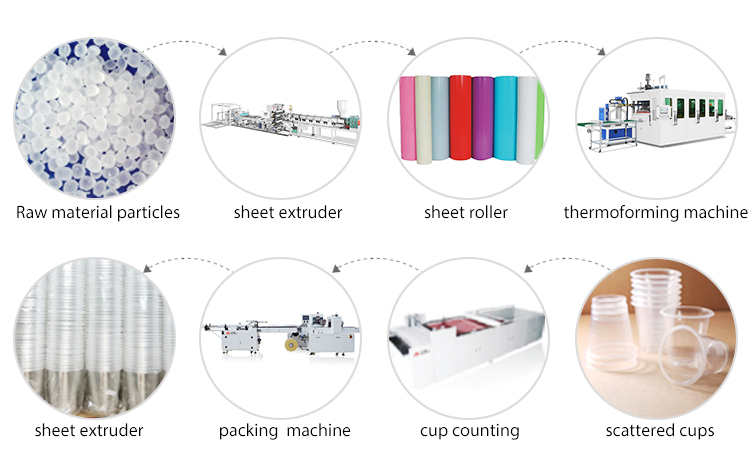

The plastic cup thermoforming machine is the last product developed by our company. The feeding and stretching parts are driven by servo motors. The machine produces disposable products such as plastic cups, bowls, lids and boxes and blowing through the work flow of sheet feeding, heating, forming, cutting, and it is versatile and suitable for most customers' requirements. PLC programming, man-machine interface operation, stable, low noise, high efficiency.

main function

1. Positive and negative pressure forming device.

2. Vacuum forming device.

3. Touch screen computer temperature module point-to-point control function.

4. Air control device.

5. Cooling device.

6. Mold, mold temperature control function.

7. Automatic punching function.

8. Automatic stacking counting function.

9.edge automatic winding function.

10. Safety protection device.

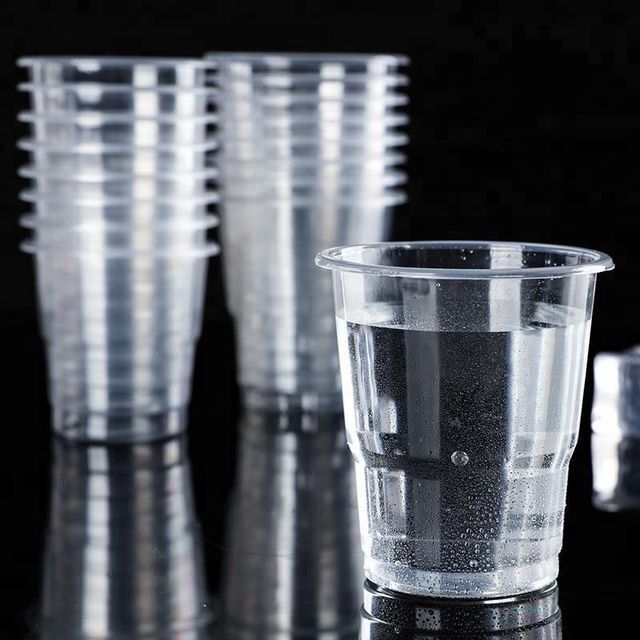

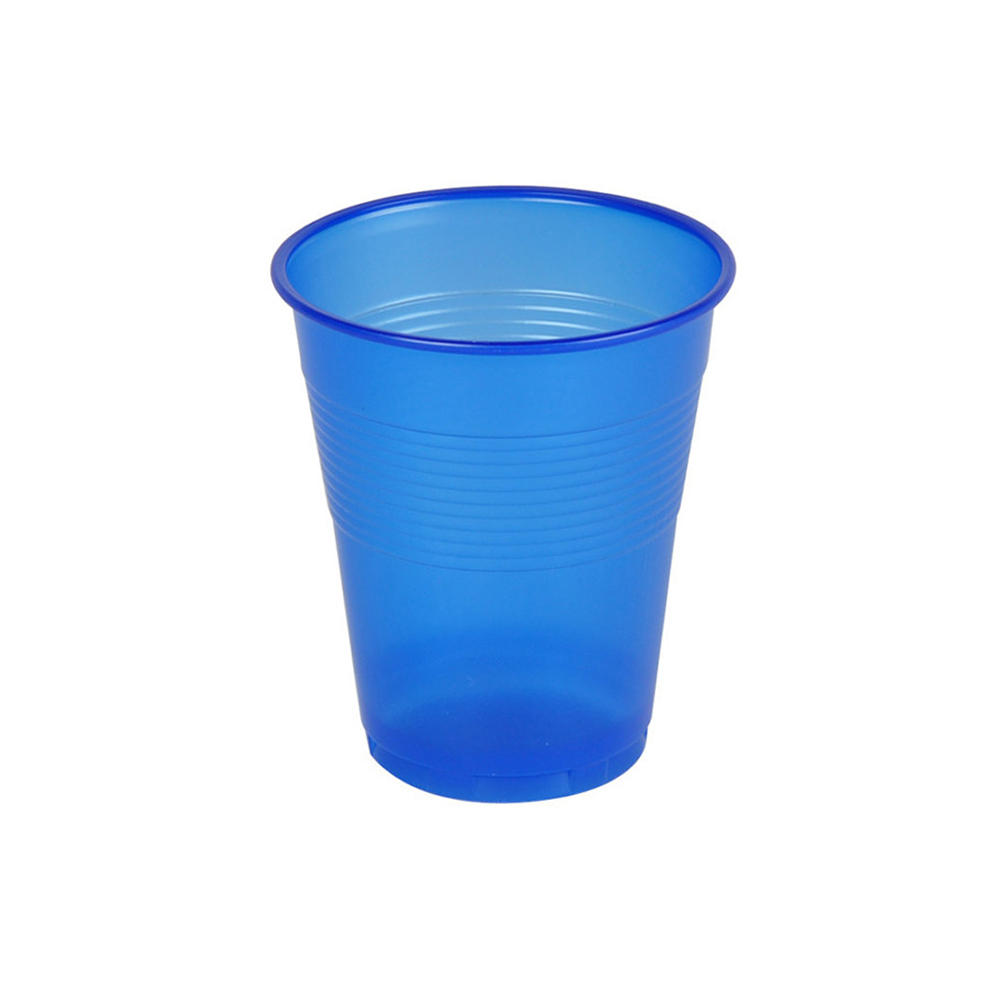

plastic cup

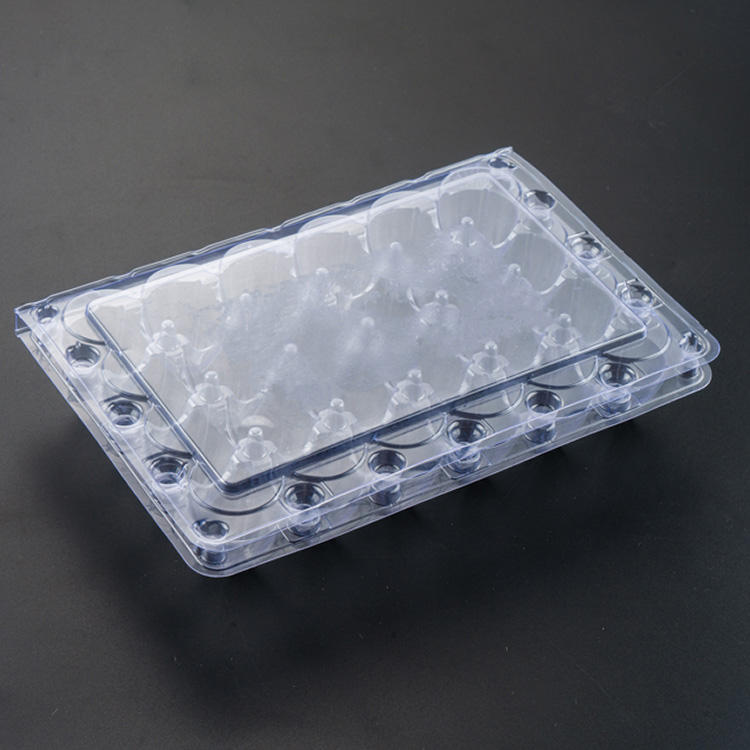

egg tray

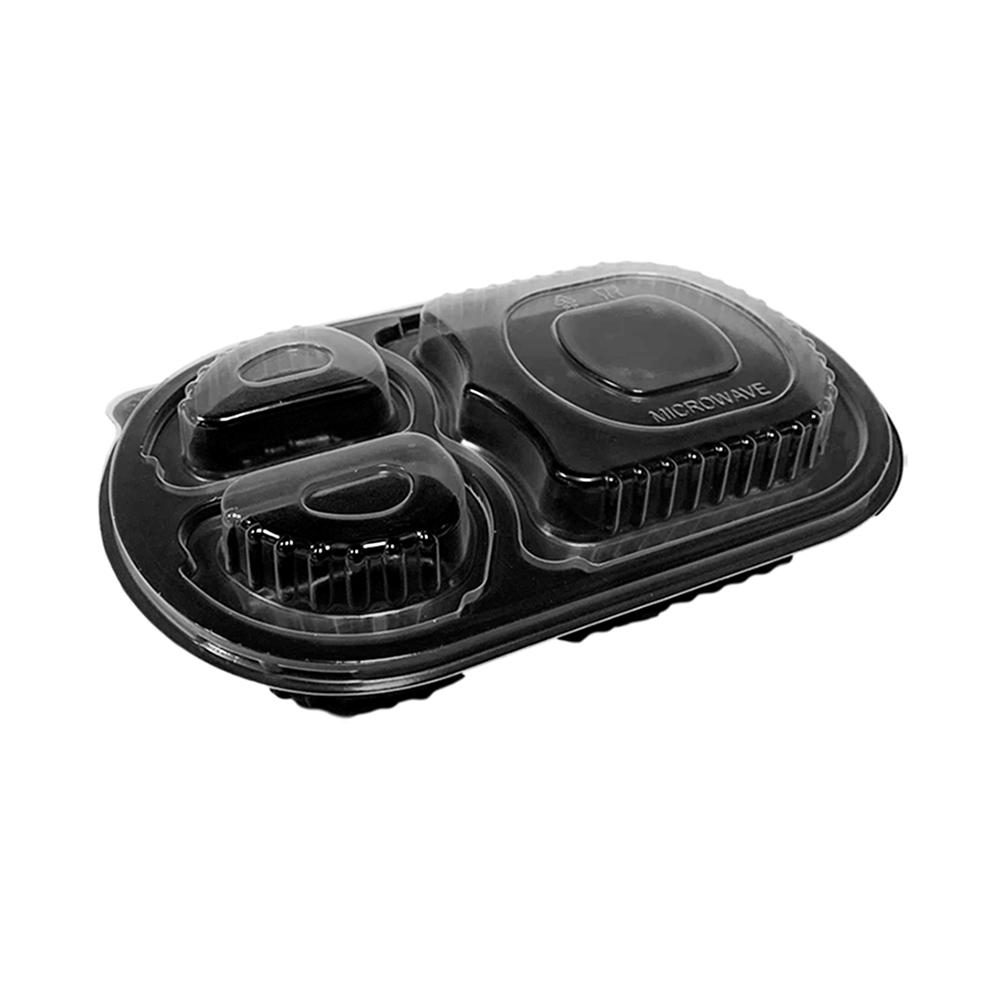

Disposable lunch box

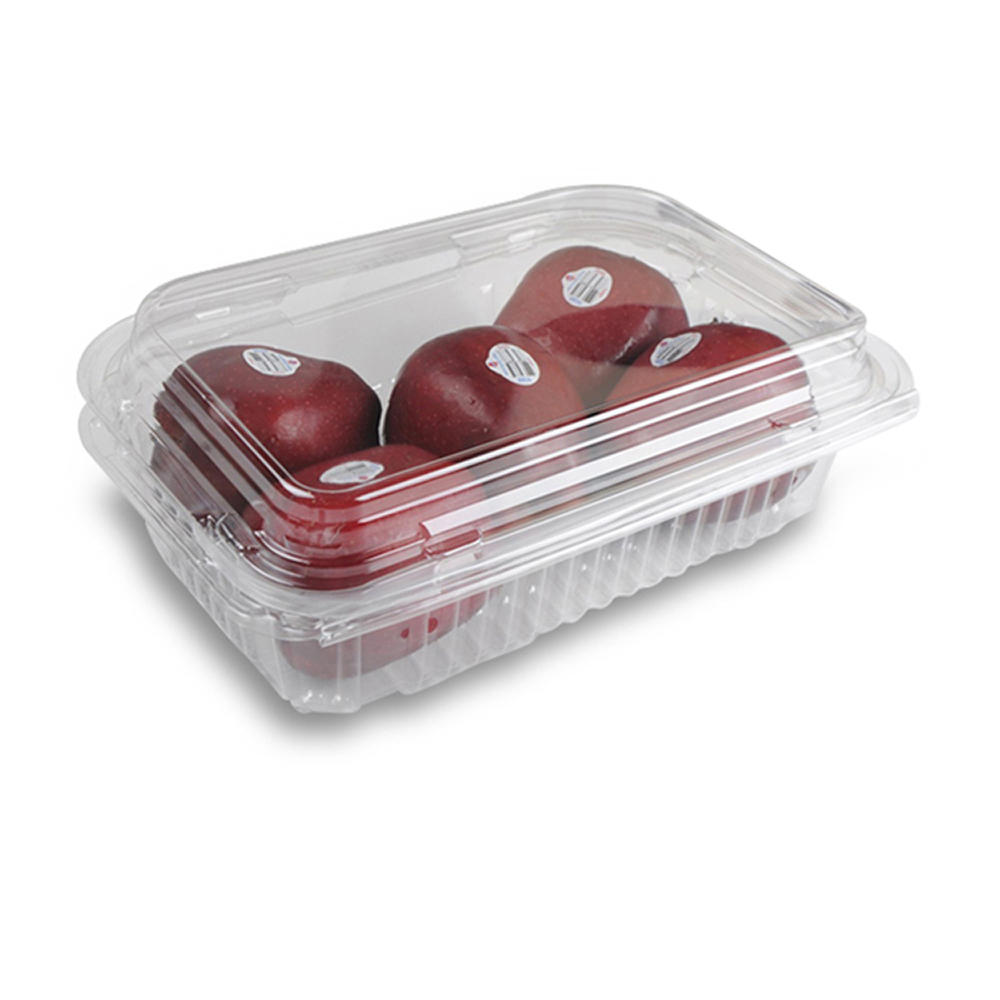

plastic fruit box

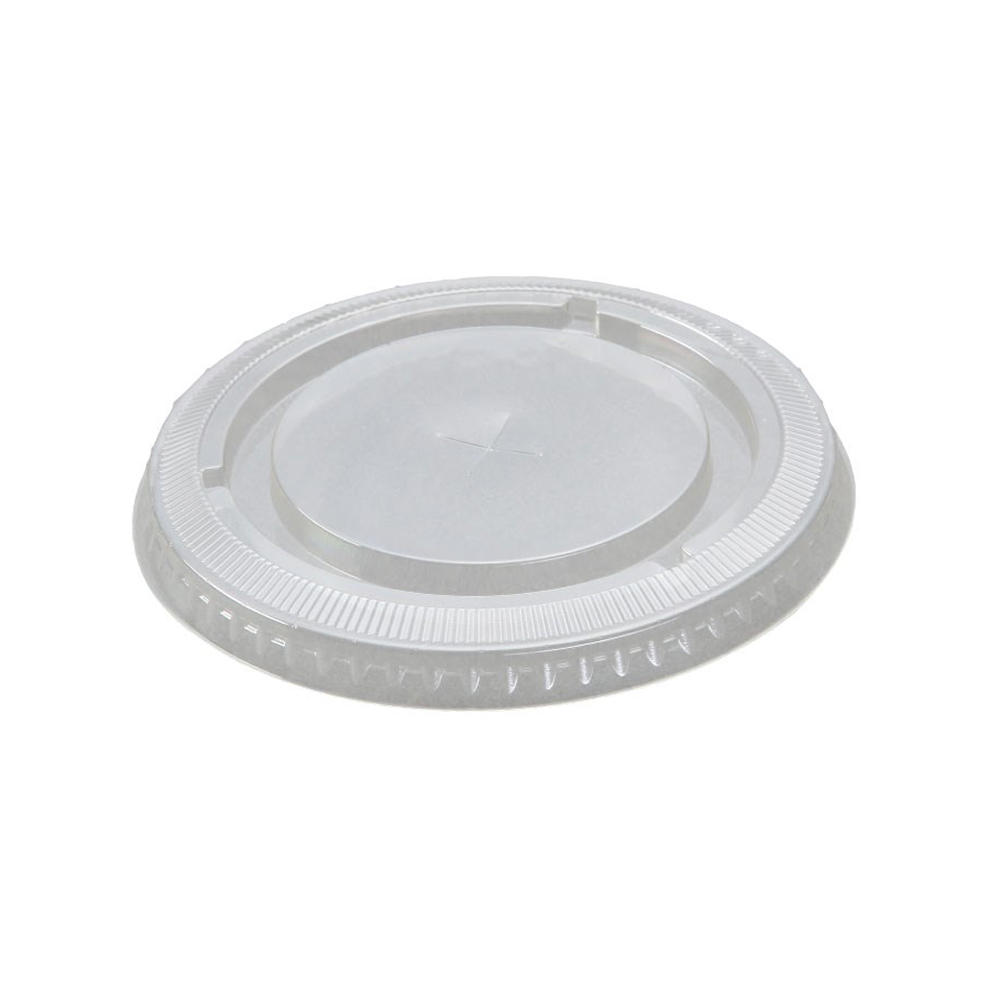

coffee cup lid

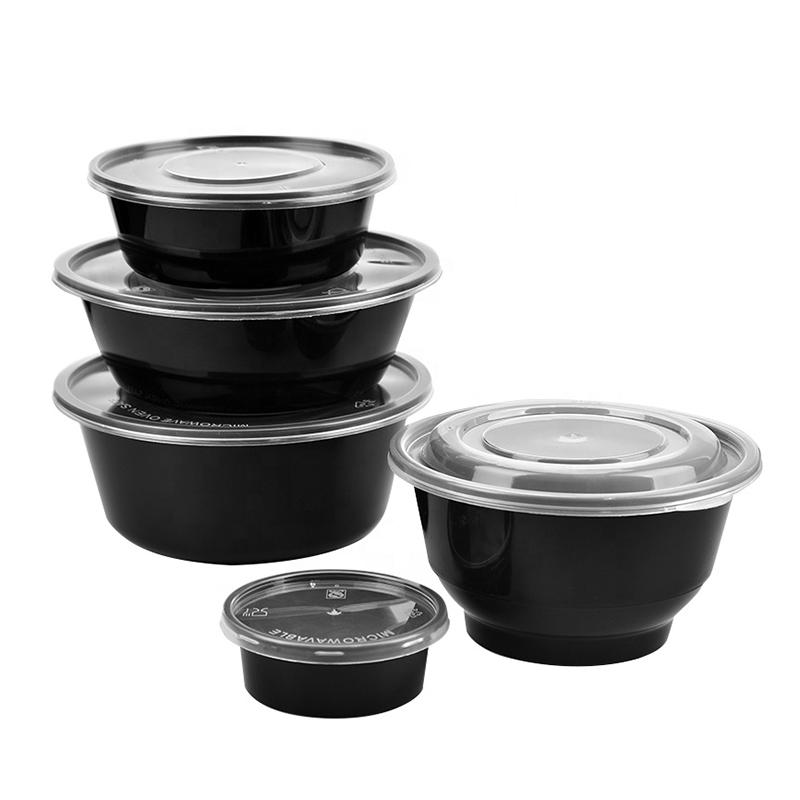

plastic bowl

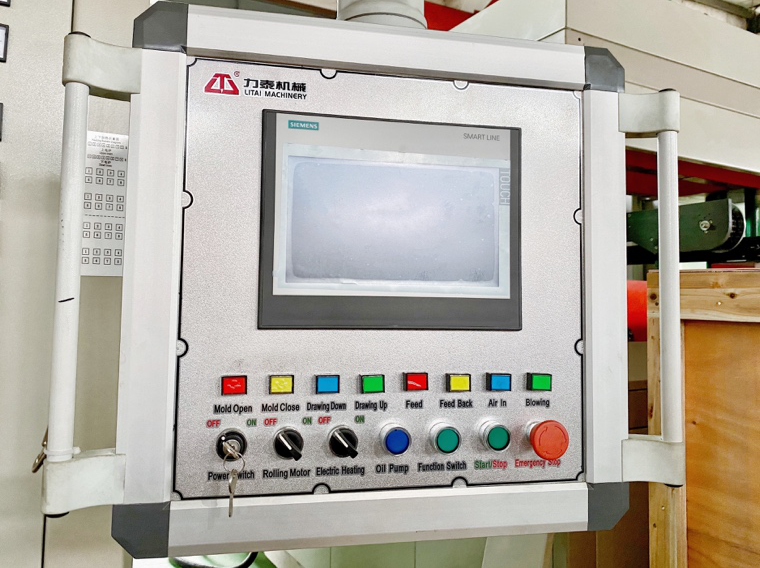

Touch screen: Delta

SIEMENS (Germany) industrial manual interface and PLC, high degree of automation, accurate control and easy operation. The file storage function simplifies the operation process.

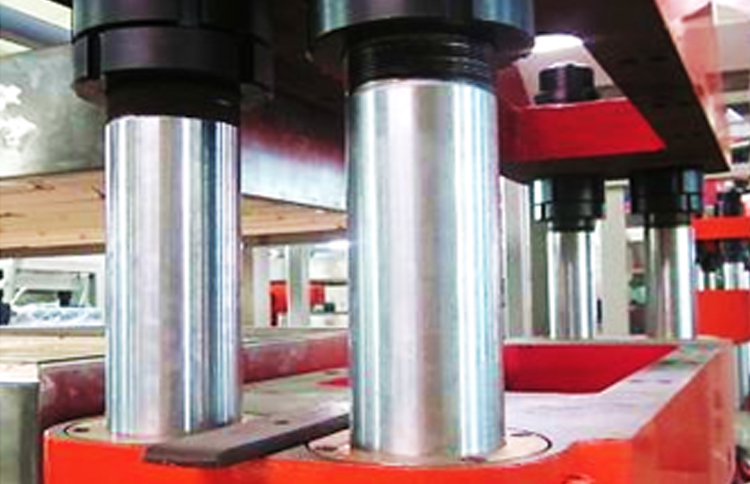

workstation

The workstation is driven by a stable four-guide column (GCr15 steel, hard chrome plated outside). Wear-resistant, prolong equipment life.

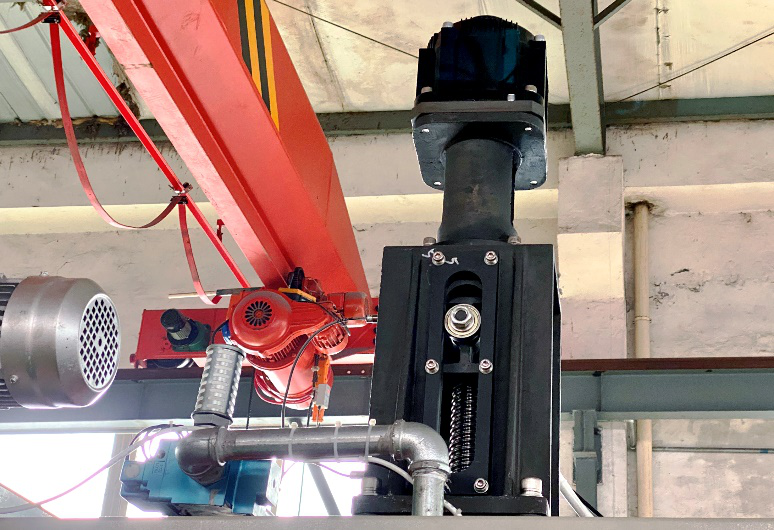

servo motor

YASKAWA (Japan) stretching servo motor controls the speed of the upper and lower die, so that the uniform strength can be maintained to ensure the uniform thickness of the bottom of each cup. Servo motors also precisely control paper feeding to avoid waste.

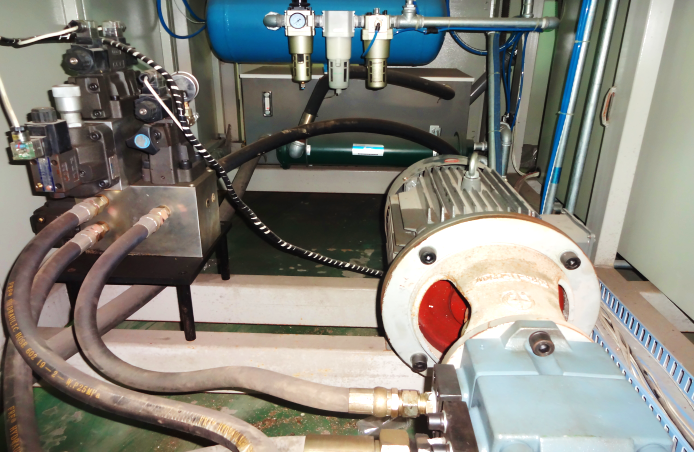

Hydraulic system

Hydraulic drive system can provide sufficient movement speed and strong punching force.

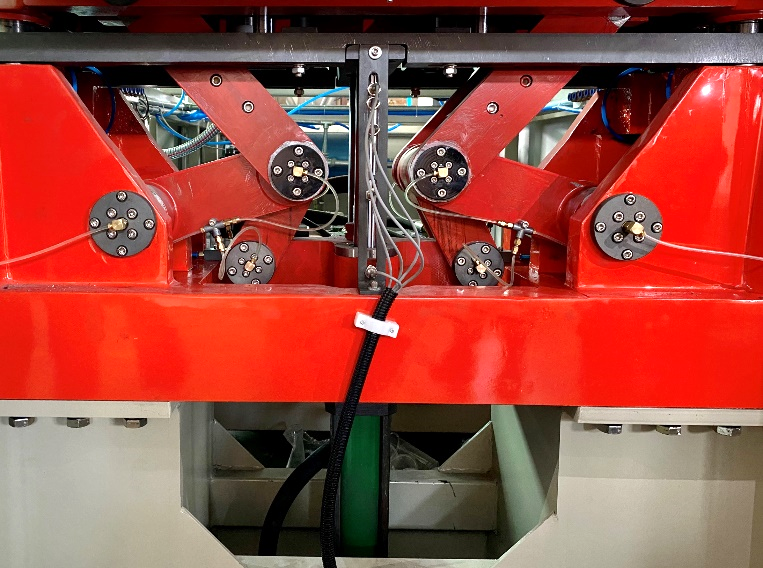

Hydraulic system

The whole machine is driven by hydraulic system, and the work is reliable and stable. Using ROCKWELL (USA) proximity switch, the mold positioning accuracy is excellent.

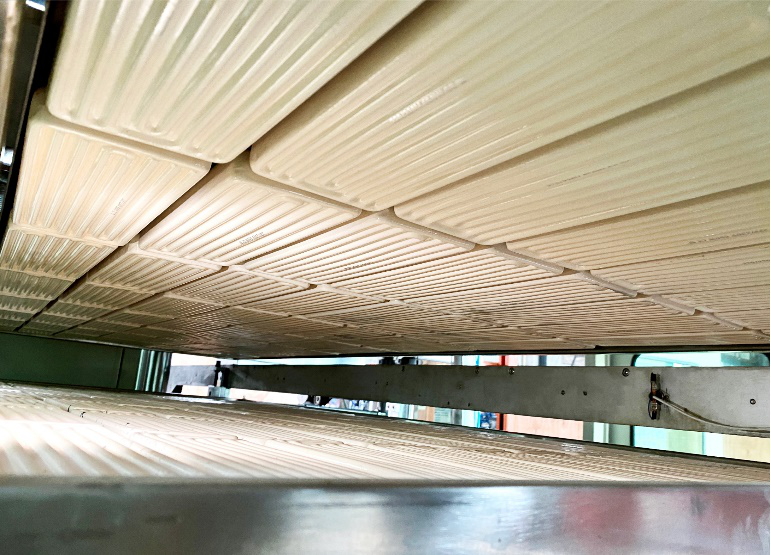

heater

Heater plus vacuum insulation cotton, fast response, short processing time and energy saving.

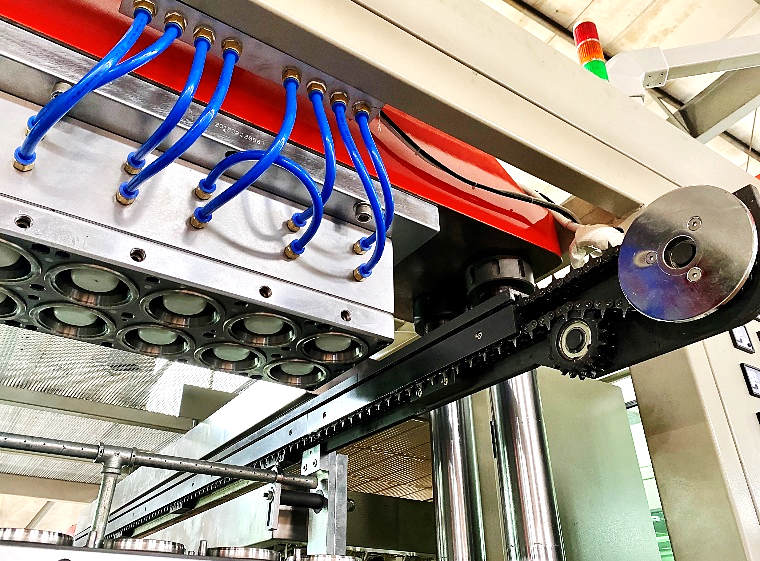

chain

Sharp chain adopts 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.

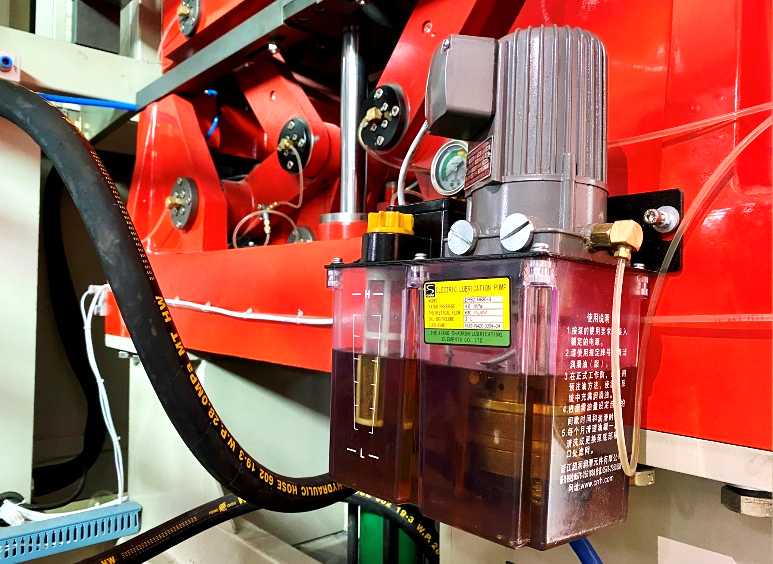

Electric lubricating oil pump

The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through computer control under the condition of unmanned control, so that the rotating parts of the machine can be properly and reasonably lubricated.

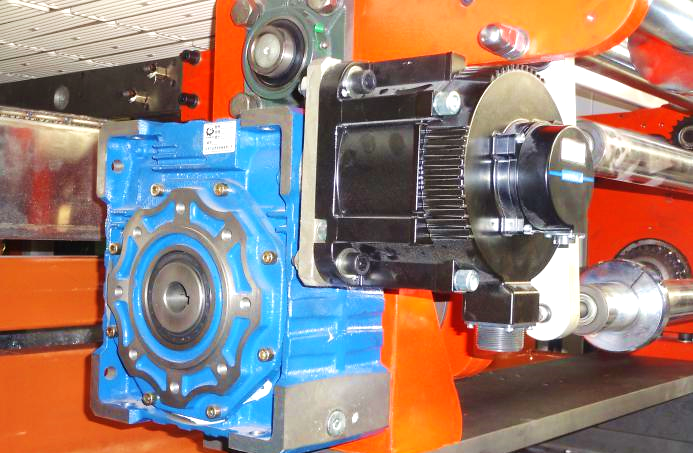

servo motor

The paper feeding servo motor adopts the Japanese YASKAWA brand with a rated power of 3kw, which ensures stable operation during the paper feeding process.

Machine Features

1. The automatic paper feeder adopts square steel structure, which has high wear resistance, is more stable and efficient, and can improve the dimensional accuracy of paper feeding.

2. The material rack is combined with the machine, controlled by the cylinder, and can move up and down. Easy to operate and save space.

3. The machine adopts PID temperature system, with high precision and temperature control tolerance <1℃

4. The movable mold device is convenient for loading and unloading the mold. The opening and closing speed is controlled by the machine balance valve, which reduces the vibration of the machine and has good stability, which is conducive to molding.

What are the features and advantages of our plastic thermoforming machines?

1. Full servo drive, no noise, no vibration, good thermoforming and fast speed.

2. The whole machine is compact in structure and occupies a small area.

3. It can adapt to a variety of materials, and the product is 8% thicker than ordinary machine products.

4. Furnace automatic unloading device, which can be lowered at any time during the production process, without breaking the board and without wasting materials.

5. The temperature control system of the electric furnace adopts intelligent automatic compensation control, one control and one control
One regulator control, easy to adjust the temperature evenly, easy to use, simple, fast heating, the oven up and down 3 times low temperature baking sheet.

6. The forming and slitting dies are driven by servo motors, the stroke of the upper and lower dies is adjustable in both directions, and the clamping direction of the upper dies is electrically adjustable. In the clamping state, the height of the upper and lower molds can be adjusted easily and quickly; the clamping direction of the lower mold is easy to approach the buffer, which improves the clamping speed and avoids vibration.

7. PLC automatic cutting, automatic counting and automatic transmission.

8. Save labor, only need 1-2 workers to pack.
