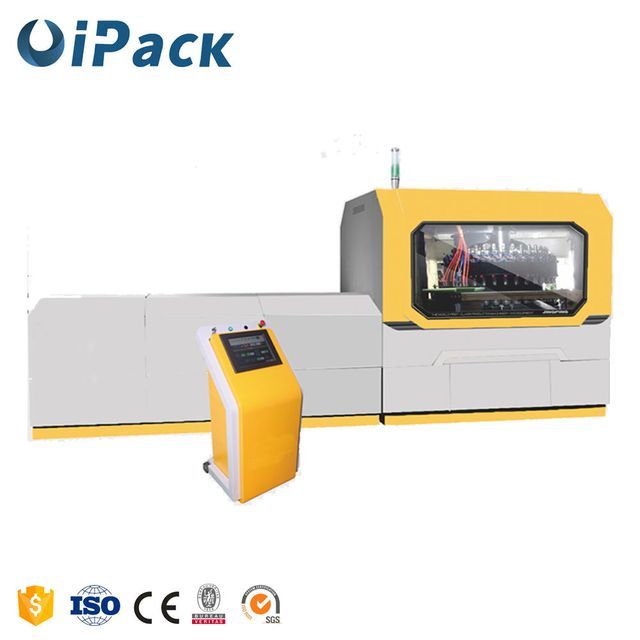

High speed plastic bottle cap molding machine

Supplier: Zhangjiagang Ipack Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr Mozzie Gu
Price: $80000.00 / 1 - 2 sets
$75000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Production speed (cycle/minute):	1000	Weight (ton):	5 tons
Core components:	PLC, motor, pressure vessel	usage:	Bottle cap press
Maximum molding height (mm):	35 mm	Heating power (kW):	50 kW
Video outbound inspection:	if	control:	PLC+touch screen+motor
application:	Polyester bottle	Packaging Details:	wooden box
Main selling points:	high productivity	Product Category:	plastic cap
brand:	ipac	Warranty:	1 year
Core component warranty:	1 year	Package preview:
Processing type:	Plastic thermoforming machine	port:	Shanghai/Ningbo
Air pressure (MPa):	0.8 MPa	Showroom location:	nigeria
Mechanical test report:	if	Production capacity:	16000-60000cph
Supply capacity:	10 sets per month	Cap material:	polyethylene/polypropylene
Cap Diameter:	15-60mm	Applicable industries:	Manufacturing plants, food and beverage factories, food stores, others
Forming width (mm):	60mm	Forming length (mm):	60mm
Voltage:	220V	Plastic Type:	polypropylene, polyester
Dimensions (LWH):	2.7m1.4m2m	Origin:	Jiangsu, China
Health status:	new	Air consumption (l/min):	5 l/min
Water consumption (l/min):	0 l/min	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

product description

Bottle cap molding machine

The bottle cap compression molding machine is used to plasticize plastic particles at high temperature to make bottle caps for carbonated beverages and mineral water. When the plastic comes out of the extruder, the blanking plate cuts it and puts it evenly into the molding chamber. The bottle caps produced by this machine do not need injection gates, and are of high quality and beautiful appearance.

After repeated experiments, we have successfully developed a hydraulic bottle cap molding machine, which is equipped with a hydraulic reciprocating transmission device, which makes the hydraulic transmission of the mold stable, low in noise and easy to operate. In addition, the machine has a complete computer automatic temperature control system and speed matching between extruder and molding machine. Mold temperature and material temperature can be adjusted
To achieve the best condition, to ensure the durability and stability of the equipment.

The machine is easy to operate and saves electricity, water, raw materials and labor. Compared with the traditional injection molding machine system with the same energy consumption, the output can be increased by three or four times. This machine not only does not produce waste runners, but also the cooling water and hydraulic oil of the mold are recycled, thus greatly reducing the system cost.

Successful research and development of bottle cap compression molding machine is making a breakthrough
and innovations in molding equipment.

product specification

Model	CM-18A	CM-24A	CM-24H	CM-36H
Capacity (cph)	16,000-21,000	20,000-28,000	35,000-45,000	45,000-60,000
Cap Diameter (mm)	15-60 years old
Cap height (mm)	10-35 days
Cap material	polyethylene/polypropylene
Number of cavities	18	twenty four	twenty four	36
Air consumption	0.3 cubic meters per hour, 0. 8 MPa	0.4 cubic meters per hour, 0.8Mpa	0.5 cubic meters per hour, 0.8Mpa	0.6 cubic meters per hour, 0.8Mpa
Dimensions (m)	2.7x1.4x2	3.8X1.6.X2.1	3.8X1.6X2.1	5.5X3.6X2.1
Weight (kg)	4,000	5,000	6,000	8,000
