PS foam bowl/food box/supermarket dish/plate/egg tray machine

Supplier: Longkou Haiyuan Plastic Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Zou
Price: $60.00 /set
Min. Order: 1 set

Click here to contact

Product details

Heating power (kW):	55 kW	Certification:	ce
Packaging Preview:		Production speed (cycles/min):	900
Voltage:	380v	Power (KW):	180kW
Product Category:	fast food box	Card:	Haiyuan
Sheet width:	640-1080mm Ps Foam Sheet Roll	Warranty:	1 year
Processing type:	Plastic Thermoforming Machine	Air consumption (L/min):	1L/min
Water consumption (L/min):	1L/min	Maximum forming height (mm):	100 mm
Forming speed:	3-4s/mold	Packaging Details:	1.PS foam bowl/food box/supermarket plate/plate/egg tray machine packing PE film 2.PS foam bowl/food box/supermarket plate/plate/egg tray making machine Qingdao Port 3.PS foam bowl/food box/supermarket The total weight of plate/dish/egg tray making machine is about 30 tons 4.PS foam bowl/food box/supermarket plate/dish/egg tray making machine whole line needs three 40'HQ loads
Local service location:	Egypt, Vietnam, Nigeria, Uzbekistan	Type of machine:	Foam heat press
Plate thickness (mm):	1 - 5 mm	Main selling point:	easy to operate
After-sales service provided:	Video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support	manufactures:	Foam pizza box, egg tray, foam bowl, supermarket dish, plate
Weight (tons):	10 tons	Partner:	Egypt, Russia, Germany, Uzbekistan, etc.
place of origin; place of origin:	Shandong China	Core components:	PLC, motor
Forming width (mm):	1100 mm	Air pressure (MPa):	0.9 MPa
Mechanical test report:	if	Dimensions (LWH):	2163
Function:	Disposable Foam Food Bowls, Supermarket Plates, Trays, Containers	Core Components Warranty:	1 year
Health status:	new	Plastic Type:	buttocks, PS
Marketing Type:	New Products 2020	Supply capacity:	50 sets of PS foam bowls / food boxes / supermarket dishes / plates / egg tray maki per year
Machine name:	PS Foam Bowl/Food Box/Plate/Egg Tray Maker	Forming length (mm):	1250 mm
port:	Qingdao	Applicable industries:	Hotels, food and beverage factories, restaurants, food stores, food and beverage stores, advertising agencies
product name:	Foam trays, plates, bowls, containers	Showroom location:	Egypt, Vietnam, Nigeria, Uzbekistan
capacity:	500,000 supermarket dishes	payment terms:	L/C,T/T,Western Union
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Video external inspection:	if
brand:	Haiyuan

PS foam bowl/food box/supermarket dish/plate/egg tray machine

Product Description

Longkou Haiyuan Plastic Machinery Co., Ltd. specializes in the production of ps foam thermoforming machinery, including:

1.PS foam insulation tray/plate/dish player

2.PS foaming food box machine

3.PS bowl machine

4.PS foam container making machine

5.PS Foam Suction Tray/Disc/Disc Player

6.PS foam egg tray, wine tray making machine

7.PS foam box machine

8.PS foam ceiling machine

9. PS foam sheet extrusion line

Detailed introduction

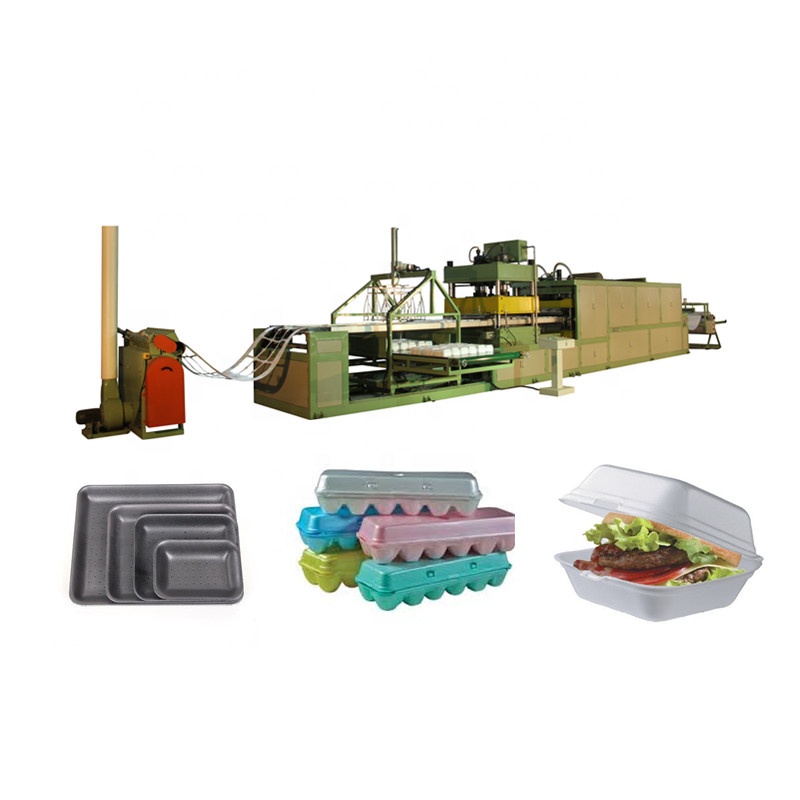

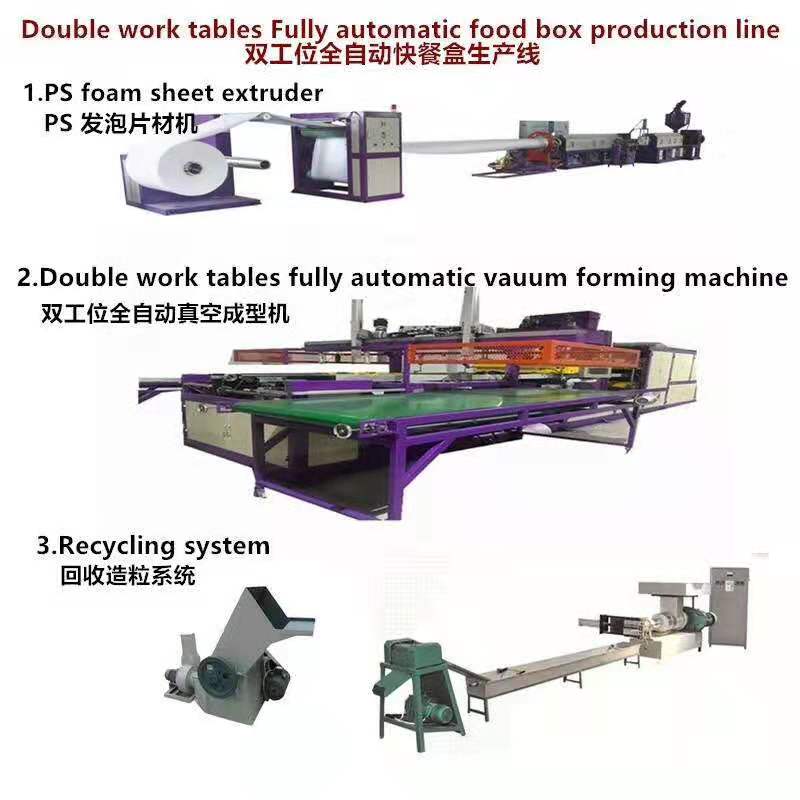

PS Foam Bowl/Food Box/Supermarket Dish/Plate/Egg Tray Maker includes 3 parts:

1. PS foam sheet extrusion line

2. Fully automatic vacuum forming machine

3 Crusher and Recycler

1. PS foam sheet extrusion line

There are two hot-selling models of extruders in our factory, they are: HY-75/90 and HY-105/120

PS foam sheet extrusion production line technical process:

1. Material mixing --- 2. Material entering extruder 1 (foaming agent) --- 3. Mesh exchanger (filtering) --- 4. Material entering extruder 2 --- 5. From die head Extruded sheet -- -- 6. Cooling and shaping -- 7. Traction -- 8. Winding -- 9. Finished product -- 10. Package

The raw material is ordinary polystyrene particles. During the extrusion process, a foaming agent is injected under high pressure, and after extrusion, foam cooling, molding and traction, it is rolled into a finished PS foam sheet. After the vacuum forming system, the finished PS foam sheet can be made into various packaging containers. Such as ps foam insulation boards, trays, plates, boxes, containers, bowls, suction trays, plates, plates, foam ceilings, etc.

scope

parameter	unit	HY-75/90	HY-105/120
capacity	kg/hour	80-100	200-240
Sheet thickness	mm	1-4
Sheet width	mm	640-1080
Foaming rate		10-22
cooling method		feng shui cooling
cutting method		single
Butane gas pressure	MPa	0.9-1.2
Installed power	kilowatt	150	180
Installation size	Meter	2463	3063
power supply		380v50hz 220v60hz

2. Fully automatic vacuum forming machine

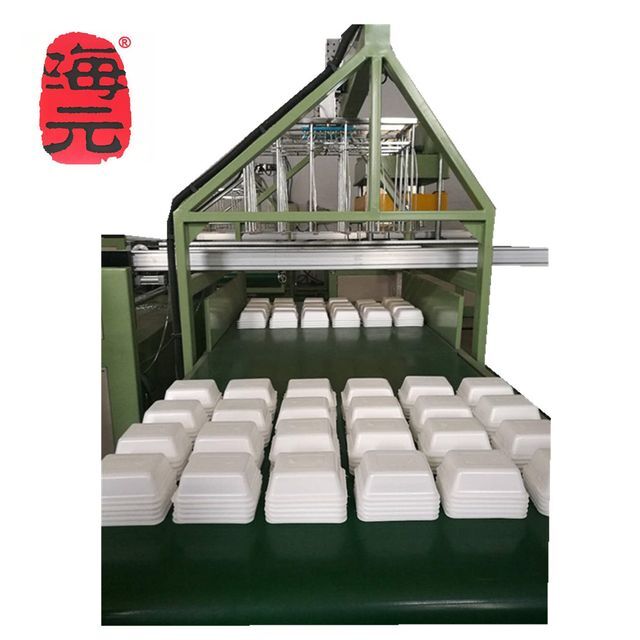

PS foaming bowl/food box/supermarket vegetable/plate/egg tray machine is integrated, cutting and stacking into one. Using PLC controller and touch screen to control the working programmer. Simple operation and high degree of automation.

Our PS foam bowl/food box/supermarket plate/plate/egg tray making machine can produce containers of different shapes by changing the mould.

Such as: ps foam insulation trays, plates, supermarket plates, pizza boxes, hamburger boxes, bowls, foam absorbent trays, plates, plates, ps foam ceilings, egg trays, wine trays, etc.

scope:

scope	unit	HY-1100	HY-1250	HY-1400
forming area	mm	1100*1100	1100*1250	1100*1400
cut-off height	mm	160
Productivity	sec/mod	3-6
Installation size	Meter	1963	2163	2463
Installed power	kilowatt	160	180	200
power supply		380V50HZ 220V60HZ

3. Recycling machine

The recycling machine is mainly used to recycle ps foamed polystyrene products. It is an ideal equipment for recycling waste materials. The device has a compact structure and is easy to operate. The waste can be directly granulated without crushing. At present, the material is circulated to reduce waste. Ideal energy-saving equipment.

scope:

scope	HY-125
Screw diameter	125mm
Installed power	30kW
aspect	832mm
weight	1.5 tons
power supply	380v50hz 220v60hz

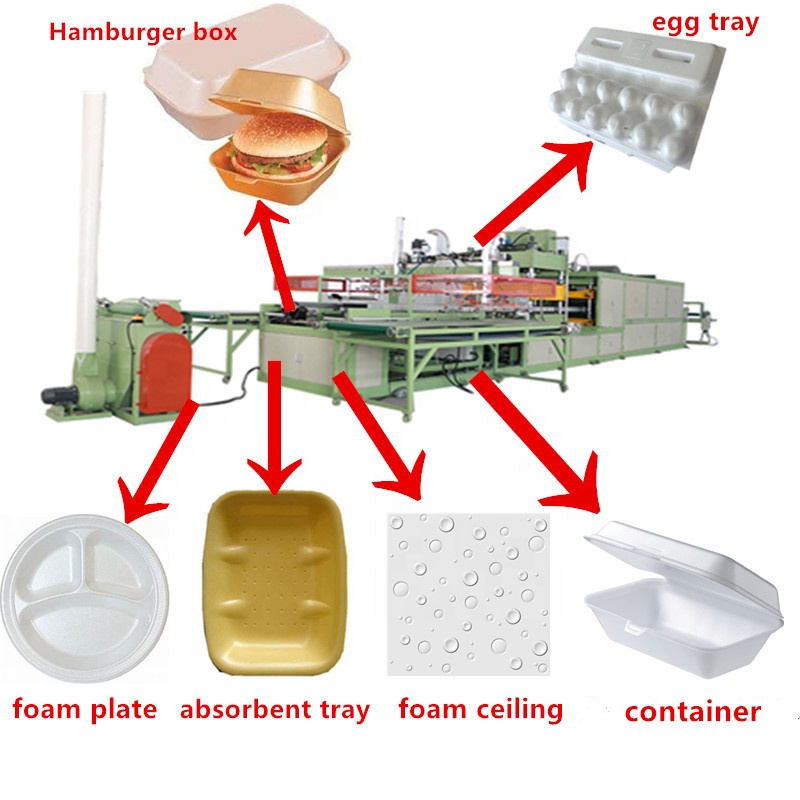

4. Machine products:

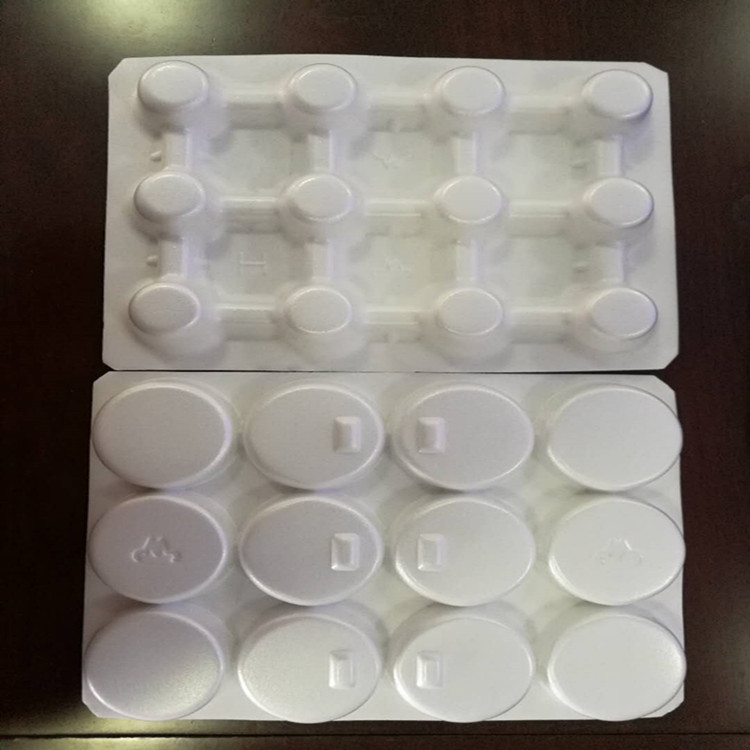

PS foam thermocol plate, tray, plate, container, pizza box, burger box, bowl, ps suction plate, egg plate, wine plate, foam ceiling supermarket plate, supermarket tray, etc.
