PS Expanded Styrofoam Pan Container Pan Tray Food Box Small Production Machine, Ellie Whats 008613780912769

Supplier: Longkou Haiyuan Plastic Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Zou
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Main selling point:	High capacity
Sheet Thickness:	0.8--5mm	automatic:	Yes
Warranty:	1 year, 1 year	Showroom location:	Egypt
Health status:	new	brand:	Haiyuan
Weight (tons):	18 tons	Dimensions (LWH):	25x6x3m
usage:	Making sheets and food containers/food boxes/suction trays	Core Components Warranty:	1 year
Maximum forming height (mm):	100 mm	Video external inspection:	if
The whole line includes three machines:	Sheet extruder + forming machine + recycling machine	Applicable industries:	Manufacturing plants, food and beverage plants, small machines for PS foam food containers
Raw materials:	GPPS HIPS talc	Mechanical test report:	if
Supply capacity:	100 sets/year small foam plastic tray container board production machines	power supply:	380v50Hz
Contact Ellie on WeChat/Whats:	008613780912769	Name:	PS foam plastic food container dish tray small machine
Packaging Details:	Standard Packaging for Export Small Production Machine, Styrofoam Pan Container Pan Tray Food Box for PS Extension, Ellie Whats 008613780912769 PE Film Packaging for Small Production Machine, Styrofoam Pan Container Pan Tray Food Box for PS Extension , Ellie Whats 008613780912769	Product Category:	Plastic plate and cup making machine
Key words:	PS Foam Food Container Dish Tray Box Making Machine	Packaging Preview:
Forming length (mm):	1400 mm	Voltage:	custom made
Forming Machine:	Fully automatic robotic arm	Production speed (times/hour):	1200
port:	Qingdao	Plastic Type:	postscript
Forming machine efficiency:	3-4 seconds/mold	place of origin; place of origin:	Shandong China
Heating power (kW):	55 kW	Marketing Type:	New Products 2020
Forming width (mm):	1100 mm	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
type:	Vacuum forming machine

PS Expanded Styrofoam Pan Container Pan Tray Food Box Small Production Machine, Ellie Whats 008613780912769

Product Description

If you require ROI and factory setting design CAD drawings please send hello to Ellie's WhatsApp 008613780912769

The entire complete production line includes:

* PS foam sheet extruder + * vacuum forming machine + * recycling machine

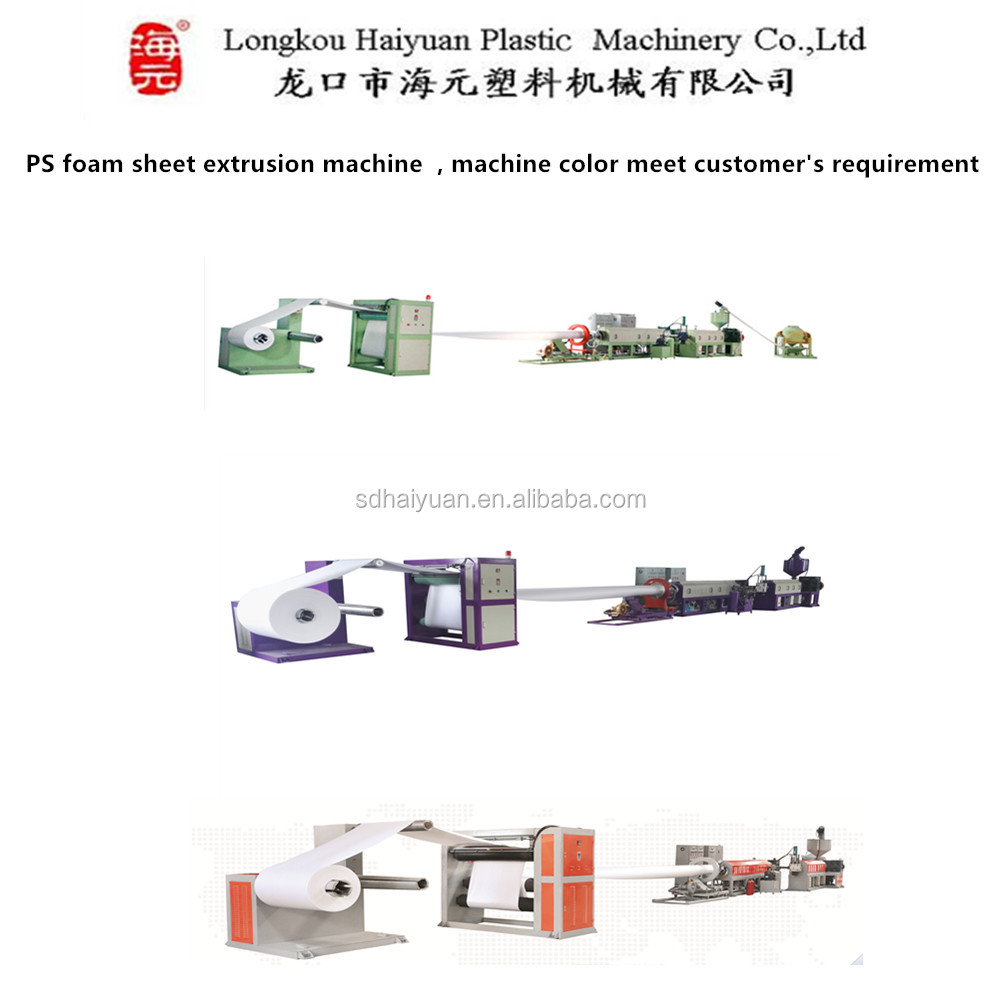

1. PS foam sheet extrusion line:

PS foam sheet machine adopts gentian type double-stage series high foaming technology. The raw material is ordinary polystyrene particles. During extrusion, the blowing agent is injected under high pressure. After extrusion, foam cooling, shaping and traction, it is rolled into a finished PS foam sheet. After the vacuum forming system, the finished PS foam sheet can be made into various packaging containers such as fast food boxes, aquatic trays, supermarket trays, cake trays, KT boards, instant noodle bowls, foam trays, etc. Widely used in the packaging of food, fruit advertising, industrial products, etc. This equipment adopts high-speed non-stop hydraulic filter changer and PLC controller.

1. Parameters of PS foam sheet extruder		kg/hour	HY-75/90	HY-105/120	HY-110/130	HY-135/150
capacity	kg/hour	80-100	200-240	230-260	280-360
Sheet thickness	mm	1-4	1-4	1.5-5	2-5
Sheet width	mm	640-1080			800-1080	900-1080
Foaming rate	/	10-22
cooling method	water-cooled and air-cooled
Butane gas pressure	MPa	0.9-1.2
Installed power	kilowatt	160	200	260	320
Installation size	Meter	24x6x3	30x6x3	32x6x3	35x8x3
power supply	Three-phase 380V 50Hz / 220V 60Hz / can be customized

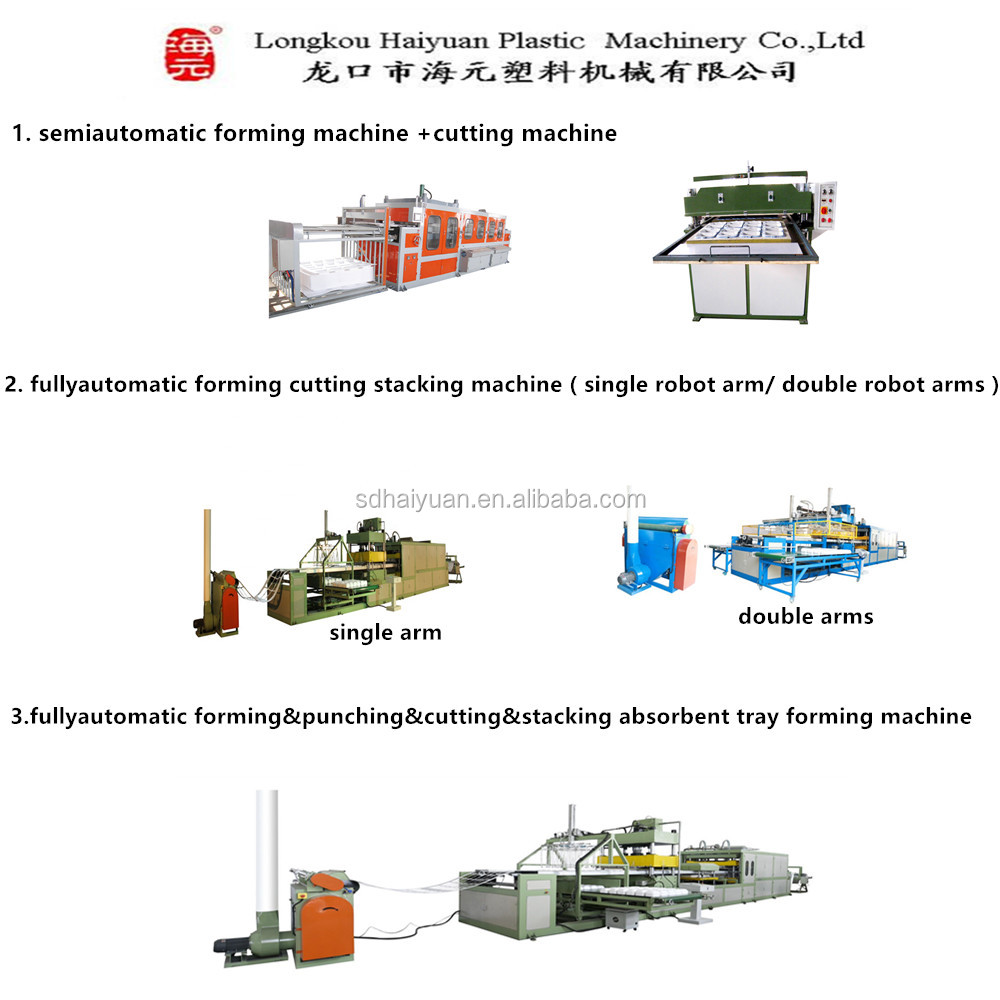

2. Vacuum forming machine:

PS fast food box vacuum forming machine is an all-round thermoforming machine integrating vacuum forming, stamping forming and comprehensive forming. Can be used to process a variety of plastic sheets. The machine adopts digital system, automatic PLC mechatronics control, touch screen control working procedure, simple operation and high efficiency. It has the characteristics of reliable stability, large molding area, fast speed, high degree of automation, and labor economy.

2. Parameters of vacuum forming machine			HY-1100x1100	HY-1100x1250	HY-1100x1400
forming area	mm	1100x1100	1100x1250	1100x1400
cut-off height	mm	160	160	160
Productivity	sec/dead	3-4
Installation size	Meter	19x6x3	21x6x3	24x6x3
Installed power	kilowatt	150	160	180
power supply	Three-phase 380V 50Hz / 220V 60Hz / can be customized

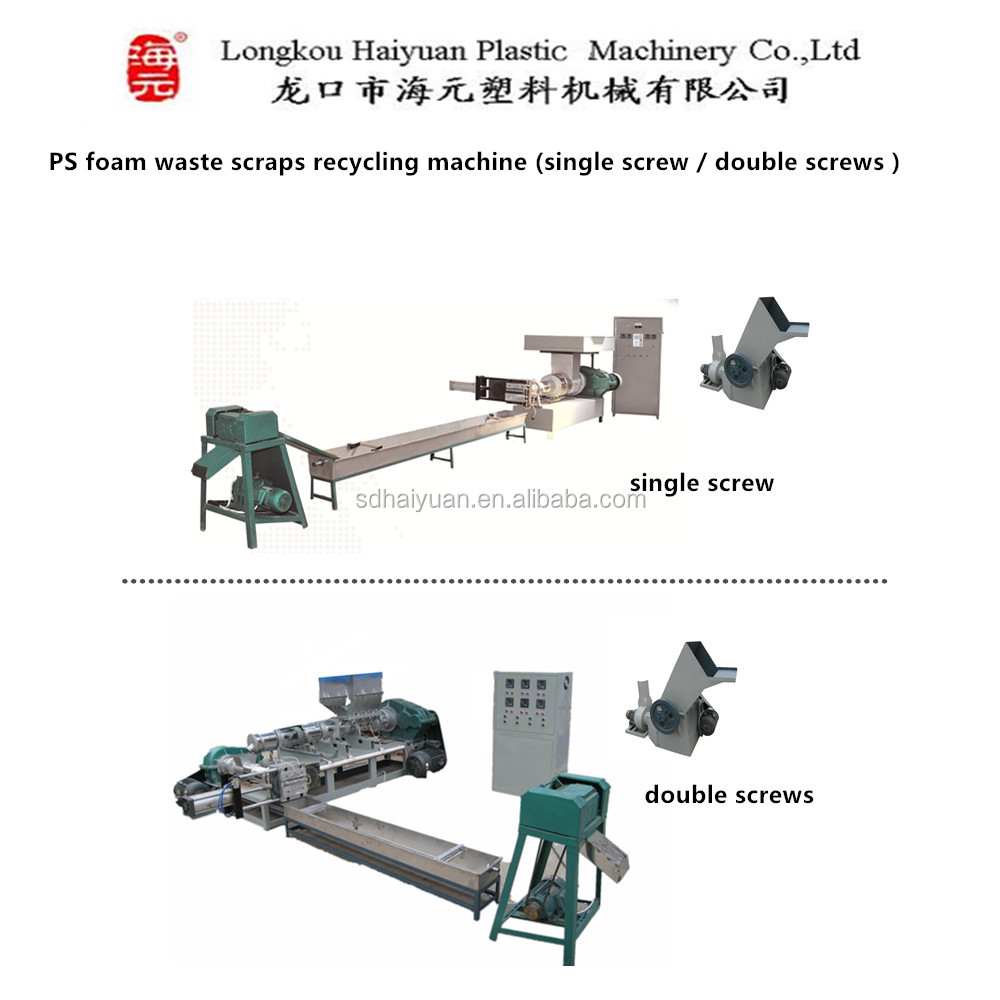

3. Recycling machine

This machine is mainly used to recycle high-foamed polystyrene and high-foamed polyethylene products. It is an ideal equipment for recycling waste. The device has a compact structure and is easy to operate. High-foaming plastics can be directly granulated without crushing. Is the ideal energy-saving equipment.

3. Parameters of recycling machine	ModelHY-125
Screw diameter	125mm
Installed power	30KW
Installation size	8x3x2m
weight	1.5 tons
power supply	Three-phase 380V 50Hz / 220V 60Hz / can be customized

#New Arrival#

PS Foam Absorbent Tray Making Machine

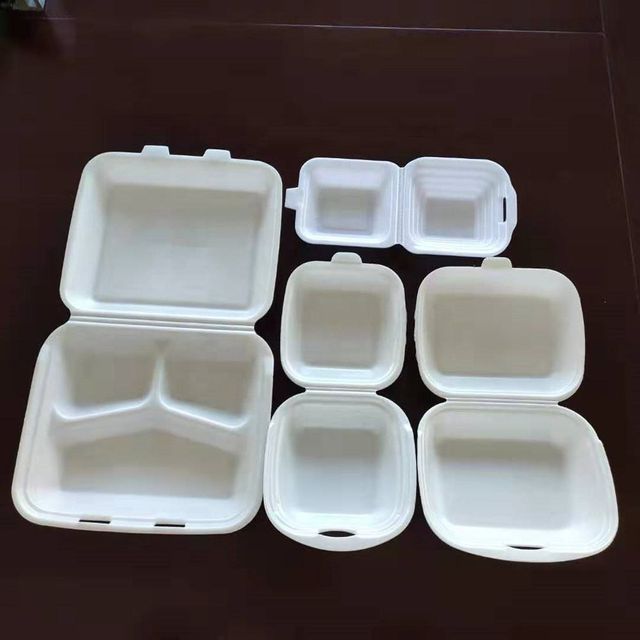

This machine can produce ordinary PS foam disposable food boxes/plates/bowls/dishes/egg trays/wine trays/false ceilings/food containers; it can also produce PS foam absorbent meat trays, the perforated absorbent trays can quickly absorb fresh meat or Chicken blood.
