Machine Melamine Cutlery Set Cutlery Machine blow molding

Product details
Package dimensions:2500*1550*2750 mmPlastic Type:Acrylic
Processing type:Plastic thermoforming machineAfter warranty service:online support
Marketing Type:normal productForming width (mm):800 mm
Water consumption (l/min):0.01 l/minMain selling points:high productivity
table size:800L * 700W mmCore components:PLC, motor, pressure vessel, water pump
Raw materials:Stainless steelbrand:JDMJ
place of origin; place of origin:Fujian ChinaHealth status:new
color:light greenWarranty:1 year
After-sales service provided:Video Technical SupportCore components:Hydraulic components, castings, computer control
payment terms:wire transferHeating power (kW):0.15 kW
Name:Melamine Tableware Forming MachineMaximum molding height (mm):400 mm
application:Making Melamine Tablewareport:Yiwu Port, Xiamen Port
delivery time:1~5PCS, 15 days/ 5~10PCS, 25 days/10PCS, 1 month/Packaging Details:Screw lock or wooden case packing melamine tableware machine tableware set blow molding machine
Total power:22.5 kWLocal service location:not any
Weight (ton):5.8 tonsApplicable industries:Melamine tableware factory
Dimensions (L*W*H):2400*1500*2700mmMotor Power:7.5 kW
Air pressure (MPa):180 MPaAir consumption(L/min):0.01 l/min
Mechanical test report:ifShowroom location:not any
Forming length (mm):700mmVideo shipment inspection:if
Core component warranty:1 year
Product Description

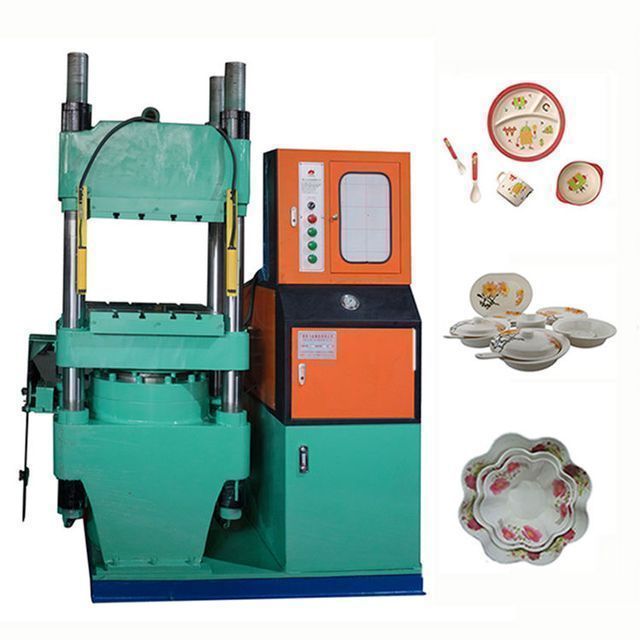

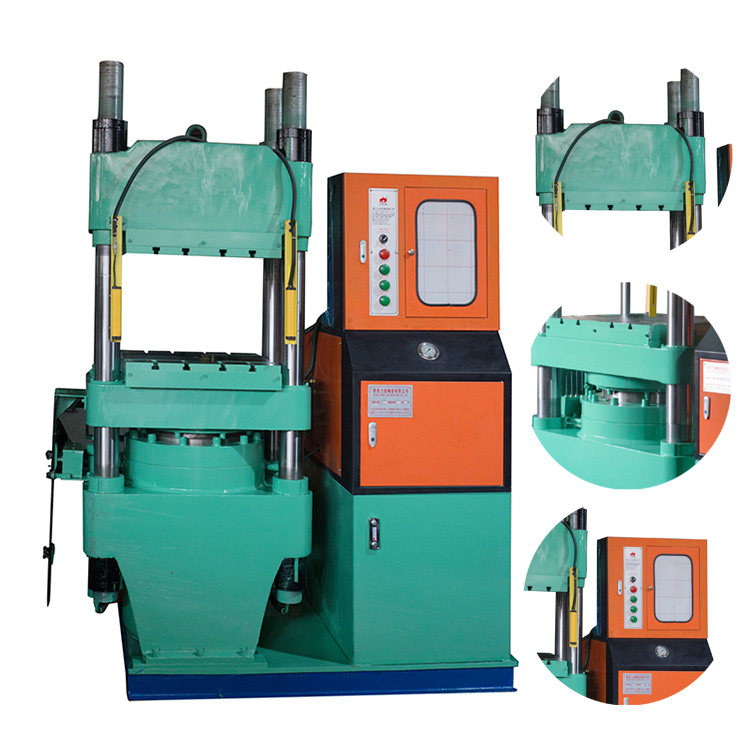

Melamine Tableware Machine Tableware Set Blow Molding Machine



feature:1. The electric control adopts imported computer, which has the characteristics of fast action, quietness and stable operation, and has a high-performance control system. 2. Ventilation times, degassing time, molding time, initial pressure time, decompression time, finished product count can be set freely on the computer panel. Easy to operate and adjust, precise and easy to manage. 3. Emergency stop setting to protect the safety of staff and products. 4. Fixed pressure test, easy to operate and check. 5. The pressure system adopts famous brand products. Designed to achieve high speed and energy saving

main products: Imitation tableware, ashtrays, daily necessities, handicrafts, toys and other hundreds of product series. It is suitable for molding processing of melamine, fiber bakelite, etc.

project unit Model
200 tons 250 tons 300 tons 400 tons

clamping force

Ton 200 250 300 400

Piston diameter

mm 360 420 480 560
table size mm 600*600

700*600

800*700 900*800
Forming width mm 600 600 800 900

Maximum Forming Height

mm 400 400 400 400

Forming length

mm 600 700 700 800

air pressure

MPa

180 180 180 180

pump pressure

kg/cm²

210 210 210 210

Fuel tank capacity

Kilogram 210 240 340 510

Motor Power

Horsepower (kW)

5.5 5.5 7.5 11

heating power

kilowatt 12 14 18 twenty two

total power

kilowatt 14.5 15.5 22.5 25.5

Machine size

(length*width*height)

Meter

2.15*1.5*

2.7





2.15*1.5*

2.7

2.4*1.5*2.7

2.4*1.5*

2.7

weight Ton 4.5 4.5 5.8 8

Package dimensions

Meter

2.2*1.55*

2.75

2.2*1.55*

2.75



2.5*1.55*2.75

2.5*1.55*

2.75
