Transparent Disposable plastic cup box Glass Making Machinery Price

Supplier: Ruian City Litai Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr litai jia
Price: $38000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Packaging Detail:	automatic plastic cup thermoforming machine will be packed in wooden case with export standard.;
Finished Products:	Plastic Cup Machine;	Production Speed(Cycles/min):	35;
Max.Forming Height(mm):	125;	Max. Forming Area:	650x320mm;
Machine Name:	Transparent Disposable Glass Making Machinery Price;	Suitable Sheet:	PP/PS/HIPS/PET/PVC etc.;
Air Pressure(MPa):	0.8;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops;
Water Comsumption(L/min):	8.4;	Weight (T):	5;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Payment Terms:	L/C,Western Union,T/T;
Package Preview:	;	Brand Name:	Litai;
Condition:	New;	Heating Power (kW):	65;
Supply Ability:	20 Set/Sets per Month;	Application:	Making plastic disposable cups/plates/bowls/containers/lids etc.;
Key Selling Points:	Famous brand PLC;	Video outgoing-inspection:	Provided;
Certification:	ce;	Local Service Location:	Egypt,Turkey,Saudi Arabia,Pakistan,Malaysia,Australia;
Port:	Ningbo Port (or as customer's requirement);	Processing Type:	Plastic Thermoforming Machine,Plastic Thermoforming Machine;
Forming Length (mm):	320;	Forming Principle:	Positive pressure forming;
Sheet Thickness(mm):	0.3 - 1.8 mm;	Sheet Feeding:	Servo Motor;
Forming Width (mm):	650;	Voltage:	380V/50Hz;
Core Components:	PLC,Gearbox,Motor;	Plastic Type:	PVC,PS,PP,PET;
Warranty:	1 Year;	Power(KW):	98;
Controlled:	PLC & Touch Screen;	Marketing Type:	New Product 2020;
Air Comsumption(L/min):	2000;	Dimension(LWH):	7000x2000x3100mm;
Machinery Test Report:	Provided;	Product Type:	Plastic Cup;
Warranty of core components:	1 Year;	Showroom Location:	Mexico,Algeria,Malaysia,Australia;
keyword:	disposable plastic glass cup making machine;

Product Paramenters

Model	TQC-650B
Max. Forming Area	650*300mm
Max. Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Sheet Width	650mm
Max. Forming Speed	35 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Used Power	69Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2200H2700mm
Weight	About 5T

MACHINE MAIN PARTS
Touch Screen/PLC	SIEMENS (Germany)
Servo Motor	YASKAWA (Japan)
AC Contactor/Circuit Breaker	SCHNEIDER (France)
Proximity Switch	ROCKWELL (USA)
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve	YUKEN (Taiwan)
Intermediate relay	IDEC (Japan)
Intermediate relay base	OMRON (Japan)
Forming Valve	CKD (Japan)
Solenoid Valve	SMC (Japan) / Mindman (Taiwan)

Product display

APPLICATION

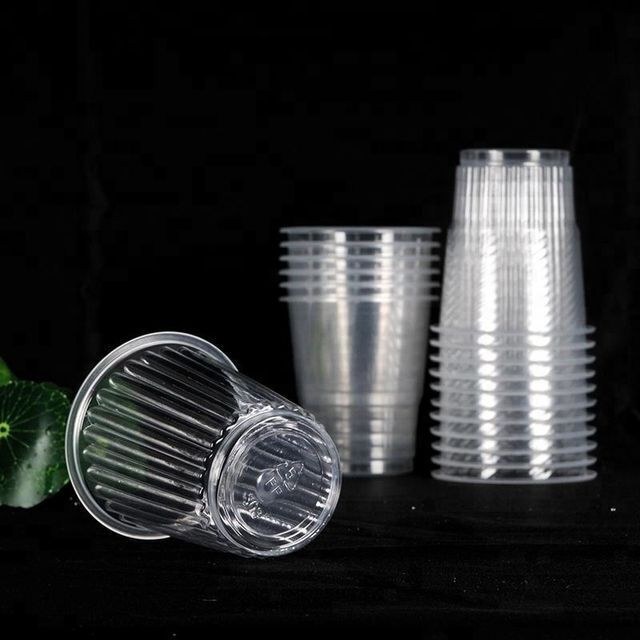

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.

Product process

SUMMARY OF MACHINE

1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.

2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.

3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃.

4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine’s counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
