Automatic pp ps plastic sheet extruder production machine
- 10000.00 set
| Warranty: | 1 year | Health status: | new |
| Applicable industries: | manufacturing plant | Screw speed (rpm): | 8000 rpm |
| Raw materials: | Polypropylene, polystyrene, polyethylene | Mechanical test report: | if |
| Screw Design: | single screw | place of origin; place of origin: | Zhejiang, China |

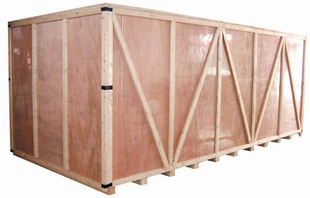

| payment terms: | letter of credit, wire transfer | Packaging Details: | Wooden packing |
| weight: | 4.5/5.5/7T | Screw diameter (mm): | 110 mm |
| Dimensions (L*W*H): | 11.5*2.0*2.0/12*2.4*2.0/13*2.8*2.0 | Plastic Processing: | PE,PP,PE/PP |
| Screw material: | 38CrMoALA | Marketing Type: | normal product |
| After-sales service provided: | Engineers can repair machinery overseas, video technical support | Voltage: | 380V 50HZ |
| Video external inspection: | if | port: | Ningbo or Shanghai |
| Certification: | CE certificate | Main selling point: | automatic |
| brand: | Junda | Core components: | other |
| Packaging Preview: | Supply capacity: | 5 sets per month | |
| application: | sheet | Power (kW): | 80 |
| Core Components Warranty: | 1 year | Auto grade: | automatic |
| After Warranty Service: | Video technical support | Showroom location: | not any |
| Name: | PP PE plastic sheet extruder | Local service location: | not any |
| Screw aspect ratio: | 1:32 | usage: | merchandise, beverages. food, packaging. |

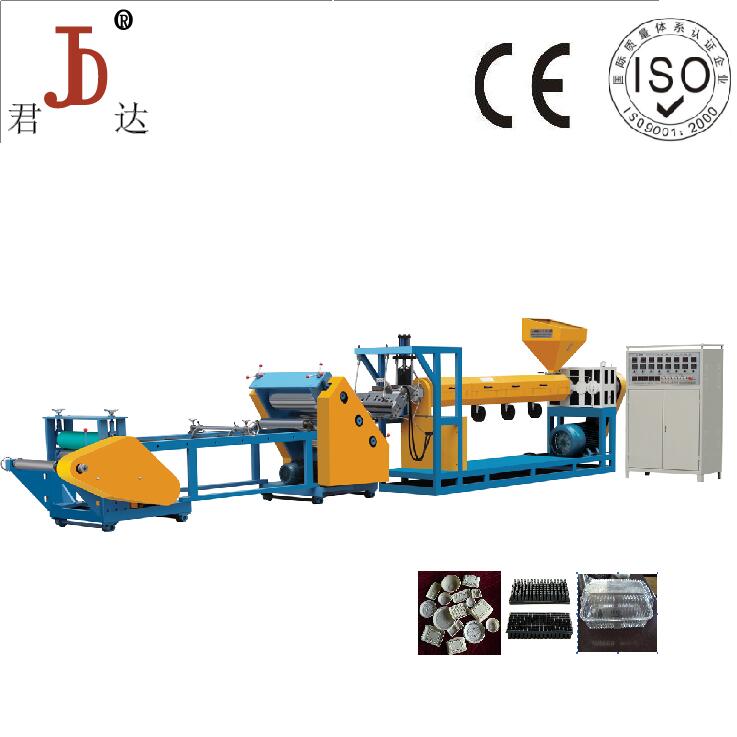

pp ps plastic sheet extruder
main feature
1. Introduce and integrate advanced technologies at home and abroad.

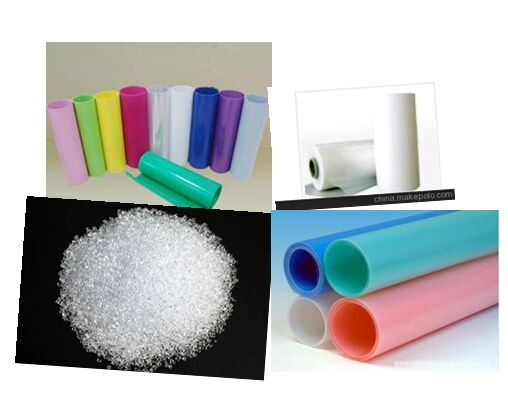

2. Suitable for PP, PS, PE and other plastic sheets.

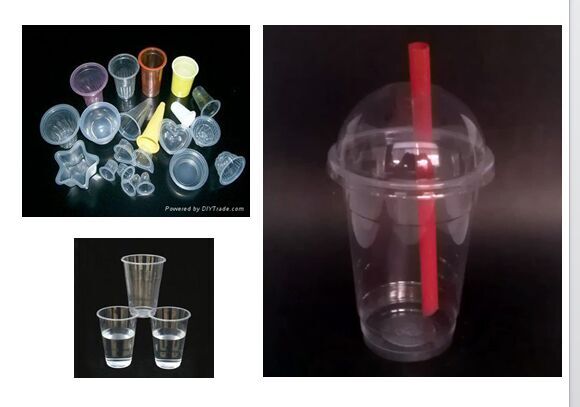

3. It can produce beverage cups, frozen stick cups, jelly cups and other products.
4. The screw, barrel, module head, etc. are made of 38CRMOALA high-quality material nitriding treatment, and the parts are wear-resistant and corrosion-resistant.
5. The diameter of the screw is large, which ensures the main performance of the sheet and good plasticization.
6. The die head adopts advanced filter screen electric or hydraulic exchange device, which is easy to operate
7. This series of extruders consists of six parts: extruder part, filter part, die part, three-roller part, traction part and winding part.

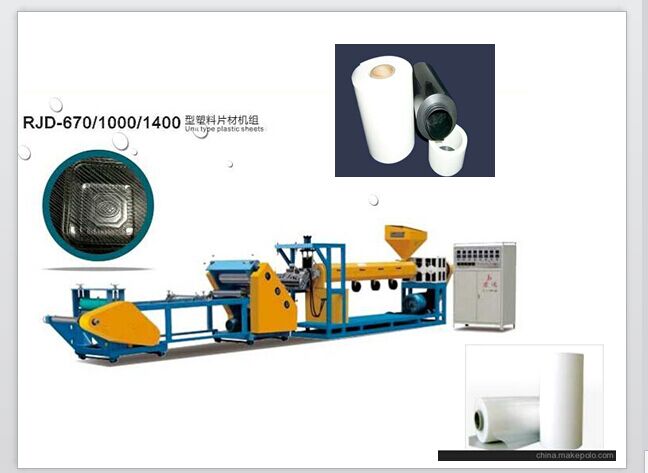

Machine parameters
|
Model |
RJD-670 |
RJD-1000 |
RJD-1400 |
|
Sheet width (mm) |
670 |
1000 |
1400 |
|
Screw thickness (mm) |
0.3-2.0 |
0.3-2.0 |
0.3-2.0 |
|
Screw diameter |
110 |
110 |
120 |
|
Screw aspect ratio |
1:32 |
1:32 |
1:30 |
|
Main motor power (Kw) |
45 |
45 |
55 |
|
maximum. Output (kg/hour) |
160 |
180 |
250 |
|
Assembly power (Kw) |
80 |
85 |
100 |
|
Working power (Kw) |
50 |
52 |
60 |
|
Dimensions (m) |
11.5*2.0*2.0 |
12*2.4*2.0 |
13*2.8*2.0 |
|
Assembly weight (Ton) |
4.5 |
5.5 |
7 |

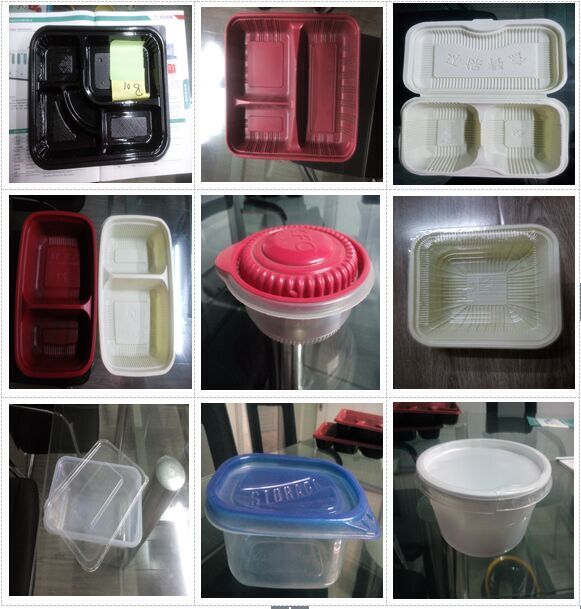

sample
