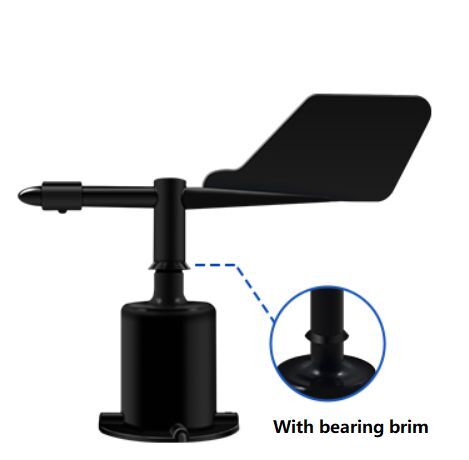

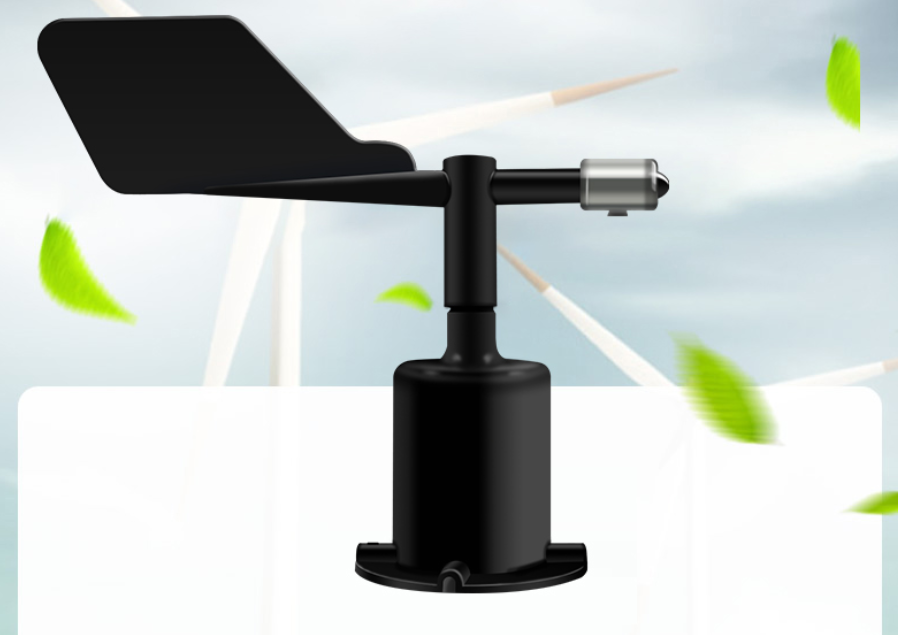

High-precision UV-resistant ABS wind direction sensor

Click here to contact

Product details

model:	RD-WD-AR-02	application:	Weather stations, wind power plants
output:	RS485, analog voltage output, analog current output	place of origin; place of origin:	Beijing China
Keyword-2:	ABS material	Single package size:	30X30X30 cm
Custom Support:	OEM, ODM, OBM	Packaging Details:	1/box
type:	Mechanical	Wireless output:	4G/GPRS/WIFI/LORA/LORAWAN
Gross weight per piece:	2.000 kg	Minimum order quantity:	1 item
brand:	Hondet	Keyword-1:	Wind direction tester
Sales unit:	single product	Key words:	Modbus RS485 output

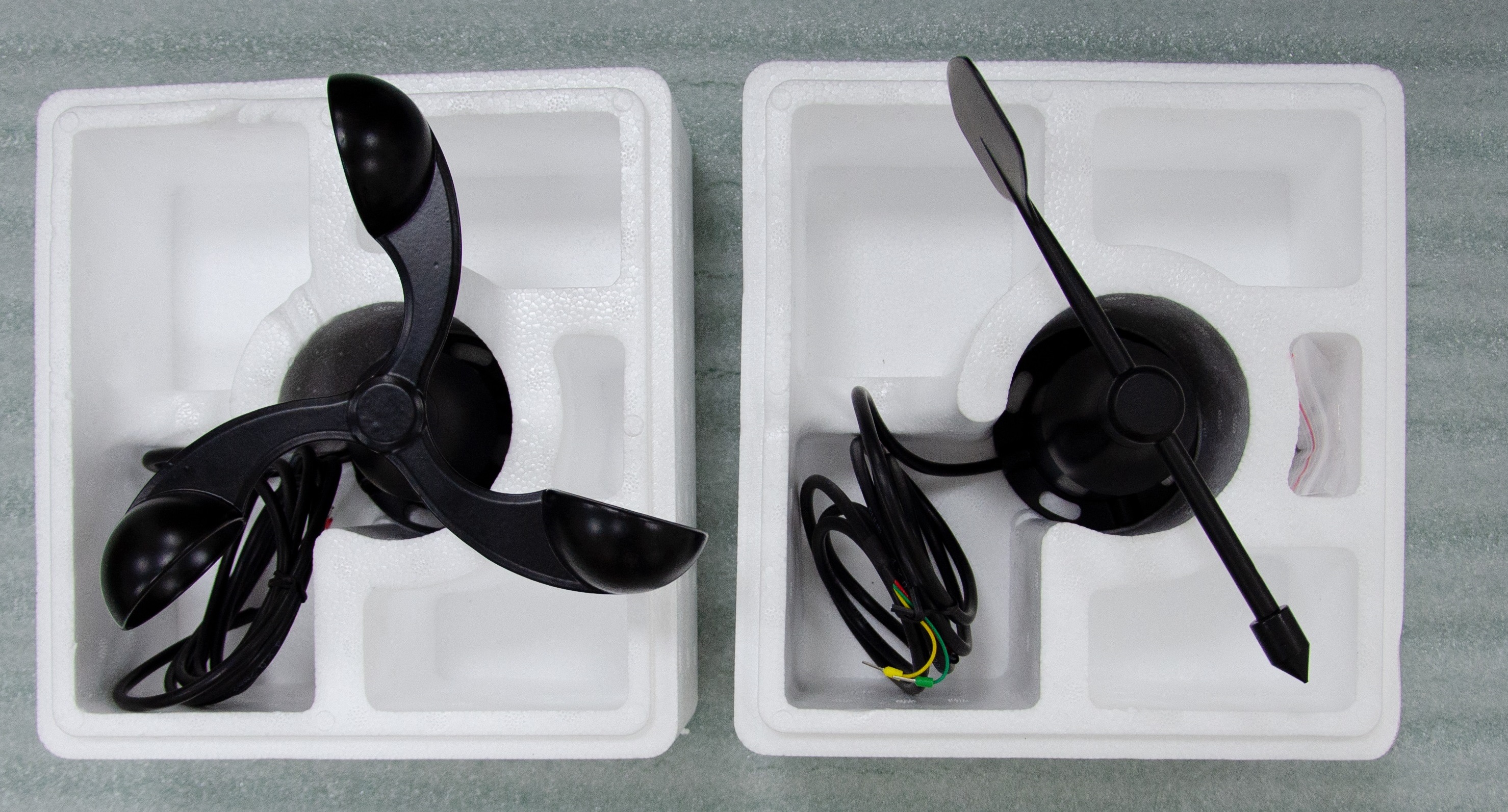

Warranty:	1 year under normal circumstances, 1 year	Packaging Preview:
product name:	wind direction sensor	Keyword-3:	Mechanical wind direction sensor

Product Description

Measurement parameters
parameter name	wind direction sensor
parameter	Measuring range	Resolution	accuracy

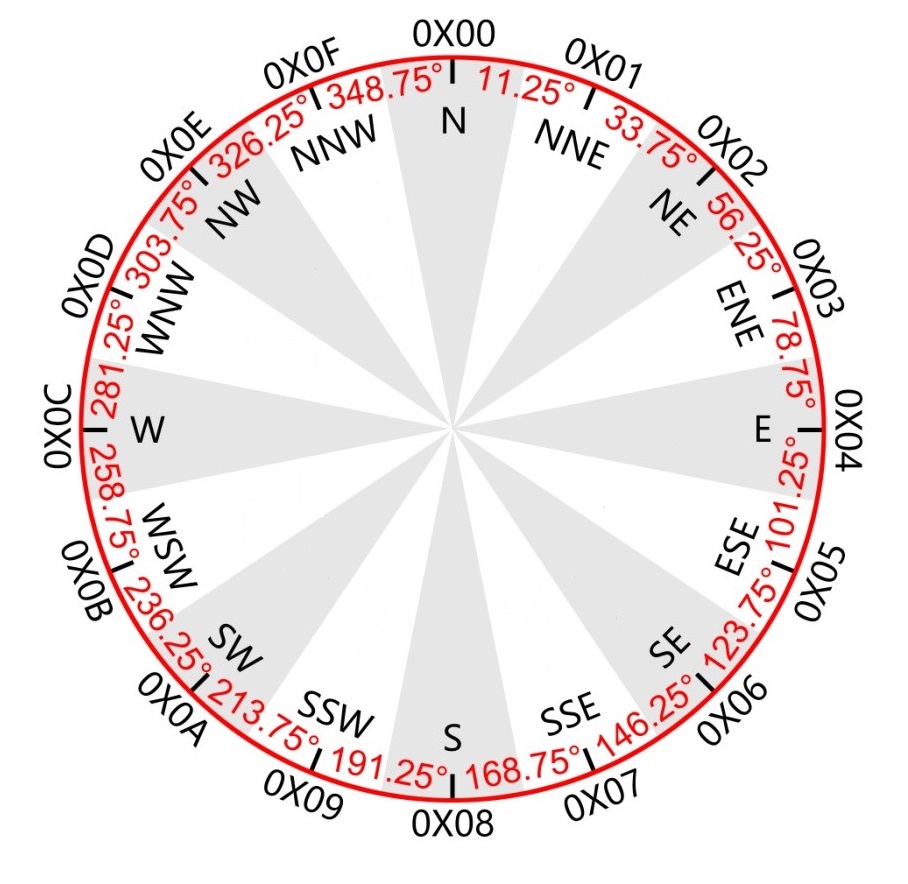

wind direction	0~360º	0.1º	±1º
technical parameter
startup speed	≥0.5m/s

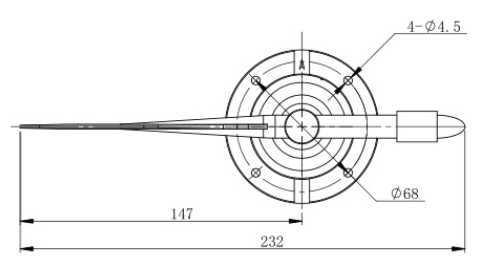

Maximum turning radius	100mm
Response time	less than 1 second
stable schedule	less than 1 second

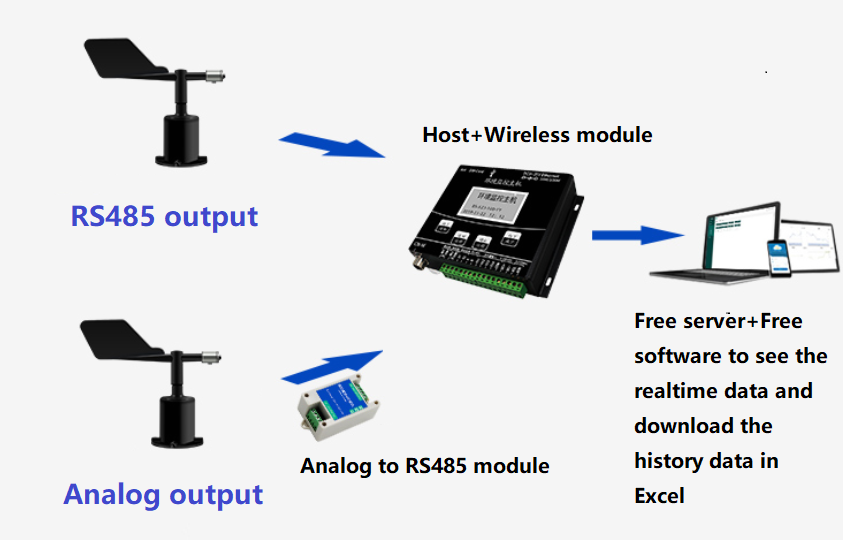

output	RS485, MODBUS communication protocol
		0~5V, 0~10V
		4~20mA
power supply	10~30VDC
power supply
working environment	Temperature -40～80℃, working humidity: 0-100%
Storage conditions	-40～60℃

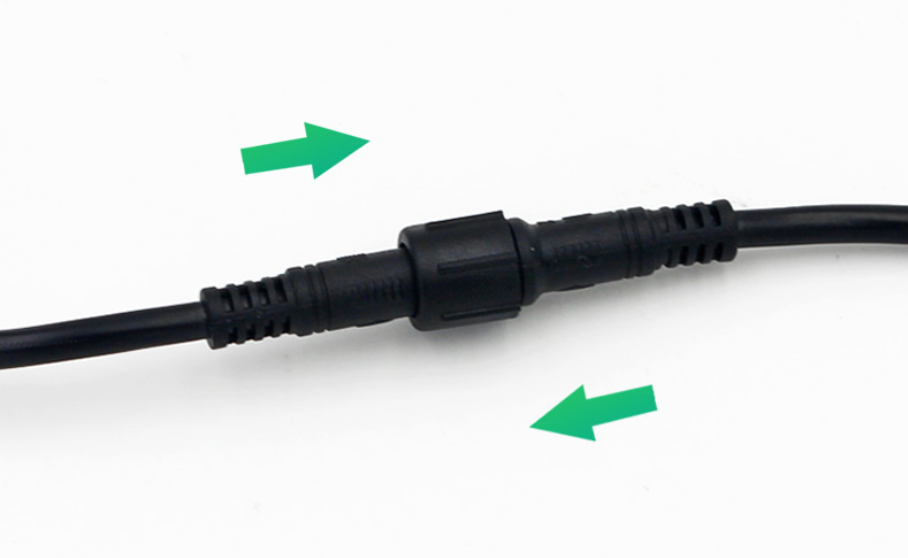

Standard cable length	2 meters
farthest lead length	RS485 1000 meters

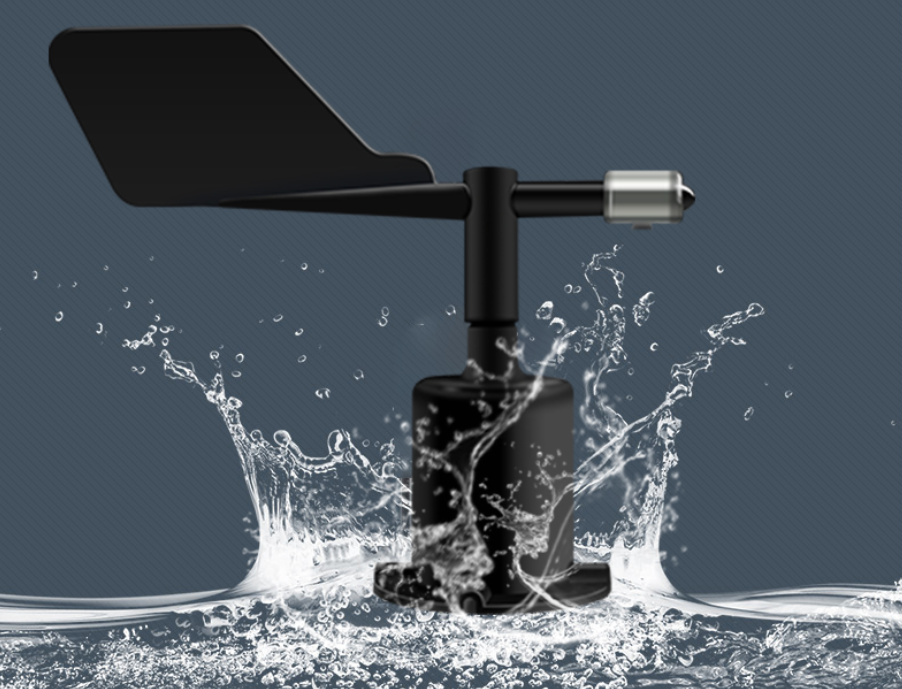

Protection class	IP65

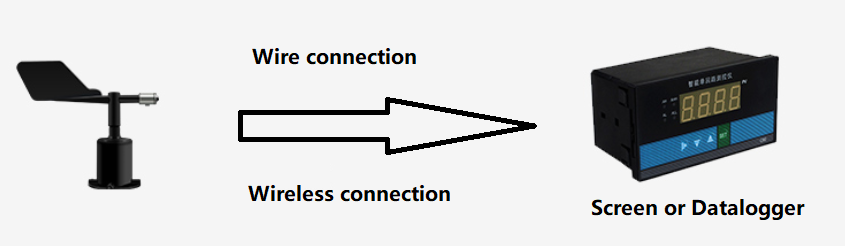

Wireless transmission
Wireless transmission	LORA / LORAWAN(868MHZ,915MHZ,434MHZ), GPRS, 4G,WIFI

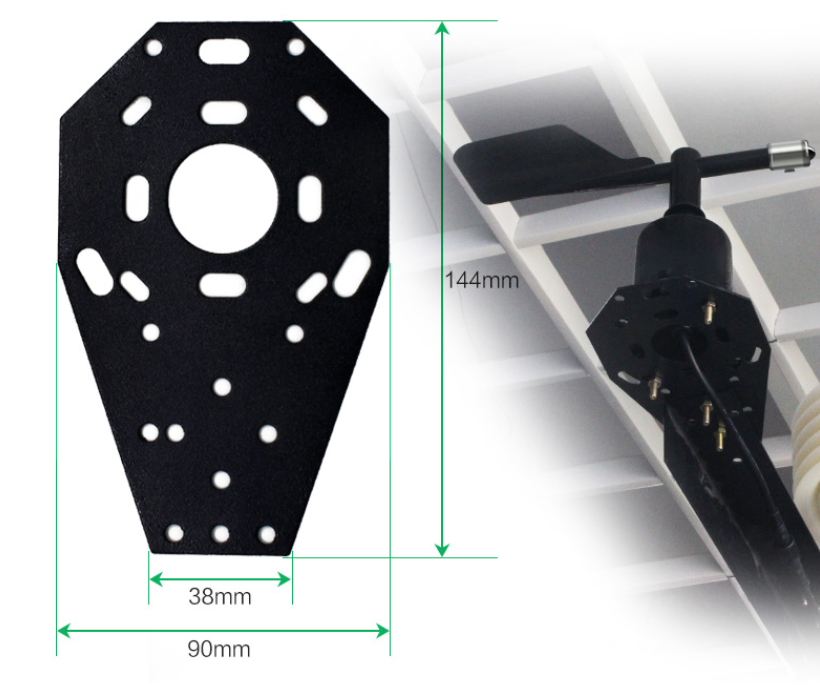

Mounting Accessories
pole	1.5 meters, 2 meters, 3 meters high, other heights can be customized
Equipment case	stainless steel waterproof
ground cage	Can provide matching ground cage buried underground
Cross arm for installation	Optional (for thunderstorm locations)
LED display	optional
7 inch touch screen	optional
Security camera	optional
The Sun can generate system
Solar panels	Power can be customized
Solar Controller	Matching controller available
Mounting brackets	Matching brackets available
