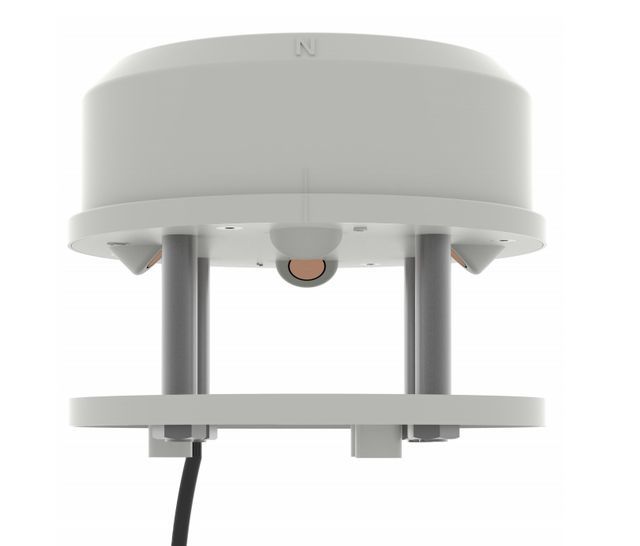

Ultrasonic wind speed and direction sensor

Supplier: Honde Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Marvin Li
Price: $268.10 / 1 - 9 pieces
$260.10 / 10 - 99 pieces
$251.10 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Sales unit:	Single product	Warranty:	Normally 1 year, 1 year
Application 3:	agricultural meteorological station	Material:	ABS
Package preview:		Packaging details:	1 unit/box
model:	HD-WSD-U-02	application:	Agricultural highway environmental protection, roads, smart street lights
Single piece packaging size:	25X25X25cm	Customization support:	OEM, ODM, software
Place of origin:	Beijing China	type:	ultrasound
brand:	Hundtek	Key words:	Ultrasonic wind speed and direction two-in-one
product name:	Secondary meteorological parameter weather station	Minimum order quantity:	1
Application 2:	environmental weather station	Application 1:	wind energy weather station
Gross weight of single piece:	3.000kg	Application 4:	highway weather station

Product Description

Measurement parameters
parameter name	2 in 1: Ultrasonic wind speed and direction
parameter	Measuring range	solve	Accuracy
wind speed	0-60 meters/second	0.01 meters/second	±0.2m/s or ±0.02*V
wind direction	0-359°	1°	±3°
*Other customizable parameters	Temperature, humidity, pressure, noise PM2.5/PM10/CO2
Technical Parameters
Stablize	Less than 1% during sensor life
Response time	less than 10 seconds
Working current	DC12V≤60ma (HCD6815)-DC12V≤180ma
energy consumption	DC12V≤0.72W (HCD6815); DC12V≤2.16W
output	RS485, MODBUS communication protocol
building materials	ABS engineering plastics
working environment	Temperature -30～70℃, working humidity: 0-100%
Storage conditions	-40～60℃
Standard cable length	2 meters
Farthest lead length	RS485 1000 meters
Protection level	IP65
Wireless transmission
Wireless transmission	LORA/LORAWAN, GPRS, 4G, WIFI
Mounting Accessories
pole	1.5 meters, 2 meters, 3 meters high, other heights can be customized
Equipment case	stainless steel waterproof
ground cage	Matching cages can be provided to be buried underground.
lightning rod	Optional (for use in thunderstorm locations)
LED display	Elective
7-inch touch screen	Elective
Surveillance cameras	Elective
The Sun can generate system
Solar panels	Power can be customized
Solar Controller	Supporting controller available
Mounting brackets	Matching brackets available
Cloud servers and software
Cloud Server	Free shipping if you buy our wireless module
free software	View real-time data and download historical data in Excel
