4 Blue LED Digital Tachometer RPM Speed Meter + Hall Proximity Switch NPN Magnetic Sensor for Lathe Conveyor Belt
- 4.32 2 - 49 pieces
- 4.08 50 - 199 pieces
- 3.87 200 - 999 pieces
- 3.23 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| pack: | 1 x Tachometer RPM Speedometer | model: | IB055 |
| measurement accuracy: | 0.5 | Input frequency: | 10KHz/100khz/300khz |
| product name: | Blue Kit High Precision 4 LEDs | type: | Blue Kit High Precision 4 LEDs |
| payment terms: | Western Union, T/T, Alibaba Trade/WeChat/Alipay/Paypal/Bank Transfer | origin: | China (origin) |
| Backlight: | red/blue/green | port: | Shenzhen Hong Kong |
| Supply capacity: | 10000 pieces per month | Measuring range: | 10-9999 turn |
| Origin: | Guangdong, China | Health status: | new |
| size: | 79x42x25mm | Input voltage: | DC8-24V |
| brand: | robot connection | Warranty: | 3 years |
| Packaging Details: | Original carton, anti-reverse plastic bag |

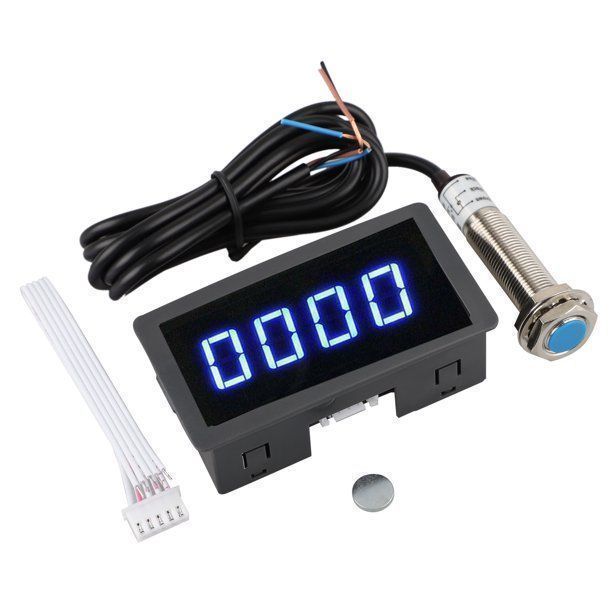

4 digitsblueLED Tachometer RPM Speedometer + Hall Proximity Switch Magnetic Sensor NPN For Lathe Conveyor Belt
feature:
1.100% brand new and high quality.
2. With standard size, easy to install.
3. Good stability and high measurement accuracy.
4. Anti-interference ability.
Description Features:
The digital display counter has LED lights on, high precision, good stability and easy installation.
The meter automatically reserves the number when it is powered off
Working power supply: AC/DC 8-24V, 30mA
Input pulse signal: NPN/PNP open collector, contact switch, non-contact switch, level pulse.
The product has good stability and strong anti-interference, and is suitable for various digital instrument displays
Specification:
- Measuring range: 10-9999RPM
- Clear: Automatic
- Display refresh rate: 3 times/second
- Measurement indication: RPM<5000, ±2; RPM>5000, ±3
- Display: blue-green 0.56" LED
- Response frequency: 100HZ
- Tachometer size: 79x42x25mm
- Panel opening size: 68x33mm
- Sensor size: 12x55mm
-Working power supply: AC/DC8-24V, 30mA
- Sensor wiring: Brown - Power +; Blue - Power -; Black - Signal
- Operating temperature: 0 to 50°C.
1.100% brand new and high quality.
2. With standard size, easy to install.
3. Good stability and high measurement accuracy.
4. Anti-interference ability.
Description Features:
The digital display counter has LED lights on, high precision, good stability and easy installation.
The meter automatically reserves the number when it is powered off
Working power supply: AC/DC 8-24V, 30mA
Input pulse signal: NPN/PNP open collector, contact switch, non-contact switch, level pulse.
The product has good stability and strong anti-interference, and is suitable for various digital instrument displays
Specification:
- Measuring range: 10-9999RPM
- Clear: Automatic
- Display refresh rate: 3 times/second
- Measurement indication: RPM<5000, ±2; RPM>5000, ±3
- Display: blue-green 0.56" LED
- Response frequency: 100HZ
- Tachometer size: 79x42x25mm
- Panel opening size: 68x33mm
- Sensor size: 12x55mm
-Working power supply: AC/DC8-24V, 30mA
- Sensor wiring: Brown - Power +; Blue - Power -; Black - Signal
- Operating temperature: 0 to 50°C.
Product Description
