RIKA 0-45m/s 0-60m/s ultrasonic wind speed sensor analog cup anemometer pulse/RS485/RS232 price

Supplier: Hunan Rika Electronic Tech Co., Ltd.
Region: Hunan, China
Contact: Ms Fanny Lee
Price: $26.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Wind direction resolution:	1°	Packaging Details:	1 piece per box, suitable for long-distance transportation
Wind Speed Accuracy:	±(0.3+0.03V)m/s, V is the current wind speed	Supply capacity:	5000 pieces per month
model:	RK100-02 RK110-02 RK120-01C RK120-07 RK120-03	Origin:	Hunan, China
Material:	Aluminum alloy and carbon fiber	voltage:	5V (for digital output only), 12-24VDC
Customization support:	OEM production	Wind speed range:	0-45m/s (current or voltage output); 0-70m/s (pulse, RS485, RS232 output)
Wind range:	0-360°	Warranty:	one year
Wind speed resolution:	0.1m/s	thing:	Wind speed and direction sensor
brand:	Rika	type:	Wind speed and direction sensor
output:	RS485, 4-20mA, 0-5V, RS232, pulse (NPN, wind speed only)	port:	any port in China
payment terms:	L/C, Western Union, D/P, T/T	Wind direction accuracy:	≤ ±3°

RIKA SENSOR - No.1 on Weather Station, please follow the steps below to verify

Company Profile

Product Description

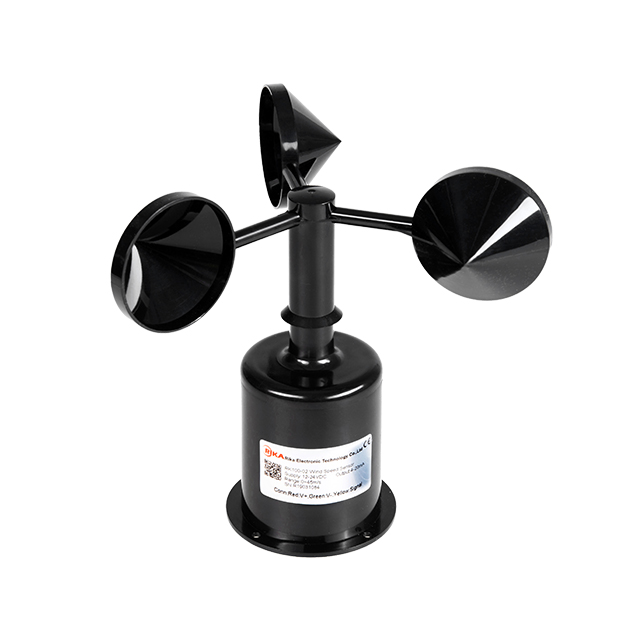

RK100-02 ABS plastic wind speed sensor

-Material: carbon fiber

- Multiple output:Pulse (PNP), 4-20mA, 0-5V, RS485

-Low barriers to entry:0.5m/s

- Strong corrosion resistance

-Entrance waterproof IP65

-CE, ISO9001, TUV certificate

product description

The RK100-02 wind speed sensor uses a sensitive 3-cup anemometer to measure wind speed and velocity. The cup of this wind sensor is made of carbon fiber material, which has high strength and low actuation threshold. The signal processing unit is built into the housing. Rika RK100-02 3-cup anemometer sensor can be widely used in meteorology, ocean, environmental monitoring, airports, ports, laboratories, industry and agriculture and other fields. If you are looking for a professional wind speed sensor, you can consider the Rika RK100-02 Cup Anemometer Wind Sensor.

output	Pulse (PNP)	4-20 mA	0-5V	RS485
voltage	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V
Carrying capacity	>1kΩ, default: high level: 5V	<500Ω (typical value 250Ω)	> 1kΩ
scope	0-45m/s	0-45m/s	0-45m/s	0-45m/s
accuracy	±(0.3+0.03V)m/s; (V is the current wind speed)
solve	0.1m/s
threshold	<0.5m/s
limit wind speed	50 m/s
ingress protection	IP65
Operating temperature	-40℃～+50℃
cable grade	Nominal voltage: 300V, temperature class: 80°C
Weight (unpacked)	170 grams
aspect	Cup rotor: ø179mm, height: 160mm
main ingredient	carbon fiber
Storage	10℃-50℃@20%-90%RH

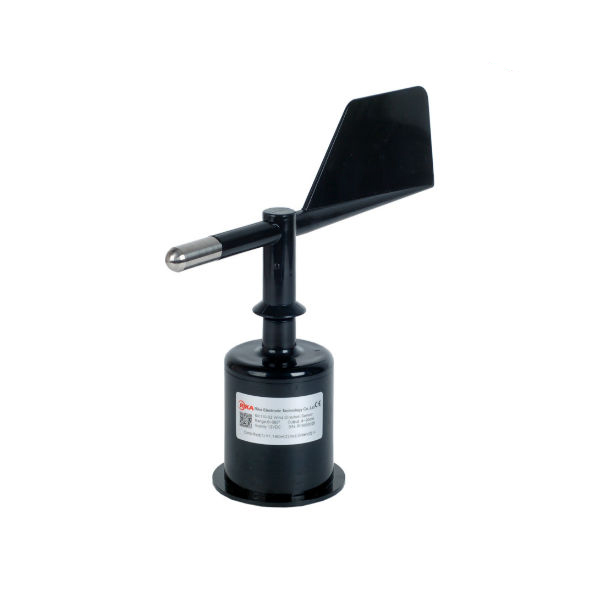

RK110-02 ABS plastic wind direction sensor

-Material: carbon fiber

- Multiple output:4-20mA, 0-5V, RS485

-Low barriers to entry:<0.5m/s

- Strong corrosion resistance

-Entrance waterproof IP65

-CE, ISO9001, TUV certificate

product description

RK110-02 wind direction sensor is a sensitive wind direction indicator, which can visually indicate the wind direction. Built-in high-precision magnetic sensitive chip in the shell. The wind vane is made of low inertia light metal and shows the direction of the wind. The product has wide measuring range, good linearity, strong anti-lightning ability and good performance.

output	4-20 mA	0-5V	RS485
voltage	5V, 12V-24V	5V, 12V, 24V	5V, 12V-24V
Carrying capacity	<500Ω (typical value 250Ω)	>1kΩ
scope	0~360°
accuracy	±3°
solve	1°
threshold	<0.5m/s
limit wind speed	50 m/s
ingress protection	IP65
Operating temperature	-40℃~+50℃
cable grade	Nominal voltage: 300V, temperature class: 80°C
Weight (unpacked)	195 grams
aspect	Turning radius: 147mm, height: 199mm
main ingredient	carbon fiber
Storage	10℃-50℃@20%-90%RH

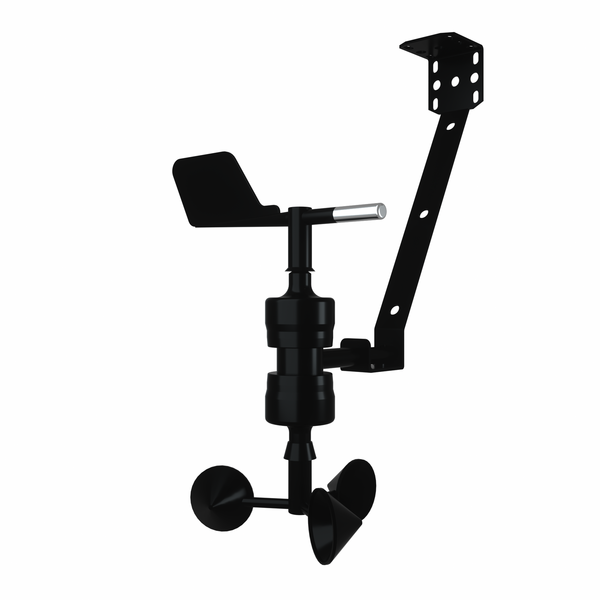

RK120-01C combined wind speed and direction sensor

-Material: carbon fiber

- Multiple output:4-20mA, 0-5V, RS485

-Low barriers to entry:<0.5m/s

- Strong corrosion resistance

-Entrance waterproof IP65

-CE, ISO9001, TUV certificate

product description

RK120-01C combined wind speed and wind direction sensor is assembled by precision machining parts of aluminum alloy, which has high strength and is easy to install. The wind speed part adopts the traditional three-wind cup structure, and the wind cup is made of carbon fiber material, which has good start-up performance, large measurement range, good linearity, and is stable and reliable. The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change in electrical signal output, with good linearity, high precision, and no blind spots.

thing	technical specifications
thing		wind speed		wind direction
scope	0-45m/s (current or voltage output), 0-70m/s (pulse, RS485, RS232 output)		0-360°
solve	0.1m/s		1°
accuracy	±(0.3+0.03V)m/s, V is the current wind speed		≤±3°
acquisition cycle	3 seconds
start wind speed	0.5m/s
limited wind speed	75 m/s
supply	5V (for digital output only), 12-24VDC
output signal	RS485, 4-20mA, 0-5V, RS232, pulse (NPN, wind speed only)
Operating temperature	-40℃-+70℃
ingress protection	IP65
main ingredient	Aluminum alloy and carbon fiber
storage	10-60℃@20%-90%RH
cable length	The default is 2.5m, other lengths are optional
Mounting brackets	attached
Weight (unpacked)	700 grams

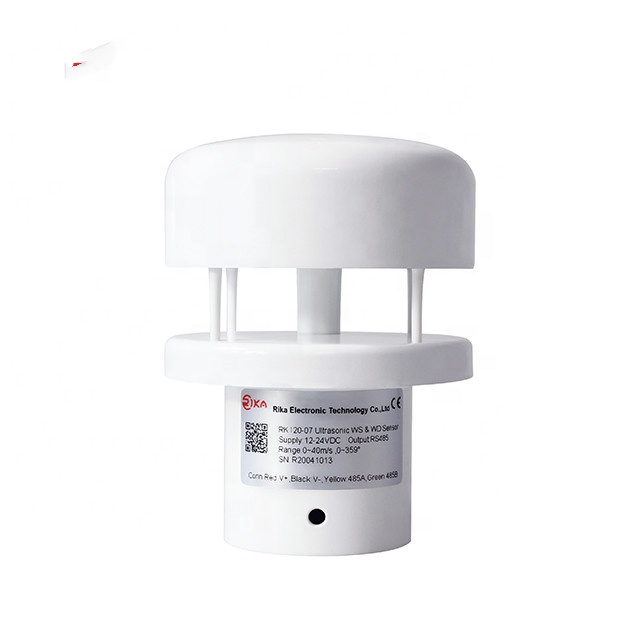

RK120-07Miniature Ultrasonic Wind Speed and Direction Sensor

-Material:ABS

- Multiple output:RS232/RS485 (Modbus/NMEA-0183), SDI-12

-Low barriers to entry:0.1m/s

- Strong corrosion resistance

-Entrance waterproof IP65

-CE, ISO9001, TUV certificate

product description

RK120-07 Anemometer is a measuring instrument that uses the time difference of ultrasonic waves in the air to measure wind speed and direction. RK120-07 adopts a low-power chip with a power consumption of only 0.2W, which is especially suitable for solar or battery-powered environments that require high power consumption. Due to the adoption of new technologies and processes, the structure is more compact. Optional temperature and pressure modules.

thing	technical specifications
power supply	12-24VDC
energy consumption	1.7W
output signal	RS232/RS485 (Modbus/NMEA-0183), SDI-12
Operating temperature	-30℃-+60℃
ingress protection	IP65
aspect	Ф82*108mm
Weight (unpacked)	0.8 kg
main ingredient	ABS

thing	technical specifications
thing		scope	solve	accuracy
wind speed	0-40m/s	0.1m/s	±3%
wind direction	0-360°	1°	±3°
threshold	0.1m/s	0.1m/s	-
Ultimate wind speed	60 m/s

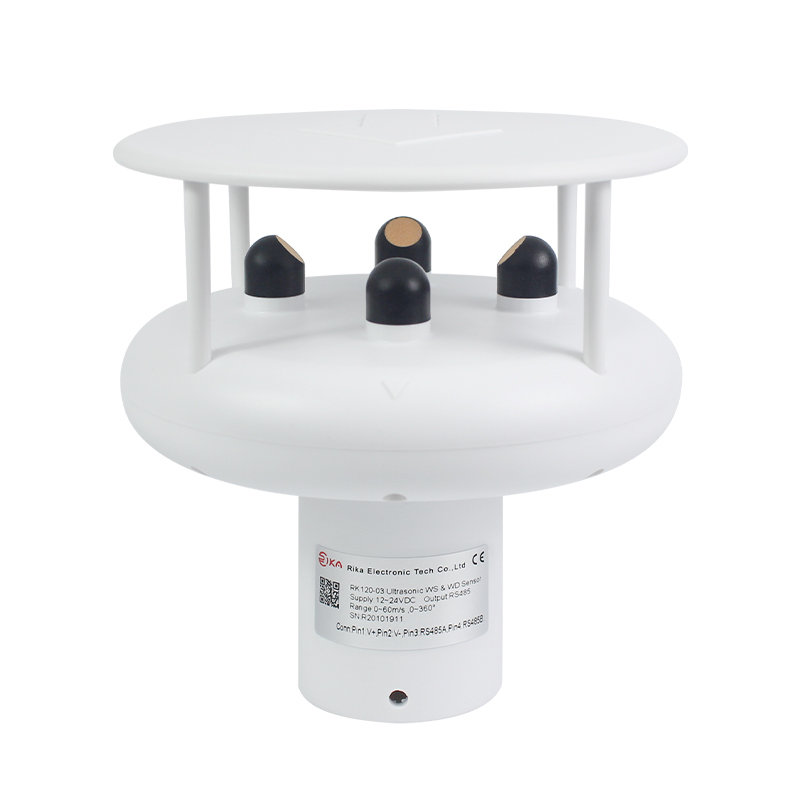

RK120-03Ultrasonic wind speed and direction sensor

-Material:as a

- Multiple output:RS232/RS485(Modbus/NMEA-0183), 4-20mA(for wind speed and direction only)

-Low barriers to entry:0.1m/s

- Strong corrosion resistance

-Entrance waterproof IP65

-CE, ISO9001, TUV certificate

product description

RK120-03 economical ultrasonic wind speed sensor is a full digital detector, high precision sensor, integrated by ultrasonic wind speed and wind direction sensor. It can accurately and quickly detect wind speed and wind direction; the built-in signal processing unit can output corresponding signals according to user needs, the structure is light and compact, and there are no moving parts. Open communication protocols and other advantages can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry and agriculture, transportation and other fields.

thing	technical specifications
power supply	12-24VDC
energy consumption	<1W (heating not activated); <3W (heating activated)
output signal	RS232/RS485 (Modbus/NMEA-0183), 4-20mA (only wind speed and direction) optional
Operating temperature	-30℃-+70℃
ingress protection	IP66
heating power	Maximum 3W
Electronic compass	Elective
barometric pressure	Elective
aspect	Ф144*148mm
Weight (unpacked)	0.8 kg
main ingredient	as a

thing	technical specifications
thing		wind speed	wind direction	barometric pressure
scope	0-45m/s, 0-60m/s	0-360°	150-1100hPa
solve	0.01m/s	1°	0.1hPa
accuracy	≤10m/s: ±0.2m/s >10m/s: <±2% of current value	±3°	±1 hPa
threshold	0.1m/s	0.1m/s
Ultimate wind speed	60 m/s
