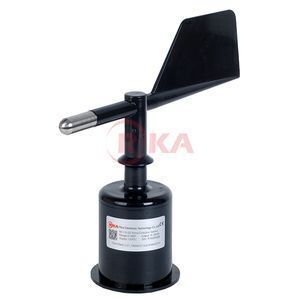

RK110-02 Analog Output Wind Direction Sensor Electronic Wind Vane

Product details
Supply voltage:5v, 12v, 24v;range:0-360°;
Accurracy:±3°;Place of Origin:China;
Model Number:rk120-03;Brand Name:Rika;
Material:carbon fiber;Item name:Electronic Wind Vane;
Port:Any port in China;Supply Ability:10000 Piece/Pieces per Month;
storage Condition:10-50°C @ 20-90%RH;starting threshold:<0.5m/s;
Output:4-20mA, 0-5V, RS485;Resolution:1°;
Operating temperature:-40~+50°C;Payment Terms:T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:1 piece per carton, 12 pieces per box;

RK110-02 Analog Output Wind Direction Sensor Electronic Wind Vane


Product Description


The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.



  • Low starting threshold
  • Great dynamic characteristics
  • Overall carbon fiber material
  • Strong corrosion resistant ability
  • Light structure
  • Various output signals optional
  • Easy Installation



  • Weather monitoring stations
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Remote airports & helipads


Technical Specification






Supply Voltage




Load Capacity

<500Ω(typ 250Ω)








Starting Threshold


Ingress Protection


Operating Temperature


Cable Grade

Nominal voltage:300V ,Temperature grade:80℃




Turning Radius:147mm,Height:199mm

Main material

carbon fiber

Storage Condition







Ordering Process
Plastic Wind Speed SensorPyranometerAir Temp RH & Pressure Sensor
Metal Wind Direction Sensor SensorSolar Panel Temp SensorAutomatic Weather Station


FAQ for RK110-02 Wind Direction Sensor


1. How is the product wired?

--- It is wire installed, and connector is on the bottom.


2. What specification is your connector?

--- It is XS12K aviation connector.


3. What is your output optional?

--- We have 4-20mA 0-5v,RS485 output optional.






Packaging & Shipping


Company Information



Q: Are you the final manufacturer?

A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.


Q: Do you offer the OEM service?

A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .


Q: Do you offer free samples?

A: Sorry , we do not offer free samples .  You should pay for the samples and freight cost.


Q: What payment ways do you accept?

A: You can pay us by T/T , PayPal , and West Union .


Q: What is your delivery time?

A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .


Q: What is your normal delivery way?

A:  Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.


Q: How is your quality assurance service?

A: Our service is free exchange within one month and 12 months quality guarantee


Q: Could we make a visit to your factory?

A: Yes, you are welcomed . But before that, we will do the visiting investigation.
