RIKA RK520-01 Waterproof Industrial Plant Irrigation Soil Moisture Test Sensor RS232 RS485
-
Supplier: Hunan Rika Electronic Tech Co., Ltd. -
Region: Hunan, China -
Contact: Ms Fanny Lee -
Price: $32.00 /piece -
Min. Order: 1 piece
| Soil Moisture Accuracy: | ±3% | place of origin; place of origin: | Hunan, China |
| Packaging Details: | 1 piece per box | Warranty: | 1 year |
| Soil moisture range: | 0-100% m3/3 | type: | Soil temperature and humidity sensor |
| temperature range: | -30~70°C | Building Materials: | ABS |
| thing: | Soil Moisture and Temperature Sensors | port: | any port in China |
| payment terms: | L/C,Western Union,D/P,D/A,T/T | Supply capacity: | 5000 pieces per month |
| model: | RK520-01 | supply: | 12-24V |
| output: | 4-20mA, 0-5V, RS485 | Probe Material: | 316SS |
| Temperature Accuracy: | ±0.2°C | Custom Support: | OEM, ODM |
| Intellectual property level: | IP68 | brand: | day card |

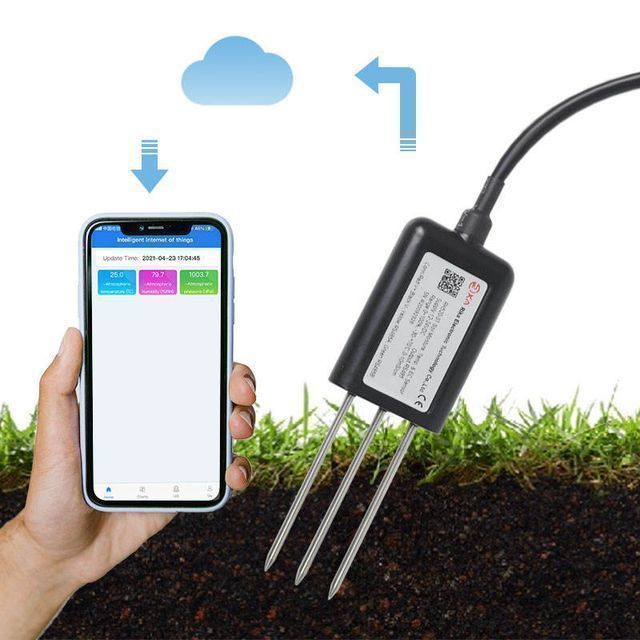

RK520-01 Soil moisture and temperature sensor with integrated humidity and temperature measurement.
Stainless steel probes are inserted into the soil surface or soil profile to quickly test soil moisture and temperature. The moisture measurement part is designed according to the FDR principle, and the volume of soil moisture content is measured by measuring the dielectric constant of the soil. The temperature part adopts precision platinum resistance elements, and the product has built-in drift calibration and temperature compensation circuits, which can be adapted to most applications. Probes can be permanently embedded in the ground and connected to a data logger for unlimited testing.
Technical Specifications
|
thing |
Technical Specifications |
|
|
moisture |
temperature |
|
|
scope |
0-100% (m3/Meter3) |
-30℃-+70℃ |
|
accuracy |
±3%(0-50%) |
±0.2℃ |
|
output signal |
4-20mA, 0-5V, 0-2V, RS485 optional |
|
|
Response time |
<1s |
|
|
supply |
5VDC, 12-24VDC |
|
|
Effective measurement area |
The probe center diameter is 70mm, and the cylinder height is 70mm |
|
|
housing |
ABS |
|
|
aspect |
71*45*16mm(Probe: 2*Ø3*55mm,1*Ø4*55mm) |
|
|
Operating temperature |
-40℃-+80℃ |
|
|
Ingress protection |
IP67 |
|
|
storage |
10-60℃@20%-90%RH |
|
|
Probe material |
316L stainless steel |
|
In order to recommend suitable products to you, please tell me your information below:
1. What test parameters do you need?--Optional with soil temperature and humidity.(You can choose one or both parameters optional)
2. What output signal do you need? -- We have 4-20mA, 0-5V, 0-2V, RS485 optional. If you have other special requirements, please specify.
3. What power supply do you need? -- We have 12-24V, 5V optional. If you have other special requirements, please specify.
4. What length of cable do you need? - Standard is 2m. If you have special requirements, please specify.
5. Quantity?
6. Price item: CIF or Exw or FOB? -- In case of CIF, please tell us your detailed shipping address for shipping calculation.
7. Your full company name, address, zip code, contact person, telephone, fax, etc.
-
