LORA LORAWAN RS485 OZONE MODUBLE O3 CARBON DIOXIDE CO2 CARBON MONOXIDE CO AMMONIA NH3 HYDROGEN H2 NITROGEN N2 GAS SENSOR
- 75.00 1 - 9 pieces
- 70.00 10 - 99 pieces
- 60.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Wireless module: | GPRS/4G/WIFI/LORA/LORAWAN | brand: | Hongde Technology |
| port: | Tianjin harbor | payment terms: | Western Union, T/T, MoneyGram, PayPal |
| Cloud server and software: | support | Installation type: | Wall-mounted |
| Supply capacity: | 1000 pieces per month | Package preview: | |
| type: | Smoke detector, carbon dioxide sensor, humidity sensor, air quality sensor, gas sensor, combustible gas, explosive gas | theory: | Conversion of gas volume to electrical signal |
| Packaging Details: | carton | application: | Power plant/paint room/gas station/chemical plant/liquefied petroleum gas station |
| output: | RS485/4-20mA/0-5V/0-10V/LCD,RS485/4-20mA/0-5V/0-10V/LCD | product name: | Wall Mounted Gas Sensor |
| Warranty: | 1 year below normal | usage: | gas detection |
| Origin: | Beijing China | temperature range: | -10~50℃ |
| describe: | Custom Gas, Wall Mounted Gas Sensors | power supply: | DC10-30V |
| MOQ: | 1 | shell material: | IP65 |
| model: | RD-GD-WM-01 |
Product Description
Measurement parameters | ||||||
size | 85*90*40mm | |||||
shell material | IP65 | |||||
screen size | LCD screen | |||||
oxygen | Measuring range | solve | accuracy | |||
0-25% volume | 0.1 % volume | ±3% full scale | ||||
hydrogen sulfide | Measuring range | solve | accuracy | |||
0-100 ppm | 1 ppm | ±3% full scale | ||||
0-50ppm | 0.1 ppm | ±3% full scale | ||||
carbon monoxide | Measuring range | solve | accuracy | |||
0-1000 ppm | 1 ppm | ±3% full scale | ||||
0-2000ppm | 1 ppm | ±3% full scale | ||||
CH4 | Measuring range | solve | accuracy | |||
0-100%LEL | 1%LEL | ±5% full scale | ||||
nitrogen dioxide | Measuring range | solve | accuracy | |||
0-20ppm | 0.1 ppm | ±3% full scale | ||||
0-2000ppm | 1 ppm | ±3% full scale | ||||
sulfur dioxide | Measuring range | solve | accuracy | |||
0-20ppm | 0.1 ppm | ±3% full scale | ||||
0-2000ppm | 1 ppm | ±3% full scale | ||||
hydrogen | Measuring range | solve | accuracy | |||
0-1000 ppm | 1 ppm | ±3% full scale | ||||
0-40000ppm | 1 ppm | ±3% full scale | ||||
Ammonia | Measuring range | solve | accuracy | |||
0-50ppm | 0.1 ppm | ±5% full scale | ||||
0-100 ppm | 1 ppm | ±5% full scale | ||||
PH3 | Measuring range | solve | accuracy | |||
0-20ppm | 0.1 ppm | ±3% full scale | ||||
O3 | Measuring range | solve | accuracy | |||
0-100ppm | 1 ppm | ±3% full scale | ||||
Other gas sensors | Support for other gas sensors | |||||
go out | RS485/4-20mA/0-5V/0-10V/LCD | |||||
voltage | DC 10~30V | |||||
Wireless module and supporting server and software | ||||||
wireless module | GPRS/4G/WIFI/LORA/LORAWAN (optional) | |||||
Matching Servers and Software | We can provide supporting cloud server and software, and you can see real-time data on the PC side. | |||||

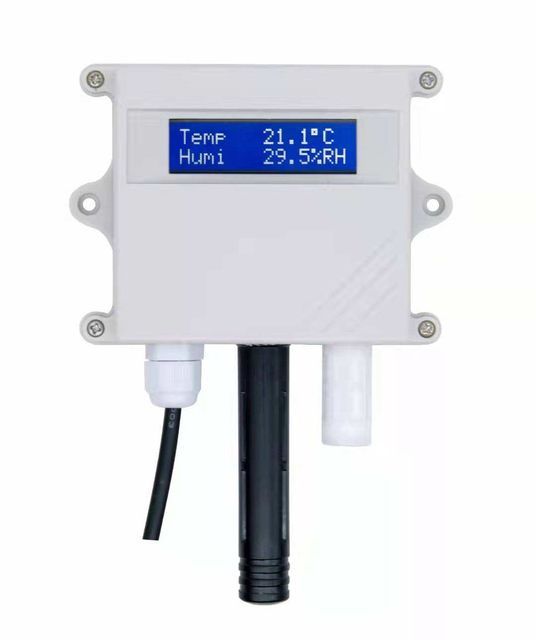

detailed image
Product advantages
●IP65 level protection
●Accurate measurement
●Waterproof and moisture-proof
● Strong anti-interference
●DC 10~30V power supply
●RS485/4-20mA/0-5V/0-10V/LCD
● One year warranty
LED display can be selected according to your needs or we provide matching cloud server and software, you can see real-time data on the PC side.
Sulfur dioxide Ammonia Carbon monoxide Oxygen Nitrogen dioxide Methane Hydrogen sulfide Temperature Hydrogen Humidity●Customize the parameters you need●Other
Output: RS485/4-20mA/0-5V/0-10V/LCD
The connection wireless module includes WiFi GPRS 4G Lora Lorawan, and we can also provide supporting servers and software to view real-time data on the PC sideApplications
