Microfiltration Ultrafiltration Ceramic Membrane Filter for Brewery Brewery Yeast Clarification

Supplier: ZIBO DONGQIANG MEMBRANE TECHNOLOGY CO.,LTD.
Region: Shandong, China
Contact: Mr yuanqiang zhao
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Health status:	new	Core components:	PLC, motor, pressure vessel, pump
After Warranty Service:	Online support	Marketing Type:	normal product
Mechanical test report:	if	Supply capacity:	15 pieces per month
Video external inspection:	if	Core Components Warranty:	1 year
Processing:	filter	After-sales service provided:	Online support
length:	1200 mm	Packaging Details:	wooden box
Certification:	Chief Executive	Processing Type:	beer
Warranty:	1 year	Showroom location:	not any
place of origin; place of origin:	Shandong China	Local service location:	not any
Pore Size:	500 nm	model:	DQCMF
payment terms:	L/C,Western Union,D/P,T/T,paypal	brand:	DQ
port:	Qingdao	Applicable industries:	Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Retail, Construction Engineering, Energy and Mining, Food and Beverage Stores

Product Description

Microfiltration Ultrafiltration Ceramic Membrane Filters for Brewery Brewery Yeast Clarification

1: System composition:

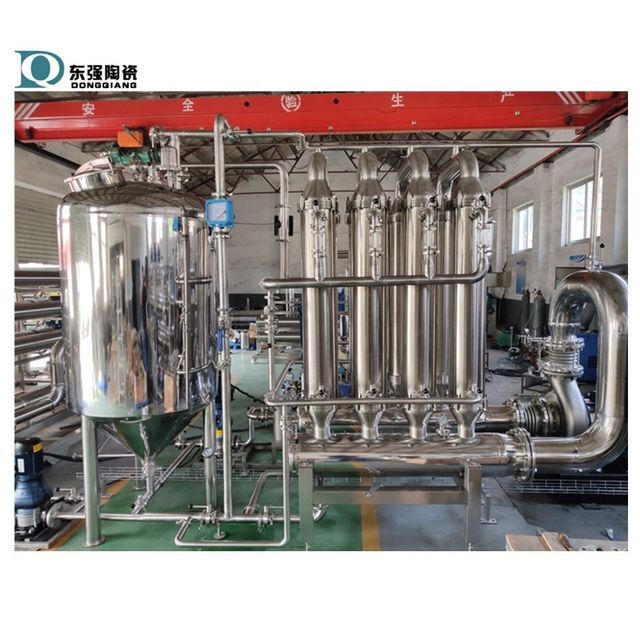

Membrane modules (membrane, stainless steel housing), feed tanks, centrifugal pumps, flow/pressure/thermometers, electrical control panels, valves and pipes;

Component Type (Number of Diaphragms/Houses): 1, 3, 7, 12, 19, 37, 61, 91, 138, 241

Film length: 250-1200mm

Membrane outer diameter: 12/25/30/40/52mm

Main material: SS304, SS316L, titanium, FRPP, MSRL;

Sealing material: EPDM; Fluorine rubber; Silicone;

2: Filter method:cross-flow filtration;

3: Ceramic membrane performance:

Support material:	Alpha-alumina
Aperture:	Ultrafiltration: 2,5,10,15,20,30,50nm
Aperture:	IF: 100, 200, 500, 800, 1200nm
Membrane:	Zirconia, Titanium Dioxide, Alumina
Membrane length:	250-1200mm (special length according to customer requirements)
Outer diameter:	12/25/30/40/52mm
Working pressure:	Normal: 0.1-0.4MPa Maximum: ≤1.0MPa
Burst pressure:	≥9.0MPa
Operating temperature:	5-150℃
PH range:	0-14

4: Membrane Specifications:

5: Ceramic Membrane Comparisonedittraditional filteringsystem

Ceramic membranes offer many unique advantages over traditional filters such as frame filters, filter presses, centrifugal filters, DE filters, and polymer membrane filters.

1). Excellent resistance to acids, alkalis and oxidizing chemicals.

2). Good solvent stability and high thermal stability.

3). Good separation and narrow pore size distribution.

4). Compared with the polymer film, the service life is extremely long.

5).Easy to clean and disinfect, backwash.

6). High mechanical strength and good wear resistance.

6:application:

Filtration, clarification, purification and concentration.

(Especially suitable for filtration in the food and beverage industry, chemical and petrochemical industry, and biochemical and pharmaceutical industries.)

7: Typical application:

1) Biochemical pharmaceutical industry:

Clarification and purification of fermentation products and purification or separation of product slurries;

2) Environmental application:

Water, wastewater treatment, oil-water separation;

3) Food and beverage industry:

Milk microfiltration, yogurt concentrate, vegetable oil clarification, protein

Concentration and separation of soy protein;

Wine clarification, beer clarification, juice clarification;

4) Very useful for various filtration applications in the petrochemical industry;

5) Other fields: nano-powder recovery, acid-base filtration

liquid.
