Greek yogurt processing equipment with ultrafiltration ceramic membrane technology

Supplier: ZIBO DONGQIANG MEMBRANE TECHNOLOGY CO.,LTD.
Region: Shandong, China
Contact: Mr yuanqiang zhao
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	10 Piece/Pieces per Month;	Port:	Qingdao;
Place of Origin:	Shandong China;	length:	100-1200mm;
Marketing Type:	Ordinary Product;	After-sales Service Provided:	Video technical support;
pore size:	20,30,50,100,200,500,800,1200nm;	Processing Types:	Milk;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Core Components:	PLC,Pressure vessel,Pump;
Warranty:	1 Year;	Processing:	Filter;
Payment Terms:	L/C,T/T,Western Union,paypal;	Local Service Location:	None;
Condition:	New;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Construction works ;
Showroom Location:	None;	Video outgoing-inspection:	Provided;
Packaging Detail:	wooden carton;	Warranty of core components:	1 Year;
Machinery Test Report:	Provided;	Keywords:	ceramic membrane filter;
Brand Name:	DQ;

Product Description

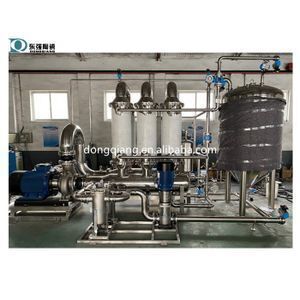

Greek yogurt processing equipment with ultrafiltration ceramic membrane technology

1:System Components:

Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,electric control panel,valves and pipes;

Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91,138,241

Length of membrane: 250-1200mm

Outer diameter of membrane: 12/25/30/40/52/60mm

Material of body: SS304,SS316L,Titanium,FRPP,MSRL;

Material of seals: EPDM;Fluoro Rubber;Silicon;

2: Filtration mode: cross flow filtration;

3:Properties of ceramic membrane:

Support material:	α-alumina
Pore sizes:	UF: 2,5,10,15,20,30,50nm
Pore sizes:	MF: 100,200,500,800,1200nm
Membrane material:	Zirconia,Titania,Alumina
Length of membrane:	250-1200mm(special length upon customer's request)
Outer diamater:	12/25/30/40/52/60mm
Working pressure:	Normal: 0.1-0.4MPa Max.: ≤1.0MPa
Burst pressure:	≥9.0MPa
Working temperature:	5-150℃
PH range:	0-14

4:Specification of membranes:

5: Ceramic Membrane Compared with traditional filtration system

Compared with such tradition filter like frame filter,press filter, centrifugal filter, DE Filter and polymeric membrane filter, ceramic membrane has many unique advantages.

1).Excellent resistance to acid, alkaline and oxidation chemicals.

2).Good solvent stability, high thermal stability.

3).Fine separability with narrow pore size distribution.

4).Extremely long working life compared with polymeric membrane.

5).Easy to be cleaned and sanitized with back flushing.

6).High mechanical strength,good abrasive resistance.

6:Applications:

Filtration,clarification,purification and concentration.

(especially for filtration of food and beverage industries,chemical and petrochemical industries,biochemical and pharmaceutical industries.)
