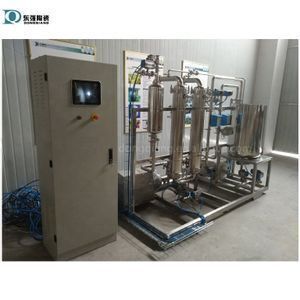

crossflow filtration filter plant for red wine filtration

  cross flow filtration filter pilot plant for red wine filtration

1:Components:

Membrane module,housing,feed tank,centrifugal pump,flow/pressure/temperature meter, back flush tank,electric  panel,valves and pipes;

2:Properties:

Material : Zirconia,Alumina,Titania ;

Pore size of membrane: 10nm,20nm,30nm,50nm;

                     0.1um,0.2um,0.5um,0.8um,1.2um,1.5um;

Pressure resistance:     1.0Mpa

pH range:             0-14

3:Backflushing: Automatic backflushing;

4:Specification of membranes:

Item No.	Geometric graph	Channel Q’ty	Length	Membrane Area
Φ25.4-7-6		7	1016	0.13
			1100	0.15
			1178	0.16
Φ25.4-19-3.3		19	1016	0.20
			1100	0.22
			1178	0.23
Φ25.4-37-2		37	1016	0.23
			1100	0.26
			1178	0.28
Φ30-19-4		19	1016	0.24
			1100	0.26
			1178	0.29
Φ30-37-3		37	1016	0.35
			1100	0.38
			1178	0.42

5:Applications:

Separation of liquids and solids;separation of oil and water;separation of liquids and liquids;

(especially for filtration of food and beverage industries,chemcical and petrochemical industries,

pharmaceutical and mining industries.)

Typical Applications:
1) Biochemical and Pharmaceutical Industries: Clarification and purification of the fermentation products as well as purification or separation of product slurries;
2) Environmental applications: Waste Water clarification and separation;
3) Food and Beverage Industry: Microfiltration of milk, clarification of fruit juice and separation of soyabean protein;
4) Highly useful for various filtration applications in the Petro-Chemical Industry;
5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing liquids.
