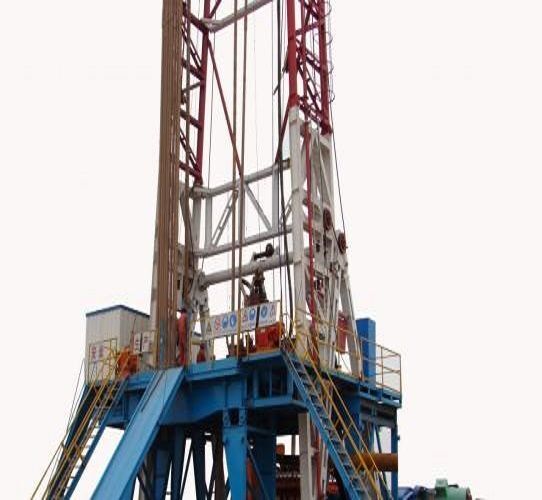

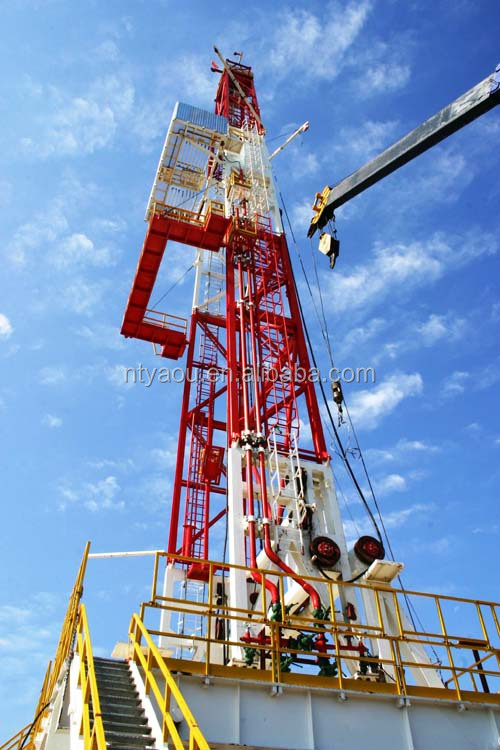

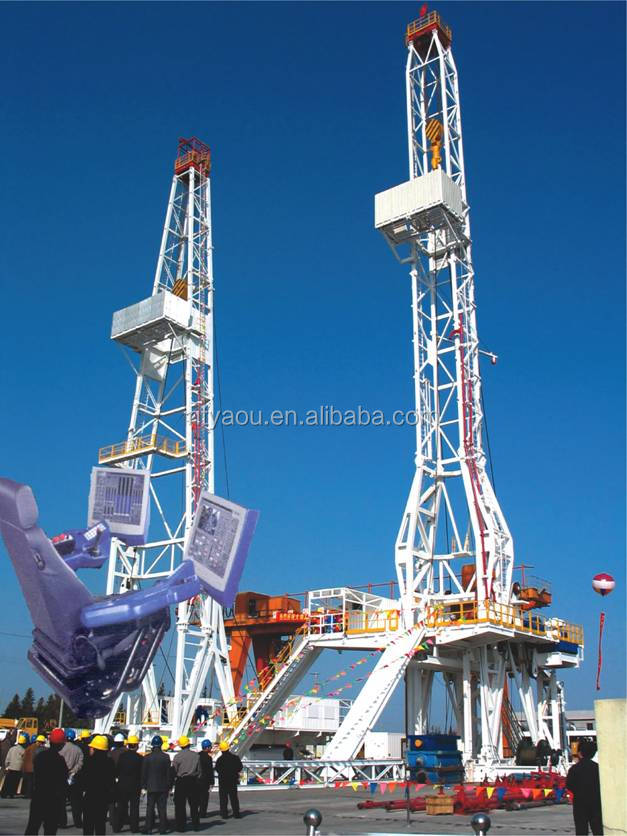

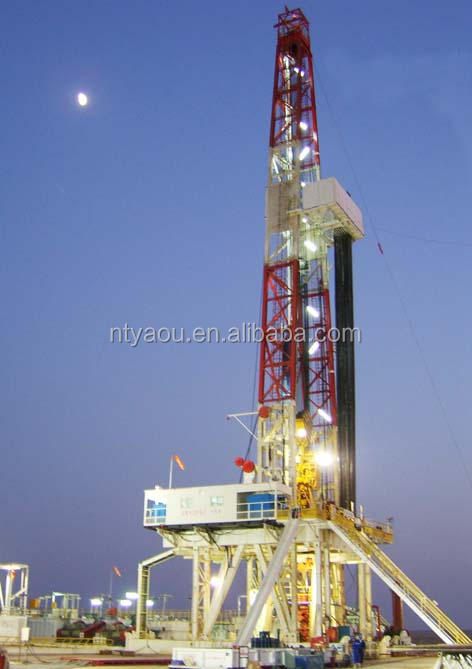

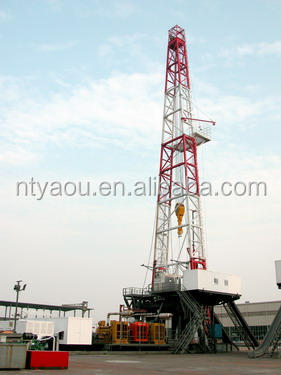

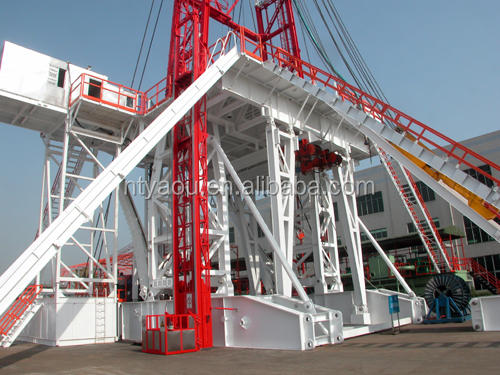

Oil Rig Drilling Rig Equipment ZJ50DBS Oil Rig and Spare Parts

Product details
Video external inspection:ifSupply capacity:1 set per month
Mechanical test report:ifusage:oil well
Marketing Type:New Products 2020payment terms:letter of credit, wire transfer
weight:51000 kgCertification:API
Core components:motor, pumpAfter-sales service provided:Provide overseas service center
port:ChinaLocal service location:Egypt, Turkey, Germany, Vietnam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Chile, UAE, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Applicable industries:Energy and Miningmodel:ZJ50DBS
brand:highPower Type:electrical
place of origin; place of origin:Jiangsu, Chinatype:drilling rig, rotary drilling rig
Warranty:1 yearDimensions (L*W*H):2000*15000*3000
Core Components Warranty:1 yearHealth status:new
Showroom location:United Arab Emirates, UzbekistanPackaging Details:Standard export packaging.
Voltage:24V/220V/380V
Product Description
Product Description of ZJ50DBS Oil Drilling Rig and Spare Parts
1) Adopt digital control technology and computer technology, integrate machine, electricity, hydraulic and gas design, and realize intelligent control of drilling rig through PLC technology and touch screen.
2) The winch, turntable and mud pump are driven by AC variable frequency motor to realize the function of stepless speed regulation.
3) The winch is a single shaft, gear transmission, stepless speed regulation structure, the brake adopts hydraulic disc brake and dynamic brake, the structure is simple and the performance is reliable.
4) The constant WOB automatic drilling device is adopted, and the WOB is controlled accurately.
5) The drilling rig operation realizes the collection, display, storage, printing, transmission and other functions of drilling parameters, as well as multi-point monitoring and communication functions.
6) The drilling rig operation realizes full digital control or digital closed-loop control of cursor position, travel speed and travel.
Safety preset and interlock protection to prevent up and down collisions (crown and RT protection).
7) It has an online monitoring system for the working status of mechanical, electric, hydraulic, pneumatic and other equipment, which realizes fault alarm and fault self-diagnosis, the equipment works normally, and the troubleshooting is convenient.

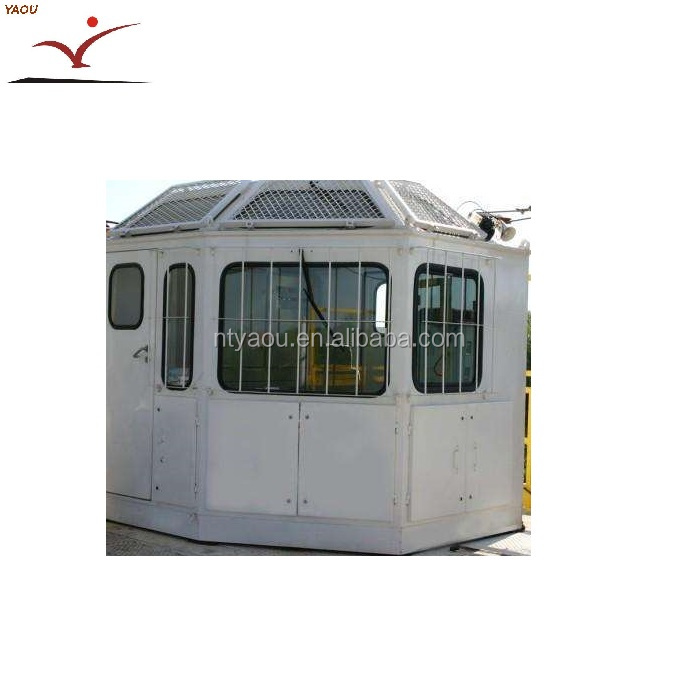

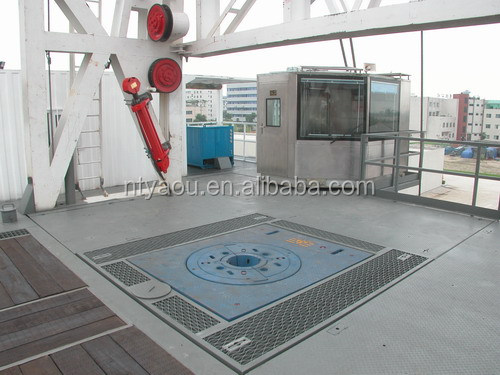

8) Independent hydraulic lift (ZJ70DBS) in the driller's control room, no contact with the drill floor, almost no
Vibration, easy installation and disassembly. The driller's control room is a pressurized unit for explosion protection

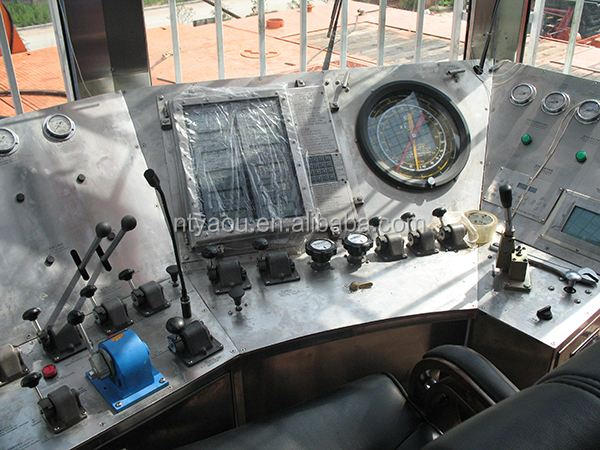

(authentication). The driller can set all drilling operation parameters on the operation chair. The operation methods are as follows:
It has been improved, and the labor intensity has been greatly reduced...
9) It can be equipped with drilling rig moving device to meet the requirements of cluster drilling.
10) Meet the TDS installation requirements.
rig model
ZJ20DBS
ZJ40DBS
ZJ50DBS
ZJ70DBS
Nominal drilling depth, 127mm(5)DP, m
2000
3000
4000
5000
7000
maximum. Hook load, kN(t)
1350(135)
1700 (170)
2250(225)
3150(315)
4500(450)
Drill line number
8
10
10
12
12
diameter. wire rope, mm
29
29
32
35
38
maximum. Fast line pull, kN
200
200
275
350
487
winch
Model
JC-20DB
JC-30DB
JC-40DB
JC-50DB
JC-70DB
Rated power, kW(hP)
400(500)
450(600)
900(1200)
1200(1600)
1940 (2600)
gear
stepless speed regulation
brake
Hydraulic Disc Brake + Dynamic Brake
Eaton Brake + Dynamic Brake
crown block
TC135
TC170
TC225
TC315
TC450
moving block
YG135
YC170
YC225
YC315
YC450
Lifting system pulley outer diameter, mm
1005
1120
1270
1524
hook
YG135
YG170
DG225 or DG250
DG315
DG450
rotate
Model
SL-135
SL-170
SL-225
SL-450
SL-450
diameter. stem hole
75
75
75
75
75

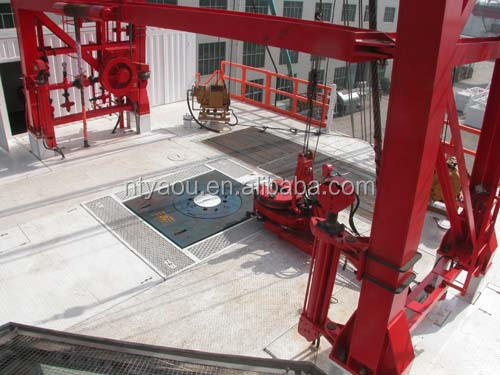

Roulette
Opening Diameter mm (inch)
444.5 (17 1/2)
520 (20 1/2)
698.5 (27 1/2)
952.5 (37 1/2)
952.5 (37 1/2)
gear
stepless speed regulation
drive mode
Independent motor drive

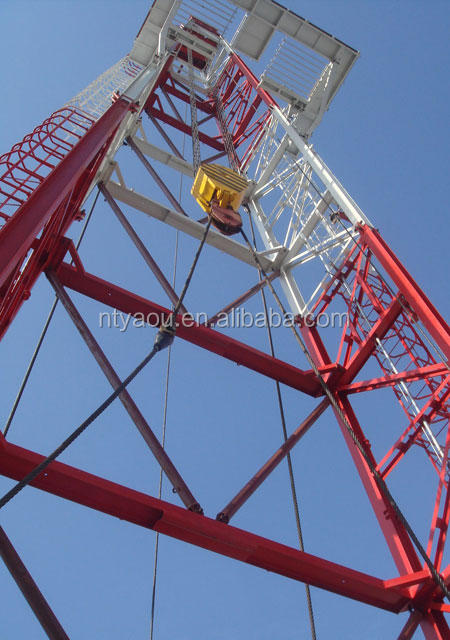

Derrick (mast)
type
K or telescopic
K or A
K
K
K
height, meters
31 or 39
41
43
45
45
maximum. Load, kN (lbs)
900
1700
2250
3150
4500
substructure
type
box-on-box, or telescopic
double boost
Double lift or swing up
Drill floor height
3.8 or 4.5
5 or 5.5
7.5
9
10.5
Clearance height under the rotating beam, m
2.6 or 3.3
3.8 or 4.3
6
7.6
9
mud pump
Model × No.
F800×1
F1000×2
F1300×2
F-1600×2
F-1600×3
drive mode
Electric drive
Electric drive

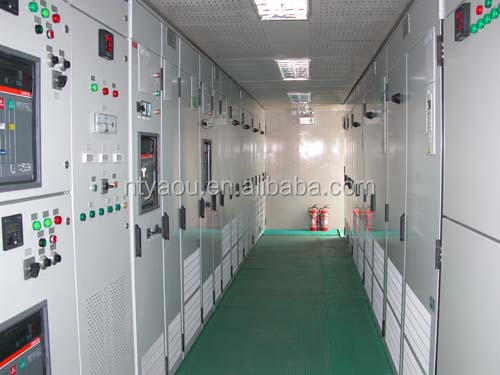

Electronic control method
AC-DC-ACone to one
Marketing activities

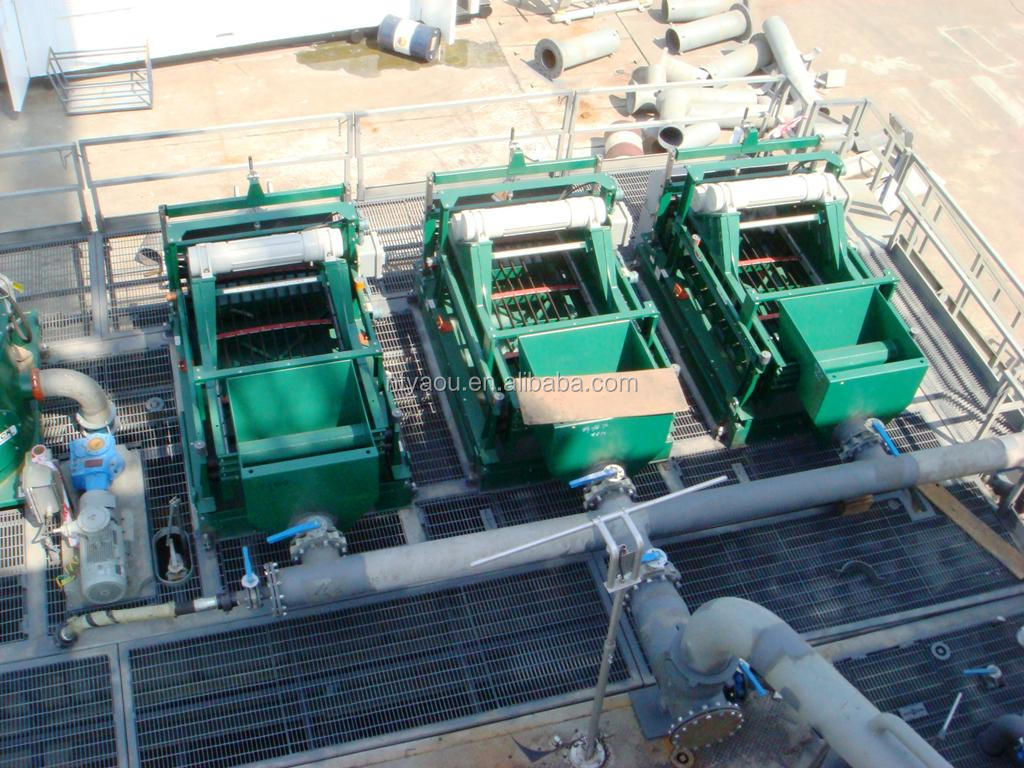

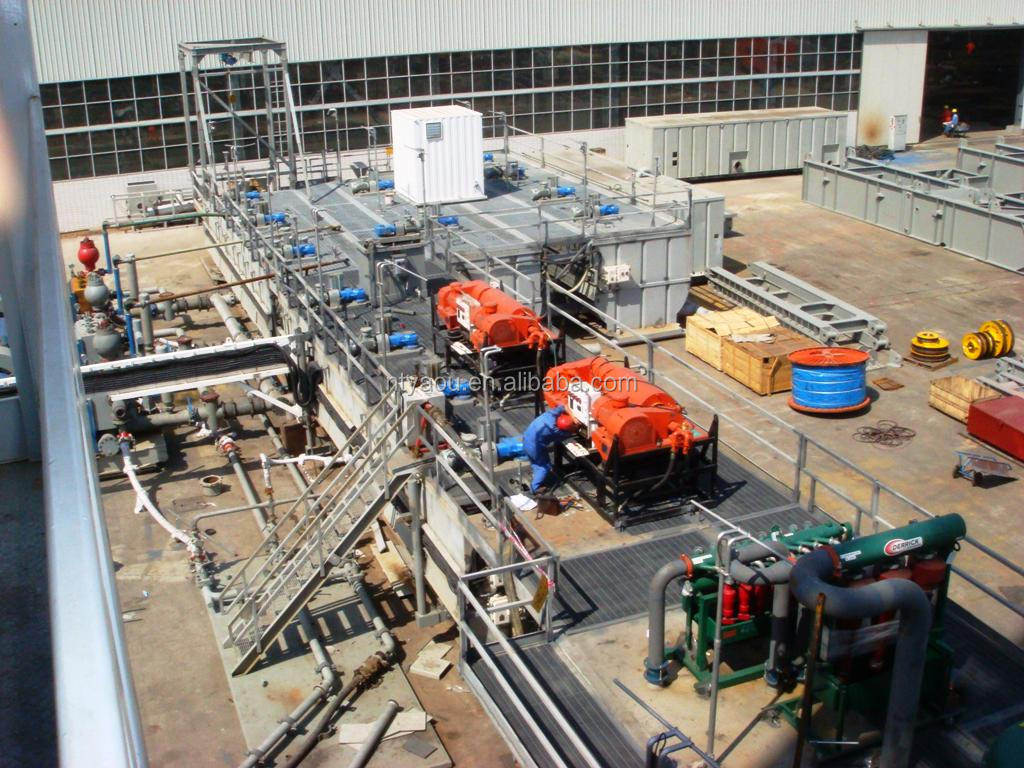

detailed picture
Product packaging
According to the volume weight of the product and export requirements, provide multi-layer box and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
