Oil Recycling Machine/oil Degassing with API

Product details
Payment Terms:L/C,D/A,T/T;Place of Origin:Jiangsu China (Mainland);
Port:CHINA;Brand Name:Yaou;
Application:Oil;Processing Type:Casting;
Packaging Detail:standard packages;Supply Ability:50 Set/Sets per Month;
Certification:API;Material:Carbon Steel;
Machine Type:Drilling Equipment;Type:Oil Drilling Rigs;
Type:Drilling Rig;Use:Oil Drilling Rigs;

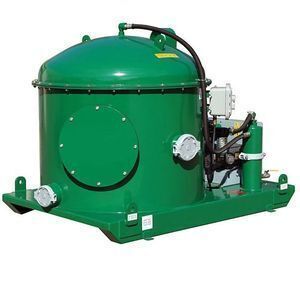

Model-ZCQ is a special-purpose device for the treatment of gas-cut   drilling fluid. It is a new type one we have designed and developed by combining different sorts of degassers from home and abroad. Its applied to match to various mud purification system. It is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time it can be used as a heavy-power agitaor during the operation of gas free mud.

 Operation Drinciple:..

This degasser belongs to a kind of vacuum. One which uses the suction of the vacuum pump to establish an under balanced pressure area in the vacuum cylinder and causes the drilling fluid into the hollow shaft of the rotator through suction pipe under the atmosphere pressure, and then lets the fluid spray to the walls of the cylinder from the windows on the hollow shaft, now the gas bubble cut in the mud may break and run off in the funtcion of vacuum pump suction to a safe ara due to the fluid collision and bubble separator. However, the mud will enter the drainage cavity forced by its self-weight and pass the ratator and discharge off the cylinder.In addition ,drilling mud can enter the pump cylinder only through the suction pipe, and cant be sucked in through the discharge pipe because the vacuum pump and the master motor are started simultaneously and the rotator connected to the motor will relolve at a high relolution speed too

Technique parameters.

Specfication

model

ZCQ(N)

240-28

ZCQ(N)

270-48

ZCQ(N)

300-90

ZCQ(N)

360-180

ZCQ(N)

360-360

Capacitm3/h

240

270

300

360

360

Vacuum degreemmHg

300-340

400-550

400-550

400-550

400-550

Gear ration

1.67

1.68

1.68

1.72

1.72

Main engine power (KW)

15

22

30

37

37

Power of vacuum pump (KW)

2.2KW-4

2.2KW-2

4KW-4

5.5KW-4

11KW-4

Speed(r/min)

876

870

880

860

860

Displacement (m3/h)

28

48

90

180

360

mud weightg/cm3

≤2

≤2

≤2.5

≤2.5

≤2.5

degassing efficiency (%)

≥90

≥90

≥90

≥90

≥90

Weight(kg)

1200

1200

1800

2500

2600

Dimension(mm)

1750×765×1510

1950×1010×1680

2250×1235×1650

2400×1500×1900

2450×1500×1900

...
