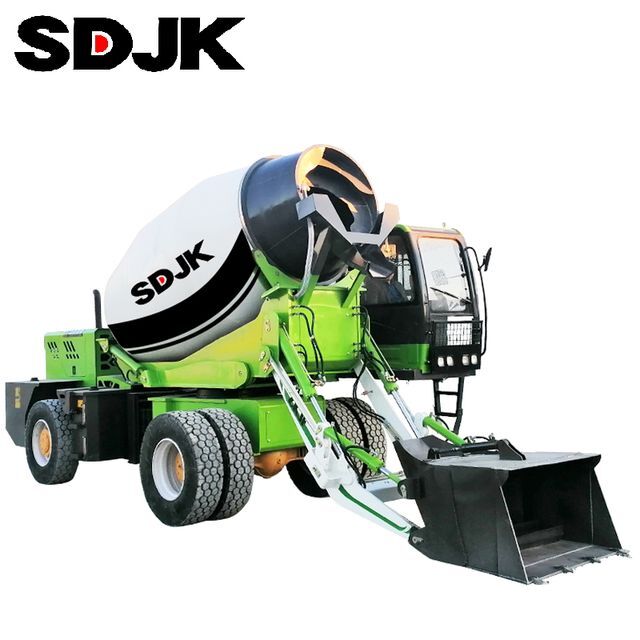

JBC-35 Customized High Efficiency Hot Selling Construction Machine 3.5 m3 Self-contained Small Concrete Mixer Truck

Supplier: Shandong JK Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Colin Cai
Price: $23340.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply capacity:	500 sets per month	Unique Selling Points:	Save time and effort
engine model:	Yuchai 4105	port:	Qingdao
After-sales service provided:	Video technical support, free spare parts, online support	Warranty:	1 year
Type of engine:	4-cylinder, 4-stroke, turbocharged, water-cooled	strength:	85kW
Certification:	CE, ISO	payment terms:	letter of credit, wire transfer
place of origin; place of origin:	Shandong China	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Applicable industries:	Manufacturing, Farms, Construction, Energy & Mining	weight:	7200kg
brand:	SDJK	Packaging Preview:
Local service location:	not any	Showroom location:	not any
Packaging Details:	40HQ Remove the mixing drum and box.	Health status:	new
Dimensions (LWH):	783026804170mm	product name:	Self-unloading concrete mixer truck

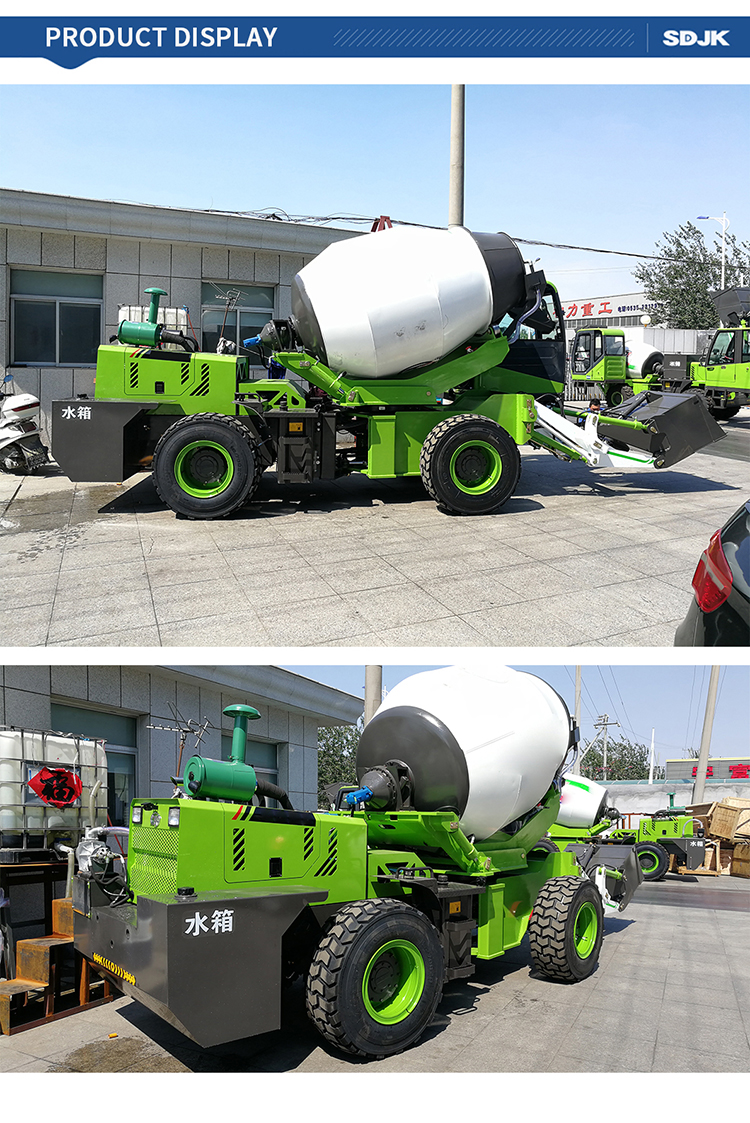

Product display

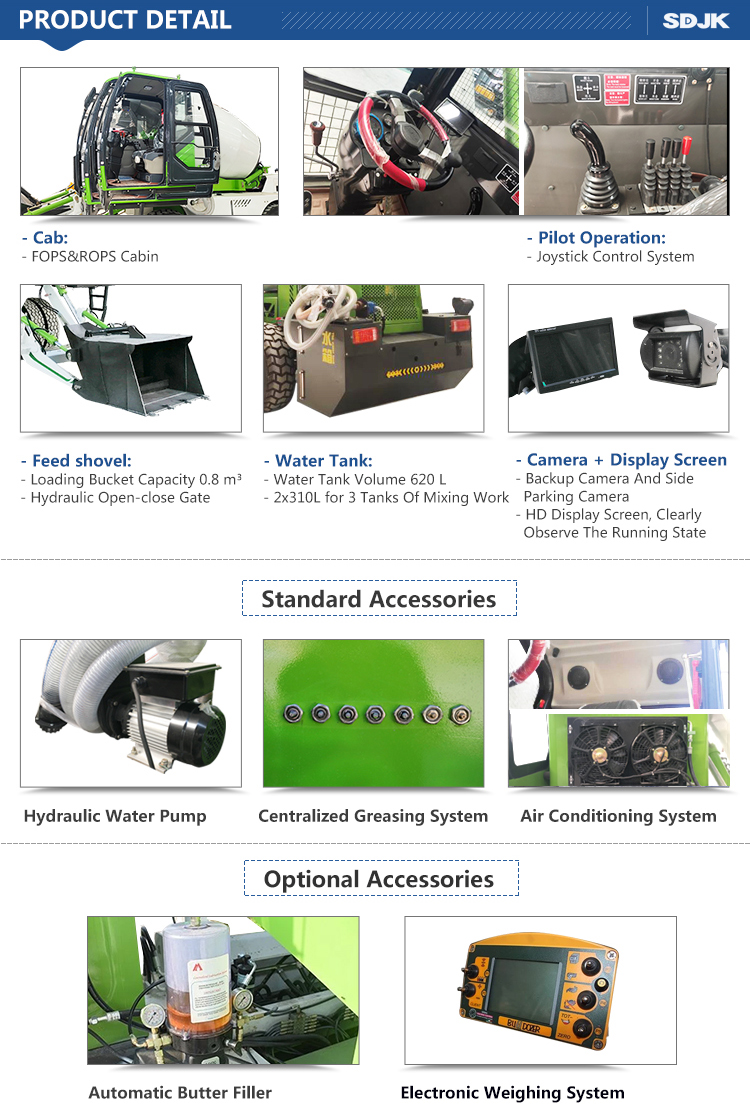

Product Details and Accessories

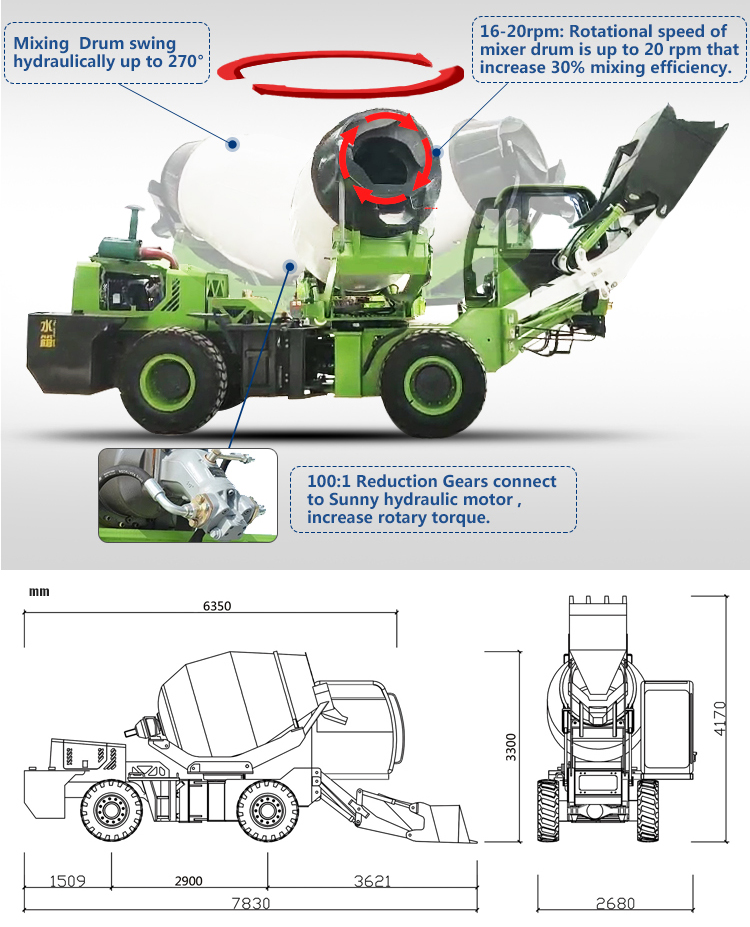

The mixer is small in size and suitable for limited places, and is widely used in new rural construction, urban construction, tunnels, airports, seaports, high-speed railway construction sites, remote areas without electricity, medium-sized projects, farmhouses, buildings, rural roads, irrigation, reservoirs, mines, rural bridges , roads, etc., with the characteristics of labor-saving and high-efficiency concrete output. 1.JBC-35 self-loading concrete mixer truck is the integration of mixer and wheel loader. It can automatically feed, measure, stir and unload. 2. The cab and the mixing drum are integrally formed, which can be rotated 270° and can be used in both forward and reverse directions. The drum can also be raised by 20° to make unloading easier. The rotating speed of the mixing drum is as high as 20 rpm, which improves the work efficiency by 30%. 3. The front axle wet brake, air brake, double brake system and double front tires are adopted to make the mixer more safe and stable. 4. Equipped with a changeover switch, the centrifugal water pump can suck the water into the water tank and the mixing drum respectively. 5. The 16mm thick high-strength steel plate improves the bearing capacity and stability of the mixer truck.

Model	JBC-35	maximum. water absorption	550 l/min. (Self-priming hydraulic water pump)
mixing capability	3.5 cubic meters	Tank volume	2x310 liters
geometric capacity	5.3 cubic meters	maximum. Driving speed	30 km/h
specific output	3.5 cubic meters/batch, 14 cubic meters/hour	level ability	40°
drum speed	16-20 rpm	minute. Turning radius	5300 mm
drum rotation angle	270°	working weight	7200 kg
Model	Yuchai 4105	maximum. load	8400 kg
type	4-cylinder, 4-stroke, turbocharged, water-cooled	maximum. gross weight	15600 kg
rated power	85 kW (116 hp) @ 2400 rpm	Dimensions (L×W×H)	*783026804170mm*
Emission Standards	Euro II	Fuel tank capacity	75 liters
Loading bucket capacity	0.6 cubic meters	Total capacity of hydraulic system	75 liters
time to fill the drum	6 times	Fuel tank capacity	16 liters
discharge chute	2 sets
