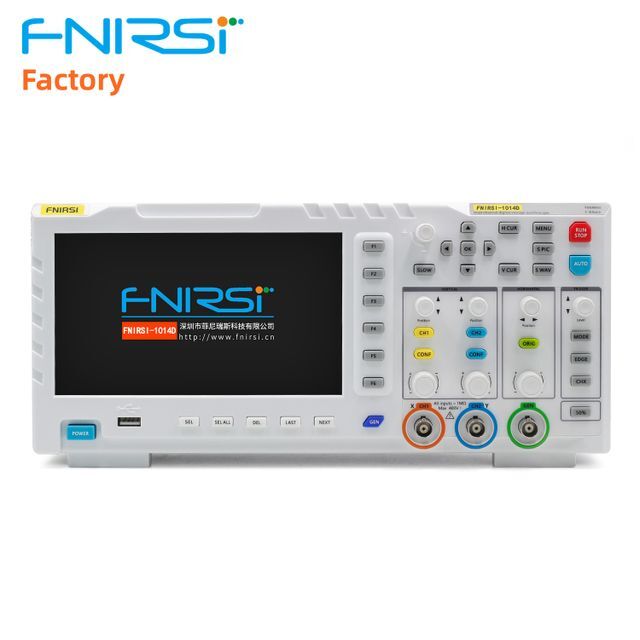

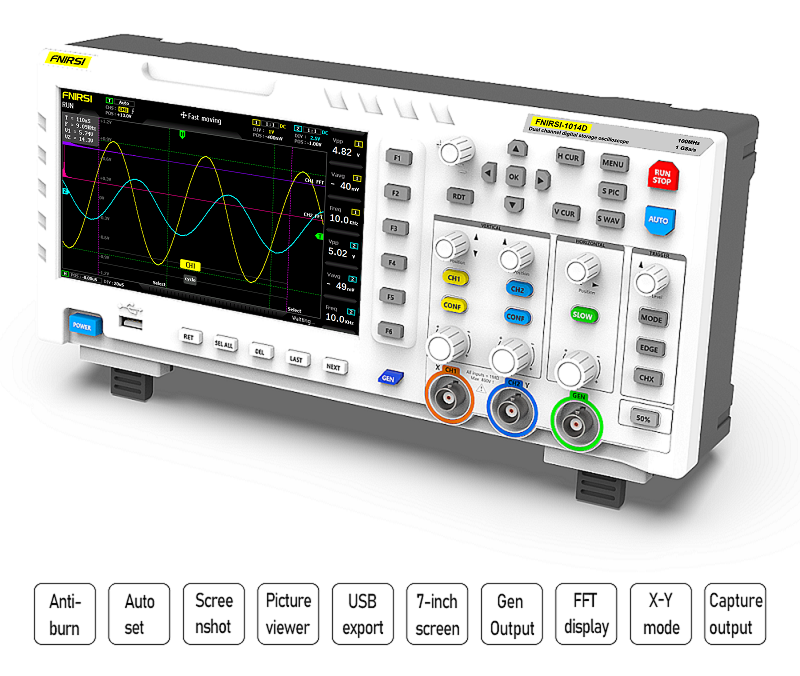

FNIRSI 1014D Digital Oscilloscope 100MHz 2 Channels 1GSa/s Real Time Sampling Rate USB Host and Device Connection 7"

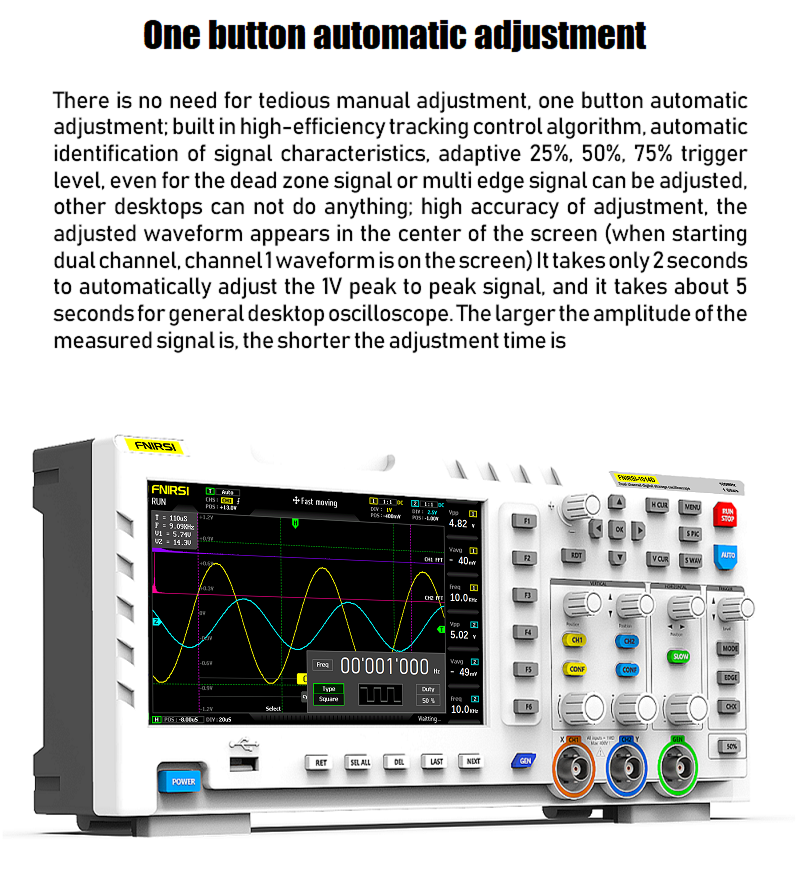

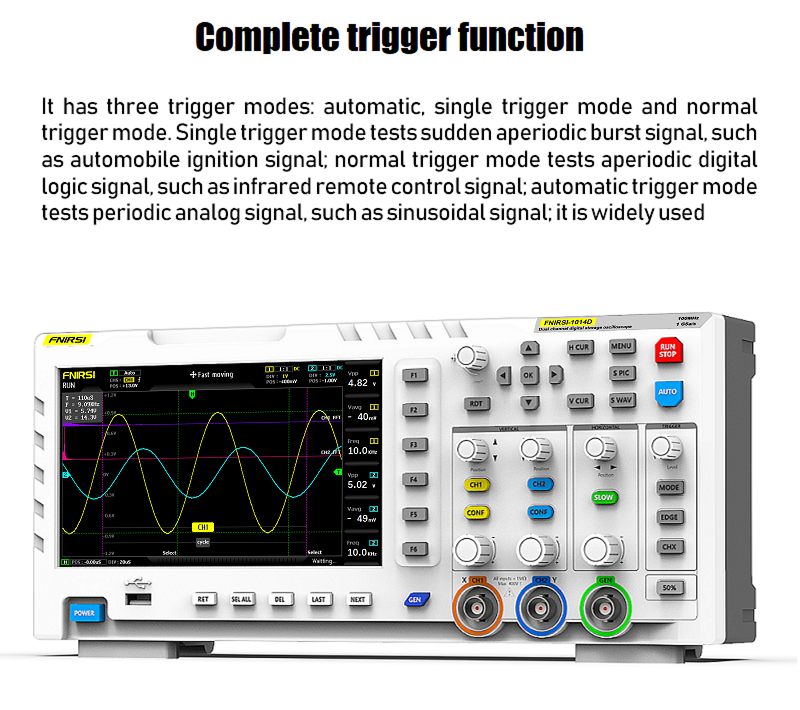

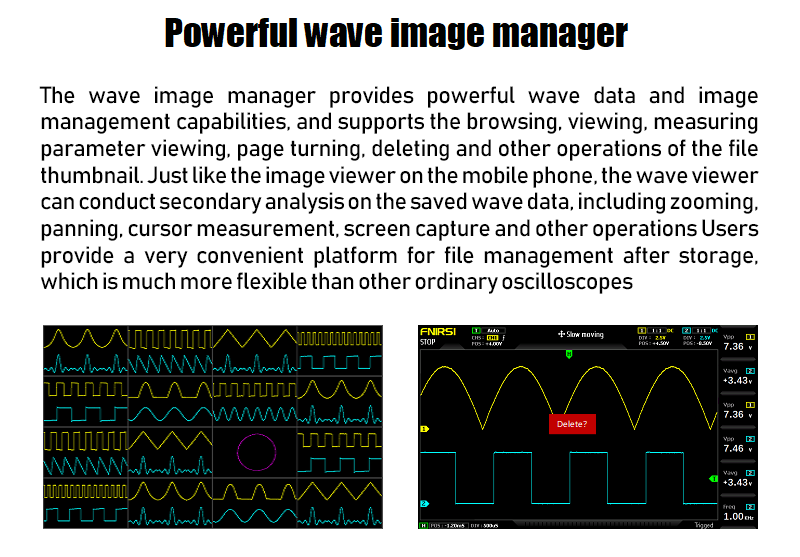

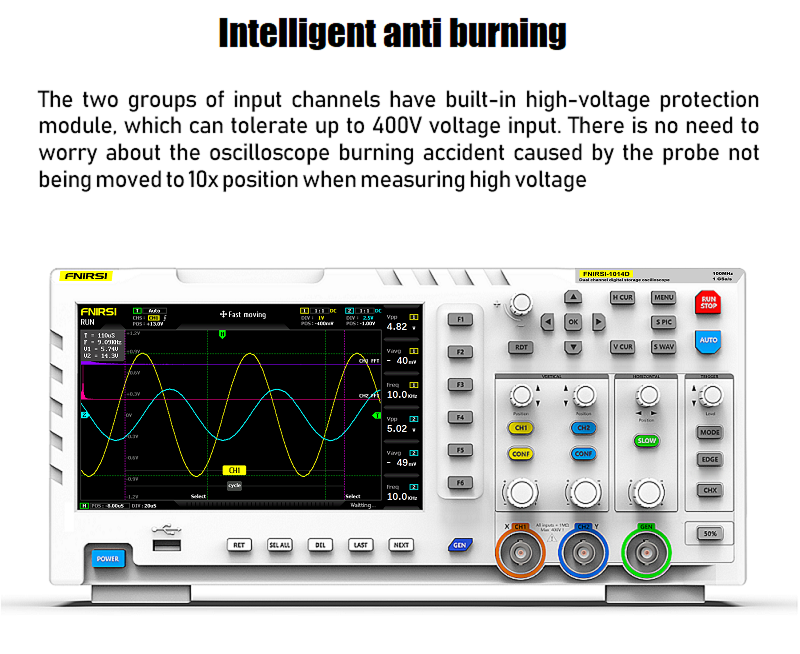

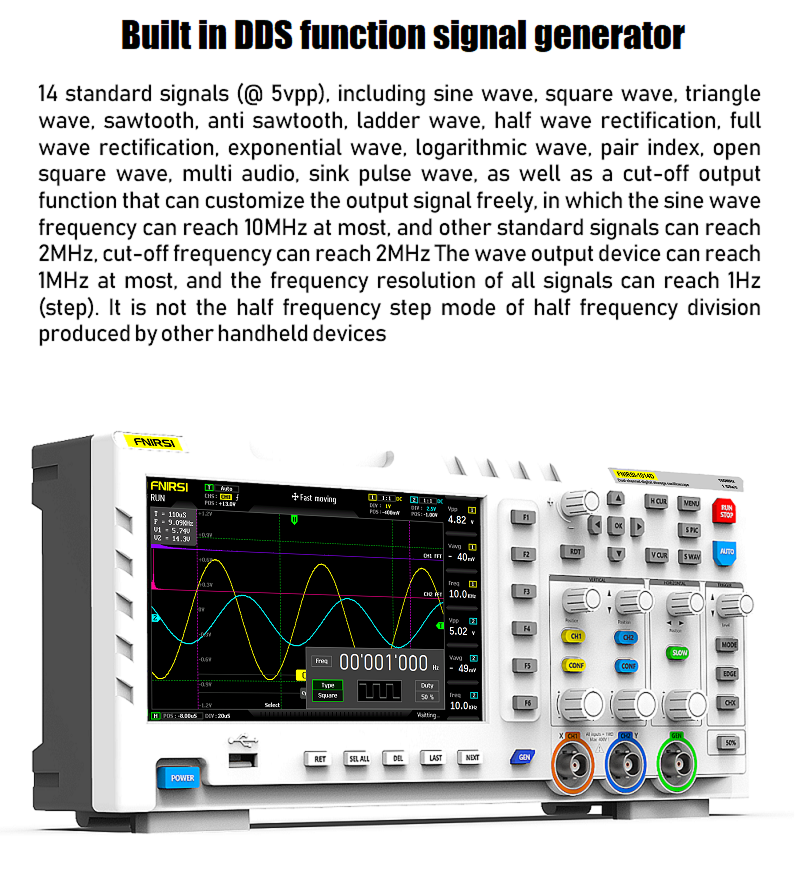

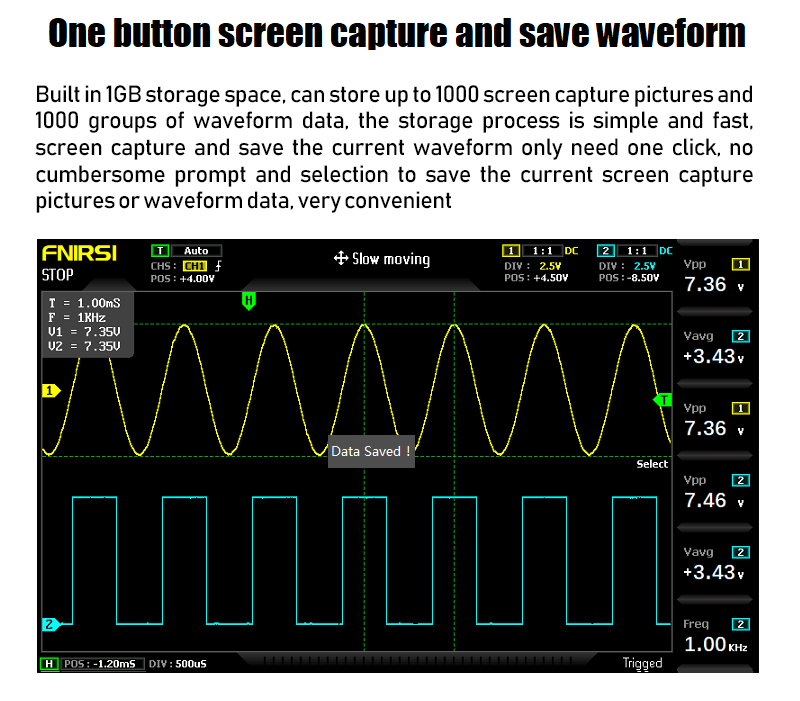

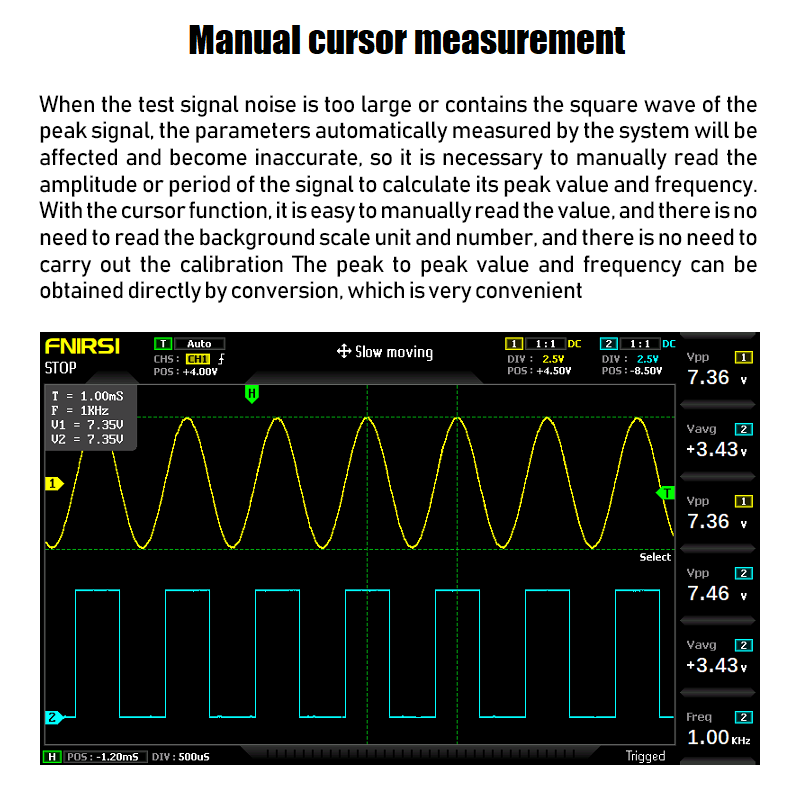

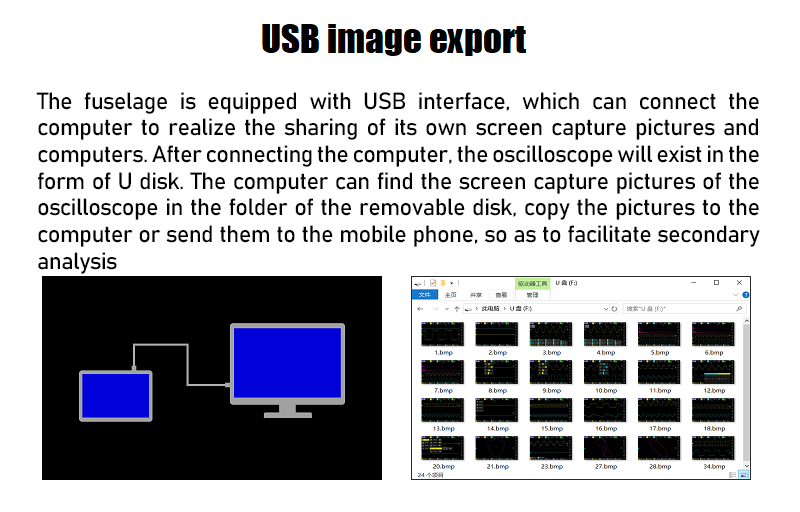

Main features: 1: Built-in DDS signal generator, support 12 kinds of functional signals Burn-proof, 1X can withstand up to 400V withstand voltage 5: 100MHz analog bandwidth@1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz) 6: Fully fit the 7-inch 800*480 resolution color TFT LCD screen, with bright colors And high contrast 7: High measuring voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V, 100X can measure 0 ~ 4000V 8: Up to 12 parameters are measured: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period 9: Cursor measurement function, convenient for manual measurement of period and frequency, Voltage 10: Complete trigger function (single, normal, automatic) 11: Anytime, waveform display ( Pause function) is frozen 12: Equipped with efficient one-key automatic 13: One-key WA waveform storage and screenshots 14: Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data 15: Powerful waveform picture manager, supports zoom Thumbnail browsing, viewing, detailed viewing, page turning, deletion, waveform zooming, zooming out, moving, etc. 16: Equipped with a USB interface, which can be connected to a computer to share screenshots with the computer, which is convenient for secondary analysis 17: It can be determined by using the Lissajous graphic display function Amplitude, frequency and phase comparison of two sets of signals 18: FFT display function, which can analyze the spectral characteristics of signals 19: Memory compression technology, waveform refresh screen without flicker 20: Screen brightness adjustment 21: Background grid brightness adjustment Easy to carry
