Landtech Ultrasonic Thickness Gauge TM-8818 Thickness Gauge Range 0.75~400mm

Supplier: Guangzhou Landtek Instruments Co., Ltd.
Region: Guangdong, China
Contact: Ms Ms Ego Wang
Price: $175.00 / 1 - 1 units
$170.00 / 2 - 4 units
$160.00 / 5 - 9 units
$145.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

Custom Support:	OEM	Speed of sound:	1000~9,999 m/s
Packaging Details:	1 unit is 1.5 kg. Carton size: 26268.5cm 20pcs is 14.5kg. Carton size: 452857cm	place of origin; place of origin:	Guangdong, China
type:	Thickness Gauge	brand:	Blue too technology
Case material:	Aluminum alloy	Single package size:	26X26X8.5 cm
Function:	Automatically memorize material codes and sound velocity values	model:	TM-8818
Sales unit:	single product	Gross weight per piece:	1.500 kg
working principle:	Ultrasound	Warranty:	1 year
Packaging Preview:

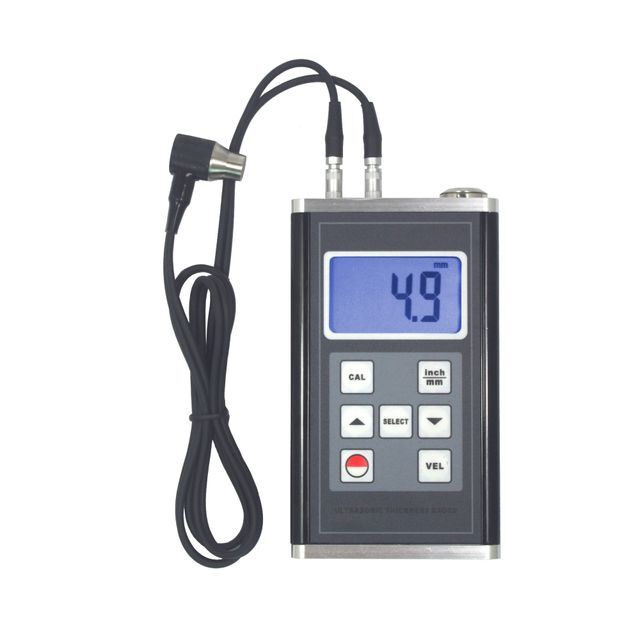

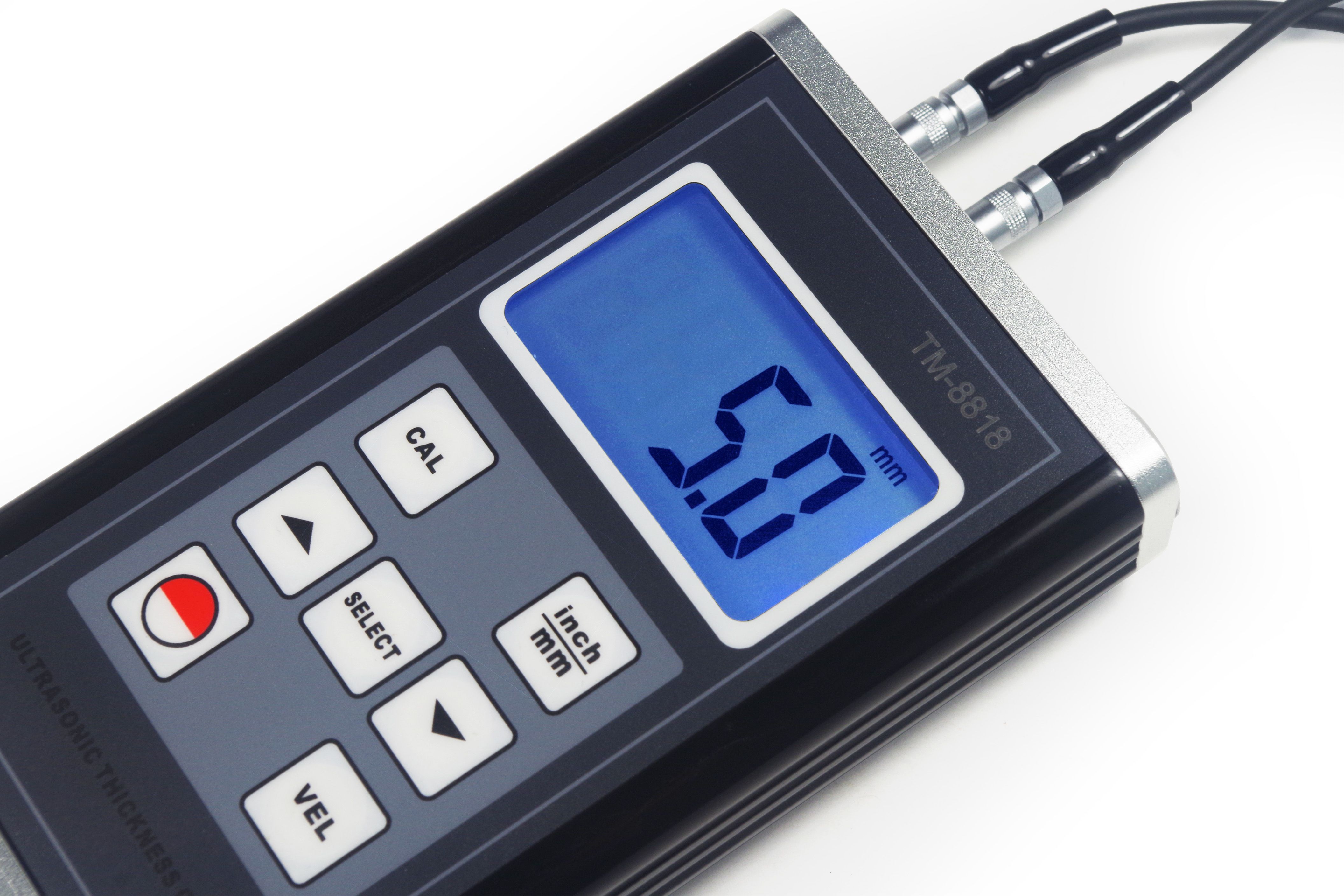

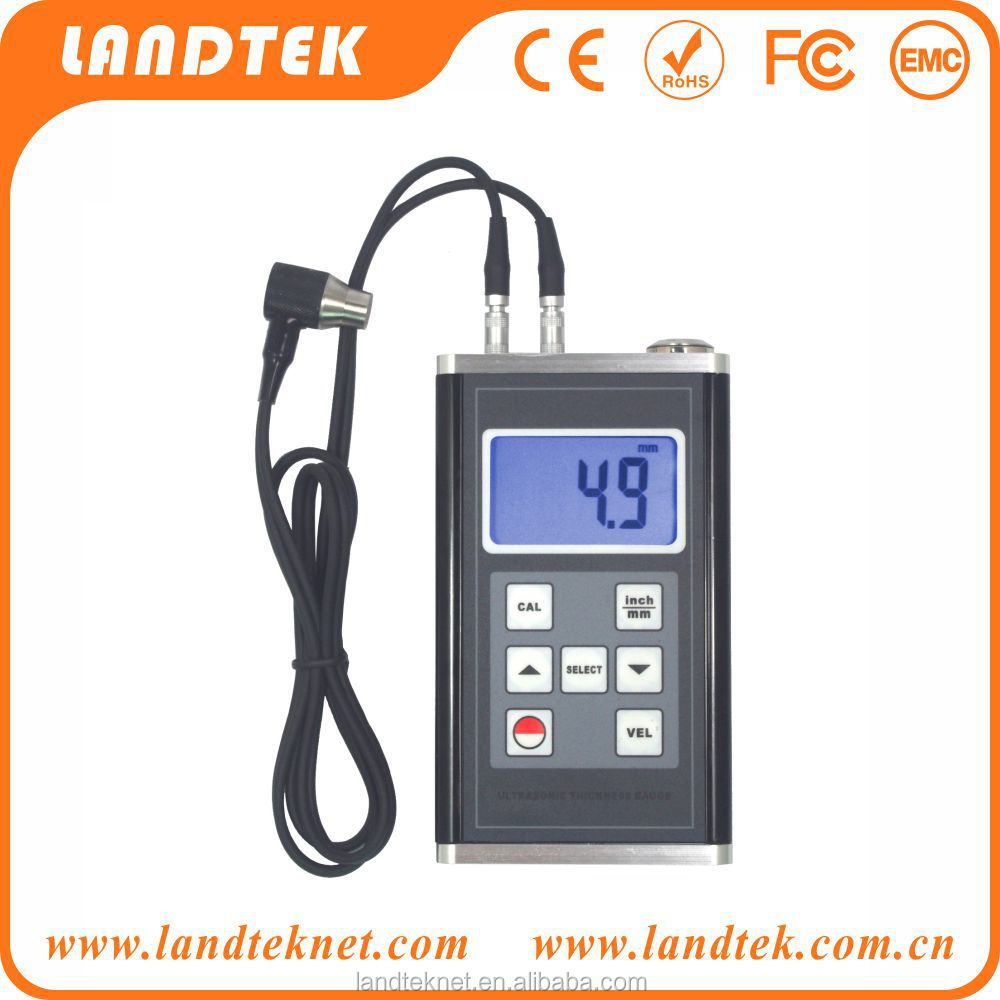

Ultrasonic Thickness Gauge

Model: TM-8818

Specification:

Thickness and corrosion measurement of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in petroleum, shipbuilding, power stations, machinery manufacturing and other industries

Product Description

It is used for thickness and corrosion measurement of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in petroleum, shipbuilding, power stations, machinery manufacturing and other industries.

* Using the latest high-performance low-power microprocessor technology.

* Automatically memorize material code and sound speed value, easy to use.

* Use "USB Data Out" and "RS-232 Data Out" to connect to PC.

case material	Aluminum alloy
exhibit	4-digit LCD
working principle	Ultrasound
Measuring range (metric/imperial)	0.75~400 mm (45# steel, depending on the probe)
battery indicator	low battery indicator
speed of sound	1000~9,999 m/s
Lower limit steel pipe	20 x 3.0 mm
Calibration block	include
Resolution	0.01mm / 0.1mm
accuracy	± (0.5%n + 0.05)
Automatically memorize material codes and sound velocity values
shutdown	Automatic shutdown and manual shutdown
Operating conditions	Temperature: 0~40°C, Humidity: < 85 %RH
power supply	2 x 1.5 V AA (UM-3) batteries
aspect	130 x 76 x 31 mm
weight	340 g (without battery)

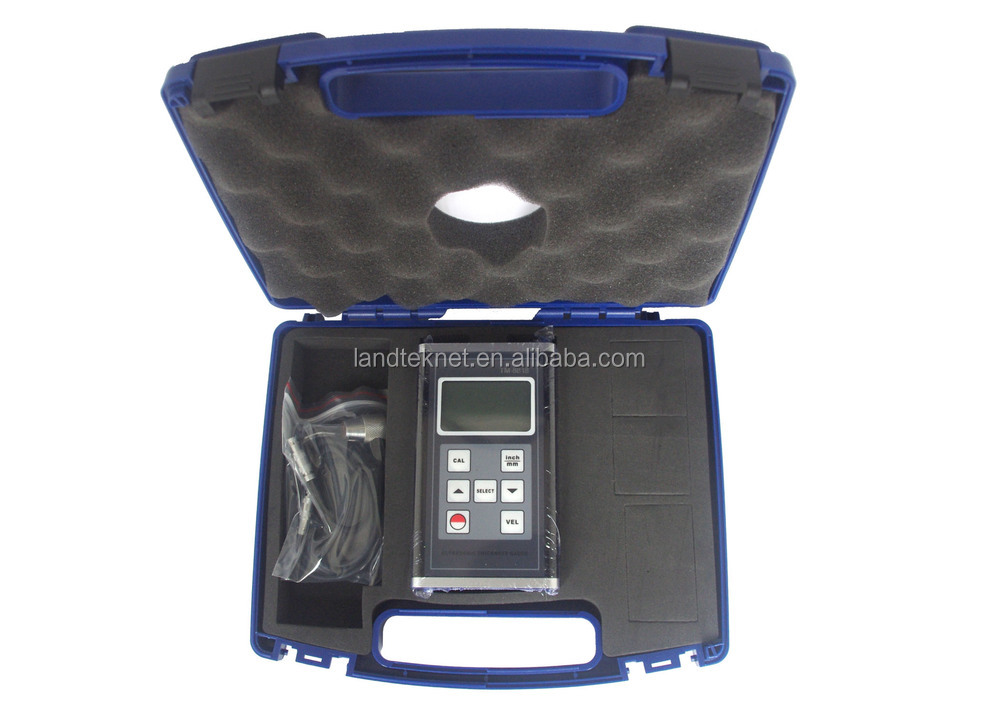

Standard accessories:

1. Host

2. 5M/8 standard sensor

3. Coupling agent

4. Suitcase

5. Operation Manual

Optional accessories:

1.6M / 6 mm thin material probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2.5M / 12 mm high temperature probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel): 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3.Curved probe

4. USB, RS-232C data cable with software

Packaging and Shipping

1 unit is 1 kilogram. Carton size: 26*26*8.5cm
20 pieces are 14.5 kg. Carton size: 45*28*57cm

Shipped by DHL, FEDEX, UPS, AIR, SEA
