LANDTEK Paint Coating Thickness Meter Aluminum Iron Gauge Auto Tester 0-1250um CM-8825FN

Supplier: Guangzhou Landtek Instruments Co., Ltd.
Region: Guangdong, China
Contact: Ms Ms Ego Wang
Price: $185.00 / 1 - 1 pieces
$180.00 / 2 - 4 pieces
$170.00 / 5 - 9 pieces
$155.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Customized support:	OEM;	Place of Origin:	Guangdong, China;
Warranty:	1 year;	Brand Name:	LANDTEK;
Resolution:	0.1 um / 1 um;	Operating Principle:	Magnetic Induction / Eddy Current (F / NF);
Single gross weight:	1.000 KG;	Package Preview:	;
Min. Radius Workpiece F type:	F Type: convex 1.5 mm / concave 25 mm;	Packaging Detail:	paper carton 27237cm;
Selling Units:	Single item;	Model Number:	CM-8825FN;
measuring range:	0~1250 um / 0~50 mil;	Min. Radius Workpiece NF type:	NF Type: convex 3 mm / concave 50 mm;
accuracy:	± 1~3%n or ± 2.5 um;	Type:	Thickness Meter;
Single package size:	27X23X7 cm;

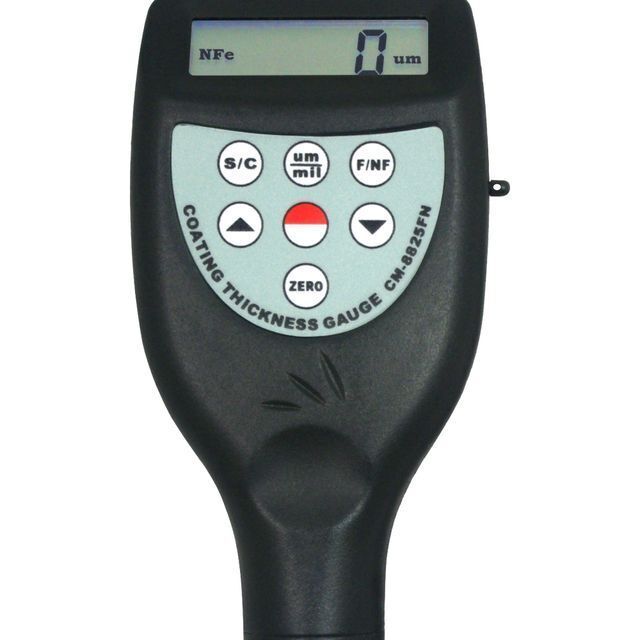

Coating Thickness Meter

Model No : CM-8825FN

Product Description

Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “ BT ™ data output” choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability,
users can get continuous, good repetitive and precise measurements.

Operating Principle	Magnetic Induction / Eddy Current (F / NF)
Measuring Range	0~1250 um / 0~50 mil
Resolution	0.1 um / 1 um
Min. Radius Workpiece	F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area	6 mm
Min. Sample Thickness	0.3 mm
Accuracy	± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial	Convertible
Battery Indicator	Low Battery Indicator
Operating Conditions	Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	126 x 65 x 27 mm
Weight	81 g (Not Including Batteries)
