LANDTEK Ultrasonic Thickness Gauge TM8812 / TM8812C

Supplier: Guangzhou Landtek Instruments Co., Ltd.
Region: Guangdong, China
Contact: Ms Ms Ego Wang
Price: $130.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Package Type:	1 unit is 1kg. carton size: 27237cm 20pcs is 14.5kg. carton size: 452857cm;	Selling Units:	Single item;
Place of Origin:	Guangdong China (Mainland);	Package Preview:	https://sc01.alicdn.com/kf/HTB17wbxbjLuK1Rjy0Fhq6xpdFXaV.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB15ySibsnrK1RjSspkq6yuvXXat.jpg_640x640.jpg;
Model Number:	TM-8812 / TM8812C;	Single package size:	27X23X7 cm;
Delivery Detail:	0 days after payment;	Single gross weight:	2 KG;
resolution:	0.1 / 0.01;	Brand Name:	LANDTEK;

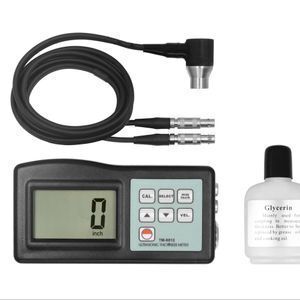

Ultrasonic Thickness Gauge TM-8812 / TM8812C

Product Description

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

Display	4 Digit, 10 mm LCD
Operating Principle	Ultrasonic
Measuring Range (metric / Imperial)	1.0~200 mm / 0.04~8 inch
Battery Indication	Low Battery Indication
Sound Velocity	1000~9000 m/s
Lower Limit Steel Pipes	15 x 2.0 mm 20 x 3.0 mm determined by transducer
Calibration Block	Included
Resolution	0.1 mm (TM-8812C 0.01 mm)
Accuracy	± (0.5%n + 0.1)
Automatic memory material code and the value of sound velocity
Power off	Auto Power off & Manual Power Off
Operating Conditions	Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply	4 x 1.5 V AAA (UM-4) Battery
Dimensions	120 x 62 x 30 mm
Weight	164 g (Not Including Batteries)

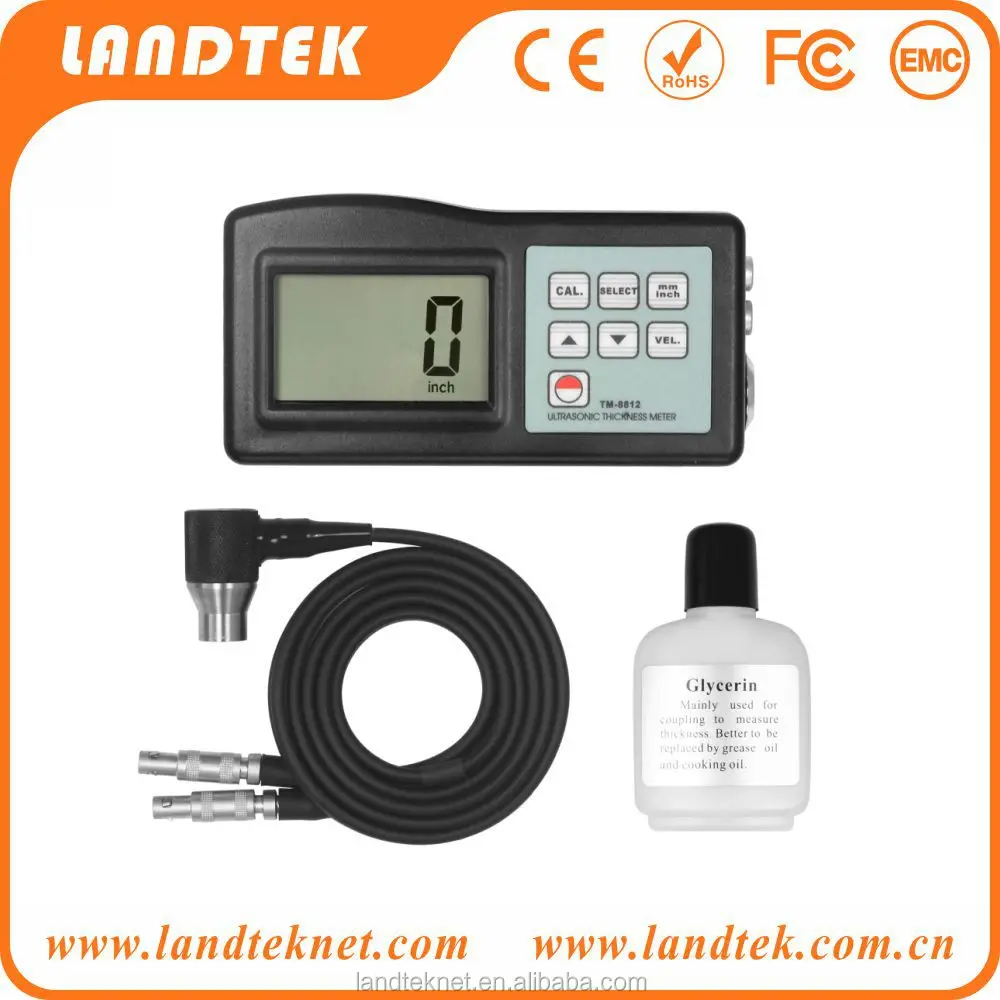

Standard Accessories:

1. Main Unit

2. 5M / 8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M / 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M / 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

5. Bluetooth data output with software

Packaging & Shipping

1 unit is 1kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm

ship by DHL, FEDEX , UPS, AIR, SEA
