Wooden pallet slotting machine automatic double head slotting machine

Click here to contact

Product details

weight:	600kg	strength:	22kW
Voltage:	380V 50HZ	Packaging Details:	1. Inner packaging machine, packaging film with slotting machine 2. Outer packaging, in seaworthy fumigation-free wooden boxes or plywood boxes according to customer requirements
Core Components Warranty:	3 years	Certification:	CE&ISO9001
application:	wooden pallet	capacity:	1600-1800/hour
place of origin; place of origin:	China	Raw materials:	board
Main selling point:	long lasting	Supply capacity:	100 sets of wood pallet slotting machine/automatic double head slotting machine per month
Showroom location:	not any	port:	Shanghai Port, Qingdao Port
Warranty:	1 year	Core components:	motor
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Applicable industries:	Manufacturing plant, pallet factory, woodworking
Weight (kg):	1000kg	Video external inspection:	if
Mechanical test report:	if	brand:	CRS
product name:	Wooden pallet slotting machine/automatic double head slotting machine	color:	According to customer requirements
Function:	American wood pallet processing	Type of machine:	Scorer
Health status:	new	Power (kW):	twenty two
Marketing Type:	Hot Products 2022

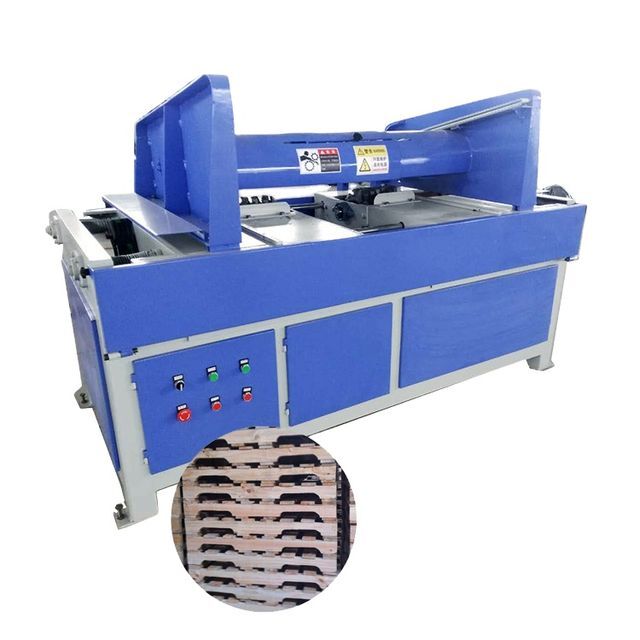

Wooden pallet slotting machine/automatic double head slotting machine

machine video

Machine video for your reference:

Single head groover for wooden pallets: http://www.zzchryso.com/chanpinshipin/98.html

Wooden pallet double head groover:http://www.zzchryso.com/chanpinshipin/99.html?is_wap=1

Wooden pallet making machine: http://www.zzchryso.com/chanpinshipin/88.html?is_wap=1

Wood chip tray foot making machine: http://www.zzchryso.com/chanpinshipin/89.html?is_wap=1

Wood veneer peeling production line: http://www.zzchryso.com/chanpinshipin/94.html?is_wap=1

Planer:http://www.zzchryso.com/chanpinshipin/92.html?is_wap=1

Wood Shredder:http://www.zzchryso.com/chanpinshipin/90.html?is_wap=1

Sawdust Dryer:http://www.zzchryso.com/chanpinshipin/96.html

Wood Waste Pallet Crusher:http://www.zzchryso.com/chanpinshipin/95.html?is_wap=1

Product Description

Product Name: Wood Pallet Slotting Machine/Wooden Pallet Slotting Machine

Introduction of automatic planer:

ØAutomatic pallet trenching machine is mainly used for pallet bottom plate trenching.

Ø Stringers for making American Standard wood pallets, forks can be used from four directions

Forklifts have become the most popular pallet type in the world.

ØGroove arc can be customized according to your requirements.

ØContinuous feeding and discharging.

ØIt needs to be matched with an air compressor, a 3kw small air compressor.

Features of wood pallet slotting machine:

Ø The tool is made of cemented carbide material, with high hardness, wear resistance, good strength and toughness,

A series of excellent properties such as heat resistance and corrosion resistance ensure the long-term performance of the machine;

Ø Continuous loading and unloading platform, which can open two grooves at the same time,

Excavation area is smooth without roughness, standard size, high precision, groove depth and width

Size can be adjusted.

Specifications of wood pallet slotting machine

Model	CRS-1G	CRS-2G
capacity	600-800/hour	1800/hour
strength	15kW	30kW
Plank size	Maximum length: 1800mm Height: 40-60mm Width: 160mm	Length: 1300mm Width: 90mm Thickness: 40-60mm
Groove size	Slot depth: less than 45mm Slot width: less than 230mm
Machine size	120010001200mm	200012001600mm
weight	400kg	600kg
Note: Groove dimensions (width and depth) can be adjusted, or customized if yours are not in the standard range.
