Fully automatic hydraulic European standard wooden pallet making machine | Wood sawdust for wooden pallet hot press forming machine
- 46780.00 1 - 2 sets
- 44890.00 >=3 sets
| product name: | Compressed wood pallet machine | Machine size: | 2300*1500*4300mm |
| Package preview: | main motor power: | 7.5kW | |
| Applicable mold types: | Less than 1200*1100 or customized | Year: | up to date |
| Automatic level: | automatic | Place of origin: | Henan, China |
| port: | Shanghai Port or Qingdao Port | Voltage: | 220v/380v/customized |
| Health status: | new | capacity: | 130-160PCS/day |
| Function: | Production of molded pallets | weight: | 12700kg |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card | Mechanical capabilities: | 130-160 pieces per day |
| brand: | ZZCHRYSO | Tray size and pattern: | custom made |
| raw material: | Scrap wood, bamboo, glue | pressure: | 800T or customized |
| Product Category: | Molded Wood Pallet Making Machine | Packaging details: | *The inside of the particle board pallet making machine is packed with stretch film. *The outer packaging of the particle board pallet making machine is airworthy and fumigation-free wooden boxes or plywood boxes. Automatic hydraulic hot pressing wood pallet making machine wood sawdust. |
| Dimensions (length*width*height): | 2300*1500*4300mm | strength: | 7.5kW |
| Supply capacity: | 100 wooden pallet making machines per month | Key machines: | Wood crushers, presses, wooden pallet making machines |
| Heating source: | Thermal oil or steam | model: | CRS-800T |

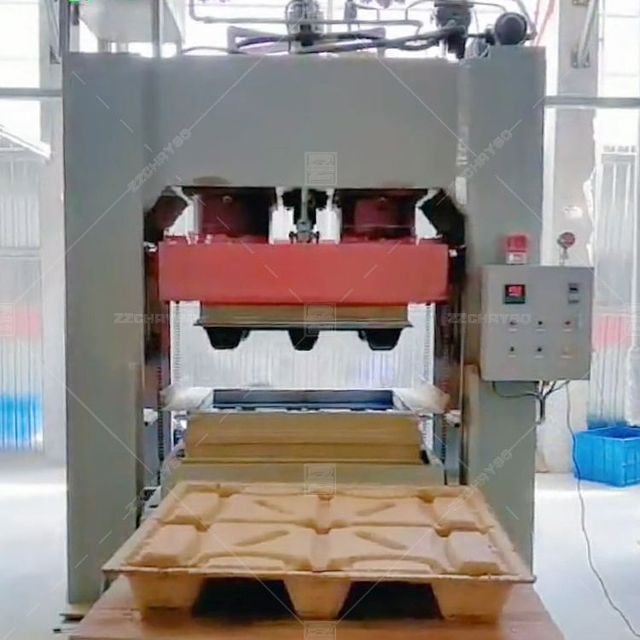

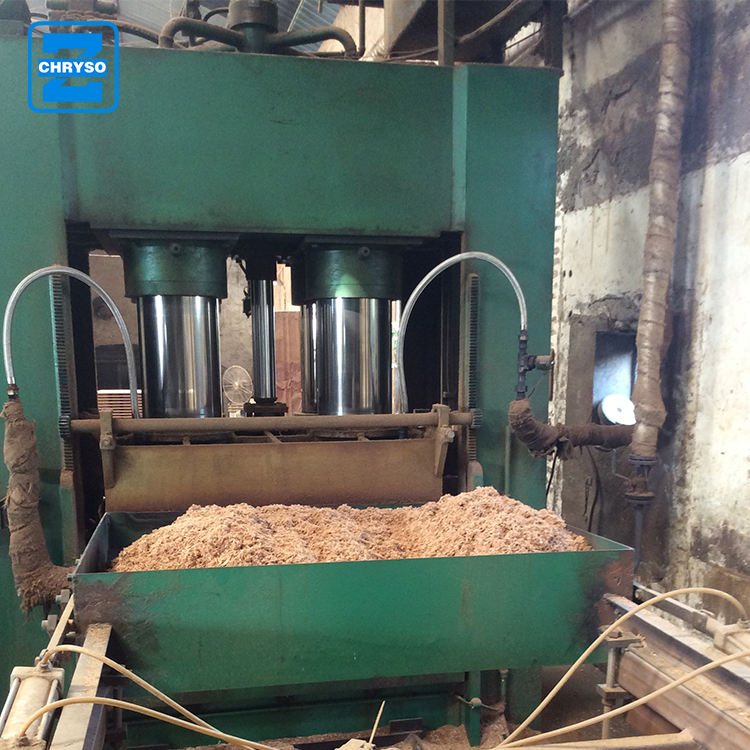

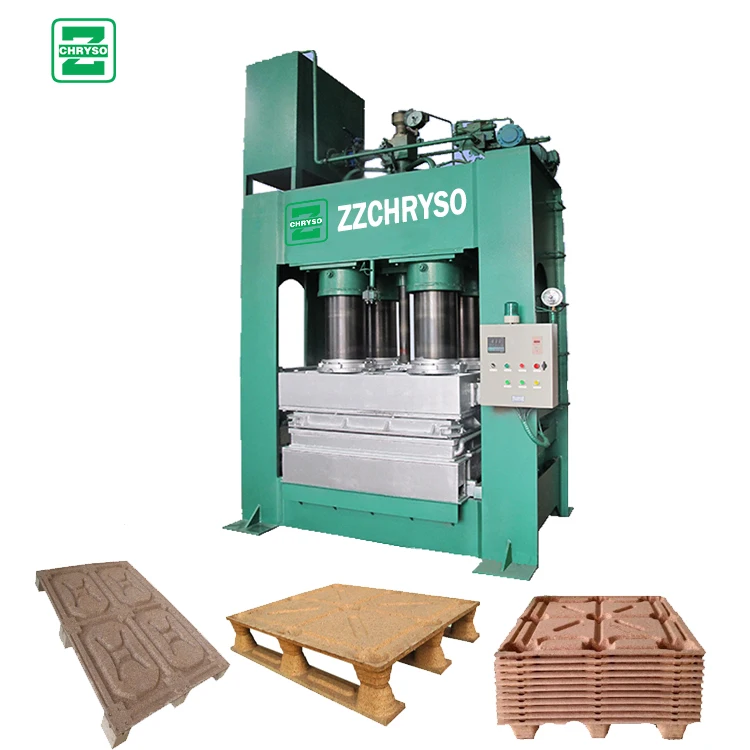

Fully automatic hydraulic wood chip hot pressing wood pallet making machine
Fully automatic hydraulic wood chip hot pressing wood pallet making machine
Machine introduction:
1. Compressed wood pallet making machine is mainly used to produce molded pallets.
2. The compressed wood pallet making machine has stable performance, high efficiency and energy saving.
3. Steam and thermal oil can be used at the same time.
4. The installation is very convenient and does not require basic positioning.
5. Different wooden pallets can be produced by changing the mold.
Features of our automatic hydraulic hot pressed wood sawdust wood pallet making machine:
1. Our wooden pallet machine has a good structure, adopts three-way synchronous positioning, and is precisely balanced. It pressurizes quickly during filling and pressurizes well within 35 seconds.
2. The operation is simple, just press the working button and the machine will automatically complete the entire process.
3. It takes about 450 seconds to form a pallet.
4. This machine can produce approx.130-160 piecesPallets per day.
5. ofdensityThe pallet weight is approximately 900 kg per cubic meter.
6.The machine cancustom made.
Fully automatic hydraulic wood chip hot pressing wood pallet machine technical information:
|
Model
|
CRS-800T |
|
pressure |
800T or customized |
|
main tank |
Φ320, 4 sets |
|
Pilot cylinder |
Φ100, 1 set |
|
Lifting cylinder |
Φ100, 2 sets |
|
main motor power |
7.5kW |
|
Stamping stroke |
550mm |
|
capacity |
130-160 pieces/day |
|
Mold type |
Less than 1200*1100mm or customized |
|
Heating type and capacity |
Steam or thermal oil, 0.15 cubic meters |
|
Machine size |
2300*1500*4300mm |
|
Machine weight |
12700kg |

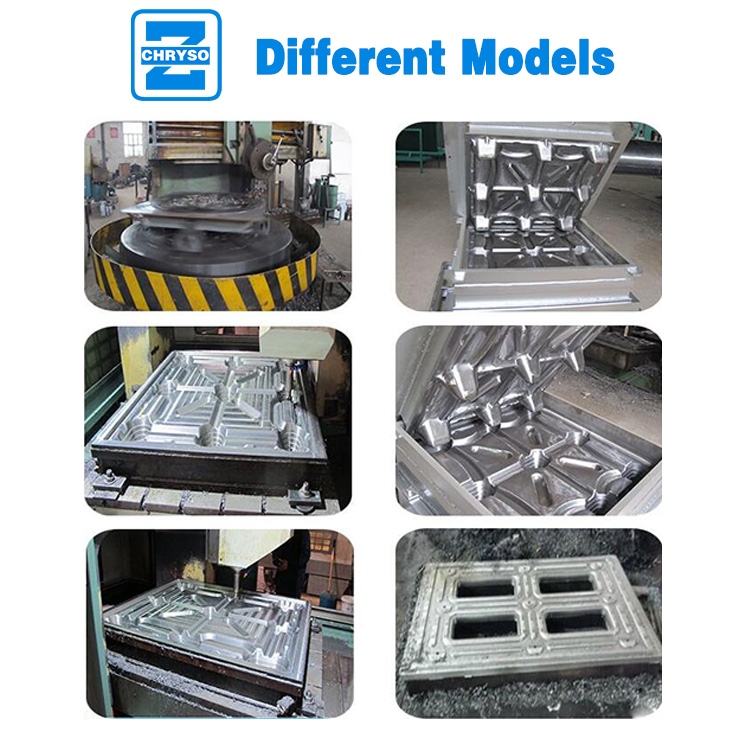

Pictures of different molds:
raw material:
The wooden pallet compressed wooden pallet making machine mainly uses bamboo shavings, wood sawdust, shavings, scraps, etc. as the main raw materials.

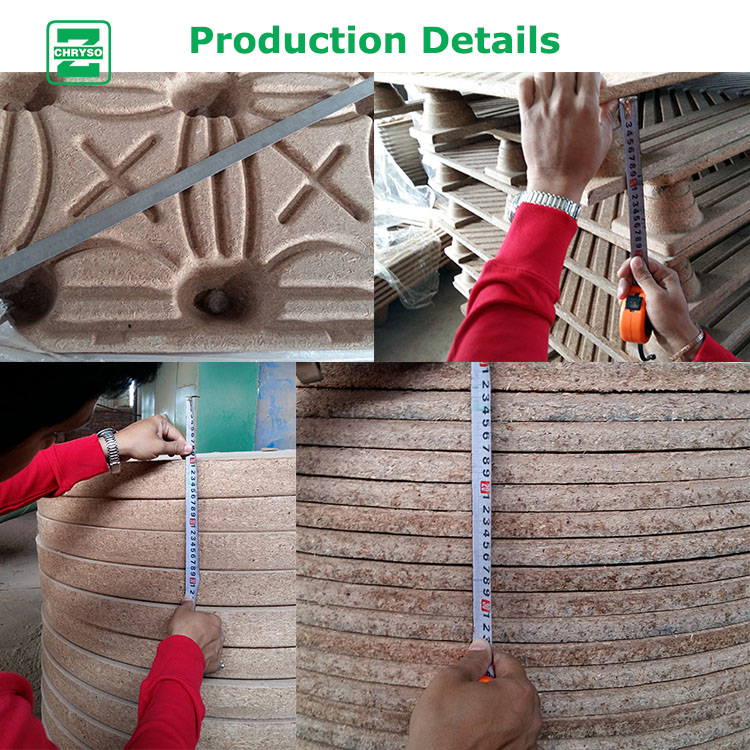

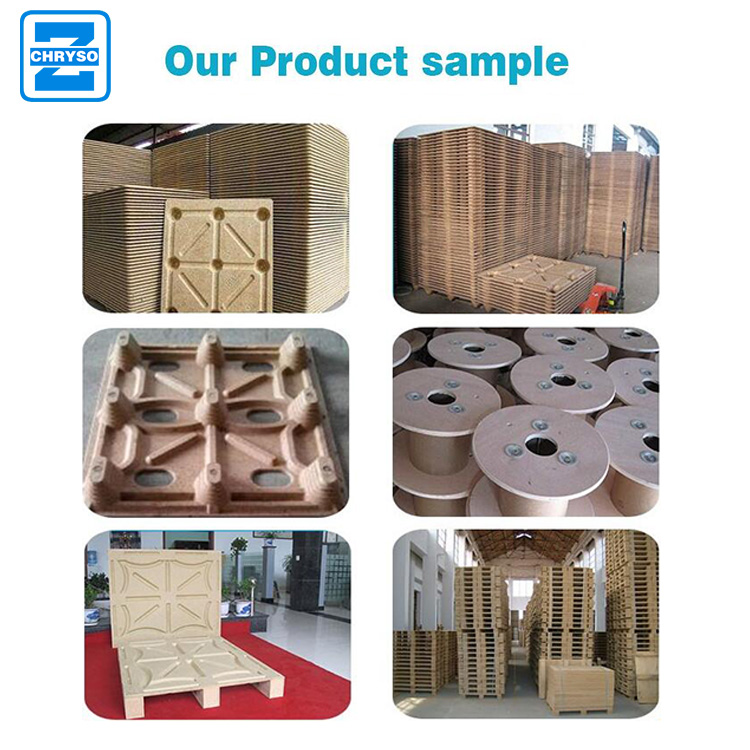

The final product of the fully automatic hydraulic hot pressing wood sawdust pallet making machine:

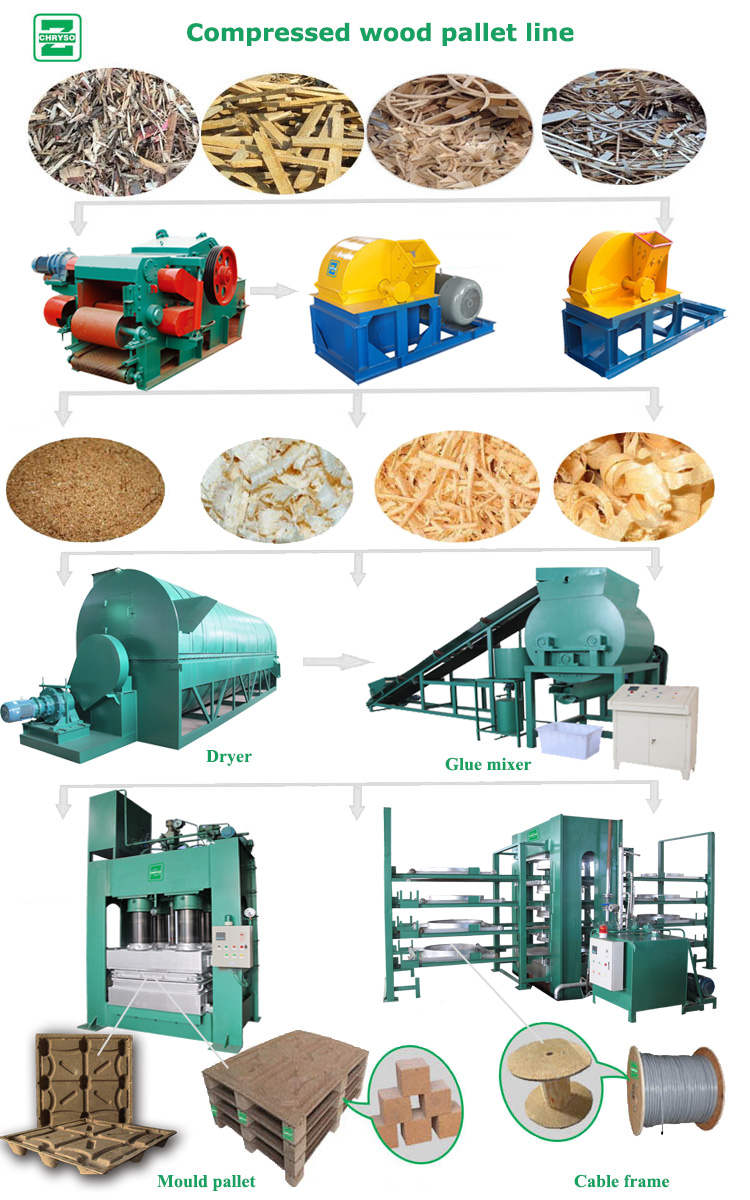

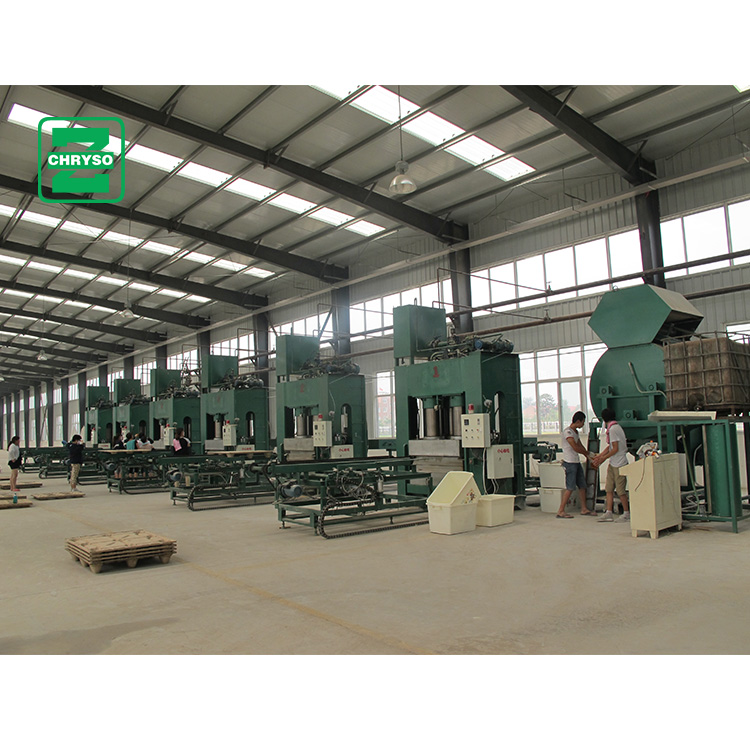

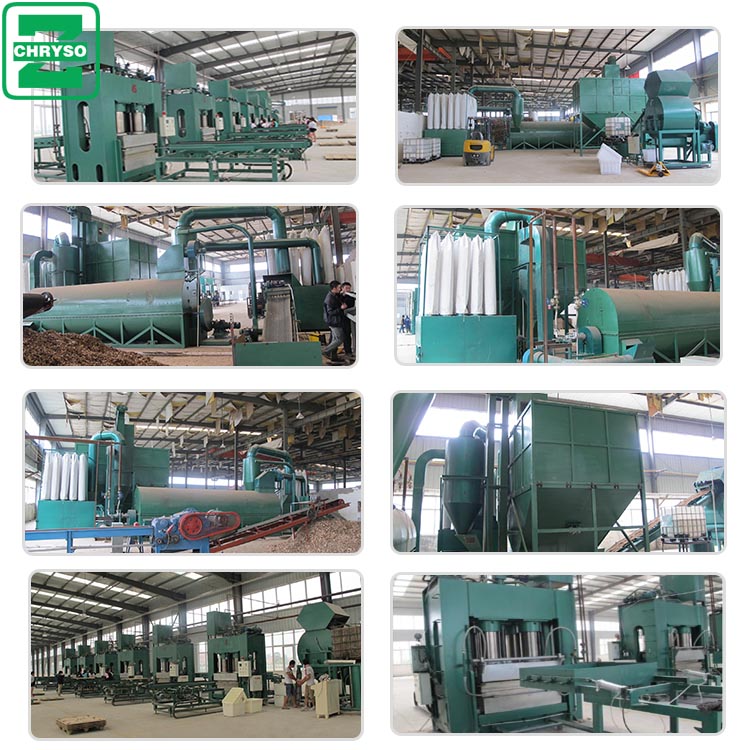

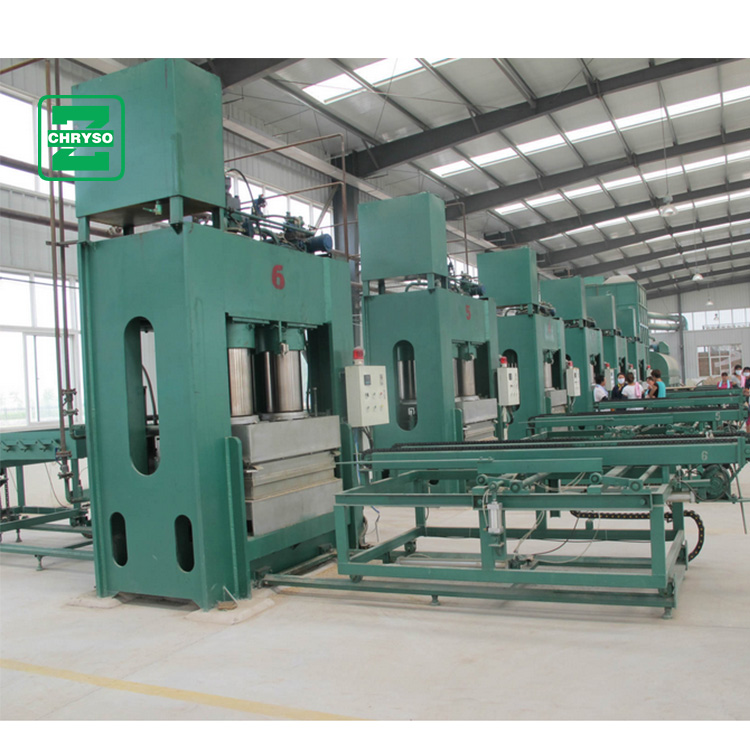

The entire compressed wood pallet production line:
The entire production line includesWood crusher, wood chip dryer, glue mixer,Compressed wood pallet machine.
Fully automatic hydraulic wood chip hot pressing wood pallet making machine
