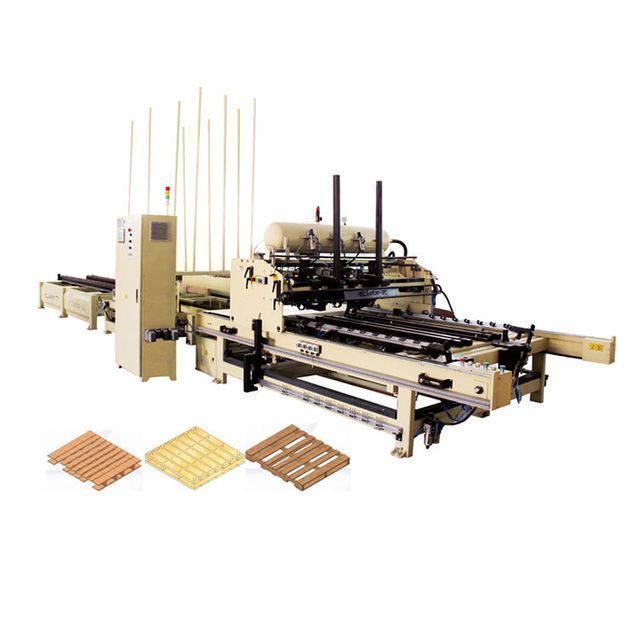

Saifan 700-1500mm Length Wooden Pallet Nailing Wooden Pallet Automatic Production Line

Product details
place of origin; place of origin:Shandong ChinaPackaging Details:Saifan 700-1500mm Pallet Length Wood Block Pallet Nail Production Line Automatic: Plywood Box
Electrical components:Schneider brandMechanical test report:if
After Warranty Service:Video technical support, online support, on-site maintenance and repair servicesCore Components Warranty:1 year
productivity:30-40 per hourair pressure:0.65-8 MPa
Local service location:not anyTray length:700-1500mm
Warranty:1 yearTray Height:80-130mm
Main selling point:high productivityport:Qingdao
Showroom location:not anyName:Wooden pallet nailing machine
Machine size:11m*2.3m*2.2mVideo external inspection:if
Core components:/Marketing Type:normal product
Total power:3kWPneumatic Components:Taiwan Airtac brand
Type of machine:Wooden pallet nailing machineHealth status:new
Weight (kg):3500kgSupply capacity:100 sets per year
Tray width:800-1500mmApplicable industries:manufacturing plant
After-sales service provided:On-site installation, commissioning and trainingpayment terms:letter of credit, wire transfer
Product Description
YouTube working video:https://youtu.be/ou8wOcAtyJE
Pneumatic nailing system.
For stringer pallet nails, 3pc or 4pc stringers are adjustable, one operator.
Including nail head + stacking table + discharge conveyor.
4-sided corner knives and HT punching tables are available.
Tray length
700-1500mm
Tray width
800-1500mm
tray height
80-130mm
productivity
30-40 per hour
nail gun
4pc Taiwan N70
1-3 nails can be adjusted, and the nail position can be detected by photoelectricity.
roll nail
3000 nails/coil
Nail diameter 2.3-2.8mm, length 45-70mm
total power
3kW
Voltage
380v 50hz three phase
air pressure
0.65-8 MPa
Electrical components
Schneider brand
Pneumatic Components
Taiwan Airtac brand
sensor
German IFM
Dynamic
Yaskawa Servo Motor
Machine size
11m*2.3m*2.2m
Package dimensions
Nail head, 3.7*2.2*2.2m Stacking table, 2.45*2.25*1.25m
Outlet conveyor, 4.03*2.3*0.7m total 31.287M3
machine weight
3500kg

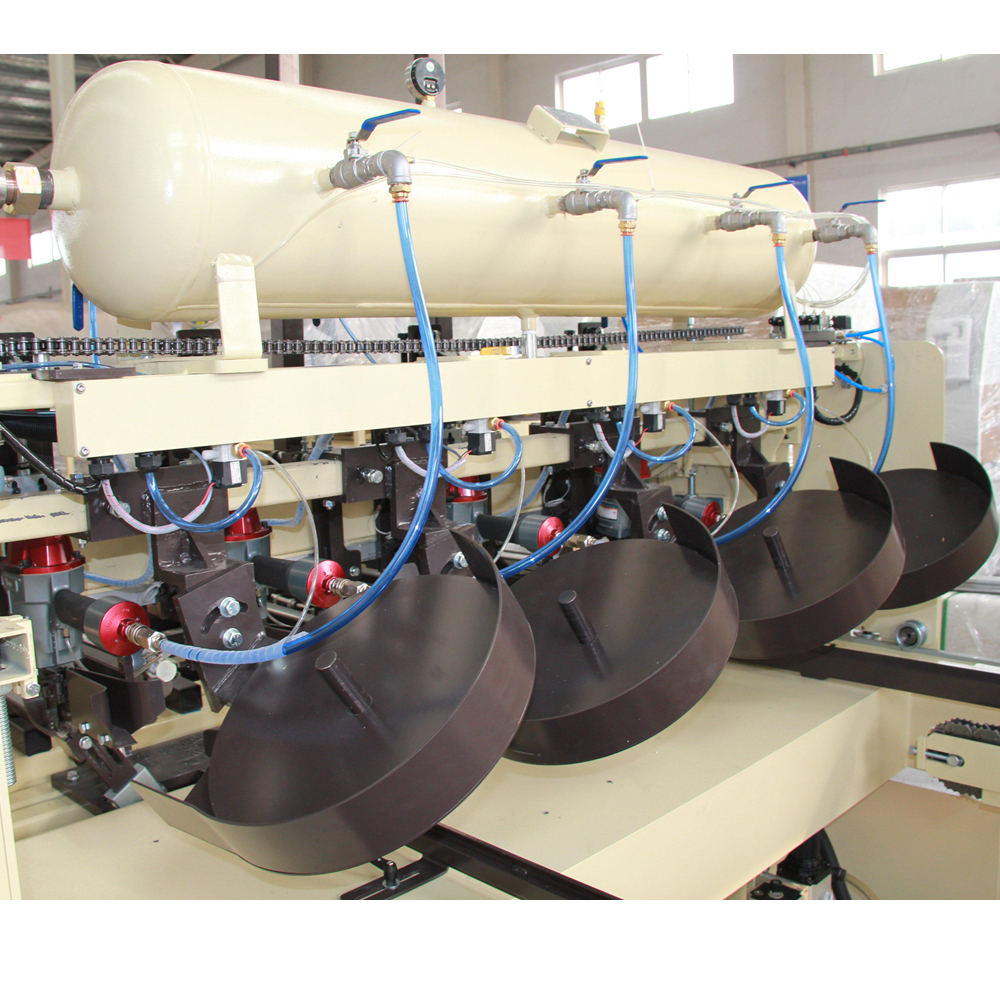

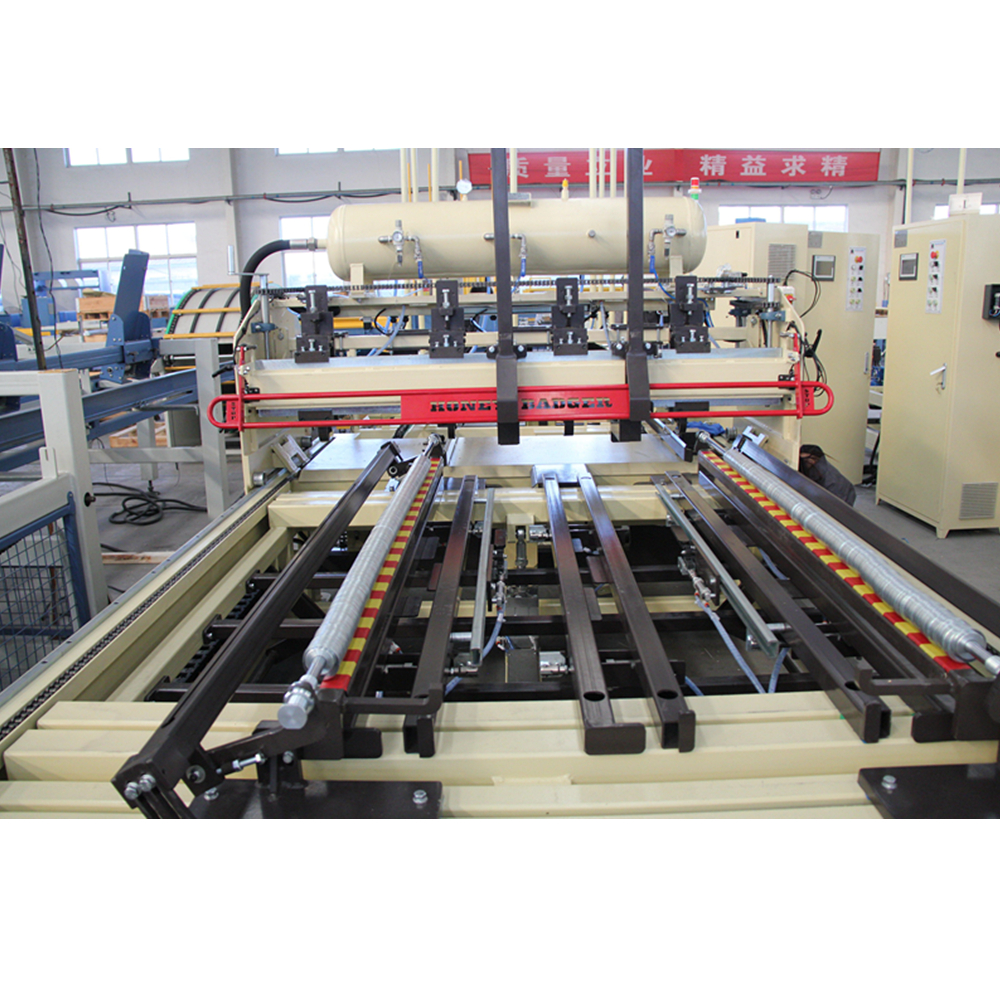

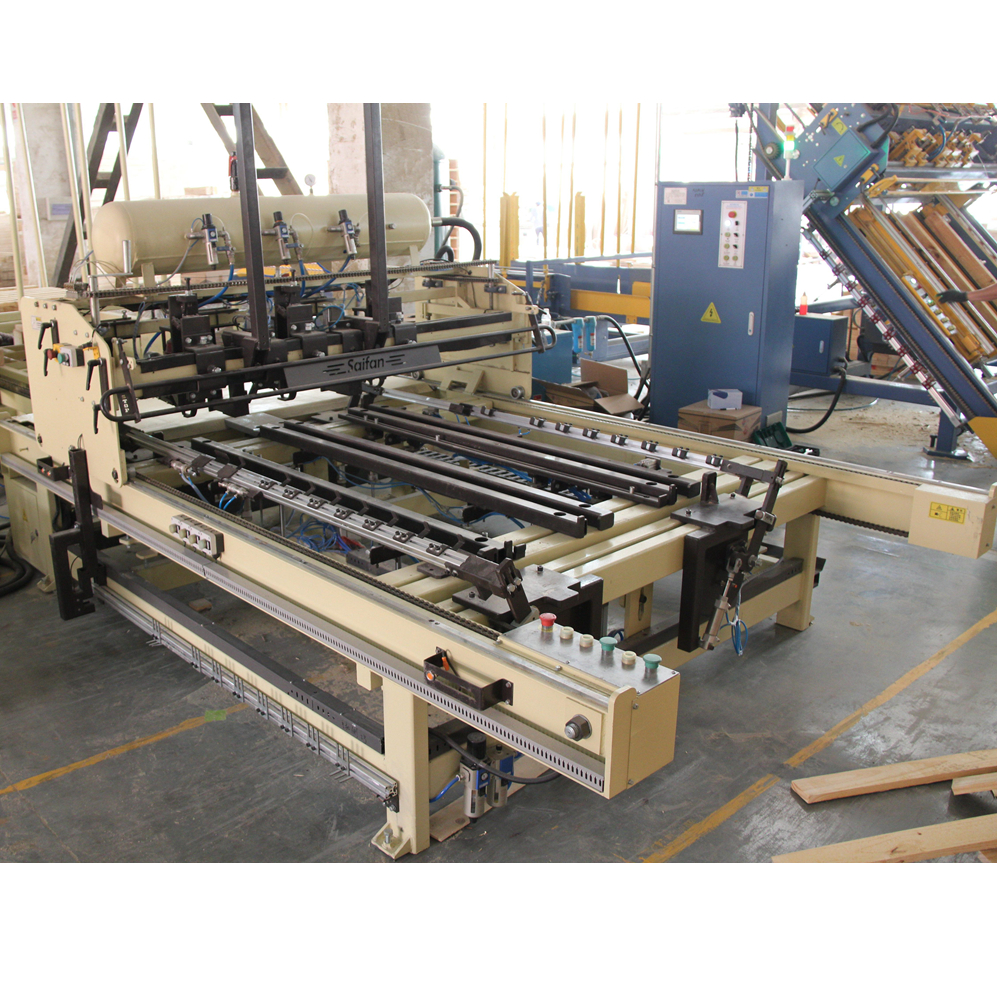

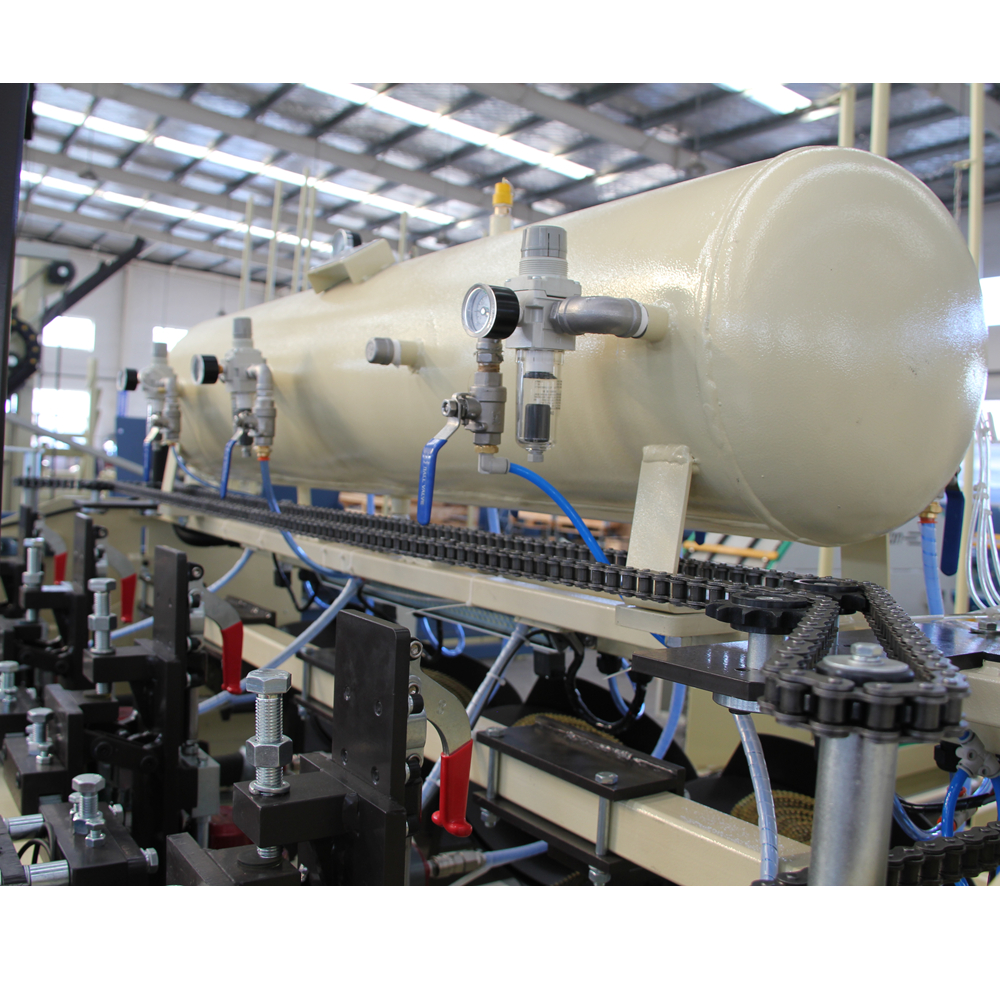

detailed image
