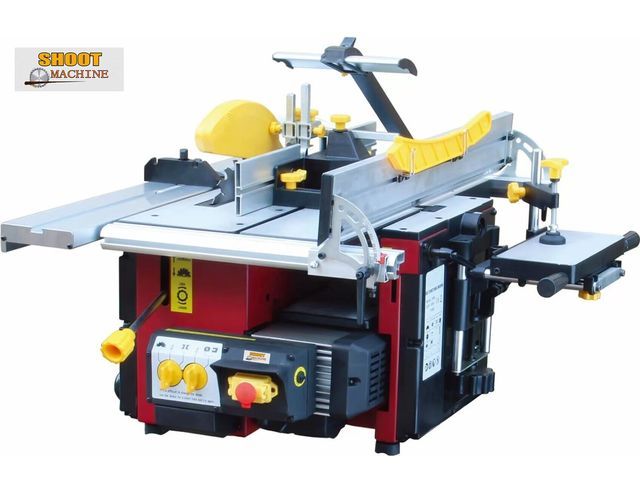

Shooting card five function combined woodworking machine SH160
- 585.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Marketing Type: | normal product | Core components: | engine |
| Power (kW): | 0.75 | Type of machine: | Combined woodworking machine |
| port: | Qingdao Port | Mechanical test report: | if |
| Applicable industries: | Woodworking furniture manufacturing | Warranty: | 1 year |
| Input voltage: | 230V, 50Hz, AC | Table length: | 620mm |
| Showroom location: | not any | brand: | shooting |
| Dimensions: | 840x635x475mm | Origin: | Shandong Province, China |
| Main selling points: | easy to operate | Supply capacity: | 150 pieces per month |
| Health status: | new | Packaging Details: | Plywood boxes |
| Planing width: | 154mm | payment terms: | L/C, Western Union, D/P, T/T |
| Weight (kg): | 49 kg | Motor Power: | 750W |
| Video outbound inspection: | if | Core component warranty: | 1 year |
Product Description
| Five function combination woodworking machine | |
| Model | SH160 |
| Input voltage | 230V, 50Hz, AC |
| Motor Power | 750W |
| Dimensions | 840x635x475mm |
| Machine empty weight | 49/52 kg |
| 20'/40' container | 120/250PCS |
| customs code | 8465100000 |
| planer | |
| Planing width | 154mm |
| table length | 620 mm |
| depth of cut | 1.5 mm |
| cutting knife | 2 |
| cutting speed | 6000 rpm |
| Thickness gauge | |
| planing size | 154mm |
| cutting height | 92mm |
| depth of cut | 1.0mm |
| Feeding speed | 7m/min |
| table saw | |
| Blade diameter | 200 mm |
| Blade cutting height | 42mm |
| cutting speed | 4200 rpm |
| working desk size | 620x300 mm |
| milling | |
| Drill housing | 12mm |
| adapter | 6/8 mm |
| vertical travel | 42mm |
| speed | 9000 rpm |
| square carriage | |
| Maximum stroke | 500mm |
| Car size | 120x740mm |
| Mortise attachment | |
| Maximum drilling diameter | 13 mm, left |
| adapter | 6/8/10 mm |
| drilling depth | 45 mm |
| left/right travel | 95 mm |
| vertical travel | 60 mm |
| working desk size | 260x125 mm |
Packaging and Shipping
Packing: plywood box
Shipping: Qingdao Port
Delivery time: 30 days after payment received
