Woodworking multifunctional furniture woodworking combination machine
- 2000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Feed rate: | 7 m/1' | Warranty: | 1 year |
| After warranty service: | online support | brand: | Haisen |
| Video shipment inspection: | if | Working height: | 4-220mm |
| Weight (kg): | 310 kg | Portrait Landscape/: | 205/95/90mm |
| Dimensional Knife (3 knives): | 300*20*3 mm | Main selling points: | easy to operate |
| payment terms: | L/C, T/T | Package preview: | |
| Tool holder diameter: | 70 mm | Type of machine: | Composite machine |
| Marketing Type: | New Products 2020 | Core component warranty: | 1 year |
| Packaging Details: | wooden box | Mechanical test report: | if |
| place of origin; place of origin: | China | weight: | 310 kg |
| port: | Qingdao | Tool seat speed: | 5700 rpm |
| Core components: | motor | Workbench: | 300*1500mm |
| State of health: | new | Local service location: | not any |
| Three-phase motor: | 3.0 HP/2.2KW | Applicable industries: | manufacturing plant, home use |
| Supply capacity: | 100 sets per month | Showroom location: | not any |
| After-sales service provided: | online support | Maximum table adjustment: | 4mm |
Product Description
Specification
planer | 300℃ |
workbench | 300*1500 mm |
Tool seat diameter | 70 mm |
Tool seat speed | 5700 rpm |
Dimensional knife (3 knife) | 300*20*3mm |
Maximum Table Adjustment | 4 mm |
thickness | 300℃ |
workbench | 300*660mm |
Feeding speed | 7 m/1' |
working height | 4-220mm |
Mortise | 300℃ |
workbench | 250*500mm |
Longitudinal/Lateral/Vertical travel | 205/95/90mm |
Chuck (M18*1.5-S) | 0-16 mm |
300℃ | |
three phase motor | 3.0 HP/2.2KW |
single phase motor | 4.0 hp/3 kW |
weight | 310 kg |
feature

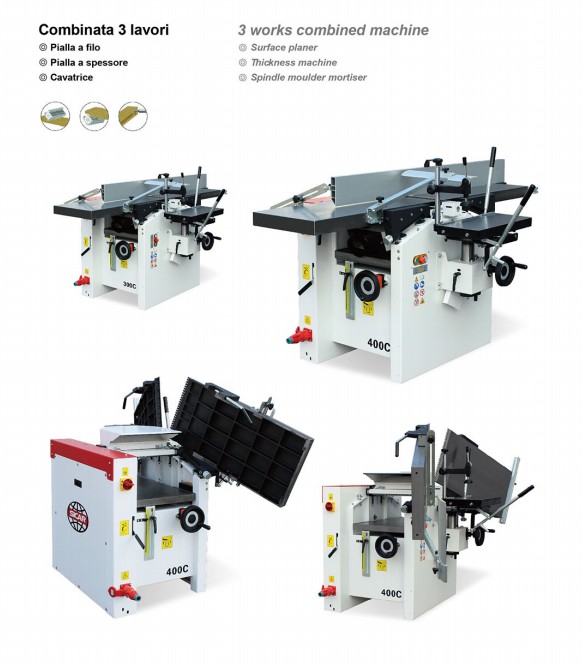

Combine 3 operations
Planer--thickness--mortise
Planer--thickness--mortise

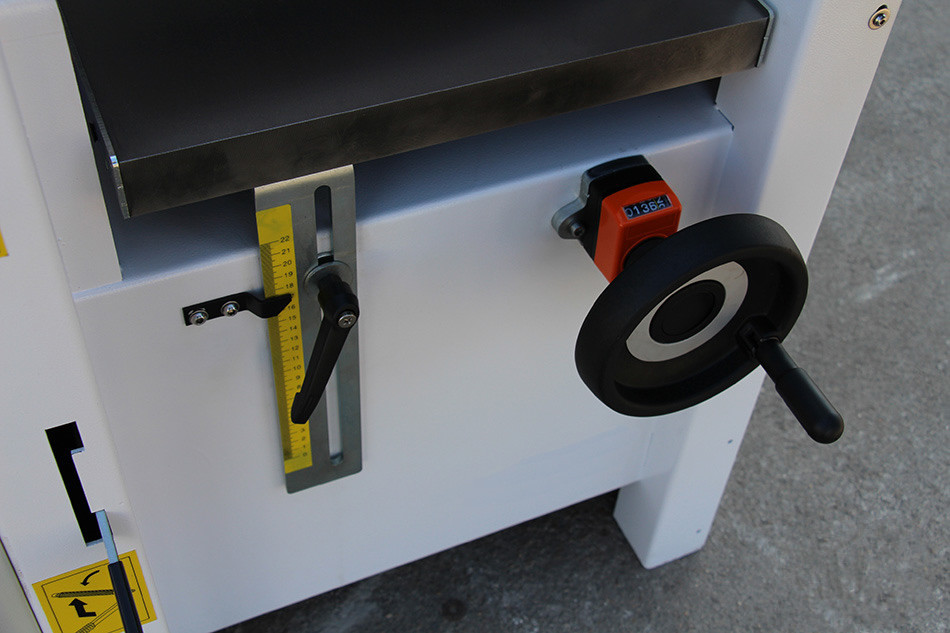

detailed drawing
