7 Works Combines Wood working Machine SHC-400 with Working tables 400x1750mm and Cutterblock diameter 70mm

Supplier: Yantai Shoot CNC Machine Co.,Ltd
Region: Shandong, China
Contact: Mr Qu Jun
Price: $3300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Brand Name:	SHOOT;
Condition:	New;	Place of Origin:	Shandong China (Mainland);
Supply Ability:	1000 Piece/Pieces per Month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao Port;	Packaging Detail:	Plywood Case;

Product Description

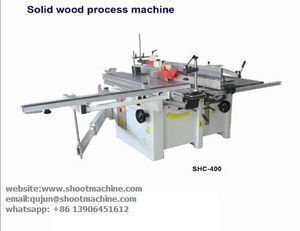

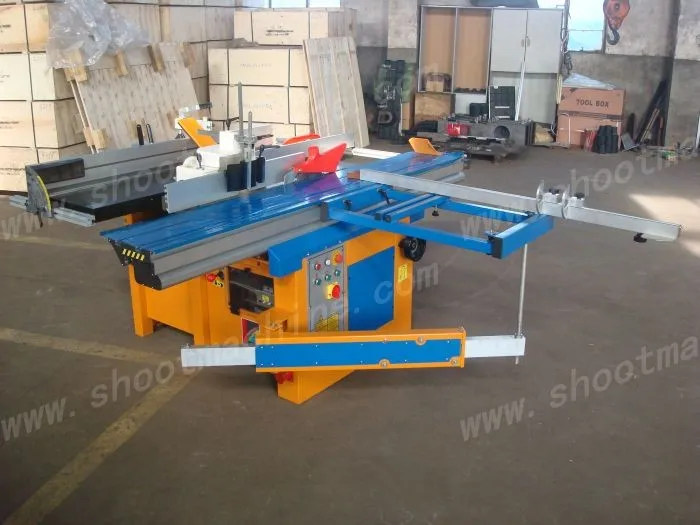

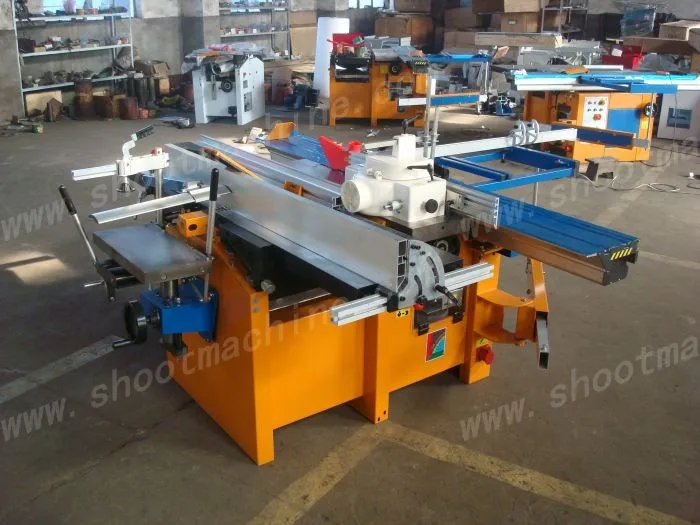

7 Works Combines Machine
Feature
Surface planer, thichness machine, spindle moulder, mortiser, circular saw, tenoning carriage, Sharpener.
Model	SHC-400
Working tables	400x1750mm
Cutterblock diameter	70mm
Cutterblock rotation speed	5700r.p.m
N. of knifes	3°
Knifes dimensions	400x20x3mm
Max table adjustement	4mm
Thicknesser
Working table	400x760mm
Feed speed	7m/1'
Max. working height	220mm
Min. working height	4mm
Cutterblock rotation speed	5700r.p.m
Max. cutting depth	5,5mm
Circular saw
Working table	326x1112mm
Shaft rotation speed	4500r.p.m.
Blade diameter	300mm
Blade bora diameter	30mm
Cutting height 90°	105mm
Max. distance between blade and fence	730mm
Blade inclination	45°
Max cutting height 45°	75mm
Shaft rotation speed engraver	7000r.p.m.
Engraver blade diameter	90mm
Engraver blade bora diameter	22mm
Mortiser
Working table	195x400mm
Longitudinal stroke	180mm
Trasversal stroke	90mm
Vertical stroke	80mm
Churck	16mm
Churck rotation speed	5700r.p.m
Shaper
Working tables	326x1112mm
Shaft rotation speeds	7000/4400/3100/2000r.p.m.
Standard shaft diameter	30mm
Spindle length	105mm
Shaft vertical stroke	115mm
Max. tool diameter	180mm
Max. tenoning depth	65mm
Tenoning carriage
Carriage dimensions	1800x315mm
Carriage stroke	2200mm

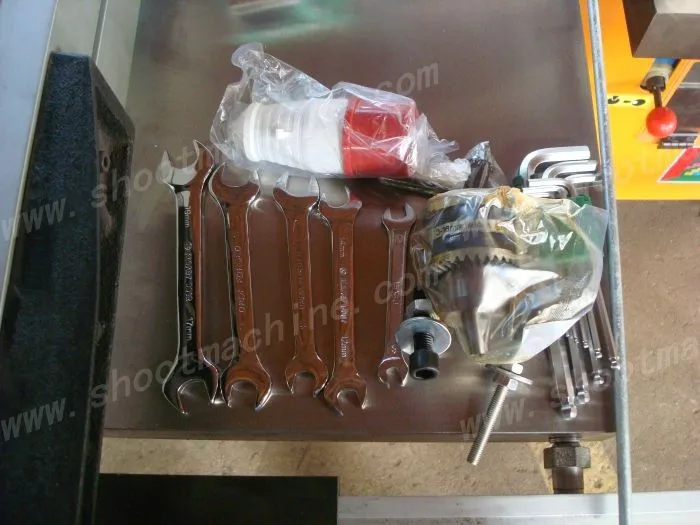

Standard accessories
N°2 clamp lever	*
Sharper fence	*
Service wrenches	*
Mortiser chuck	*
Table extensions with swinging arms	800x600mm
Guards on mortiseur chuck	*
3 pcs. planing knives	*
Planer guide
Saw guid
Bridge sefety hood on planer	*
3-phase motor power	3,0 - 2,2HP - KW
Weight	750/800kg


Optiona accessories
Single-phase motor	2,7 - 2,0HP-KW
Increasing 3-phase motor	4,0 - 3,0HP-KW
Extraction	0,5 - 0,36HP-KW
Set of wheels with feeding steering bar	*
Contouring fence
Regulating to copy
Carriage stroke	2600
