Vertical Honing Machine 3M9814A
- 5210.00 set
| Delivery Detail: | 0 days after payment; | Place of Origin: | China (Mainland); |
| CNC or Not: | Normal; | Selling Units: | Single item; |
| Weight (KG): | 680; | Applicable Industries: | Machinery Repair Shops,Retail; |
| Voltage: | 380V/50HZ; | Warranty: | 1 Year; |
| Brand Name: | INTEGRITY; | Longtitudinal travelo of honing head: | 720mm; |
| Type: | Vertical honing machine; | Single gross weight: | 680 KG; |
| After-sales Service Provided: | Online support,Video technical support; | Single package size: | 184X189X205 cm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Power (kW): | 0.75; |
| Condition: | New; | Product Name: | Motorcycle cylinder honing machine; |
| Diameter of hole honed: | 40-140mm; | Package Type: | Wooden case; |
| Max. honing depth: | 320mm; | Dimension(L*W*H): | 1440*960*1655mm; |
| Key Selling Points: | High-accuracy; | Spindle Speed: | 128/240 r/min; |
| Certification: | ISO9001; | Usage: | Honing automobile and tractor cylinders; |

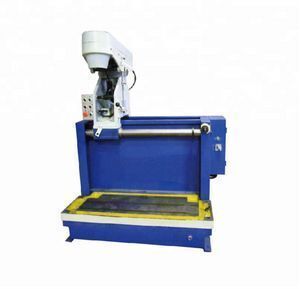

Vertical Motorcycle Cylinder Honing Machine: 3M9814A
1. The machine is mainly used for honing automoble and tractor cylinders with diameters from φ40 to φ140 boring precess.
2. The machine is small in size, light in weight, The machine tool proper can be slid longitudinal at will to facilitate operation. The up-and down reciprocating.
3. Motion of which can be adjusted randomly.Honing process can be carried out after the cylinder block to be honed is placed on the worktable, adjusted to centre position and secured.
| Item | Unit | 3M9814A |
| Dia. of hole honed | mm | 40-140 |
| Max. depth of hole honed | mm | 320 |
| Spindle speed | r/min | 128/240 |
| Longitudinal travel of honing head | mm | 720 |
| Spindle lifting and lowering speed (stepless) | m/min | 0-10 |
| Power of honing head motor | kw | 0.75 |
| Overall dimensions (LxWxH) | mm | 1440x960x1655 |
| Net weight | kg | 510 |
| Gross weight | kg | 680 |
1. Your inquiry will be replied in 24 huors.
2. Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 9
years.
3. To offer free spare parts and service within one year of warranty
4. Professional after-sales service team
6.Give reasonable offers with the best quality
