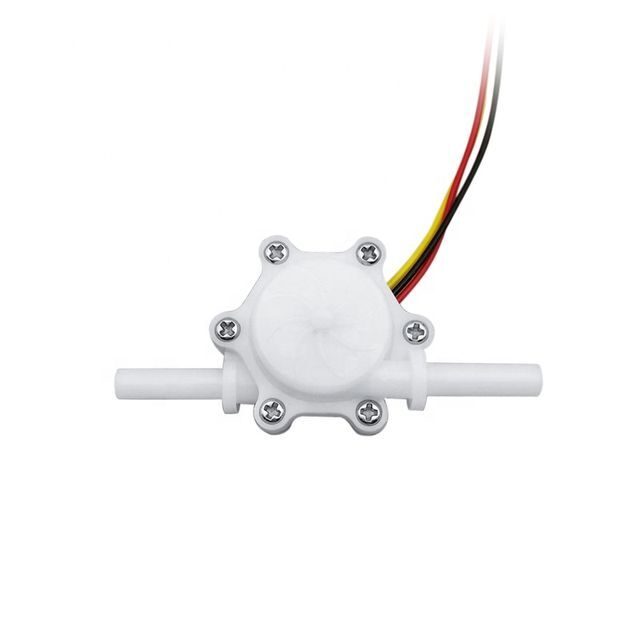

Mini plastic 4-20ma milk water drinking control system DC24V flow meter liquid level sensor meter switch for coffee machine
- 2.89 500 - 999 pieces
- 2.69 1000 - 4999 pieces
- 2.49 5000 - 9999 pieces
- 2.29 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | Flow Sensors | brand: | Purcell |
| connect: | 6MM diameter socket | Material: | POM |
| Supply capacity: | 100000 pieces/month | application: | dredger etc. |
| payment terms: | L/C, Western Union, T/T, MoneyGram, Pay Pal | Custom Support: | OEM, ODM |
| Certificate: | through food grade | color: | white plastic food grade |
| Certification: | Reach, ROHS, ISO | place of origin; place of origin: | Guangdong, China |
| Water temperature: | less than 60℃ | Warranty: | 1 year |
| Flow range: | 0.15-1.5 L/Min, 0.25-2.5 L/Min, 0.3-3.0 L/Min, 0.3-4.5L/Min | model: | SEN-HZ06K(002) |
| Insulation resistance: | >100MΩ | Line specification and installation direction: | can be customized |
| Pressure performance: | Less than 1.2MPA |

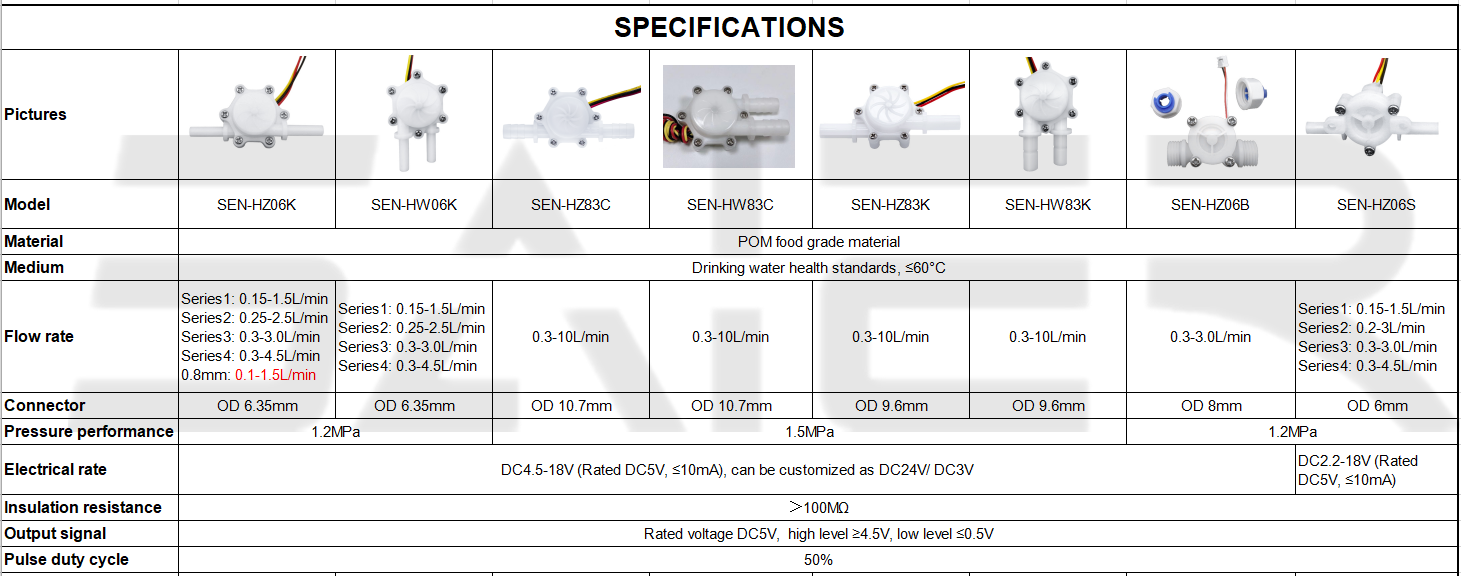

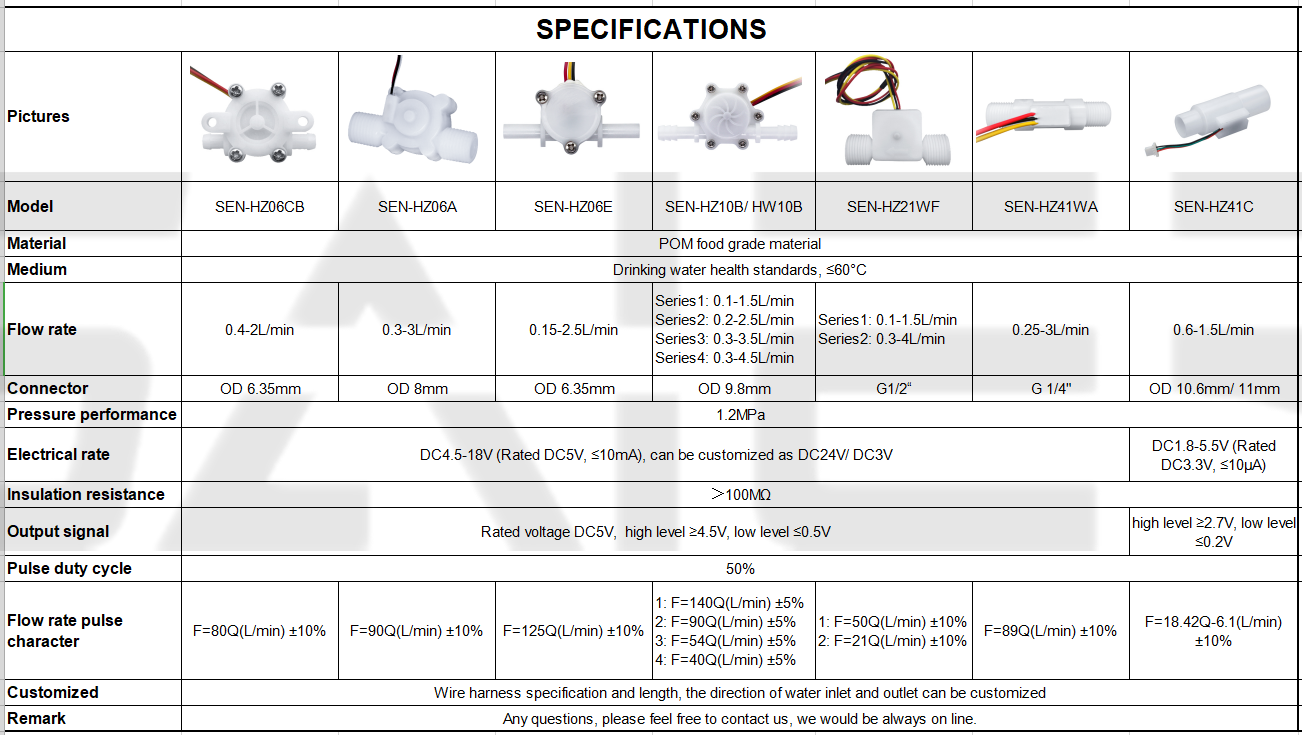

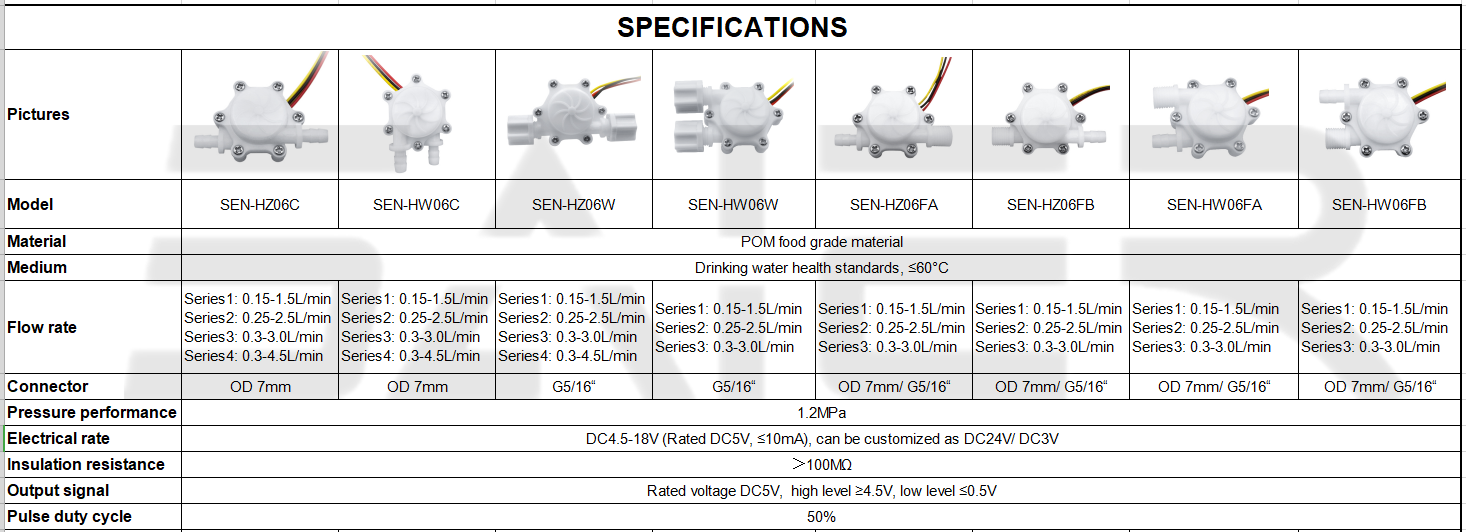

Product Description
product name | Micro plastic flow meters, turbine flow sensors |
Material | POM plastic food grade material |
Connection size | Outer diameter 6.35 mm |
Flow range | 0.15-1.5 L/Min, 0.25-2.5 L/Min, 0.3-3.0 L/Min, 0.3-4.5L/Min |
Contact ability | DC 5-24V, can be customized DC 3V |
Function | Measure the water flow, install it at the water inlet of various coffee machines, water dispensers, and electrolyzers, and detect the water flow. |
feature | The product is light and flexible in appearance, small in size, plug and play, and easy to install. The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life. The sealing ring adopts the upper and lower force structure, which will never leak. The Hall element is imported, isolated from water, prevents water from entering, and never ages. All raw materials meet ROHS testing standards. |
Product performance description
The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed in the water inlets of various coffee machines, water dispensers and electrolyzers to detect the incoming water flow. As the water passes through the water flow rotor assembly, the magnetic rotor rotates and the rotational speed varies with the flow rate. The Hall sensor outputs corresponding pulses. The signal is fed back to the controller, which determines the size of the water flow and adjusts it.
detailed picture

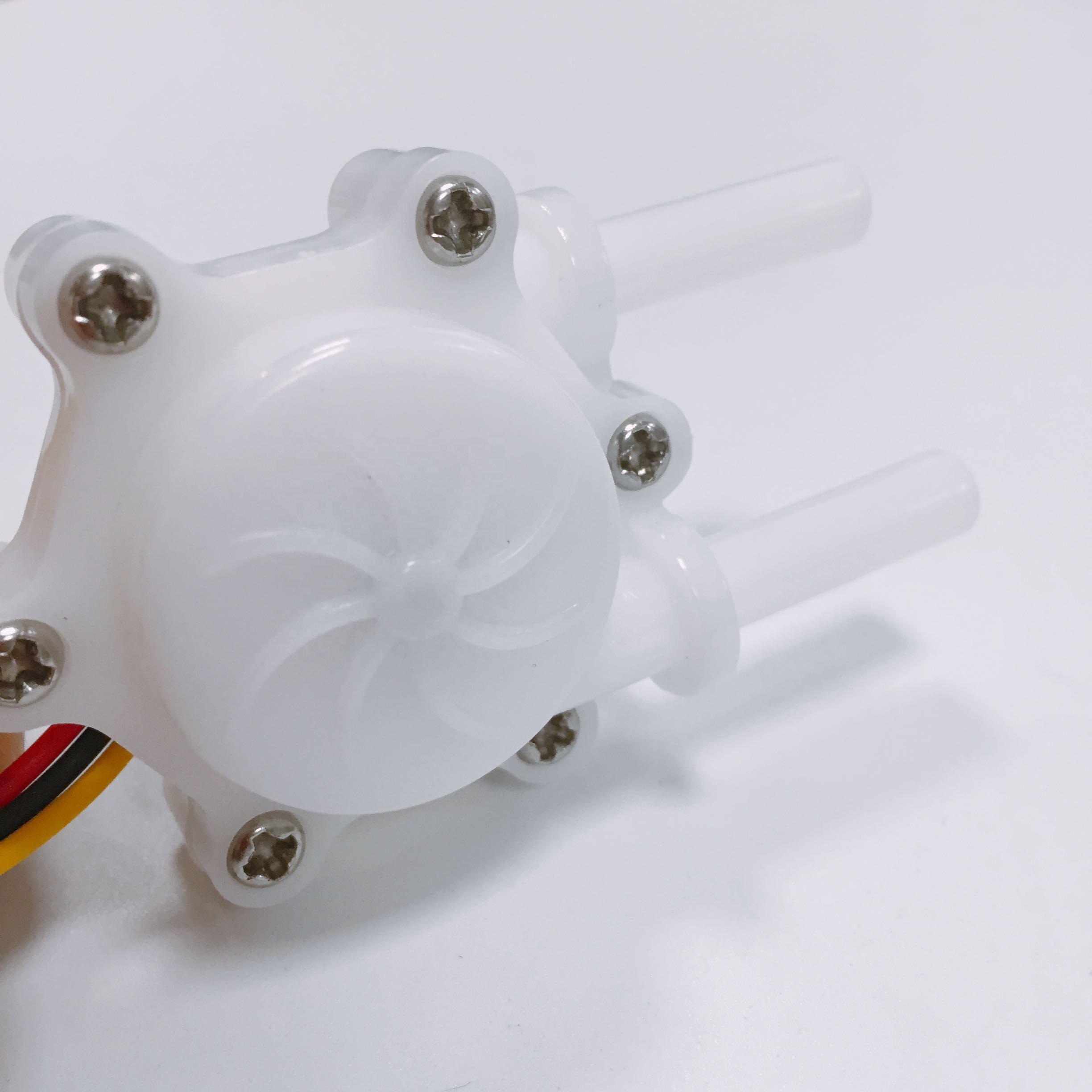

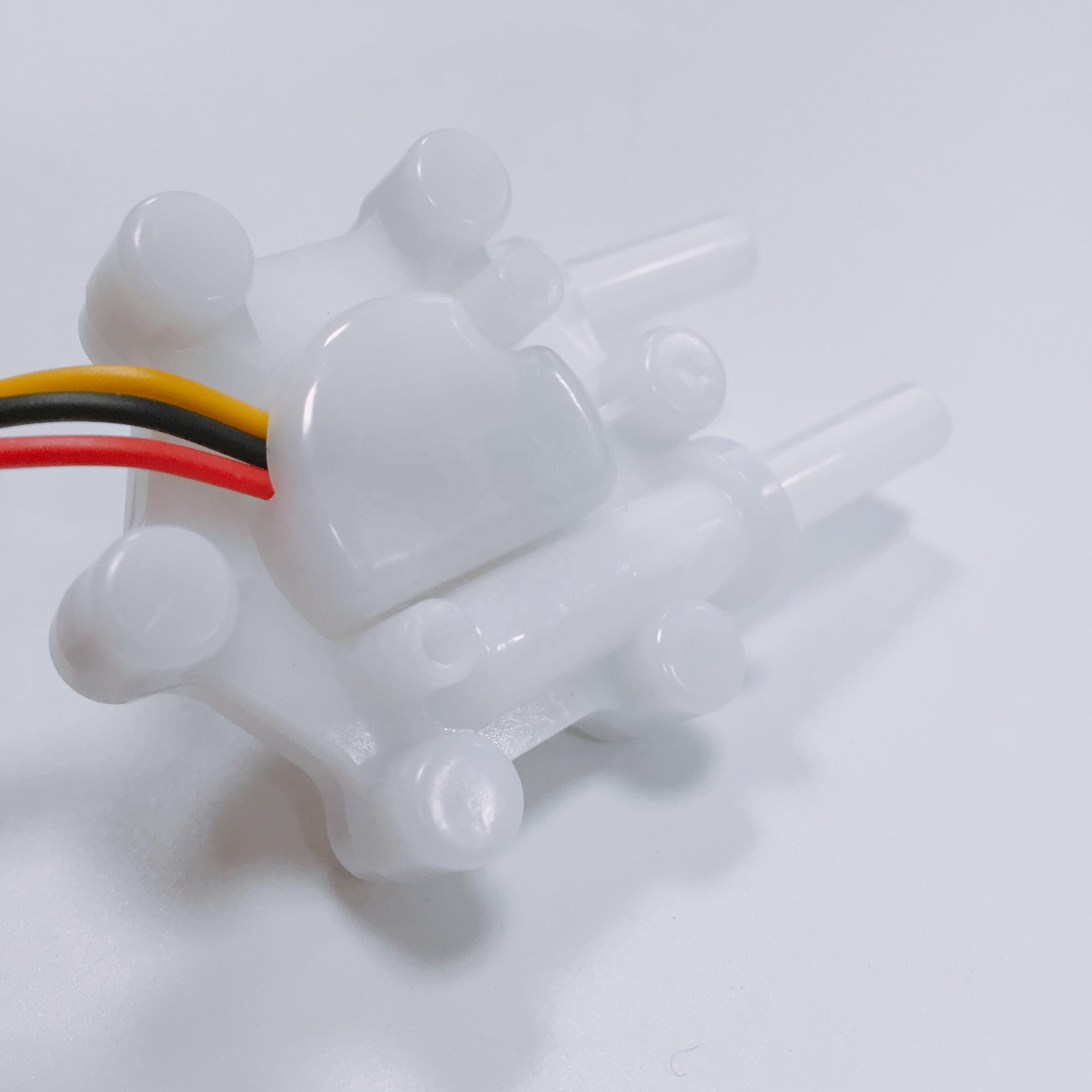

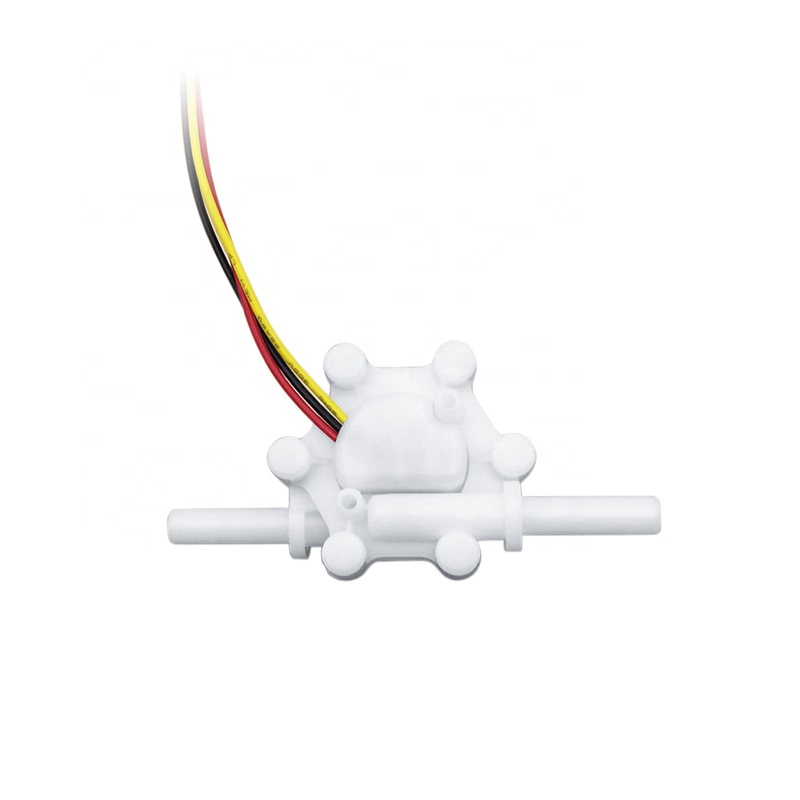

Plastic flow water transmitter, flow sensor water
Environmentally friendly design, sensitive and practical.

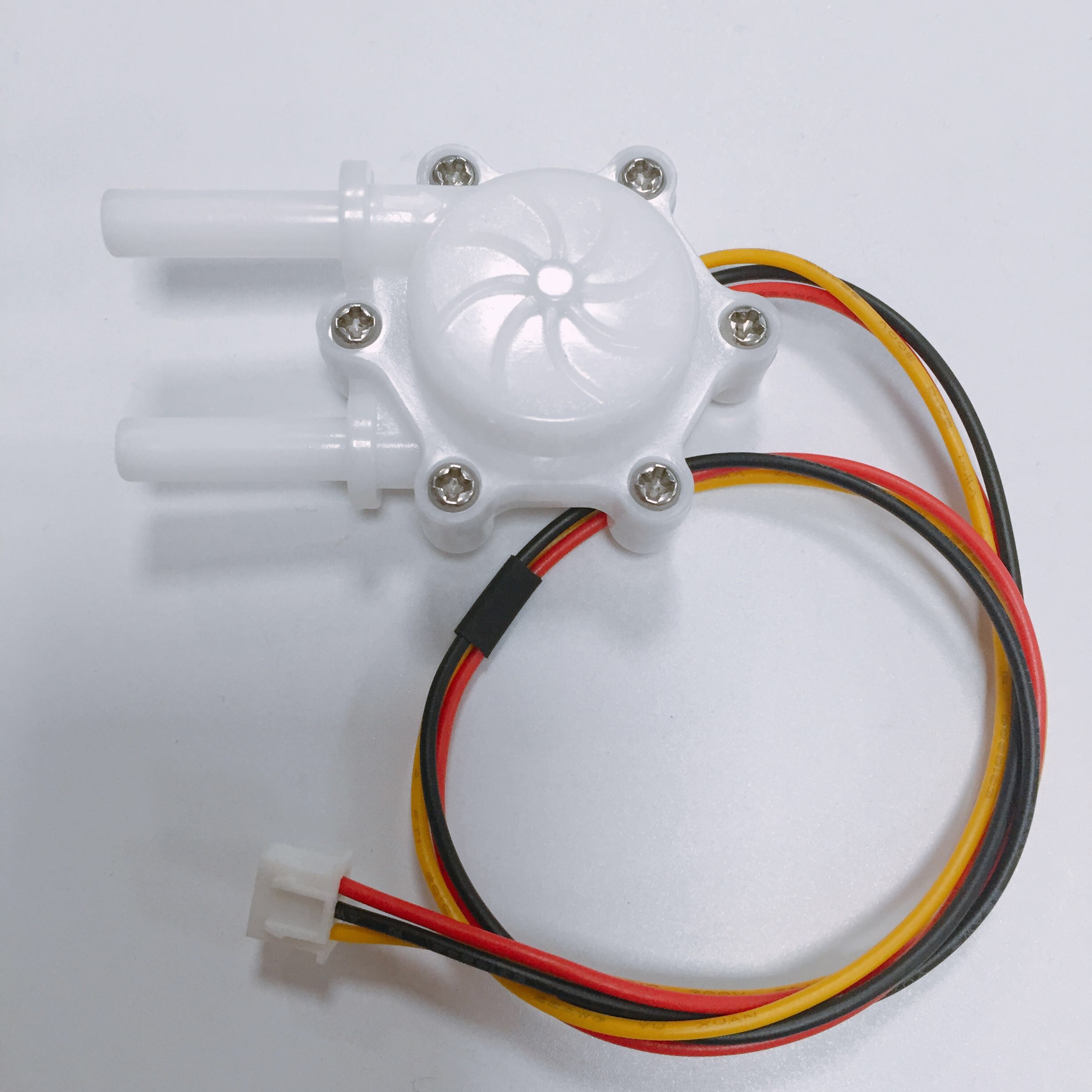

Equipped with professional connectors, easy to install.

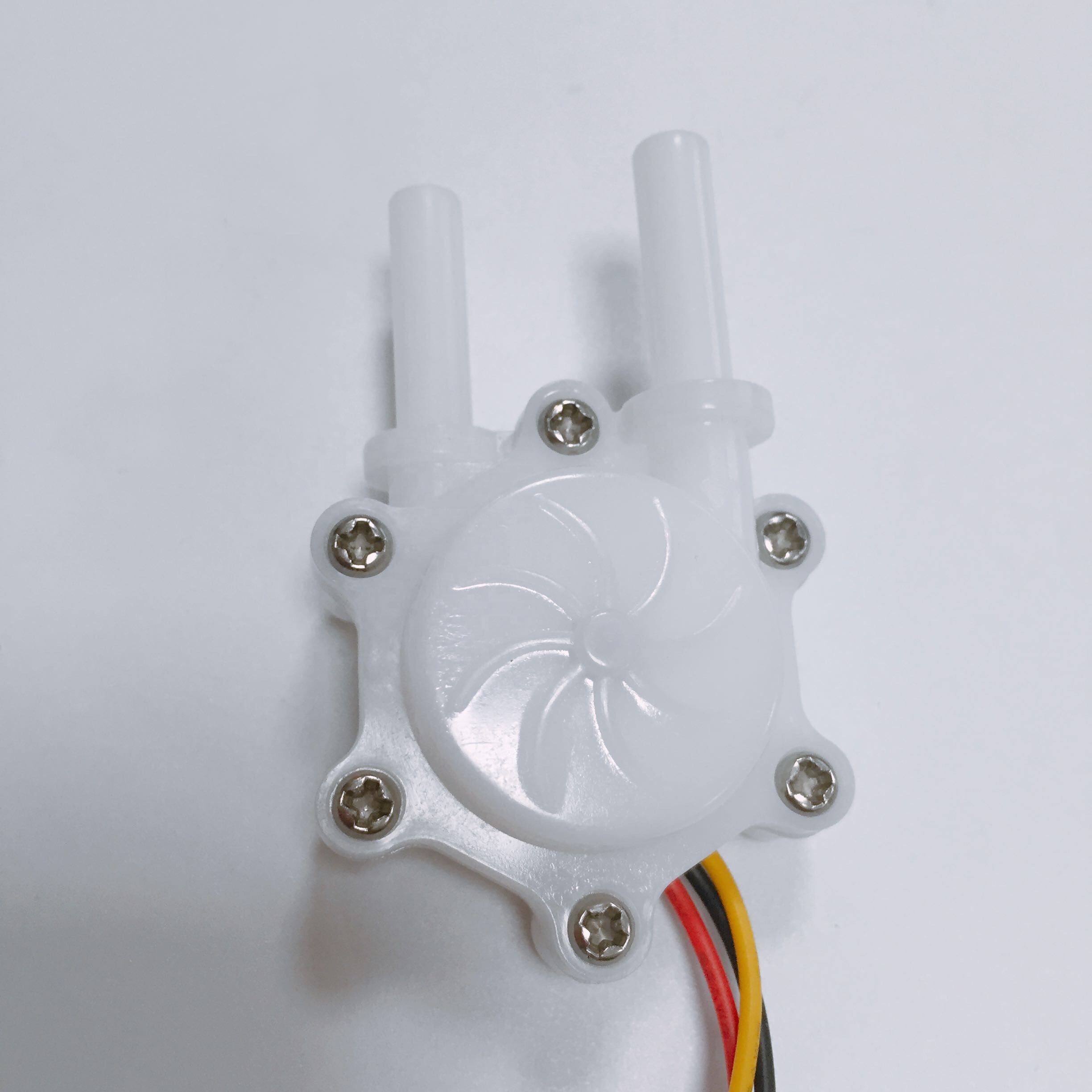

A variety of connector options for easy installation.
