• Supplier: Foshan Shunde Saier Sensor Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Wendy Chan
  • Price: $3.89 / 500 - 999 pieces
    $3.69 / 1000 - 4999 pieces
    $3.49 / 5000 - 9999 pieces
    $3.29 / >=10000 pieces
  • Min. Order: 500 pieces
SUS304 NPT 1/2" G Threads DN15 Level Sensor Switch 1~30 L/MIN Hall Effect Water Liquid Stainless Steel Flow Sensor Meter DC5-24V details
Place of Origin:Guangdong, China;Supply Ability:100000 Pieces per Week;
Accuracy:+-5~10%;Port:FOB guangzhou;
Operating Voltage Range:DC2.2-18V, can custom made DC24V;Connection:G 1/2", NPT 1/2", Straight Structure;
Insulated Resistor:100M;Model Number:SEN-HZ21WI(SS);
Material:Stainless Steel;Brand Name:SAIER;
Flow Range:1~30L/Min;Product Name:Water Flow Sensor Switch;
Packaging Detail:product weight: 0.1kg/pc, each in polybag, 20pcs into big bag, 100pcs/export carton, size of each carton around 42*21*20cm, G.W/ctn around 11kgs;Type:Hall Sensor,Flow Sensors;
Line Specification and Install Direction:Customized;Payment Terms:L/C,T/T,Western Union,MoneyGram,Pay Pal;
Application:Water Heater;
Product Description
Product Name
Stainless steel flowmeter, turbine flow sensor
Material
Stainless steel material
Pipe Size
NPT 1/2" or G 1/2", DN15
Flow Range
1-30 L/Min
Operating Voltage Range
DC 5-24V, can be customized DC 3V
Function
Stainless steel flow sensor, convenient installation, waterproof explosion-proof, Heat resistance and cold resistance.the pulse signal output, Can be used for water flow switch, also can be used to measure the flow, Water flow meter for shower room credit card system.have two flow range.If you want to increase the temperature control ,you can add heat sensitive resistor, the output line is green, but also can be connected to the other two special line to control temperature.
Features
The product is light and flexible in appearance, small in size, plug and play, easy to install. The impeller is equipped with a stainless steel shaft, which is more powerful and prolongs the service life. The sealing ring adopts the upper and lower force structure and never leaks. The Hall element is imported and isolated from water to prevent water ingress and never age. All raw materials are in compliance with ROHS testing standards.
  • Product Performance Description

The water flow sensor is mainly composed of a brass copper body, a water flow rotor assembly and a Hall sensor.

It is installed in various gas water heaters, electric water heater, washing machine, water machine, boiler, electromagnetic water heater, water control (integrated) machine, water machine, heat pump hot water engineering, the card management system of intelligent water meter, water meter, IC campus card sale water system, self sale (sell) water machine, water treatment water distribution equipment, dispensing equipment, cooling system, circulation system, intelligent heating equipment, mechanical equipment, instrumentation, pharmaceutical (agents) equipment etc.
Details Images

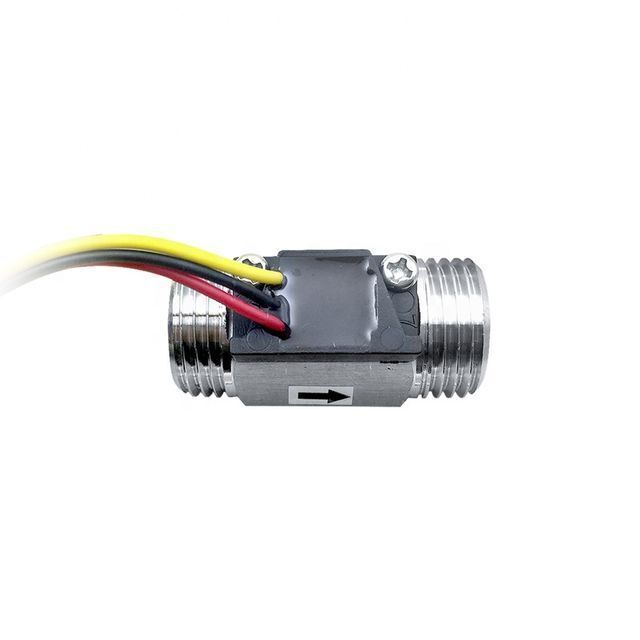

Stainless steel body flow water transmiter , flow sensor water

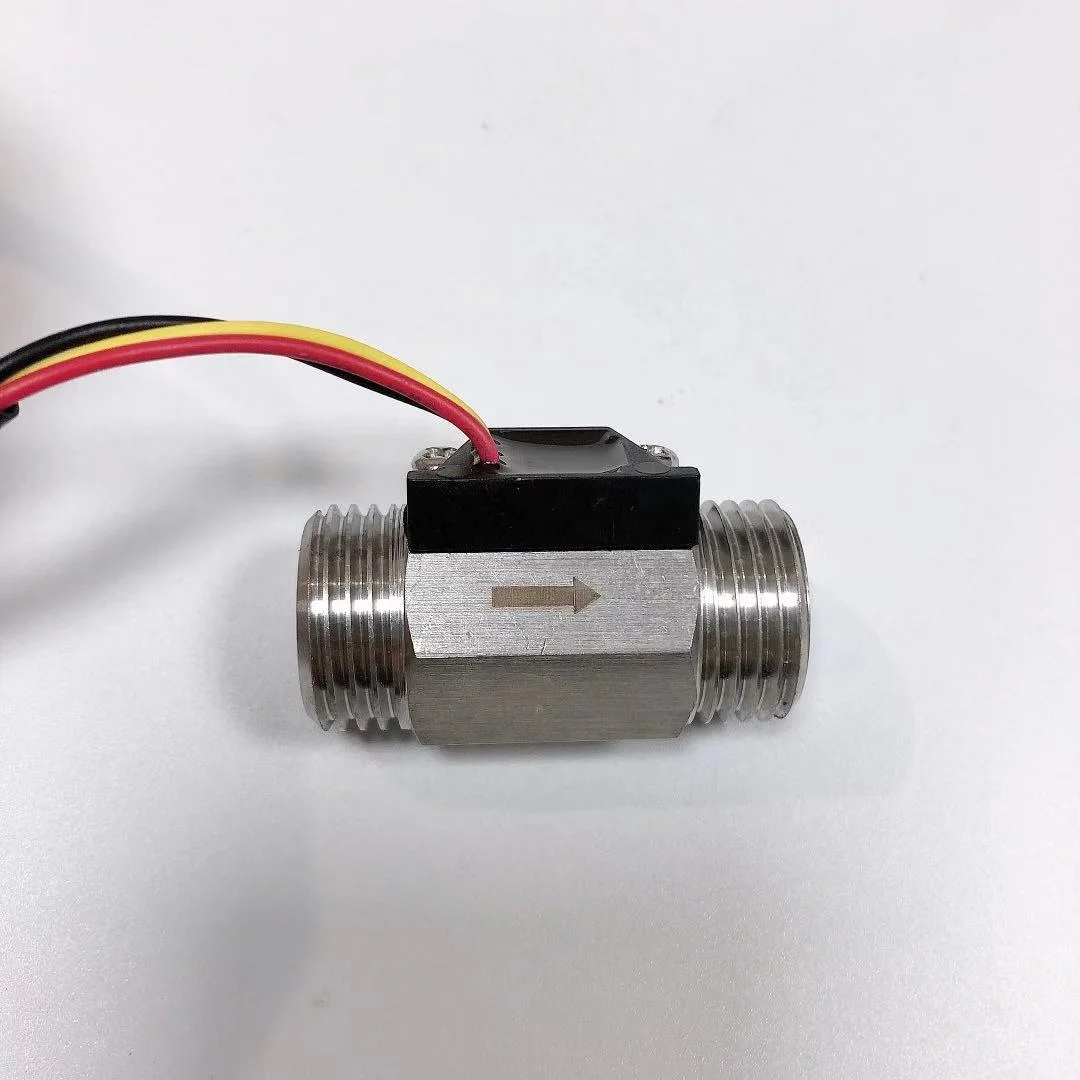

Stainless steel body

Environmental design, sensitive and practical.

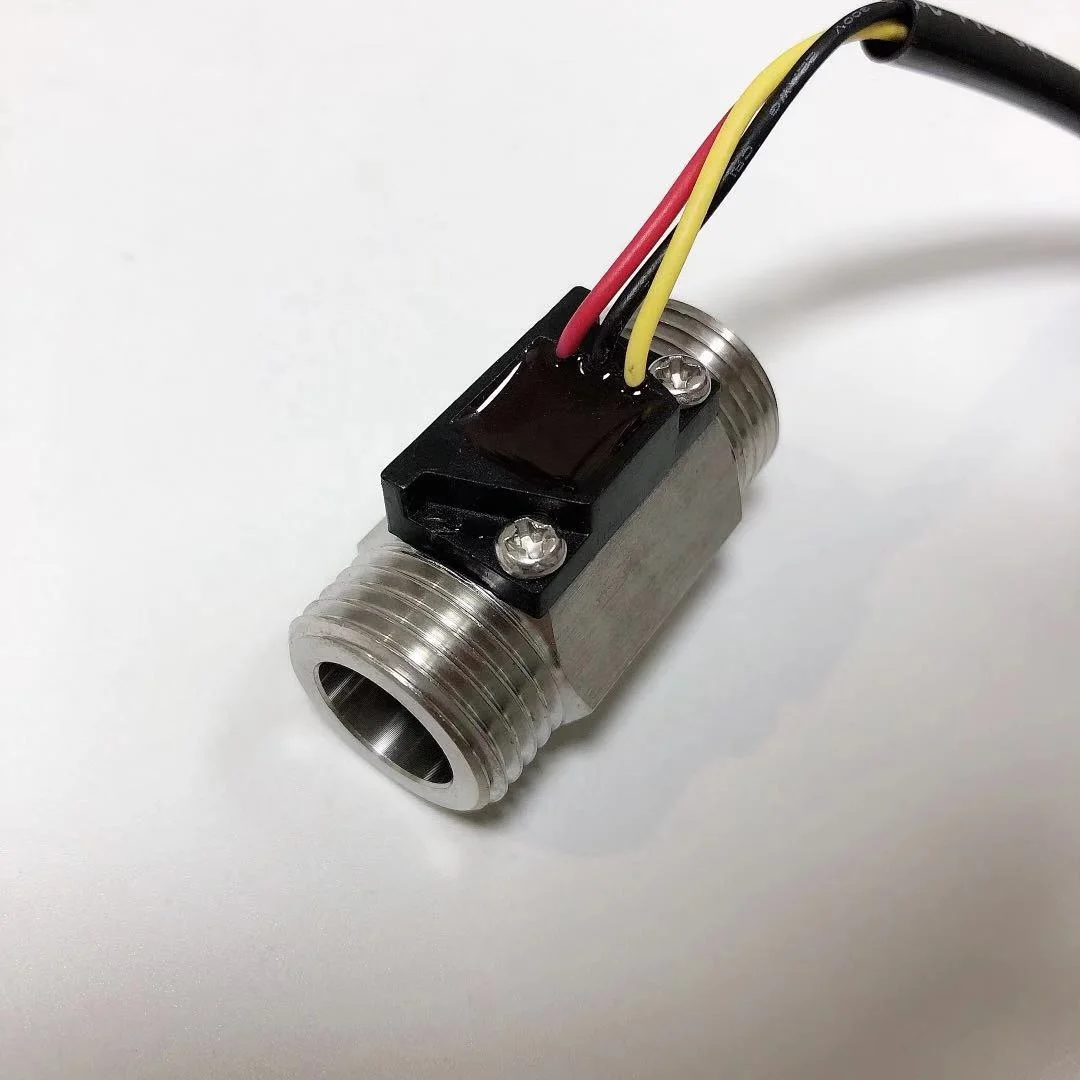

Quality cable

Equipped with professional connector, easy to install.
Switch interface

Multiple connector selection, installation convenience.

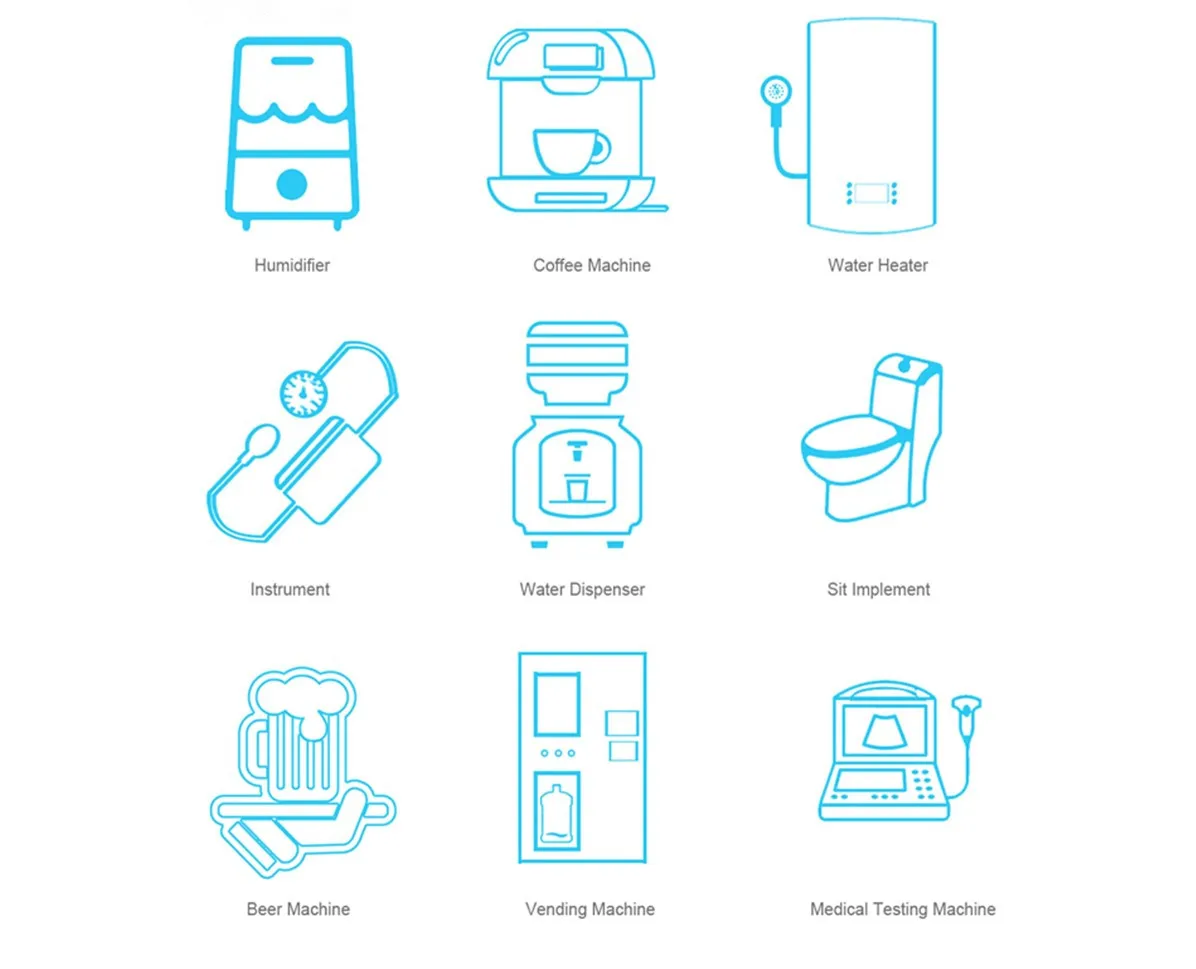

Product Usage
    • Product usage introduction

Flow sensor is mainly used for drinking fountains, water control machine, water purification machines, coffee machines, water dispenser, beer machine, water heater(gas, electric, boiler, air energy, solar energy, etc.), cooling systems, pharmaceutical equipment, machine equipment, instrument and meter and so on.
Related Products
Packing&Shipping
Company Introduction
Foshan Shunde Saier Sensor Co., Ltd., it is a professional high-tech manufacturer for magnetic sensor development and production, located in Ronggui town, Shunde district, manufacturing industrial center in Guangdong. Close to 105 highway road and Guangzhou Zhuhai west, less than 30 minutes by car from Guangzhou, Zhongshan, Foshan, with a strong advantages of home appliance industry and scale matching. Our main products: water flow sensor, water flow switch, float level switch, proximity switch, water solenoid valve etc. Used for drinking water machine, water purifier, coffee machine, water-sale machine, beer machine, water heater(gas electric heating、wall hung gas boiler、air energy、 solar energy etc.) circulating water system, water control machine(intelligent water meter, remote metering)、pedesta lpan, humidifier, air conditioning fan, compact water boiler, steam hot pot, door access control, F-secure mobile security, mechanical equipment, instruments and meters etc.
FAQ
1:How long will you give me the reply? we will contact you in 2 hours as soon as we can. 2:Could I get samples? Yes,we have materials in stock to help you to get the samples as soon as we can. 3:How about the quality of the magnets? We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you. 4:How is the price? As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price. 5:Could you provide me the shortest lead time? We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you. 6:Could I visit your factory? Of course,if you need we will help you to visit our factory. 7:If I have paid,when will you help me to produce? When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
above is detail introduction of SUS304 NPT 1/2" G Threads DN15 Level Sensor Switch 1~30 L/MIN Hall Effect Water Liquid Stainless Steel Flow Sensor Meter DC5-24V, include price, model, picture and supplier of SUS304 NPT 1/2" G Threads DN15 Level Sensor Switch 1~30 L/MIN Hall Effect Water Liquid Stainless Steel Flow Sensor Meter DC5-24V.
