High/Low carbon steel/ straight line Wire drawing machine
- 6000.00 set
| Condition: | New; | Place of Origin: | Jiangsu China (Mainland); |
| Port: | shanghai port; | Weight: | 1.5~40Ton; |
| market: | Africa, South America, MiddleEast, Asia; | Certification: | ISO9001-2008 CE SGS QIC; |
| Dimension(L*W*H): | 15000mm*1240mm*1640mm; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Brand Name: | Wandeshun; | Power(W): | 7.5~160KW; |
| Warranty: | 2 Years; | Technology instructions: | Complete program in offer; |
| Outlet Diameter: | 1.2-4.0mm; | Supply Ability: | 10 Set/Sets per Month; |
| Warranty: | one year; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Applicable Industries: | Hotels,Garment Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Power(W): | 30KW; |
| Provide the video of running machine: | yes can send to you; | Inlet Diameter: | 4-6.5mm; |
| Voltage: | 380/415/440/220; | After-sales Service Provided: | Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Quality: | best in China; | Certificate: | ISO9001:2008,CQBC,etc.; |
| Packaging Detail: | wooden box, wooden pallet; | Drawing material: | High, medium, low carbon; |
Wuxi Wandeshun Machine Co., Ltd (we are factory)
our transaction level is big.
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Product Details

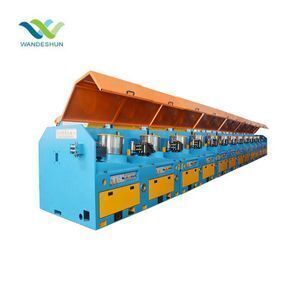

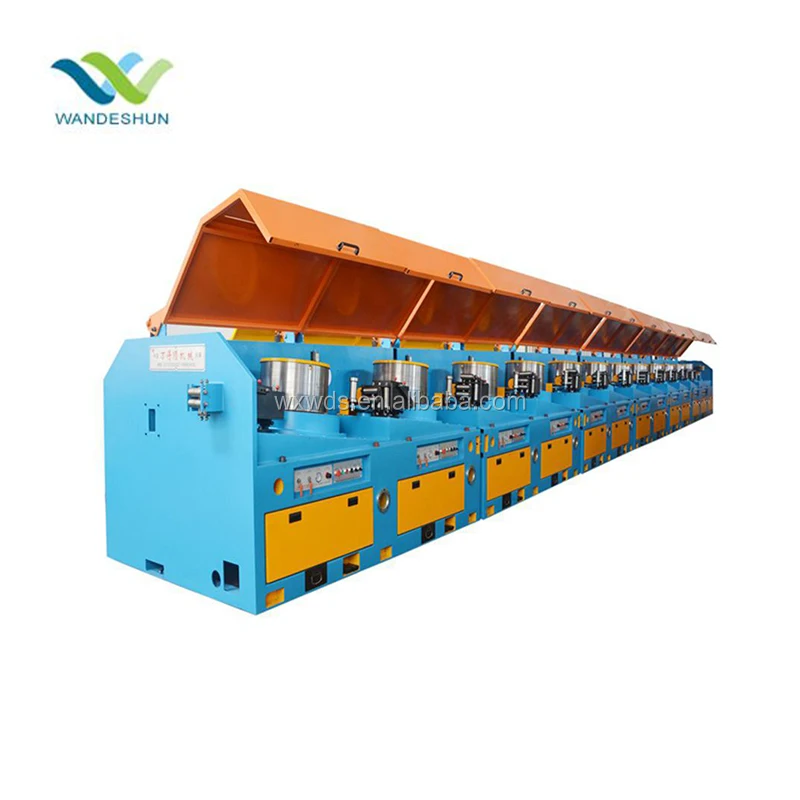

High/Low carbon steel/ straight line Wire drawing machine
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
Main Technical Parameters:
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
