Z94 TYPE C NEW GENERATION HIGH SPEED / LOW NOISE / AUTOMATIC NAIL MAKING MACHINE

Supplier: Wuxi Wandeshun Machine Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jeaqueline zou
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	Place of Origin:	Jiangsu China;
Weight:	5000KGS;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Video outgoing-inspection:	Provided;	Condition:	New;
Showroom Location:	None;	Supply Ability:	500 Set/Sets per Month;
Application:	nail making;	Brand Name:	wxwds;
Port:	shanghai;	Power (kW):	5.5;
Marketing Type:	New Product 2020;	designed capacity:	250-280;
Key Selling Points:	Automatic;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;

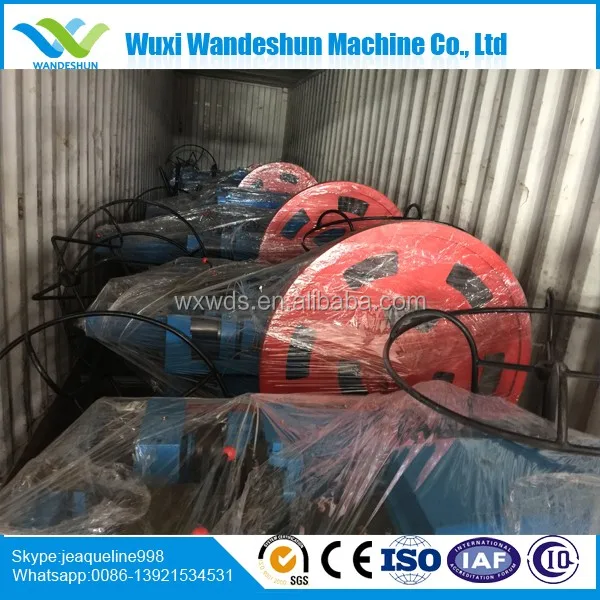

Packaging Detail:	wooden box , wooden pallet;	Warranty:	2 years;
Certification:	ISO9001:2008,CE;	Function:	make common nails from 1-6 inch;
Dimension:	2.21.61.65m;	Applicable Industries:	Retail,Construction works ;
Machine Type:	New Z94-series;	Warranty of core components:	1 Year;
Power:	4KW;	Color:	customized;
Weight (KG):	2000 KG;	Payment Terms:	L/C,T/T;
Machinery Test Report:	Provided;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;

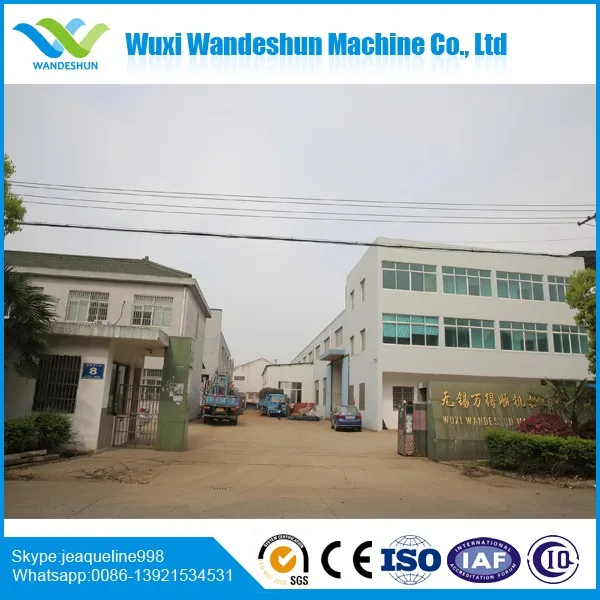

Wuxi Wandeshun Machine Co., Ltd (we are professional factory)

our Transaction level is as follows:

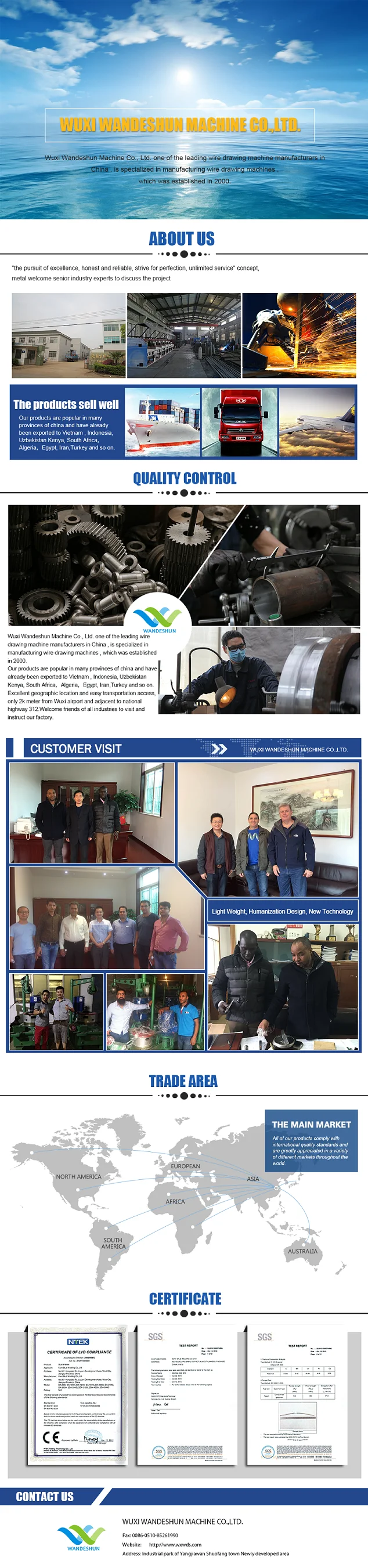

1. About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Turkey and so on.

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

My contact way

My mobile: 86-13921534531

Whatsapp: 86-13921534531

jeaquline zou

market manager

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)wxwds.com

QQ:349791577

Product Details

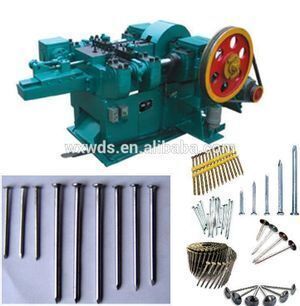

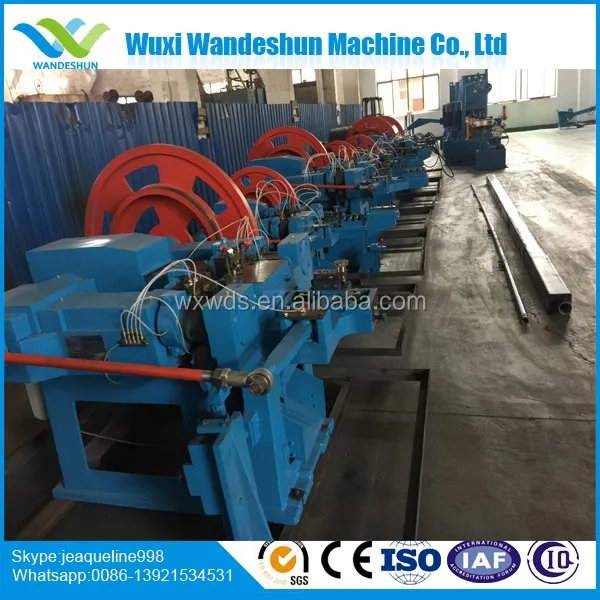

Z94C series High speed ,low noise nail making machine usually used to make normal nail,concrete nail,steeless nail,D shape and T shape nail.

This type equipment is consist of lubricating systerm and driving systerm.

The driving systerm include wire feeding,wire clamping ,wire cutting and stamping.

Process

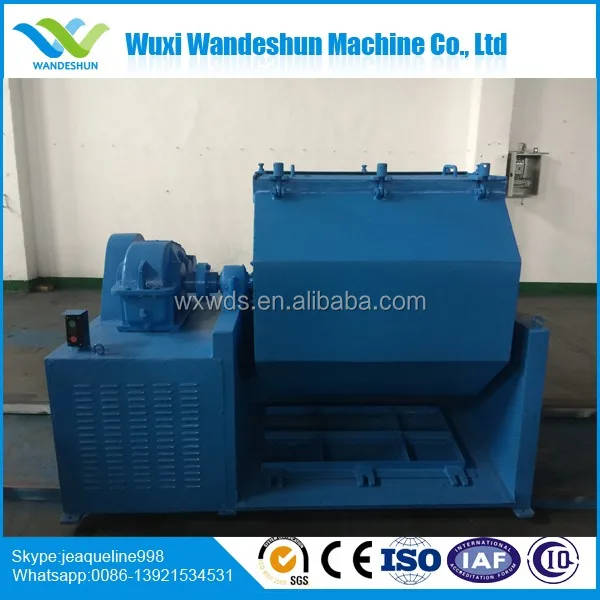

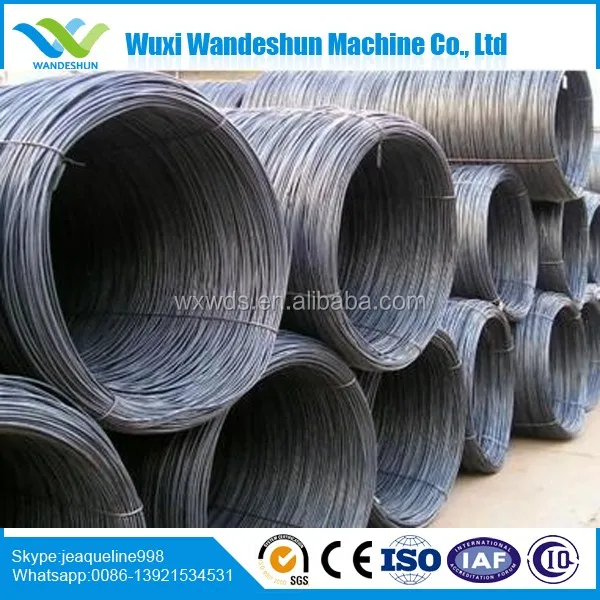

Wire-Rod → Wires-Drawing → Nail-Making → Polishing → Packing → Delivery

Characteristics

1) High Speed

2) Low Noise

3) Less Impact

4) Good Continuity

5) Main components are made of quality steel, such as shaft, cams and gear.

6) It adopts plunger and oil pipe lubricating structure.

7) It can make the high quality of asphalt felt nails and other special nails used for high speed coil nail welder and coil nailers.

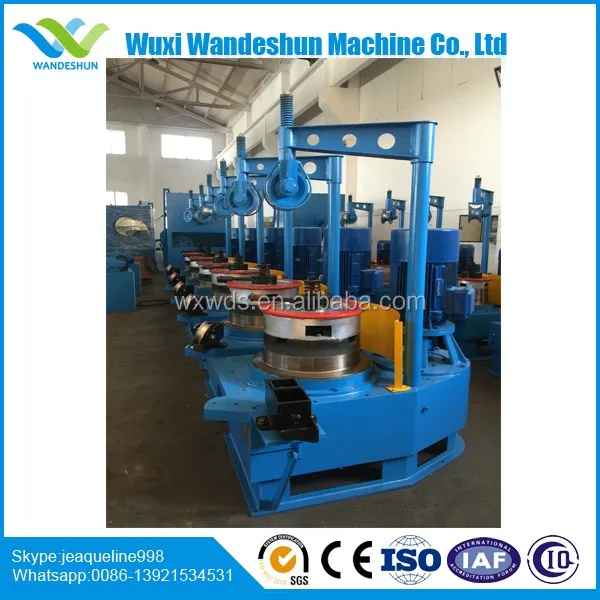

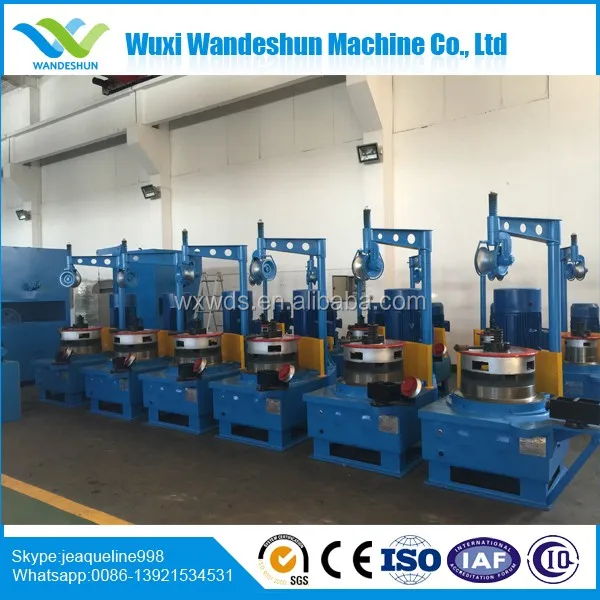

First step: wire drawing machine is used to draw the wire to the fine dia we need.

we also make all kinds of pulley wire drawing machine

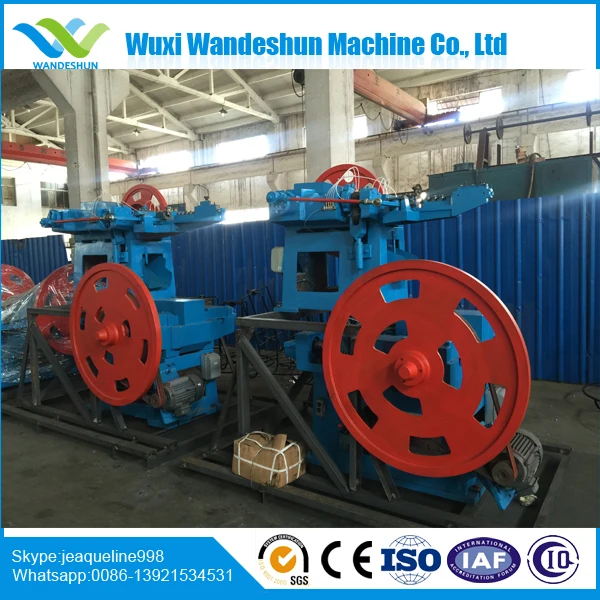

Second step: nail making machine is used to make nails. we just need to put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.

Technica	Unit	Z94-4C	Z94-3C	Z94-2C	Z94-1C	Z94-5.5C	Z94-6A
Max diam	mm	4.5	3.4	2.8	1.6	5.5	6.0
Min diam	mm	2.8	1.8	1.2	0.9	4.1	4.1
Max length	mm	100	75	50	25	150	180
Min length	mm	50	25	16	9	100	100
Desiged output	Pcs/min	260	280	300	450	220	220
Motor power	kw	4	3	2.2	1.5	5.5	11
Weight	kg	1900	1200	950	750	2500	6000
