used wire nail making machine

Product details
Port:shanghai;Machine Type:New Z94-series;
Supply Ability:500 Set/Sets per Month;After-sales Service Provided:Engineers available to service machinery overseas;
Brand Name:wds;Payment Terms:L/C,T/T;
Function:make common nails from 1-6 inch;Place of Origin:china;
Weight:5000KGS;Packaging Detail:wooden box , wooden pallet;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,No after-sales service,Video technical support;Certification:ISO9001:2008,CE,SGS;
Color:customized;Application:nail making;
Warranty:1 Year;designed capacity:250-280;
Power (kW):4.5KW;Dimension:2.2*1.6*1.65m;
Power:4KW;


Wuxi Wandeshun Machine Co., Ltd  (we are professional factory)

our Transaction level is as follows:



 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.



Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.



 My contact way

My mobile: 86-13921534531

Whatsapp: 86-13921534531

jeaquline zou

market manager

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)wxwds.com

QQ:349791577



used wire nail making machine

 Product  Details

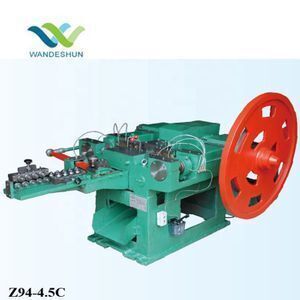

Z94C series High speed ,low noise nail making machine usually used to make normal nail,concrete nail,steeless nail,D shape and T shape nail.

This type equipment is consist of lubricating systerm and driving systerm.

The driving systerm include wire feeding,wire clamping ,wire cutting and stamping.



Process

Wire-Rod → Wires-Drawing → Nail-Making → Polishing → Packing → Delivery





Characteristics

1) High Speed

2) Low Noise

3) Less Impact

4) Good Continuity

5) Main components are made of quality steel, such as shaft, cams and gear.

6) It adopts plunger and oil pipe lubricating structure.

7) It can make the high quality of asphalt felt nails and other special nails used for high speed coil nail welder and coil nailers.



First step: wire drawing machine is used to draw the wire to the fine dia we need.

we also make all kinds of pulley wire drawing machine



Second step: nail making machine is used to make nails. we just need to put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.



Technica

Unit

Z94-4C

Z94-3C

Z94-2C

Z94-1C

Z94-5.5C

Z94-6A

Max diam

mm

4.5

3.4

2.8

1.6

5.5

6.0

Min diam

mm

2.8

1.8

1.2

0.9

4.1

4.1

Max length

mm

100

75

50

25

150

180

Min length

mm

50

25

16

9

100

100

Desiged output

Pcs/min

260

280

300

450

220

220

Motor power

kw

4

3

2.2

1.5

5.5

11

Weight

kg

1900

1200

950

750

2500

6000



  Third step: nail polihsing machine is used to make the nail brighening.



 Grinder which is used to make the nail knives more sharp.



Pointing rolling machine is used to make the point of the wire smaller so that it can get through the wire drawing dies before drawing.





our loading and shipment  photos
