Wood flow continuous coconut shell biochar carbonization furnace furnace cooking kiln machine for sale

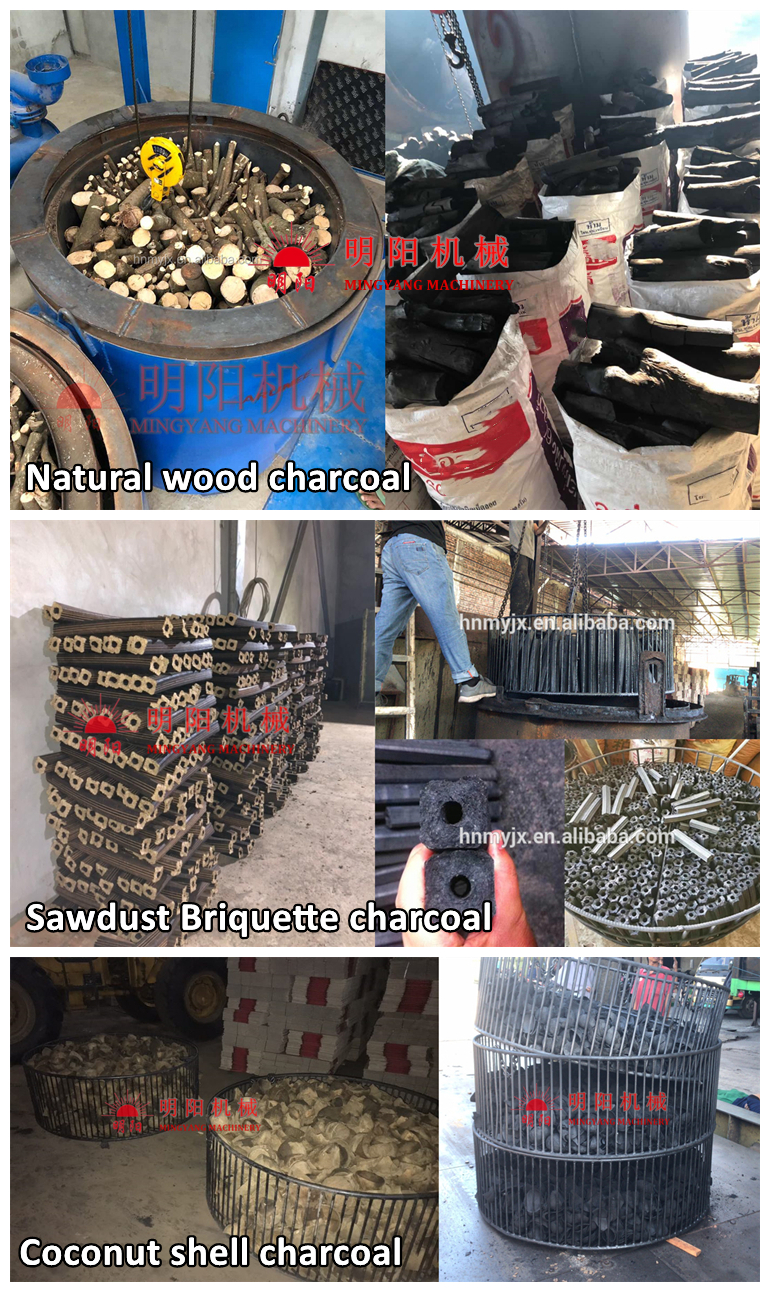

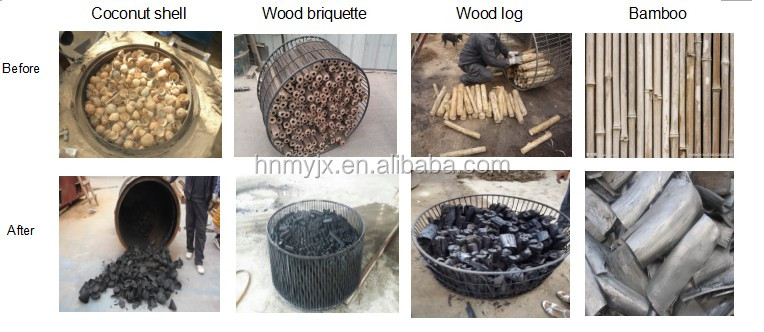

This is our wood flow continuous coconut shell carbonization furnace sterilizer kiln machine. The artificial wood blocks, logs, branches, bamboo, coconut shells and other raw materials can be directly made into charcoal.

How is charcoal produced? It is divided into three processes:

1. Hot
After sealing work, heat the stove with wood chips or gas. Mainly, the fire is burned for 10 minutes. When the temperature reaches 90 degrees Celsius, it is turned to simmer. This process takes 80-120 minutes to reduce the water vapor in the material.

2. Pyrolysis
Keep heating, when the temperature reaches 180-235 degrees Celsius for 3-5 hours, the process will generate gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches the maximum and decreases, the retorting process ends.

3. Cool down
Hang the inner pot outside and seal the tube of the lid. Let it cool naturally. The cooling time is longer and the charcoal quality is good. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.

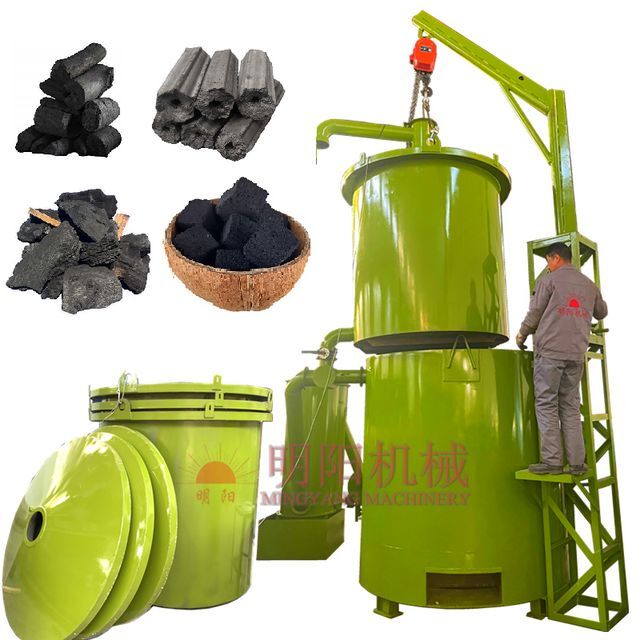

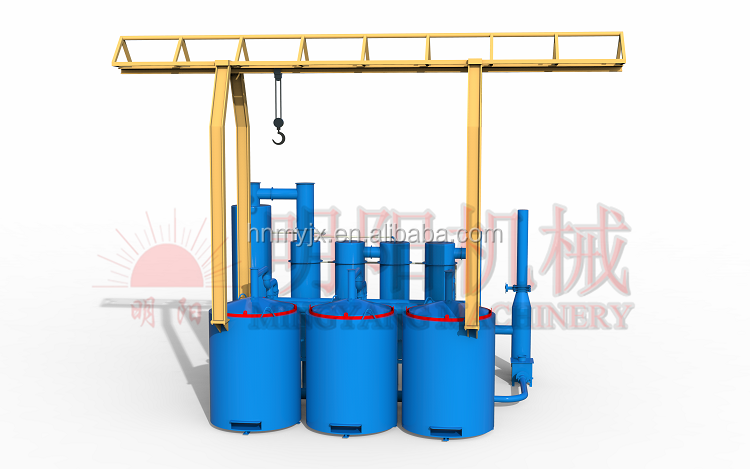

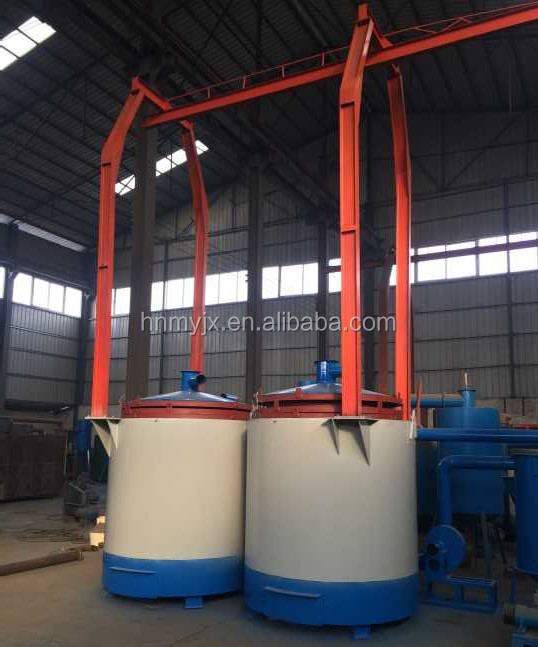

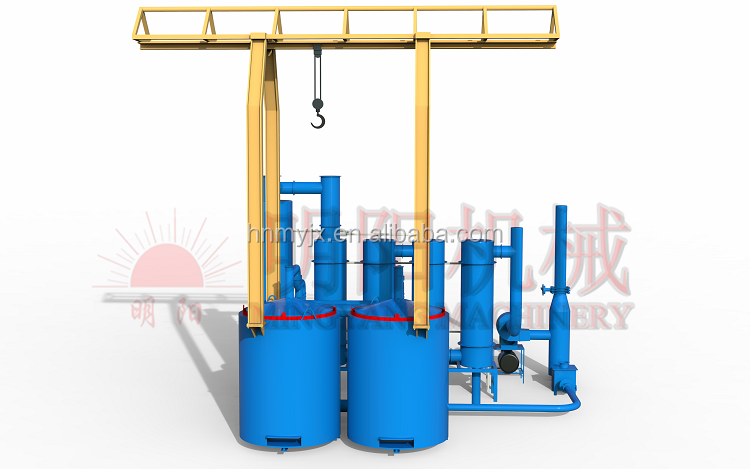

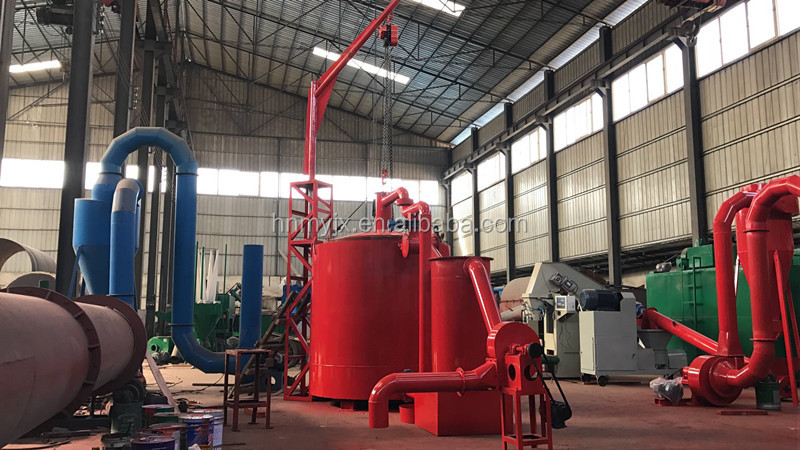

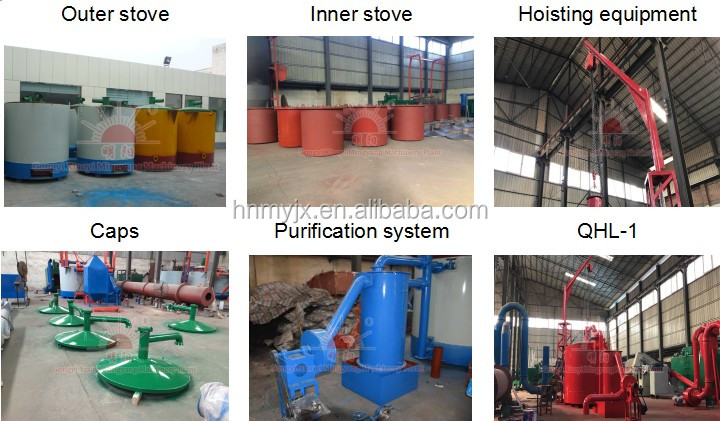

Benmu airflow continuous coconut shell carbonization furnace furnace kiln machine includes one outer furnace, three inner furnaces, cover, lifting equipment, purification system.

Outer furnace

Including heating chamber (for heating furnace), furnace body and insulation layer (made of insulation material for heat preservation)

Inner furnace

It consists of a hearth block and a sealed top cover. Both are made of heat-resistant steel, three carbonized baskets can be stacked together,

Easy loading and unloading, saving a lot of space and transportation costs.

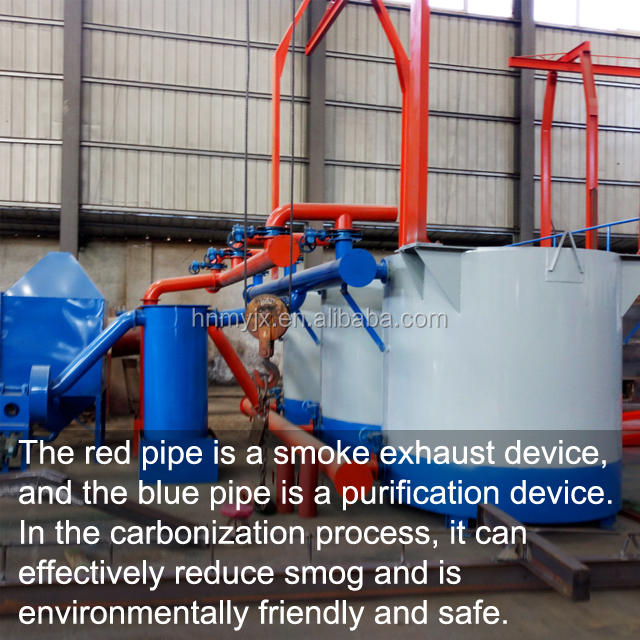

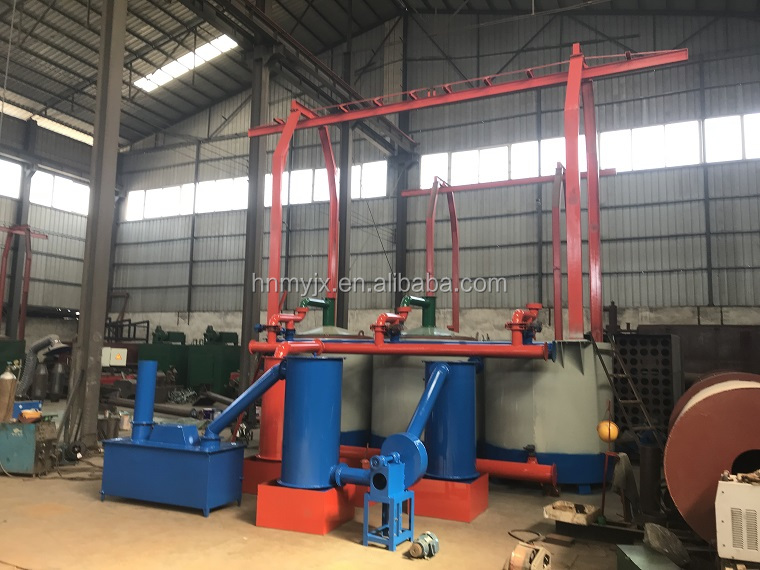

Purification tank

During the carbonization process, some flue gas (combustible) will be generated, and the flue gas can be returned to the furnace through the pipeline for purification, and the purified combustible flue gas can flow into the outer furnace heating chamber to heat the furnace. again;

The system consists of a purification tank and an exhaust heating circulation pipe. Smoke purifiers are used to purify smoke (not burn) and filter wood tar. The flue gas passing through the purification tank will become water vapor and will not pollute the air.

Lifting equipment

It includes steel hanger and electric hoist. It is convenient to load and unload the furnace, which can reduce labor intensity,

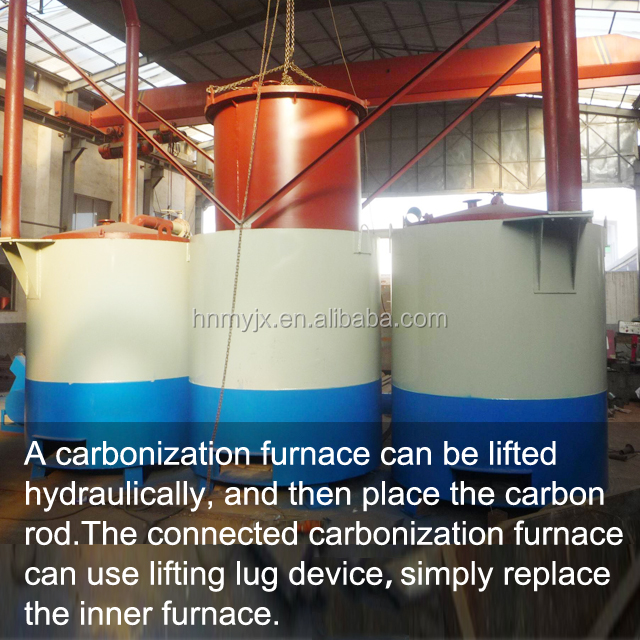

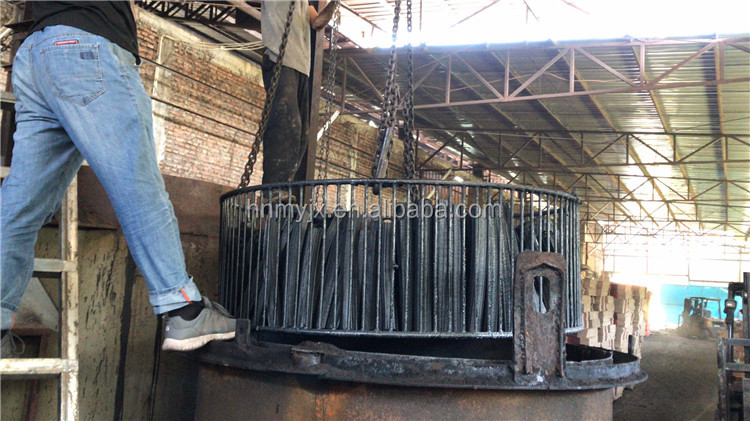

When the carbonization of one inner furnace is completed, we lift the inner furnace from the outer furnace with a lifting tool, and then put the inner furnace on the ground to cool down naturally, and at the same time put another inner furnace into the outer furnace for secondary carbonization, saving energy. A lot of time, improve production efficiency, ideal for mass production of charcoal.

How is charcoal produced? It is divided into three processes:

1. Hot
After sealing work, heat the stove with wood chips or gas. Mainly, the fire is burned for 10 minutes. When the temperature reaches 90 degrees Celsius, it is turned to simmer. This process takes 80-120 minutes to reduce the water vapor in the material.

2. Pyrolysis
Keep heating, when the temperature reaches 180-235 degrees Celsius for 3-5 hours, the process will generate gas. This gas is then used as fuel for heating. The whole process takes about 8 hours. When the temperature reaches the maximum and decreases, the retorting process ends.

3. Cool down
Hang the inner pot outside and seal the tube of the lid. Let it cool naturally. The cooling time is longer and the charcoal quality is good. You can remove the charcoal when the temperature is below 50 degrees. Otherwise, the charcoal will burn again when it encounters oxygen in the air.

 The difference between the newly designed charcoal carbonization furnace and other suppliers:

♦ Thickness of outer furnace: wall---6mm, bottom---12mm, other suppliers use 3mm and 8mm.

♦ Thickness of inner pot: wall---8mm, bottom---12mm, other suppliers use 4mm and 6mm.

♦ The bricks we use to build the outer furnace are white refractory bricks of good quality and high temperature resistance. Other supplies use regular bricks.

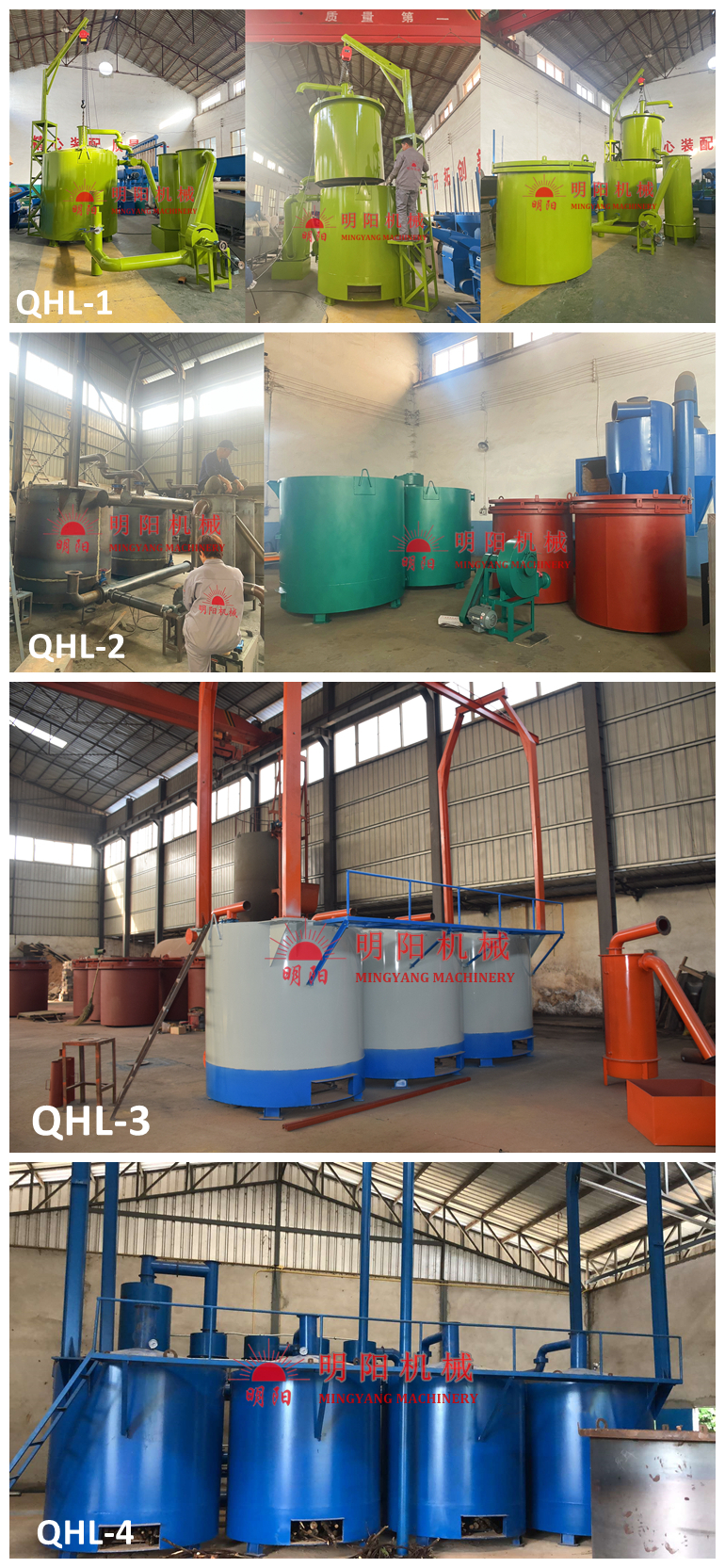

QHL-1

QHL-2

QHL-3

QHL-4

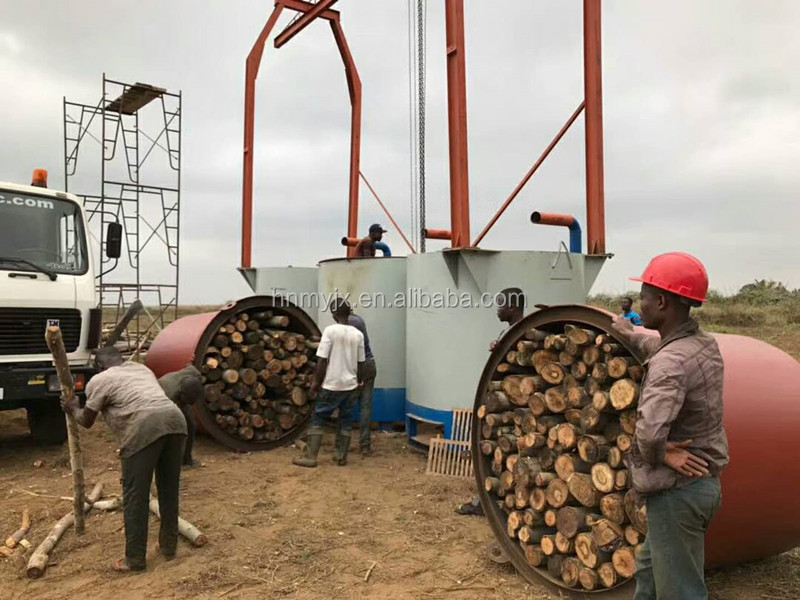

Customer website

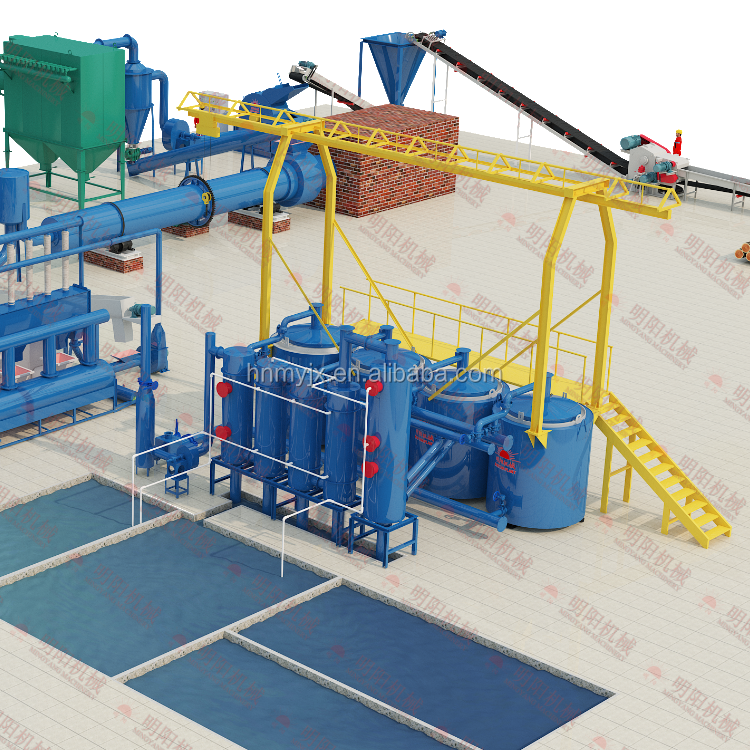

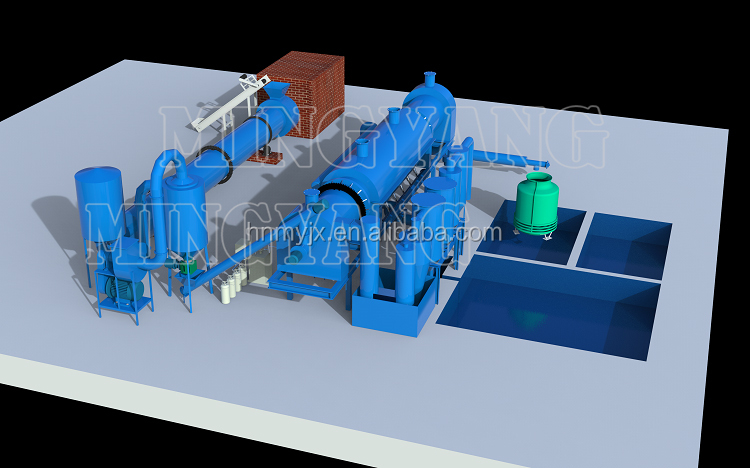

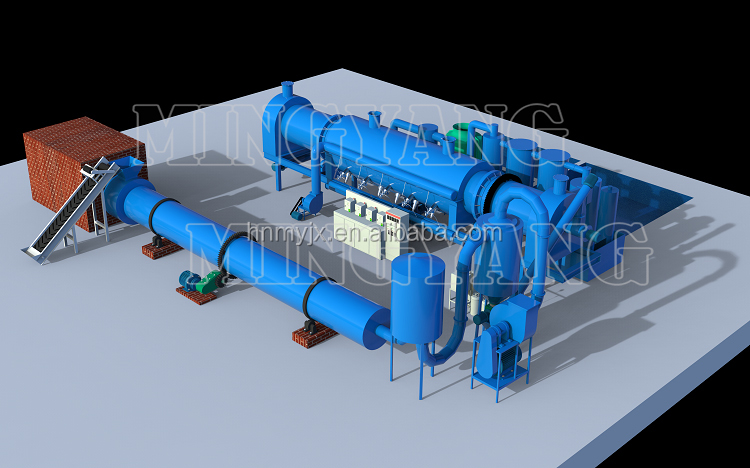

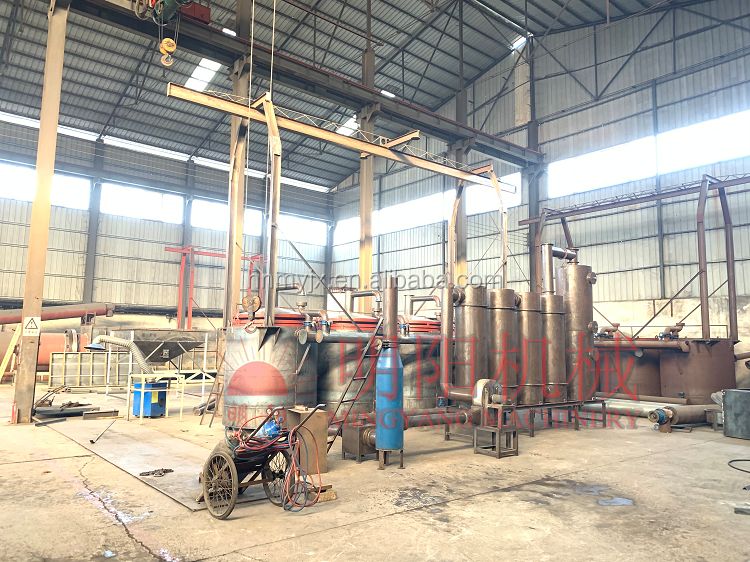

In our factory, we also have continuous carbonization furnaces:

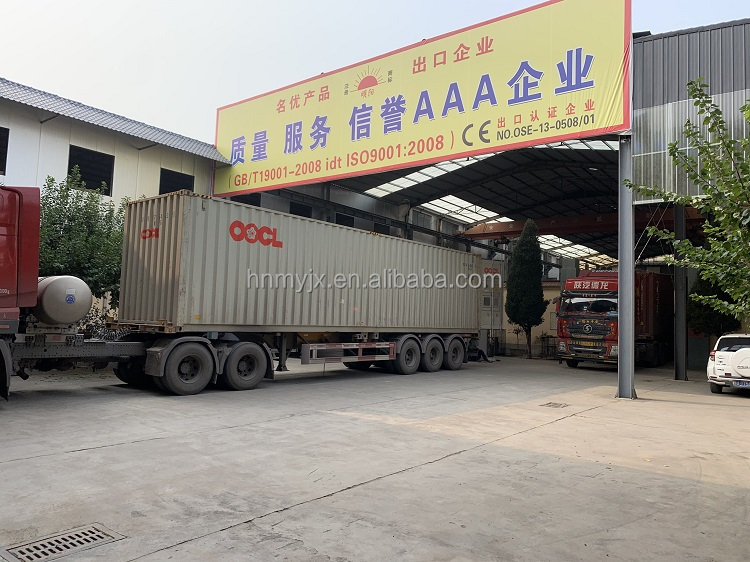

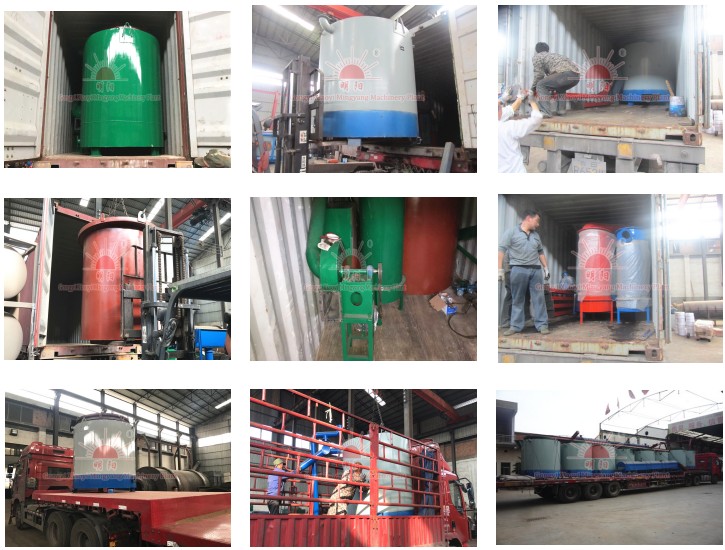

If you order a QHL-1 or a QHL-2 carbonization furnace, a 20-foot container is required.

If you order a QHL-3 or a QHL-4 carbonization furnace, a 40ft container is required.
