Gold supplier CE approved hot air flow type rotary drum dryer for biomass wood sawdust

Product details
OEM:acceptable;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
The moisture after drying:8-12%;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Trial:can do factory trial;Material:SUS304L;
Application:Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;Power:5.5kw;
Weight:2600kg;Video outgoing-inspection:Provided;
Local Service Location:None;Showroom Location:None;
Supply Ability:100 Set/Sets per Month hot air flow type rotary drum dryer for biomass wood sawdust;Marketing Type:Hot Product 2019;
Product name:hot air flow type rotary drum dryer for biomass wood sawdust;Certification:CE ISO;
Usage:for drying the wood chip, sawdust;Type:Drum Drying Equipment;
Condition:New;The moisture before drying could be:20-60%;
Place of Origin:Henan China;Key Selling Points:Energy saving;
Brand Name:Ming Yang;Voltage:380v;
Core Components:Bearing,Pump,Gear,Motor,Gearbox,Other,PLC,Engine,Pressure vessel;Warranty of core components:2 years;
Warranty:3 years;Heating Method:Gas Heating;
Operate:easy and safe;Weight (KG):1000kg;
Port:Qingdao or any other ports in china;After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Output:700-1000kg/h;Evaporation Capacity(kg/h):20;
Input size:less than 8mm;Machinery Test Report:Provided;
Dimension(L*W*H):10*1.5*3.5 M;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

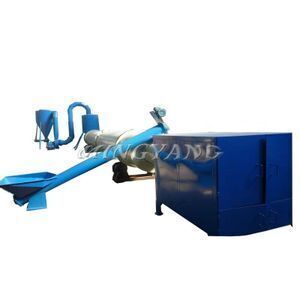

Gold supplier CE approved hot air flow type rotary drum dryer for biomass wood sawdust

Product Description



Introduction ---------hot air flow type rotary drum dryer for biomass wood sawdust  :

1.This dryer is suitable for drying materials of moisture 30~60%.The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone.

2.Wet materials are put into the hopper.The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly.And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% 3.With the advantages of low cost consumption and high efficiency.

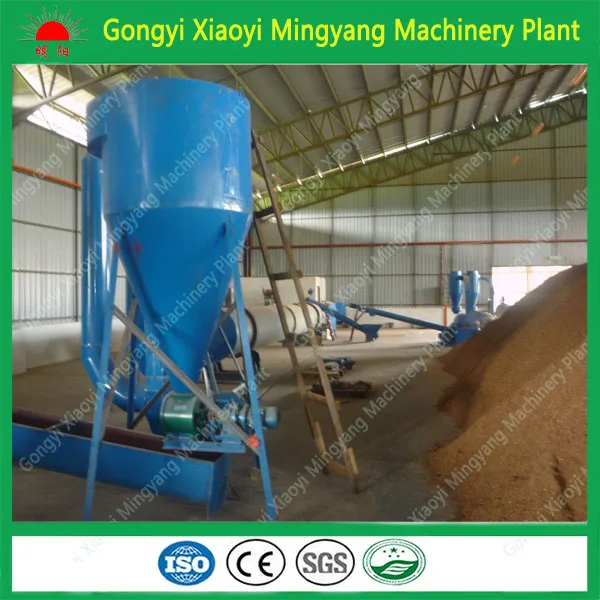

Rotary drum dryer
A: Rotary Dryer is special designed to dry the Wood material which combines the function of drying and cooling, so it can save 30-50% energy.
B: Rotary type dryer shows the features of perfect drying effect, easy operation, high efficiency and easy control of drying. It takes advantage of the stability of roller and homogeneity of air suitable for drying materials of moisture 30-60% .It has the larger capacity , can meet the high capacity need.



Model

GT630

GT800

GT1000

GT1200

GT1500

Capacity kg/h

600-800

800-1000

1200-1500

1500-2000

2000-2500

Main Power

5.5kw

7.5kw

7.5kw

11kw

15kw

Air lock power

1.1kw

1.5kw

2.2kw

2.2kw

2.2kw

Weight

2600kg

2800kg

3800kg

4500kg

5000kg

Diameter of roller

630mm

800mm

1m

1.2m

1.5m

Length of roller

9m

10m

10m

12m

12m

Total length

9+4m

10+5m

10+5m

12+6

12+8m

Wood waste consumption

15-20kg/h

20-25kg/h

30-40kg/h

40-50kg/h

50-60kg/h

Moisture

From 40-70% to 8-12%







The final products:

The full production line:

We can provide you the whole line to make wood charcoal,  including the crushing machine, sawdust drying machine, sawdust briquette machine and carbonization furnace. But first: make sure your raw material's size, whether the crushing machine require or not; Second, make sure your moisture content of the sawdust, if over 12%, the dryer machine is ok to require; This two steps has made sure, we can make briquette and then carbonizing. This is the whole process to finish the process of manufacturing the charcoal briquette.







Packaging & Shipping

If you order single machine,it can be packed in one wooden case.

If you order more machine or a production line, a 20 feet container or 40 feet container needed.

It like the following show:



Company Information

Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.

There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,

production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)

production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)

and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.

Our machines have the best quality and we have got many certification such as CE, ISO, BV.

ave got many certification such as CE, ISO, BV.
