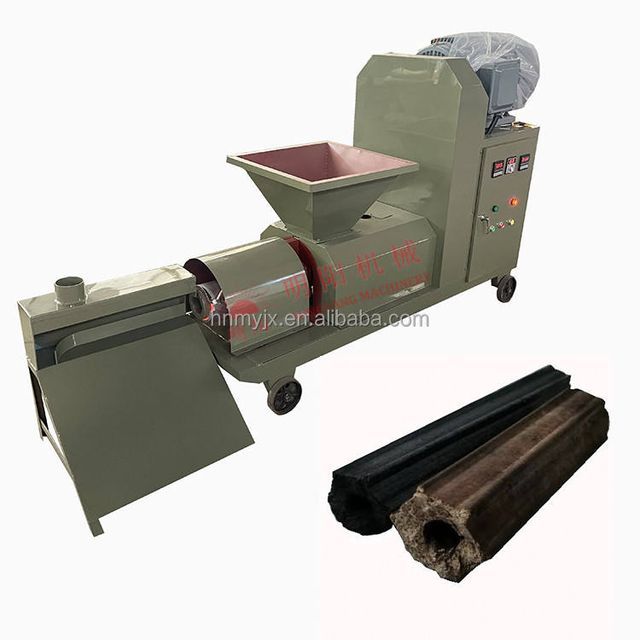

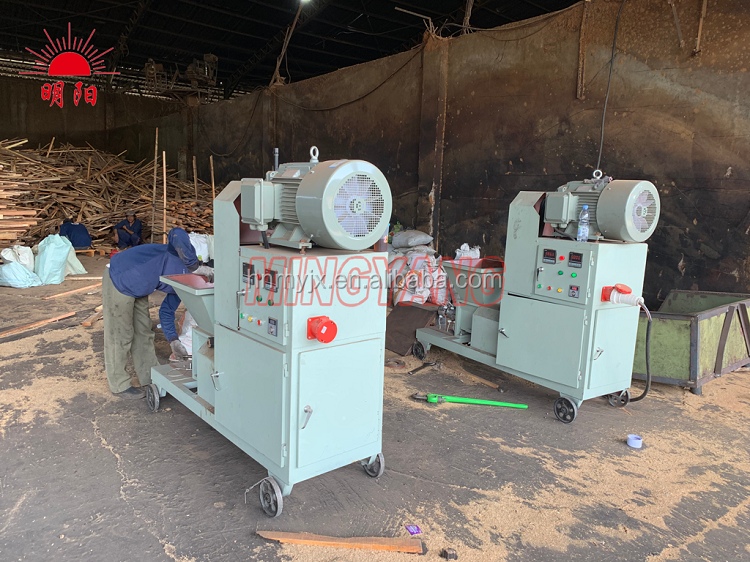

Factory sells biomass briquetting machine/wood briquetting machine/wooden briquetting machine to make sawdust briquettes

Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Region: Henan, China
Contact: Ms Kiki ding
Price: $2186.00 / 1 - 4 sets
$2100.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

raw material:	Biomass material	application:	Briquette machine
Applicable industries:	Hotels, building supply stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, advertising agencies	brand:	Ming Yang
Mechanical test report:	if	Dimensions (LWH):	2.20.61.3m
Production capacity:	99%	port:	Qingdao, Shanghai, Ningbo, Guangzhou, etc.
capacity:	120-220kg/hour	Video shipment inspection:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Briquette diameter:	50mm
Core component warranty:	2 years	usage:	making briquettes
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Name:	Sawdust briquetting machine
Raw material size:	3-5mm	Raw material moisture:	8%-12%
feature:	energy saving	Origin:	Henan, China
Showroom location:	not any	Health status:	new
color:	customer request	Voltage:	380v/400v/415v
Supply capacity:	100 sets of agricultural wood waste sawdust rice husk straw biomass briquettes per month	weight:	550 kg
main part:	Forming tubes, propellers, earrings	Main selling points:	is selling
Warranty:	1 year	Marketing Type:	2019 Hot Products
After-sales service provided:	Engineers available to service machinery overseas

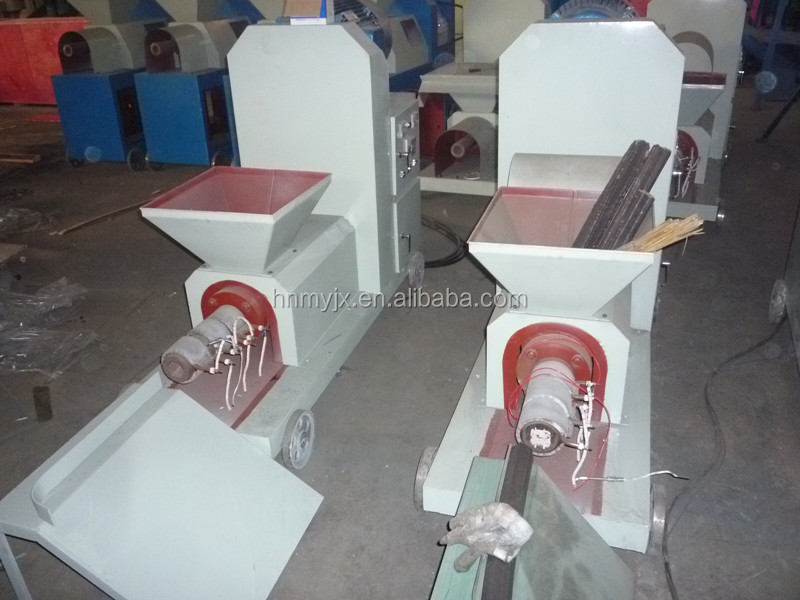

Factory sells biomass briquetting machine/wood briquetting machine/wooden briquetting machine to make sawdust briquettes

Product Description

introduce

Agricultural wood waste sawdust rice husk straw biomass briquette making machine price for sale is used to make wood coal. The raw materials can be straw, straw, sawdust, coconut shell, rice husk, rice straw, branches and so on. The resulting wood briquettes can be used as fuel for boilers or as a material for making charcoal.

Technical Parameters

There are two types of machines

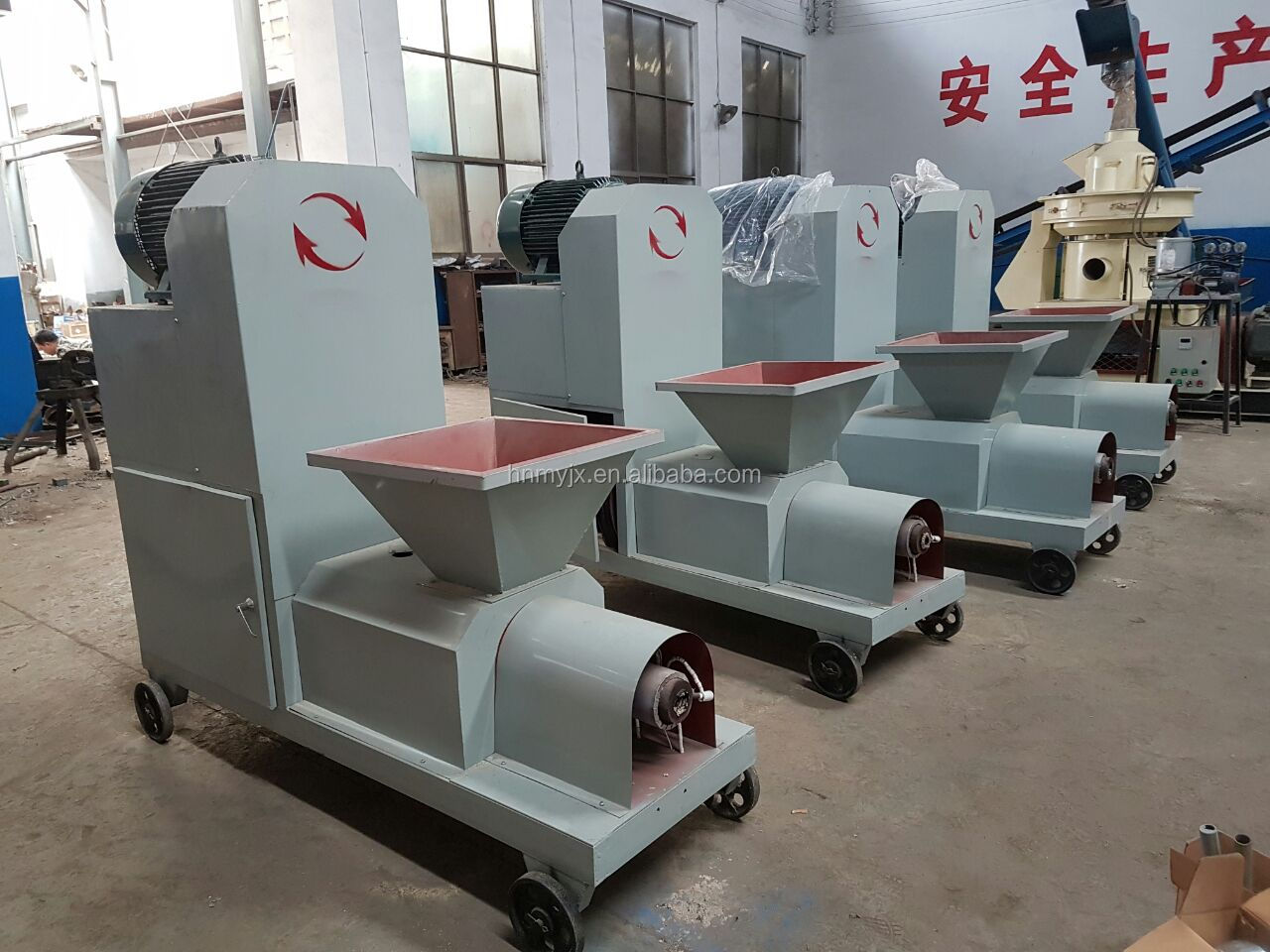

(1) stand-alone
If the capacity you need is 120-450kg/h, you can choose a stand-alone machine. We have six types of stand-alone machines.

Model

Capacity kg/hour

power kw

material temperature

weight kg

Packing size mm

ZBJ50-9

120-220

11-15

8-12%

550

2200×600×1300

ZBJ50-C

350-420

twenty two

8-12%

750

2700×700×1550

ZBJ60-9

220-250

15-18.5

8-12%

650

2400×700×1350

ZBJ70-9

280-340

18.5-22

8-12%

780

2400×700×1400

ZBJ80-9

320-360

twenty two

8-12%

850

2400×750×1400

ZBJ90-9

380-450

8-12%

980

2600×800×1500

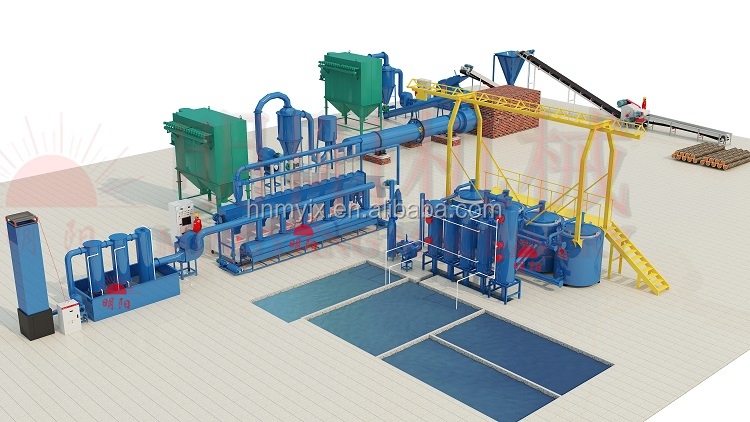

(2) Automatic production line
If you need large production capacity, one single machine cannot meet your needs, you can choose multiple single machines, or use automatic production line, automatic production line has large capacity (from 800kg-2500kg/h), and it will save many workers and costs.
Our automation line includes main machine and auxiliary machine. Host (multiple single machines) auxiliary machines (distributors, screw conveyors, belt conveyors, flue gas treatment systems, cooling conveyors.

Model

capacity

Power (kW)

aspect,

rice

Bar diameter, mm

weight, metric tons

ZBJ9-4-1

900-1100 kg/h

11*5+3+3+ 0.22

6.5*2.35*3.1

50,60,70

3.2

ZBJ9-4-2

1250-1500 kg/h

15*5+3+3+0.22

6.5*2.35*3.1

50,60,70,80

3.8

ZBJ9-5-1

1800-2200 kg/h

11*10+3*2+3+0.22*2

6.5*3.35*3.15

50,60,70

6.4

ZBJ9-5-2

2200-2500 kg/h

15*10+3

6.5*3.35*3.15

50,60,70,80

7.5

main part

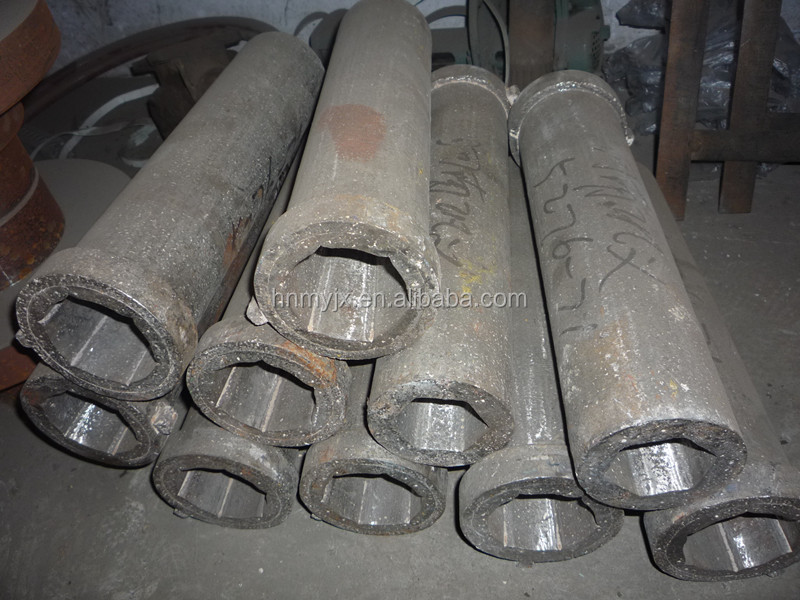

Forming tubes, which can be formed into different shapes for the final wood coal. Special cast steel, inner barrel boron

Treatment, used continuously for more than 5 months.

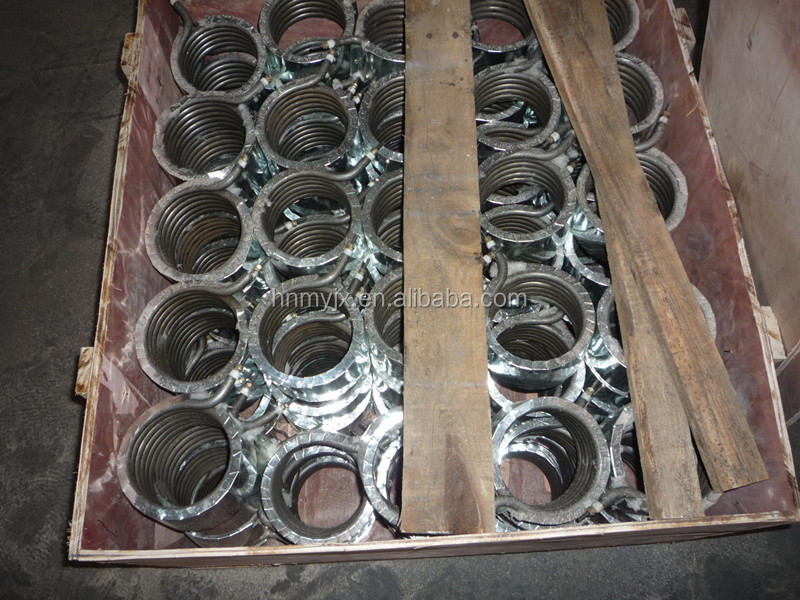

We used three heater rings made of thick copper wire with a ceramic interior.

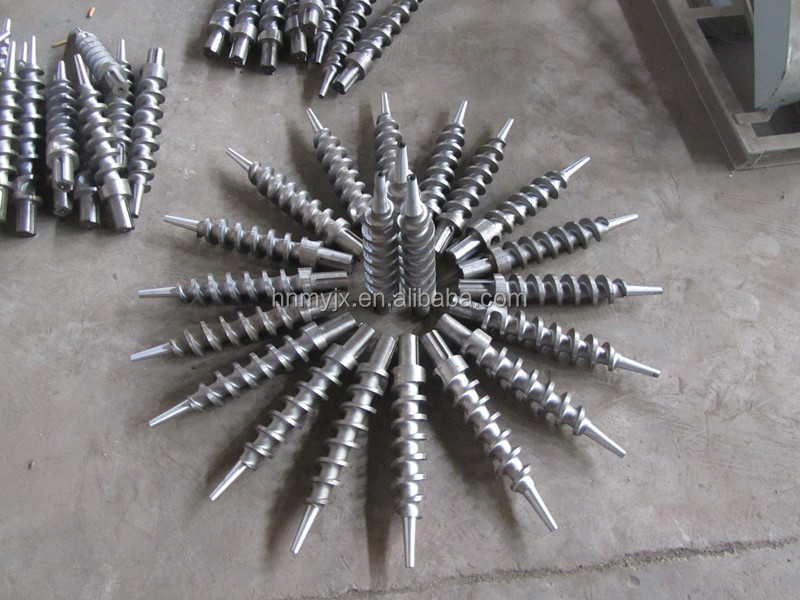

Propeller, advanced design, fast rod speed, high density, wear-resistant, one welding can work continuously for more than 30 hours.

work rules

Agricultural wood waste sawdust rice husk straw biomass briquetting machine uses a large screw to compress and extrude biomass into briquettes. The natural lignin component of biomass is released together with wood fibers under high pressure and temperature. During the briquetting process, lignin acts as a glue to bind wood particles together, thereby bonding and compressing the biomass to form high-density briquettes of various molds, such as hexagonal, quadrilateral, square, etc. According to your request, we can also change the shape according to the order. The diameter of the briquettes is 50-80 mm. Also, non-adhesives need to be used in the process.

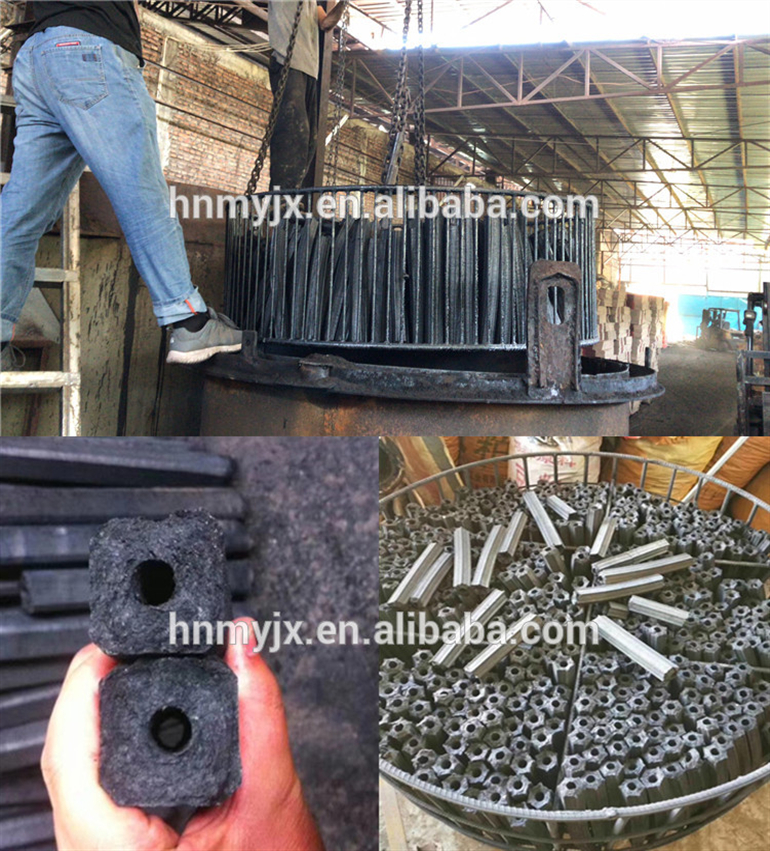

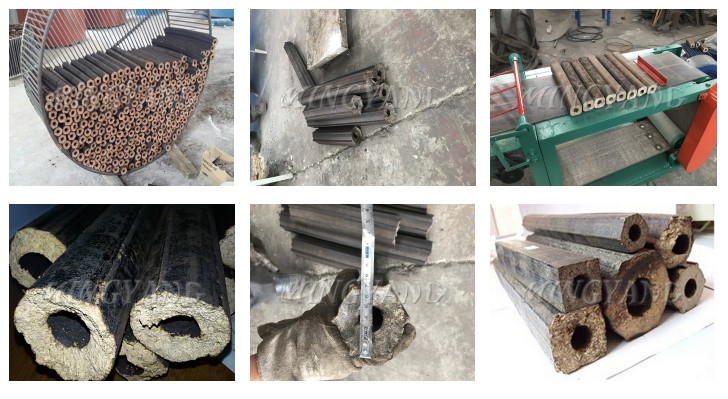

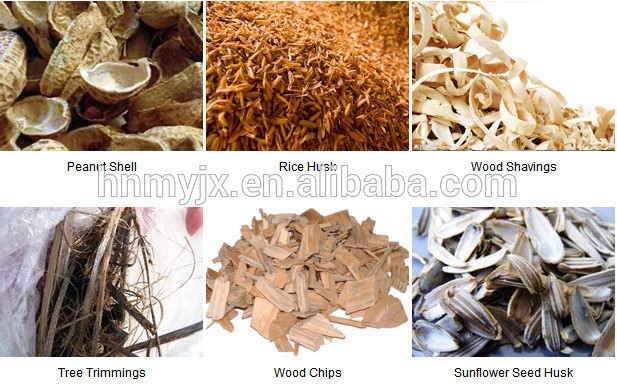

Raw materials and final briquettes

Corn stalks, soybean stalks, firewood, wood chips, palm shells, sorghum stalks, cotton stalks, peanut stalks, sunflower stalks, bamboo chips, bagasse, wood chips, rice husks, coffee husks, coconut shells, jute sticks, peanut shells, bamboo, Wood, mustard stalks and cotton stalks.etc

raw material requirements
Sawdust particle size: 3-5mm (if the raw material particle size is large, a shredder is required)
Sawdust moisture: 8%-12% (if the raw material moisture is higher than 12%, a dryer is required)

1. Final shape: hexagon, pentagon, square, circle
2. Final length: 20-40 cm adjustable, according to your needs
3. Final size: diameter. 50mm, 60mm, 70mm, 80mm

Learn more about machines and latest prices, pLeasing Click @ Contact Us

We have other types of briquettes machine for different types of final briquettes, if you are also interested, please feel free to contact me here:
