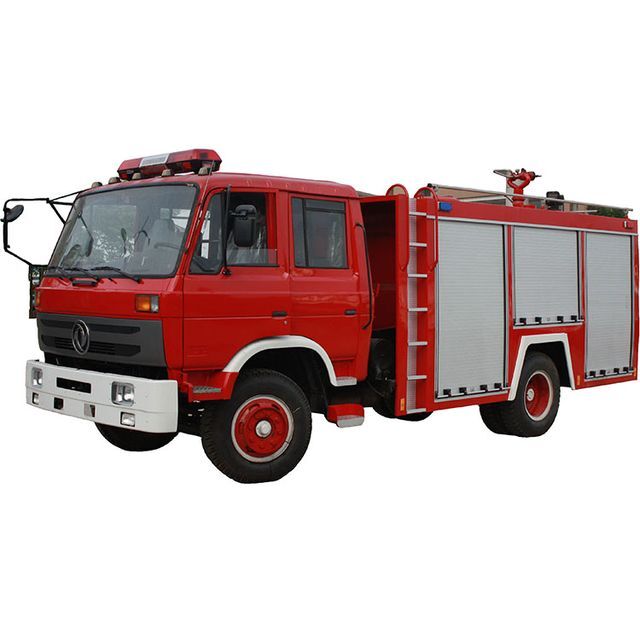

4x2 brand new Dongfeng fire truck 5 tons water tank fire truck fire truck

Supplier: Hubei Xindongri Special Vehicle Co., Ltd.
Region: Hubei, China
Contact: Mr Eric Shen
Price: $30595.50 / 1 - 2 pieces
$29695.50 / >=3 pieces
Min. Order: 1 piece

Click here to contact

Product details

type:	tanker	fetal:	9.00-20
Supply capacity:	200 pieces per month	Health status:	new
capacity:	5000L	port:	Shanghai
Fire Hydrant:	CB 10/40 40L/S/1.0MPa	payment terms:	letter of credit, wire transfer
Wheelbase:	3950mm	Packaging Preview:
horsepower:	150 - 250 hp	place of origin; place of origin:	Hubei, China
Fuel tank capacity:	3001 - 5000L	maximum. Working height:	60m
taxi:	double cab	brand:	Dongfeng
Emission Standards:	Euro 3	size:	788524903400mm
Approach/Departure (°):	25/14	Fire Monitor:	PS40
Drive Wheel:	4X2	Packaging Details:	wax
Transmission type:	manual	Leaf spring:	8/10+7
Maximum speed:	90 km/h	Type of gasoline:	diesel engine
Curb weight:	7800kg

Product Description

Contact the supplier for free samples!

https://message.alibaba.com/msgsend/contact.htm?spm=a2700.galleryofferlist.normal_offer.8.6f6516d0qTqqef&action=contact_action&appForm=s_en&chkProductIds=60710985371&chkProductIds_f=IDX1CjFiu7dUOHVLUcc1hCTH7E0k7DlecOlkO4eWv4T7YnQoNuJ4nIav13TNPj7NwW1O&tracelog=contactOrg&mloca=main_en_search_list

Specification

thing	water tank fire truck			Chassis brand	Dongfeng
vehicle parameters	Total weight (kg)	12500	Dimensions (mm)	7885×2490×3400
		Rated load (kg)	4250	steering wheel	scraper
		Curb weight (kg)	7800	Wheelbase(mm)	3950
		driving type	4*2
Engine parameters	Model	B170-33 Exhaust gas recirculation	Emission Standards	Diesel, Euro 3
		Horsepower (hp)	170	Discharge (ml)	5900
		4-stroke, in-line 6-cylinder, turbocharged and intercooled
Gearbox	8 forward and 1 reverse
Performance parameters	top speed (km/h)	90	Wheelbase(mm)	front axle	1900
		cab seat	Wheelbase(mm)	2+3		rear axle	1800
		leaf spring	8/10+7	Suspension (mm)	front suspension	1205
		tire number	6+1	Suspension (mm)		rear suspension	2330
		Tire specifications	9.00-20	Drive angle (°)	approach angle	25
		axis number	2	Drive angle (°)		departure angle	14
special function	capacity	Water tank 5000L
		fire hydrant	1. CB10/40, 40L/S, pressure: 1.0MPa 2. Suction time ≤ 35s (7m suction depth) centrifugal pump
		fire monitor	1.PS40, 40L/S, pressure: 1.0Mpa 2. Spray gun range: water ≥ 60m
Performance description	4-door double cab; Hidden water tank, made of carbon steel Q235A, thickness 4mm; The body adopts aluminum alloy rolling door; The cab is equipped with PTO control indicators, and is also equipped with 100W siren, LED warning lights, signal lights, lighting switches, tail lights, etc. Provide firefighting equipment.
