XDR 4x2 Japan bin 12CBM 6-8M3 garbage compactor truck waste collection truck

Click here to contact

Product details

Video outgoing-inspection:	Provided;	After Warranty Service:	Video technical support;
Emission Standard:	Euro 4;	Transmission Type:	Manual;
Warranty:	Unavailable;	Machinery Test Report:	Provided;
Drive Wheel:	4X2;	Packaging Detail:	FLAT RACK;
Weight (KG):	2000 kg;	Brand Name:	ISUZ-U;
Marketing Type:	New Product 2020;	Payment Terms:	L/C,T/T;
Gross Vehicle Weight:	7300;	Size:	6665x1980x2200mm;
Core Components:	Engine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Hubei, China;	Port:	Shanghai port;
Showroom Location:	None;	Warranty of core components:	3 years;
Volume:	6001 - 10000L;	Fuel Type:	Diesel;
Engine Capacity:	2999ml;	Condition:	New;
Applicable Industries:	Energy & Mining,Advertising Company;	Local Service Location:	None;
Supply Ability:	1000 Units per Month;	Type:	Compactor;

Product Description

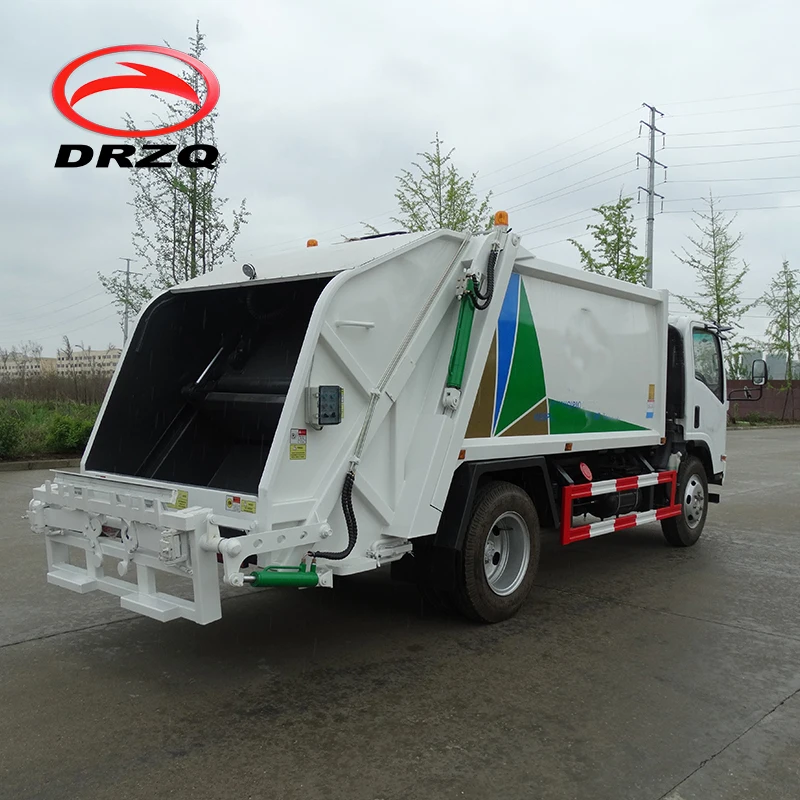

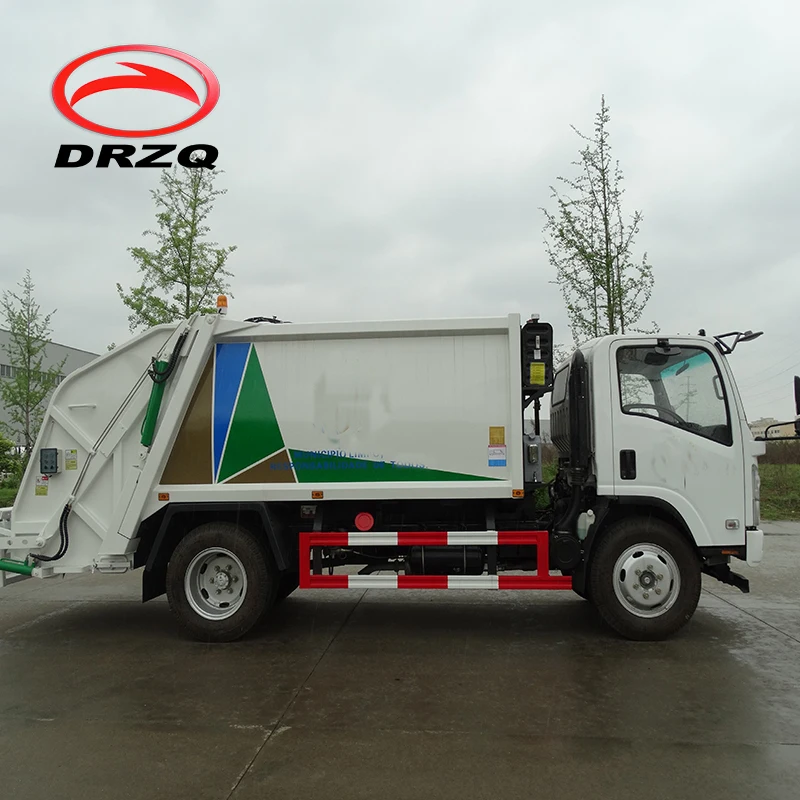

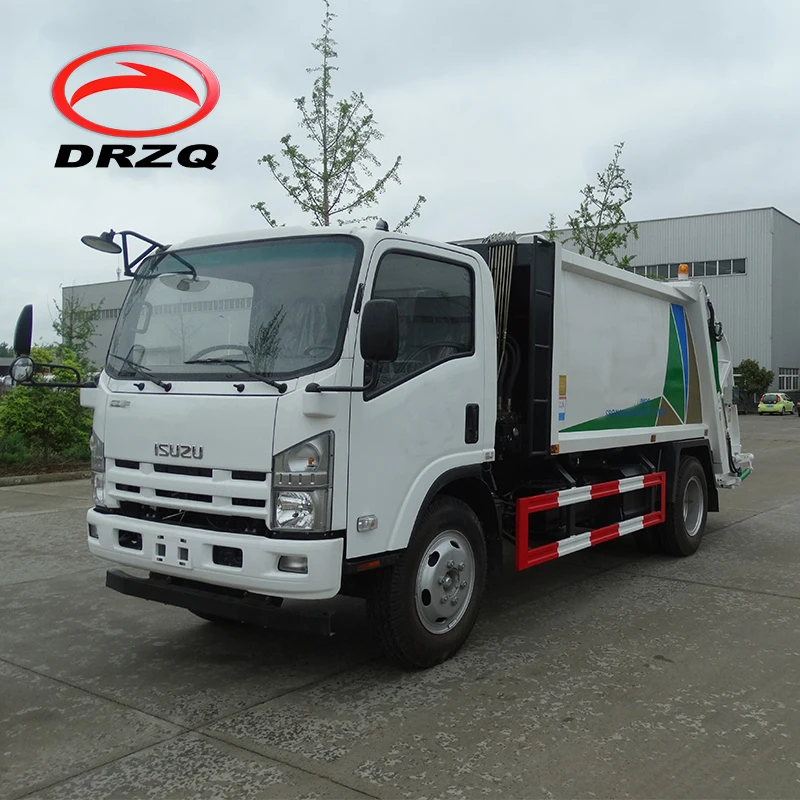

Specification of ISUZ-U compactor Garbage Collecting Truck 3815
Item	Specification	Item	Specification
General
Truck name	Compactor Garbage Collecting Truck 3815	Overall Dimension (mm)	6665×1980×2200
Truck Model	QL1071A6KAY	Wheel base (mm)	3815
Traction system	4 x 2	Gross Weight (kg)	7300
Cab Capacity	1-3 person	Curb Weight (kg)	5160
Transmission	manual	Front Wheel Tread (mm)	1504
Chassis Brand	ISUZ-U	Rear Wheel Tread (mm)	1525
Tyre Model	7.00R16 14PR,7.00-16 14PR	Approach Angle (°)	24
Quantity of Tyre	6	Departure Angle (°)	16
Quantity of Axles	2	Front Overhang (mm)	1015
Max Speed (km/h)	98	Rear Overhang (mm)	1835
Chassis
Chassis Model	QL1071A6KAY	Leaf Spring	8/6+5
Engine (Motor)
Brand	ISUZ-U	Type	Diesel
Model	4KH1CN5LS	Displacement (ml)	2999
Power (kw)	72	Emission standard	Euro 5
Equipments
Tanker Capacity (L)	6000-8000	Thickness of Tanker sidewall/bottom/Roof (mm)	4 / 5 / 4
Sewage tanker Capacity (L)	200	Loading Cycle (s)	25-30
Tank Material	carbon steel	Unloading Cycle (s)	15-20
Max.Compression Force (MPa)	16
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
