3.5 T hooks for sale

Supplier: Hubei Jiangnan Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Mr Bruce Gong
Price: $3500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

port:	Shanghai Port/Tianjin Port/Qingdao	Showroom location:	not any
Local service location:	not any	Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
driving type:	left hand drive and right hand	brand:	Chinese famous brand
Video shipment inspection:	if	Other chassis:	JAC;JMC;lSUZU;Howo;Dongfeng
Emission Standards:	euro 3	Engine capacity:	6000ml
Supply capacity:	1000 units per year	Provide customization:	Yes
Certification:	cc	Core component warranty:	1 year
Truck Type:	garbage compactor	Drive wheel:	4X2
Gasoline type:	diesel engine	Origin:	Hubei, China
color:	blue, green or other colors	free shipping:	negotiable
volume:	11 cubic meters; 12 cubic meters; 14 cubic meters	Packaging Details:	Vehicle bare; waxed or as per customer request
use:	Municipal sanitation	Gross Vehicle Weight:	300
product name:	3.5 tons hook hook	Mechanical test report:	not available
Marketing Type:	New Products 2020	Transmission type:	manual
Warranty:	1 year	Core components:	cylinder
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	size:	32001300150mm
After warranty service:	Video Technical Support, Spare Parts	type:	Recycle
Health status:	new	Health status:	new
After-sales service provided:	Video technical support, free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services

Product Description

Gross vehicle weight (t)	4.05	Body width (mm)	1060
Capacity (tons)	3	Installation height (mm)	145
H = Hook height (mm)	930	minute. Free tunnel height (body) (mm)	80
L = length of G (mm)	2700	Center of gravity (mm)	1440
LR = vessel length (internal) (m)	3.0-3.5	S = sliding distance (mm)	545
Inclination (º)	49°	maximum. Working pressure (mpa)	250
Equipment weight (kg)	460	Recommended Oil Flow (l/min)	15-20

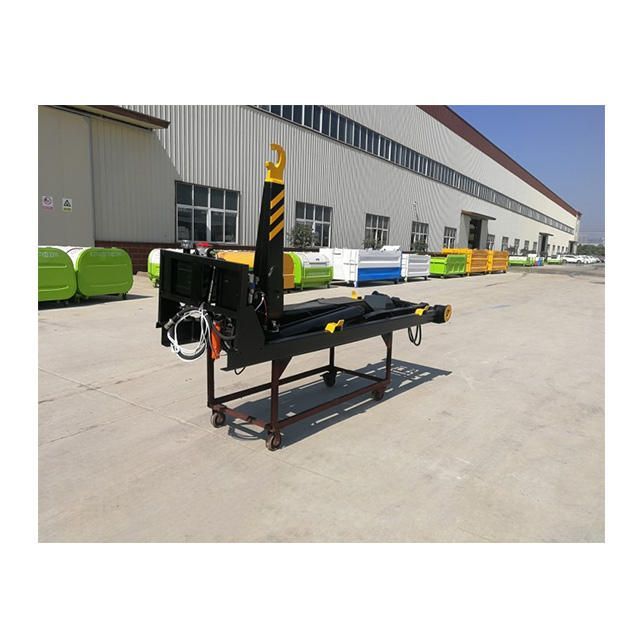

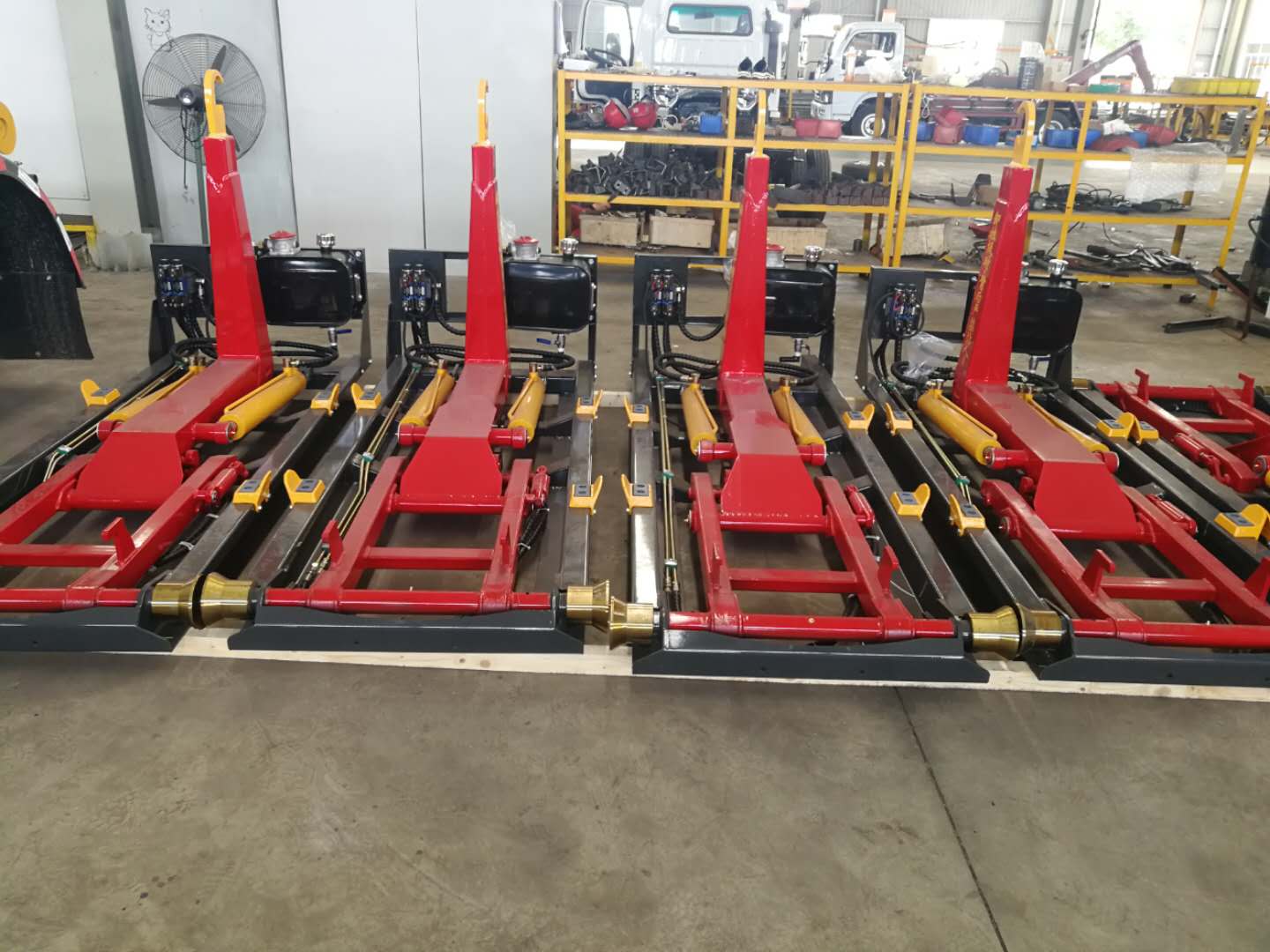

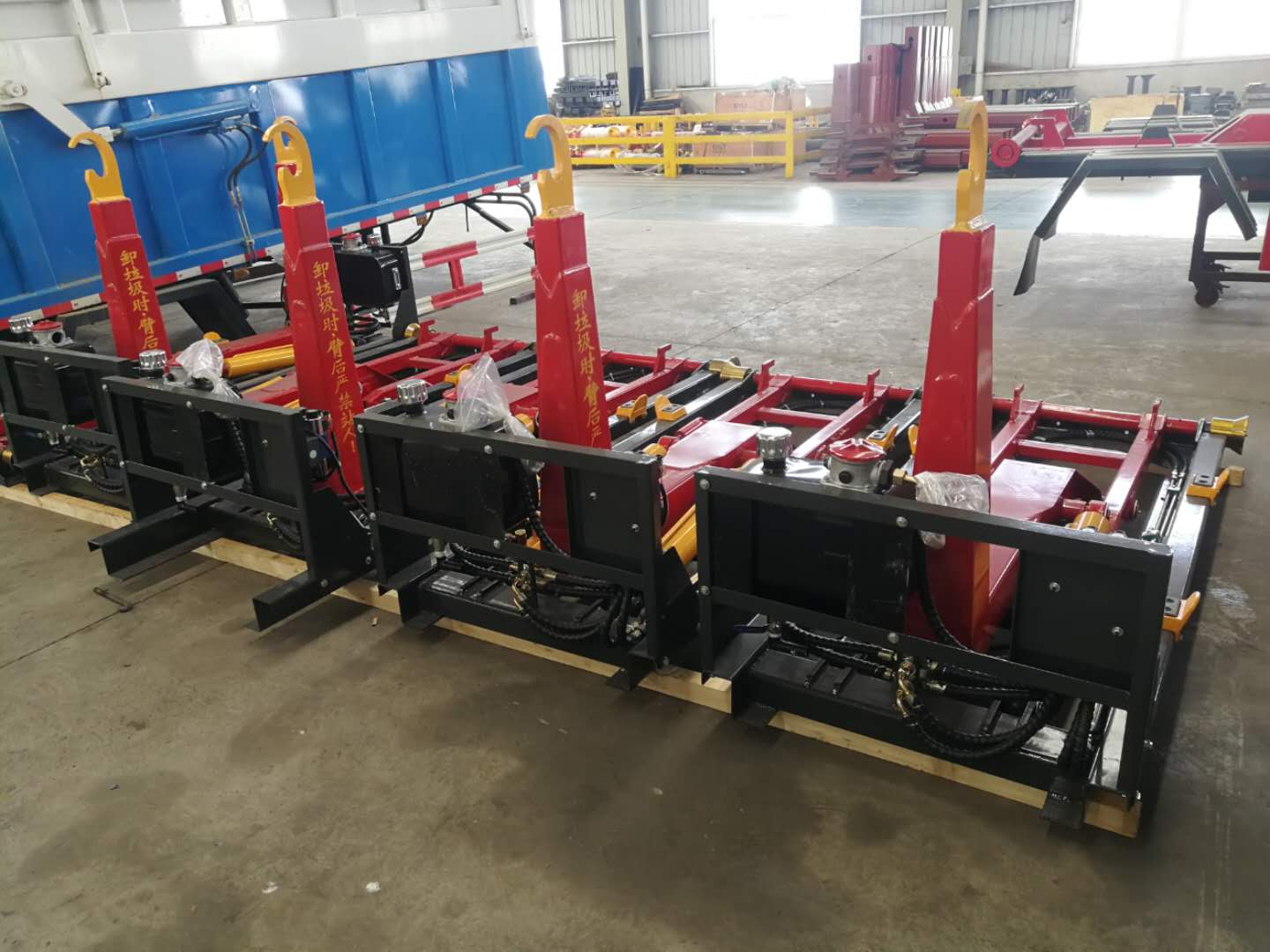

detailed image

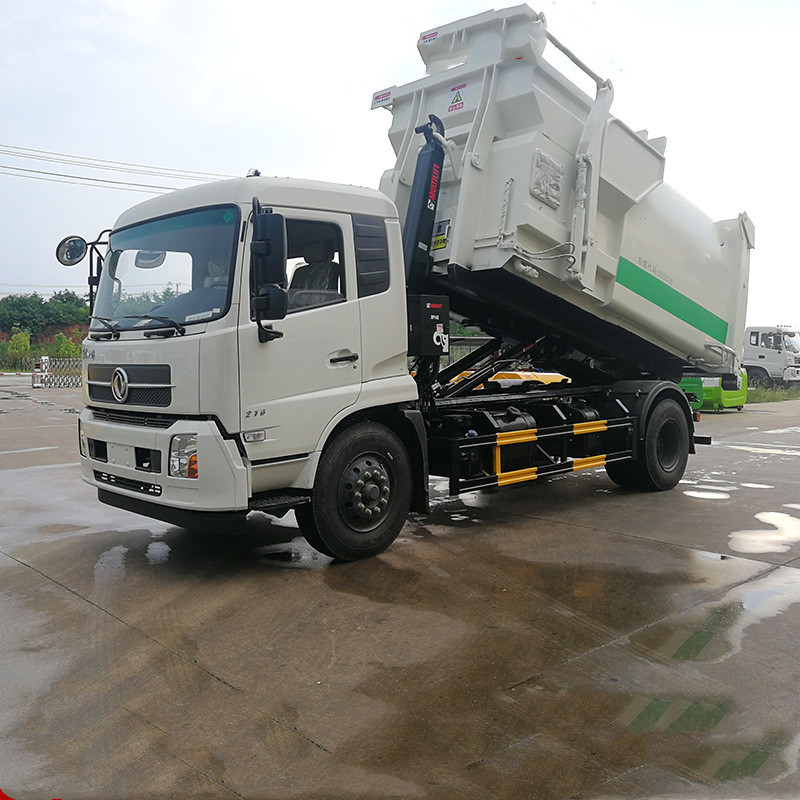

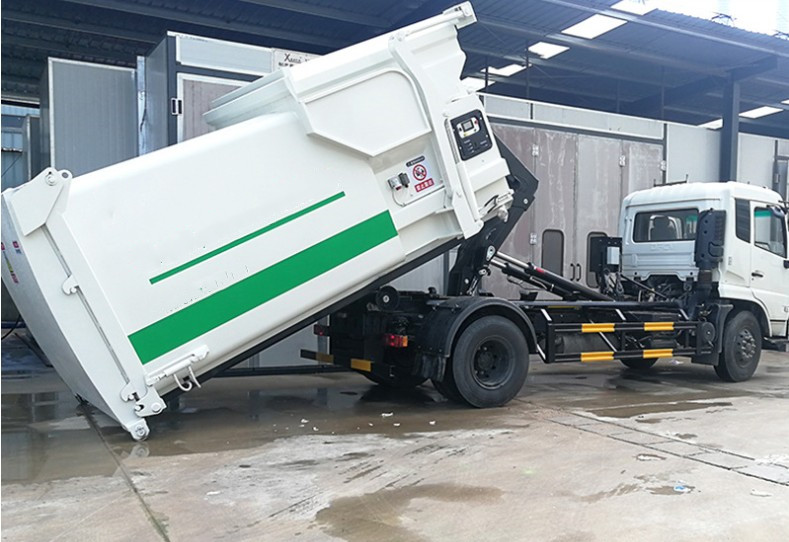

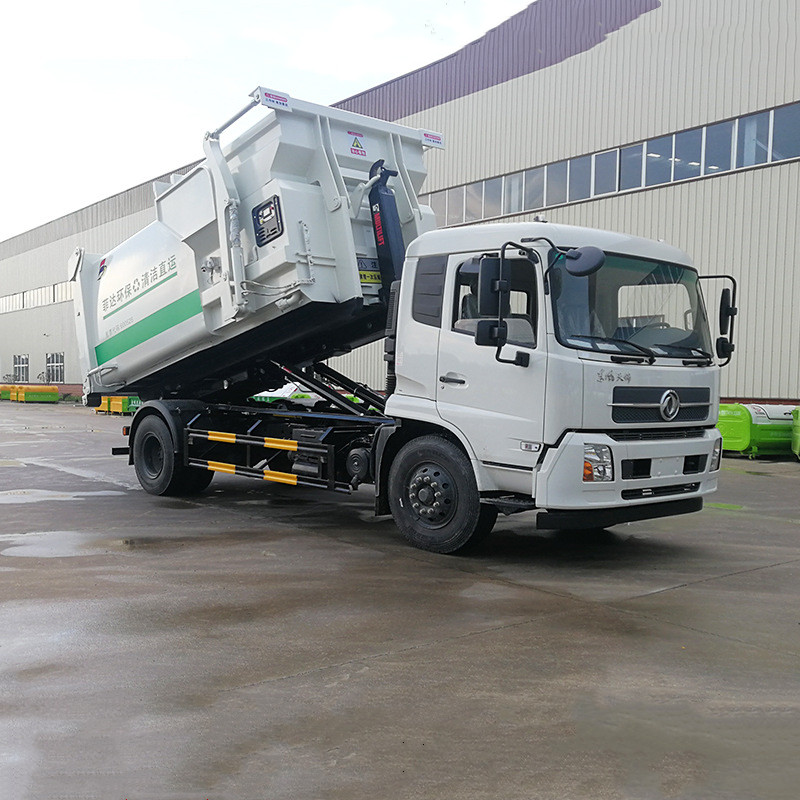

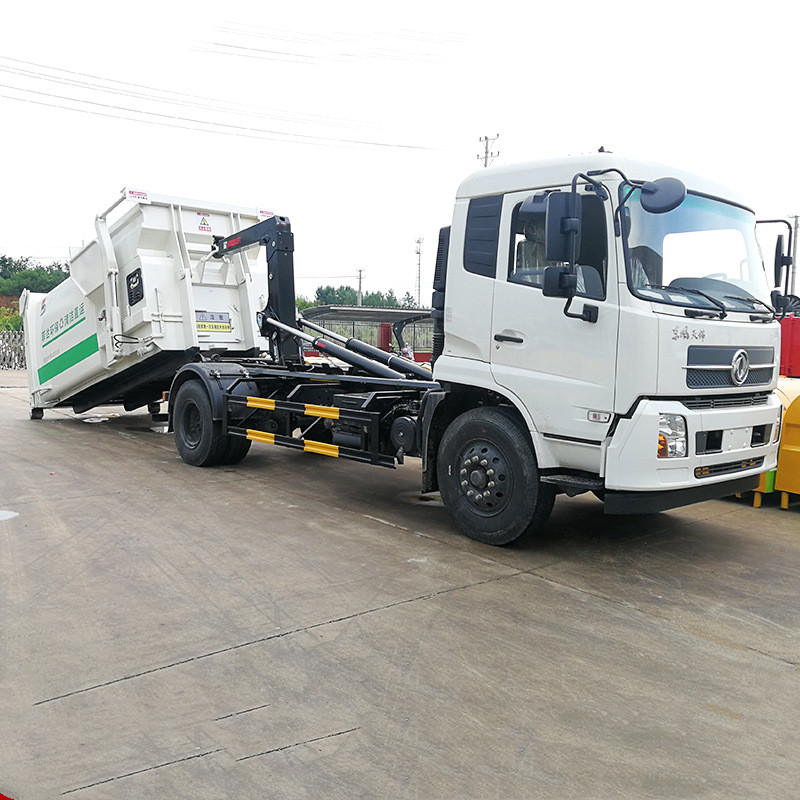

The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations.

It consists of a car chassis, a self-unloading oil cylinder, a rear door oil cylinder, an attached frame, a dustbin and a rear door swing rod.

The operation is completed by the hydraulic control system, and the control method can be manual or electric control.

It is mainly used for garbage removal in urban and rural garbage compression stations.
