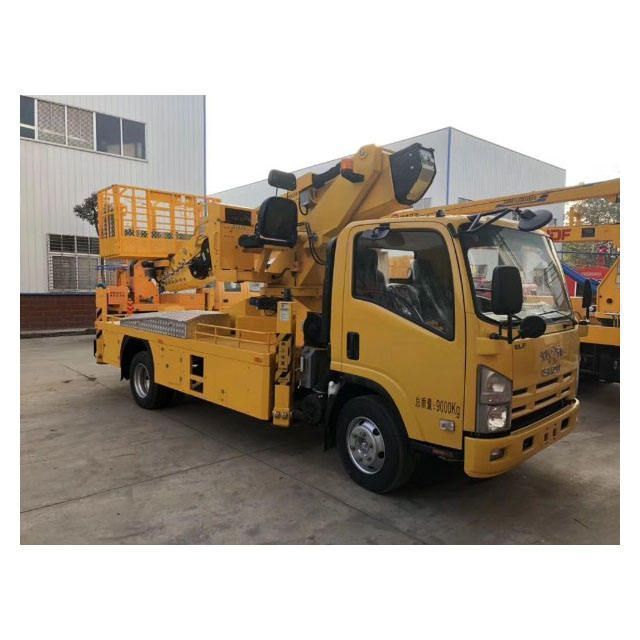

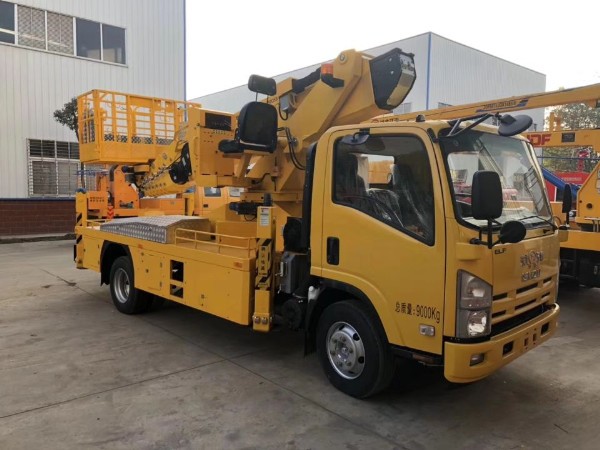

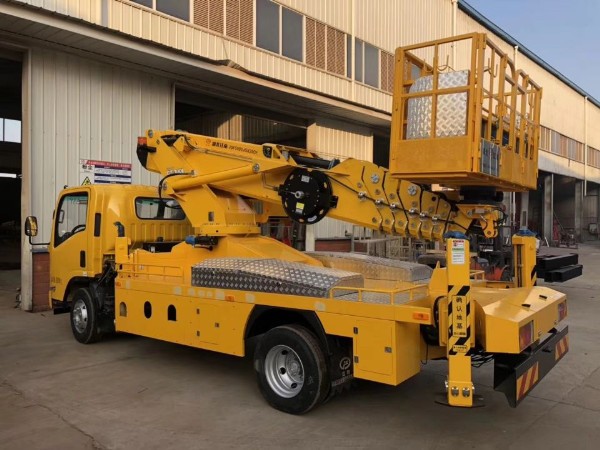

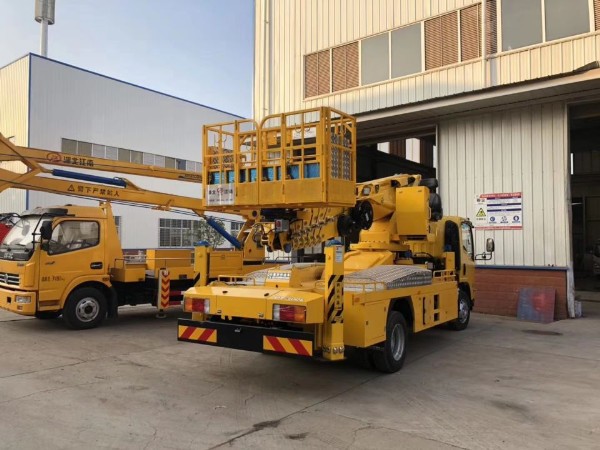

Japanese brand 29m 30m aerial work vehicle vehicle telescopic ladder

Supplier: Hubei Jiangnan Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Mr Bruce Gong
Price: $80000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Working height:	30 meters	port:	Shanghai or any port
Dimensions (LxWxH) (mm):	960025003850	Supply capacity:	2000 units per year
Emission Standards:	4 euros	color:	red; white, yellow
other brands:	JMC; JAC; FAW; Liuling; Hino;	Cabin Type:	single row
Transmission type:	manual	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details:	container, naked or as your request	Gasoline type:	diesel engine
arm:	telescopic arm	brand:	Japanese
Health status:	new	Truck Type:	Vehicle telescopic ladder
place of origin; place of origin:	Hubei

Use of telescopic forklifts

Through the telescoping of the working arm; Luffing; 10m 12m 14m 16m 18m 20m 24m 26m 28m 30m Turning in the air position, sending people or tools

Ambient temperature: -5～+40...

altitude Height: <1000m

Hanging blue function: 360° rotation, automatic leveling, automatic overload protection

Outrigger function: position detection switch; with automatic induction alarm

Boom is illuminated during night work

The main technical parameters

Chassis model length × width × height (mm): 6900 × 2250 × 3080
Total mass (Kg): 9000
Wheelbase: 3815
Engine emissions: Euro 4

Load configuration at the top
Boom form: seven-section telescopic boom
Material: Imported high-strength steel/3mm
Arm section: hexagonal
Luffing: double-cylinder luffing, more stable
Swing angle: 0°-80° (relative to the horizontal plane)

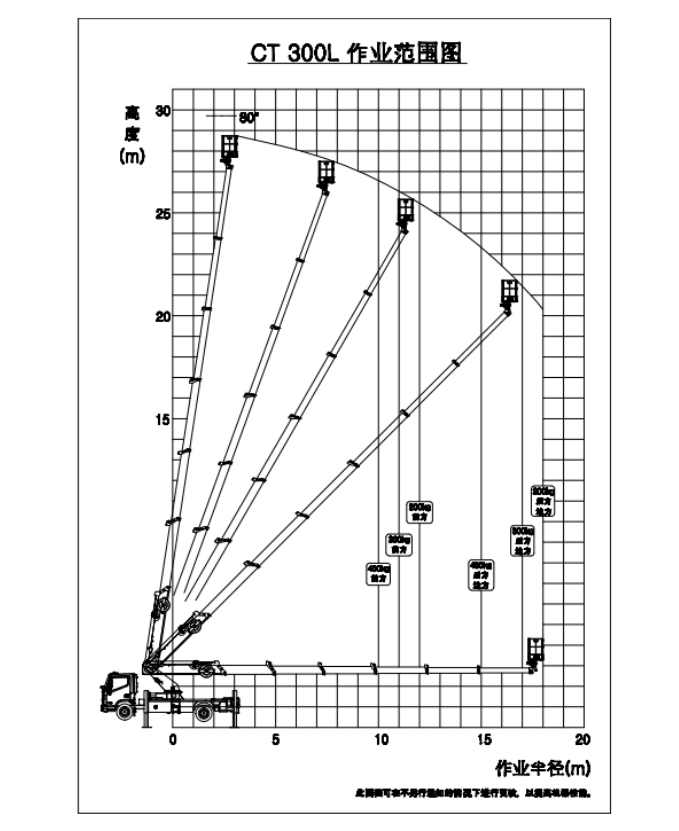

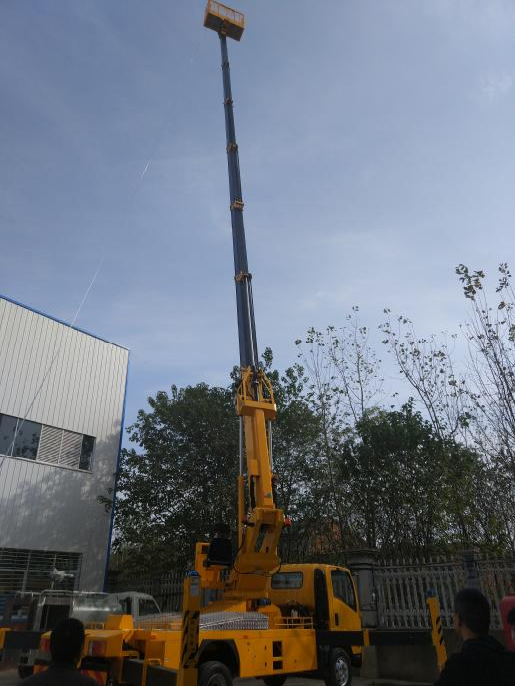

Working height: 30m
Working width at maximum working height: 3m
Maximum working range: 18m
Working height at maximum working range: 20m
working conditions
Swing: 180° left and right rotation
Leg type: front and rear X type
Leg material: imported high-strength steel/3mm
Outrigger span: Longitudinal (mm): 6500, Horizontal (mm): 5950/6150
Hydraulic lock: four feet with two-way hydraulic lock
Outrigger detection: Outrigger with detection switch, buzzer and level

product description

For more special vehicles, please click....

Q1. Are you a factory or a trading company?

A: We are a factory specializing in manufacturing hundreds of special vehicles according to customers' requirements.

Q2. What are your payment terms?

A: T/T 30% as deposit, 70% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 15 to 25 days after receiving your advance payment.

Q5. Can you produce according to our drawings?

A: Yes, we can produce according to your drawings. At the same time, we can help you design and produce special products according to your special requirements.

Q6. Do you test all your goods before delivery?

A: Yes, we test our products strictly before delivery. We have a complete set of testing procedures.

Q7: How do you make our business long-term and good relationship?

Answer: 1. We keep good quality and competitive price to ensure our customers benefit;

2. We respect every customer and treat them as friends. No matter where they come from, we will sincerely do business and make friends.
