10T garbage truck hook

Supplier: Hubei Jiangnan Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Mr Bruce Gong
Price: $5000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Mechanical test report:	Not available;	Core Components Warranty:	1 year;
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram;	State of health:	new;
Gross vehicle weight:	23000;	State of health:	new;
Type of driving:	Left-hand drive and right-hand;	Marketing Type:	New products in 2020;
After Warranty Service:	Online support, spare parts;	Type of gasoline:	diesel engine;
Engine capacity:	6000 ml;	After-sales service provided:	Video technical support, free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services;
Certification:	--ccc;	Core components:	engine, cylinder;
free shipping:	negotiable;	port:	Shanghai Port/Tianjin Port/Qingdao;
Showroom location:	not any;	size:	700024903100mm;
Warranty:	1 year;	type:	roll over;
Applicable industries:	Hotels, clothing stores, building materials stores, machinery repair shops, manufacturing plants, food and beverage plants, farms, restaurants, home use, retail, food stores, print shops, construction works, energy and mining, food and beverage stores, advertising agencies;	Transmission type:	manual;
volume:	11 cubic meters; 12 cubic meters; 14 cubic meters;	Other chassis:	Jianghuai; Jiangling; Lingling; Howo; Dongfeng;
color:	blue, green or other colour;	Truck Type:	garbage compactor;
Video external inspection:	if;	use:	municipal health;
Emission Standards:	3 euros;	Origin:	Hubei, China;
brand:	east wind;	Drive Wheel:	4X2;
Supply capacity:	1000 units per year;	Packaging Details:	The vehicle is bare; waxed or according to the customer's request;
Local service location:	not any;	product name:	truck hook;
Provide customization:	yes;

product description

Vehicle weight (tons)	4.05	Body width (mm)	1060
Capacity (tons)	3	Installation height (mm)	145
H = Hook height (mm)	930	minute.Free tunnel height (body) (mm)	80
L = G-Length (mm)	2700	Center of Gravity (mm)	1440
LR = container length (internal) (m)	3.0-3.5	S = sliding distance (mm)	545
Tilt angle (º)	49°	maximum.Working pressure (mpa)	250
Equipment weight (kg)	460	Recommended oil flow (l/min)	15-20

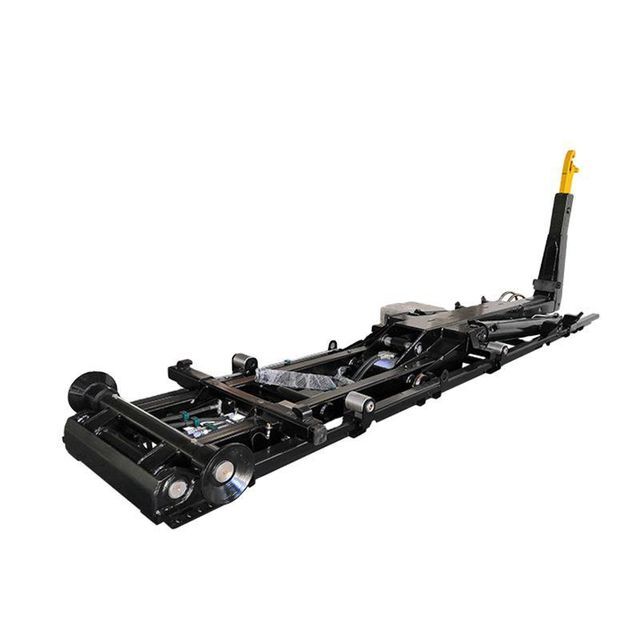

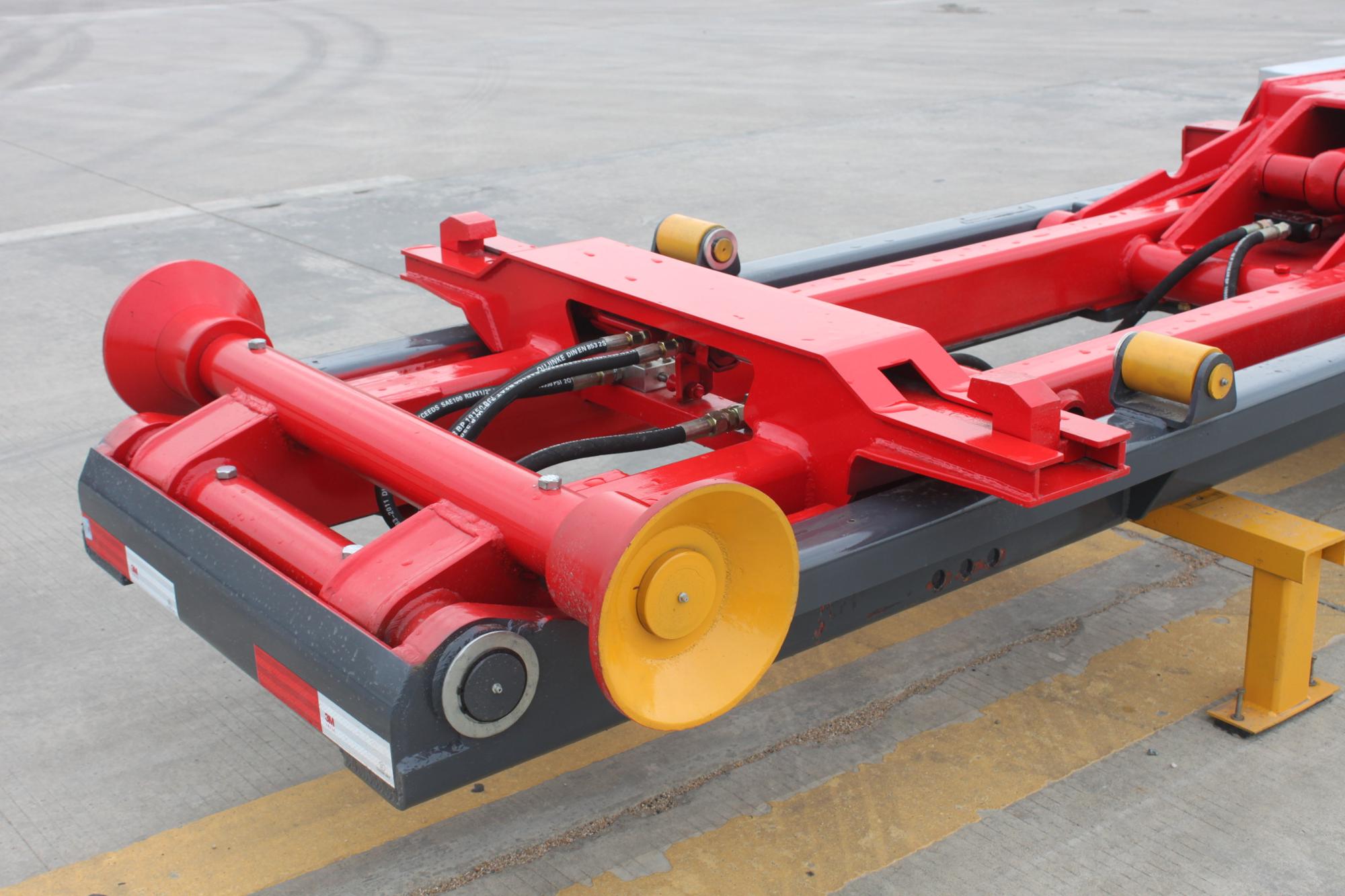

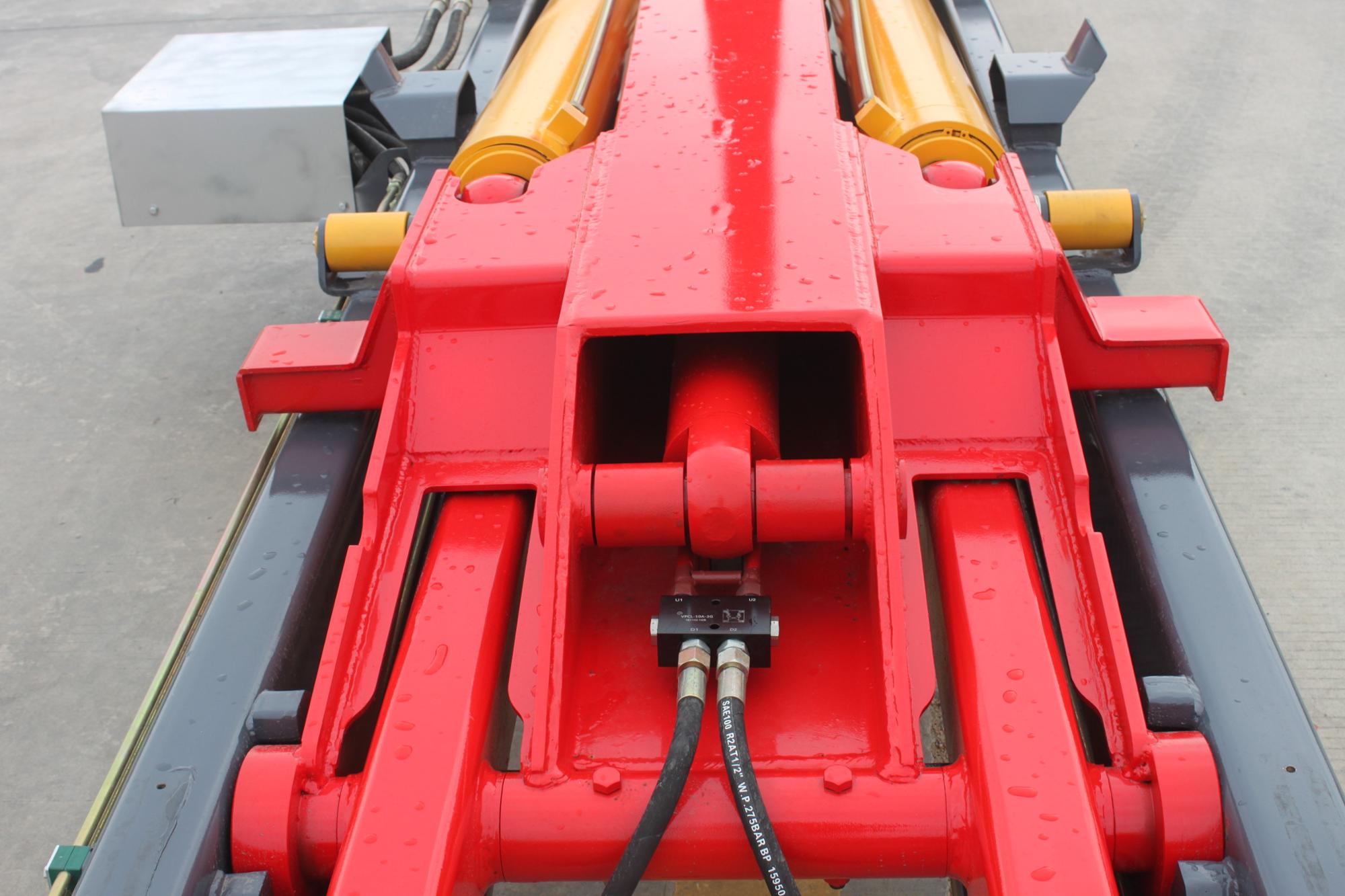

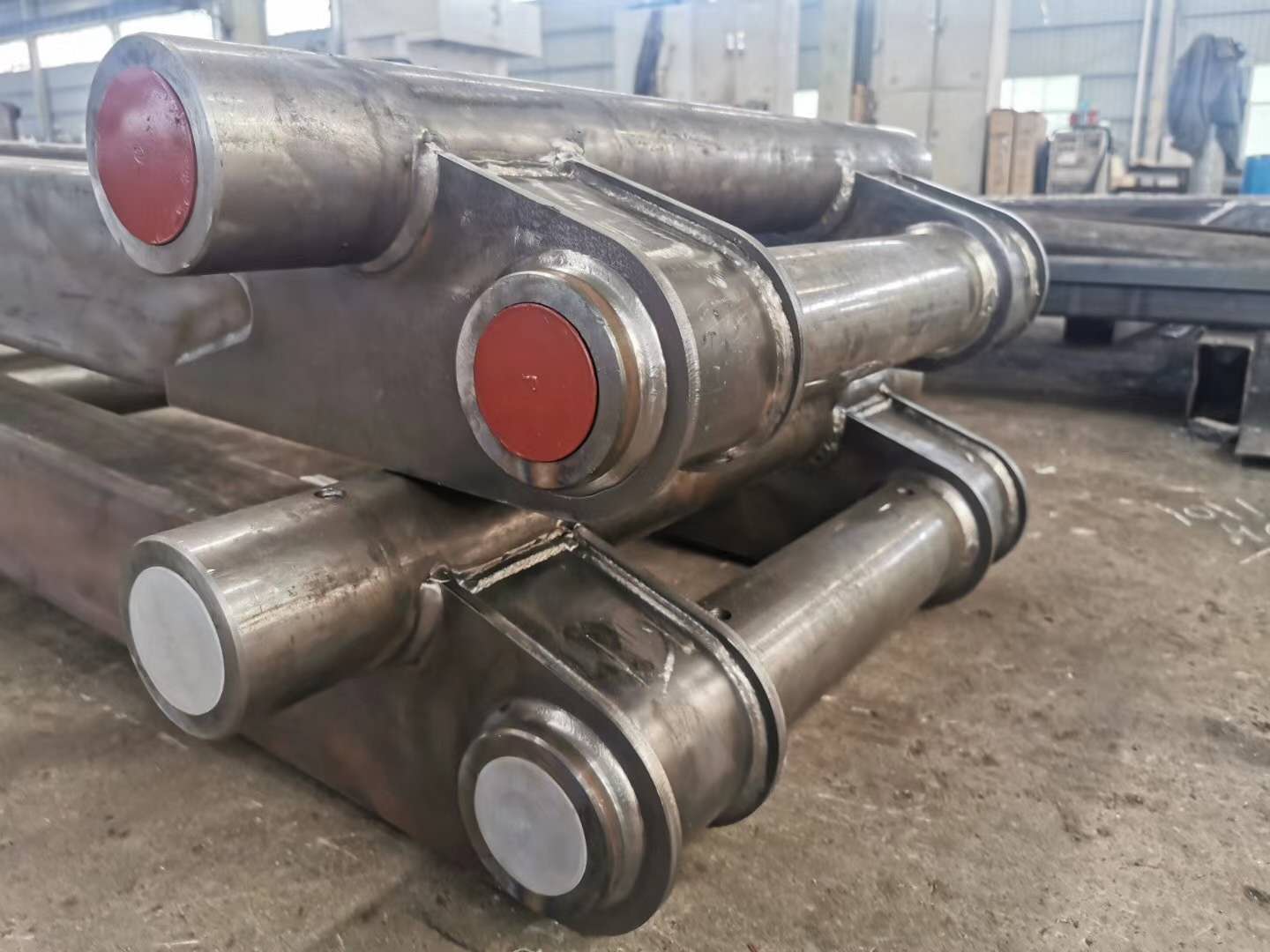

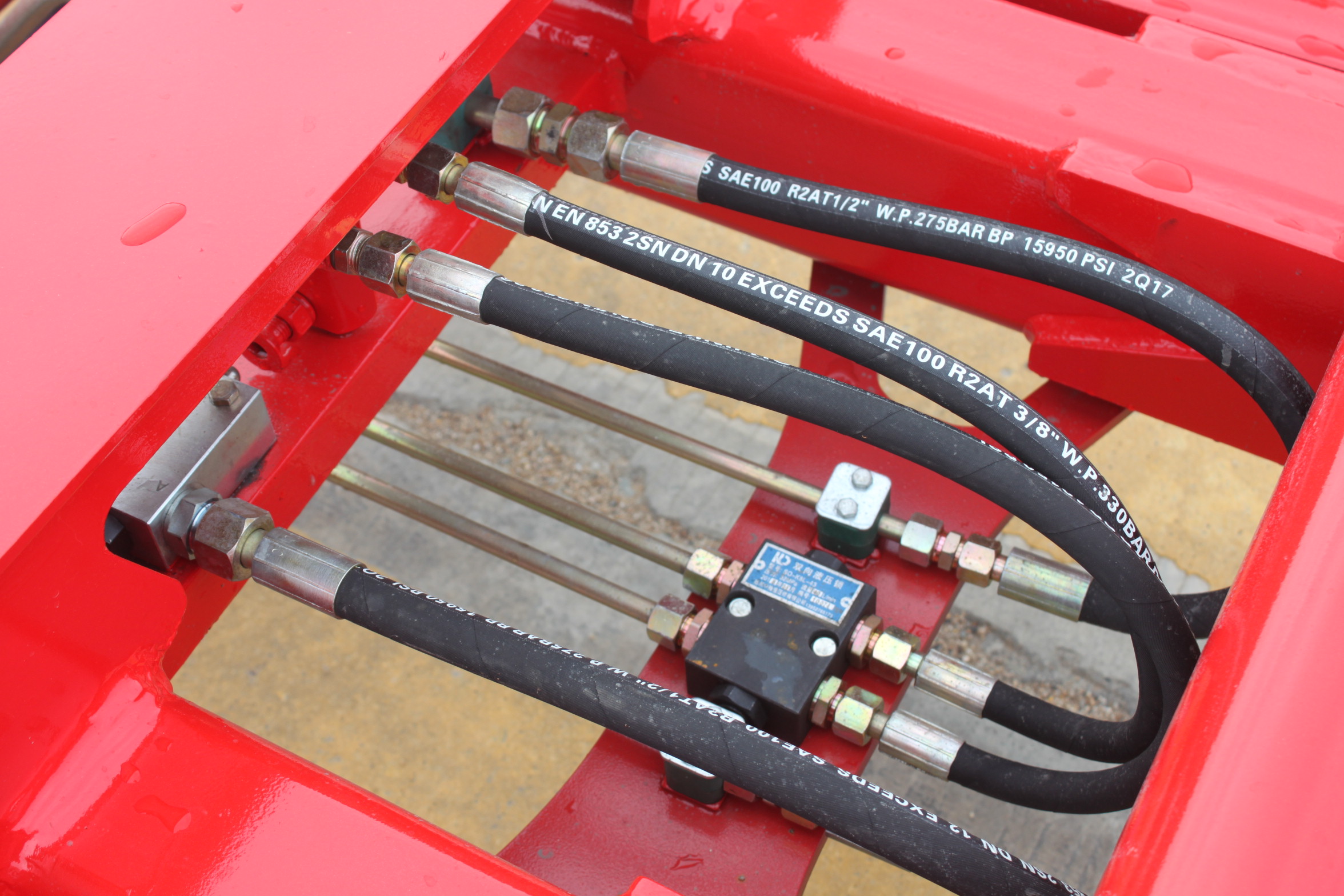

detailed image

Hook-arm garbage truck is a special vehicle used for garbage transfer and unloading in urban garbage compression stations.

It consists of a car chassis, a dump cylinder, a rear door cylinder, an additional frame, a garbage can and a rear door swing rod.

The operation is completed by the hydraulic control system, and the control mode can be manual or electric control.

It is mainly used for garbage removal and transportation in urban and rural garbage compression stations.
