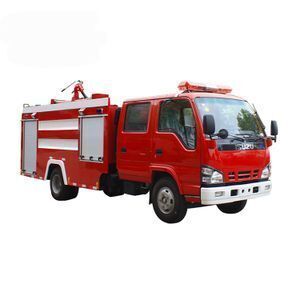

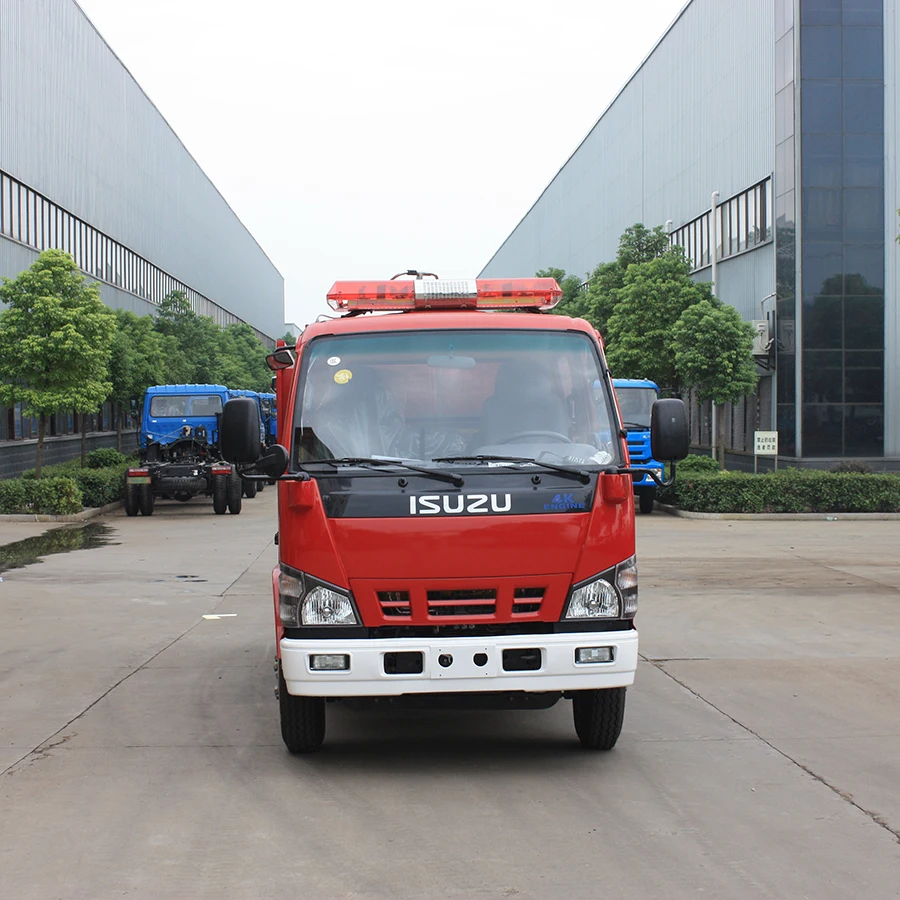

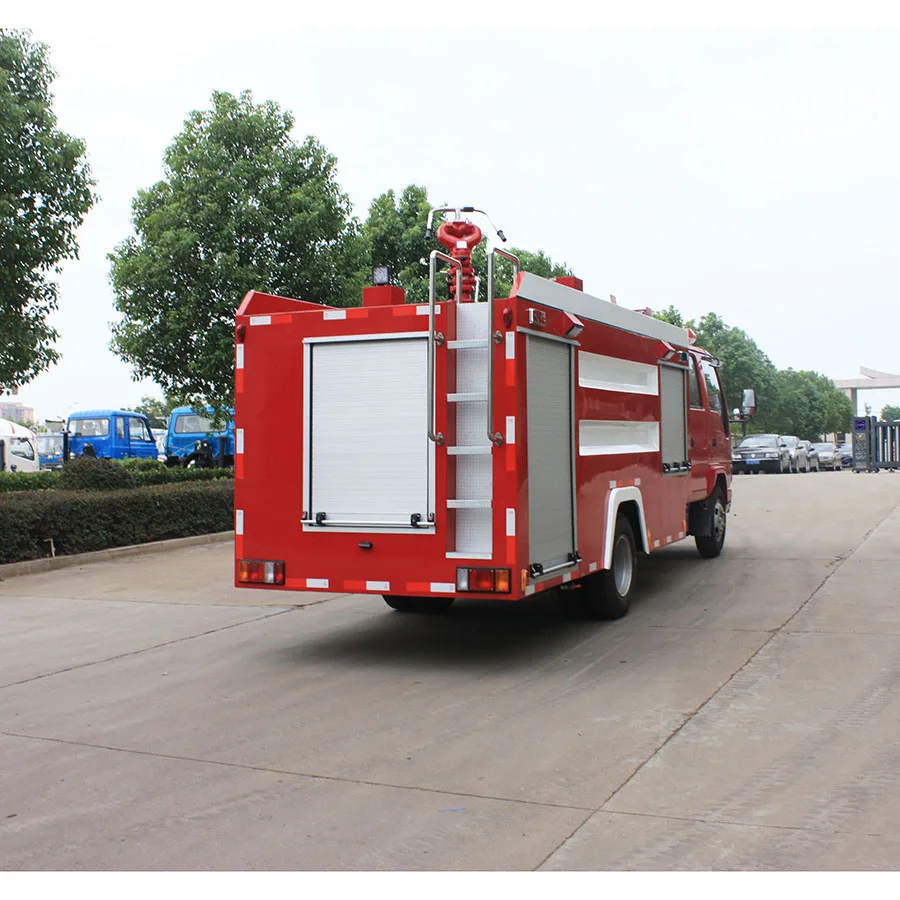

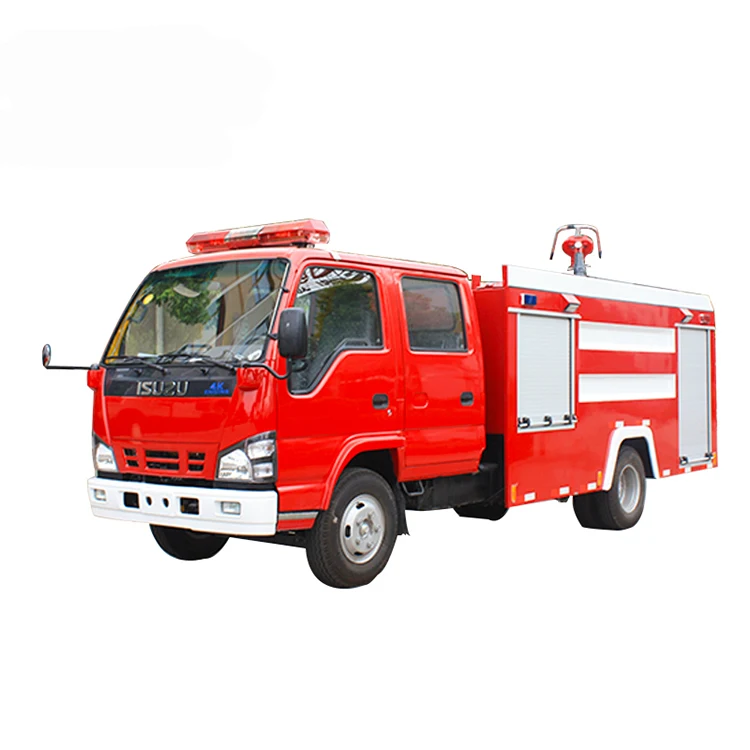

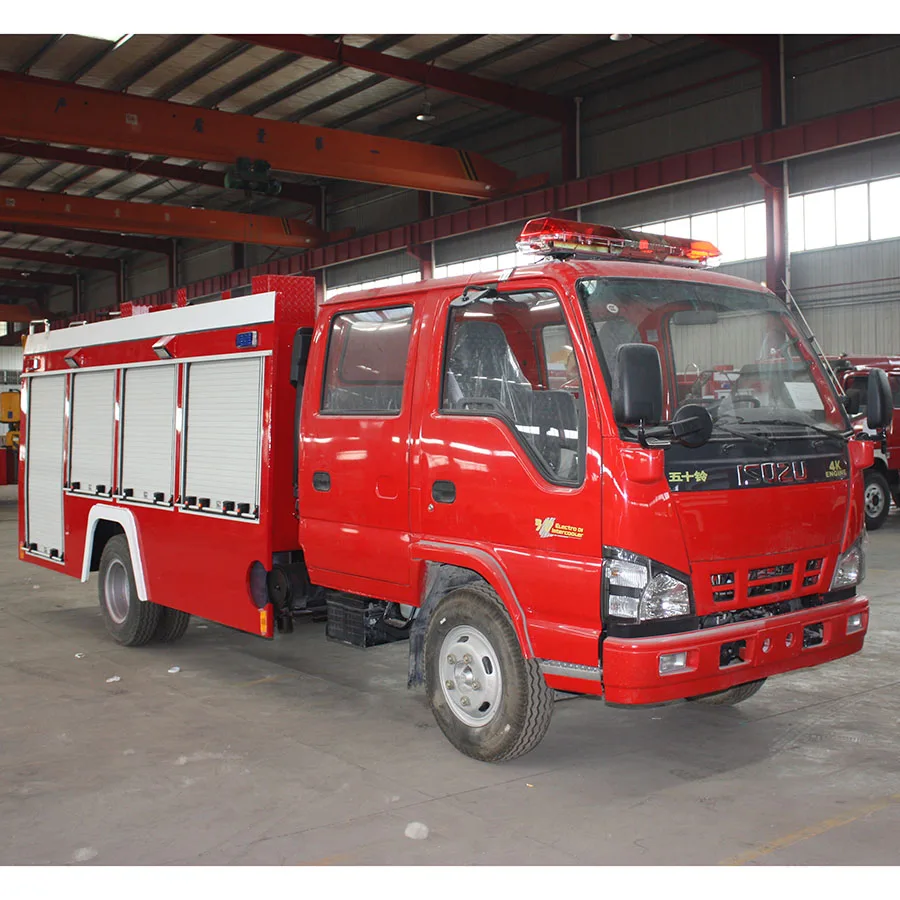

4x2 Factory good price Isuz-u fire tender 4000L rescue water foam fire fighting truck for hot sale
- 31100.00 unit
| Condition: | New; | Wheelbase: | 3815mm; |
| Horsepower: | < 150hp; | Max. Work Height: | 50m; |
| Transmission type: | Manual; | Brand Name: | YZR; |
| Fuel type: | diesel; | Fuel Type: | Diesel; |
| Payment Terms: | L/C,T/T,T/T 30% deposit paid in advance, 70% of the balance is paid on r; | Transmission Type: | manual; |
| Cab: | Double-row Cab; | Drive Wheel: | 4X2; |
| Drive type: | 4*2; | Chassis brand: | Japan Brand; |
| Emission Standard: | EURO 5; | Supply Ability: | 500 Unit/Units per Month; |
| Size: | 6790 * 1990 * 2720mm; | Certificate: | ISO9001 Ccc; |
| Place of Origin: | Hubei China; | Type: | RESCUe; |
| Warranty: | 12 Months; | Product Name: | Fire Fighting Truck; |
| Cabin type: | Double Cabin; | Port: | Shanghai port; |
| Packaging Detail: | waxed; | Tank Capacity: | 3001 - 5000L; |
|
Water Foam Fire Truck |
|||||
|
Item |
ISUZU Fire Truck |
Chassis Model |
QL1070A5KWY |
||
|
Vehicle parameters |
GVW(kg) |
6600 |
Overall Dimension (mm) |
6790×1990×2720 |
|
|
Rated load (kg) |
1900 |
Steering Wheel |
LHD |
||
|
Curb weight (kg) |
4325 |
Wheelbase (mm) |
3815 |
||
|
Driving Type |
4*2 |
||||
|
Engine parameters |
Model |
4KH1CN5HS |
Emission Standard |
Diesel,Euro5 |
|
|
Horse Power(hp) |
130 |
Emissions(ml) |
2999 |
||
|
4 stroke,4-cylinders in line, water cooling |
|||||
|
Gear box |
6 forward and 1 reverse |
||||
|
Performance Parameter |
Max Speed (km/h) |
90 |
Wheel Tread(mm) |
Front Axle |
1504 |
|
Cab Seat |
2+3 |
Rear Axle |
1425 |
||
|
Leaf Spring |
7/7+5 |
Suspension (mm) |
Front Suspension |
1015 |
|
|
Tire No. |
6+1 |
Rear Suspension |
1845 |
||
|
Tire Specification |
7.00-16 |
Driving Angle(°) |
Approach Angle |
24 |
|
|
Axle No. |
2 |
Departure Angle |
14 |
||
|
Special Function |
Capacity |
Water tank 3000L, Foam Tank 1000L |
|||
|
Fire Pump |
1. CB10/30, 30L/s, pressure:1.0MPa 2.Suction time≤ 35s(7m suction depth )centrifugal pump |
||||
|
Fire Monitor |
PL24, 24L/S/,1.0MPa, fire nozzle range:≥60m(water), ≥55m(Foam) |
||||
|
Performance Description |
Double row cab with 4 doors; Hidden tank, material is carbon steel Q235A,with thickness 4 mm; Truck body with aluminum alloy rolling door; PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. See the below equipment table |
||||
