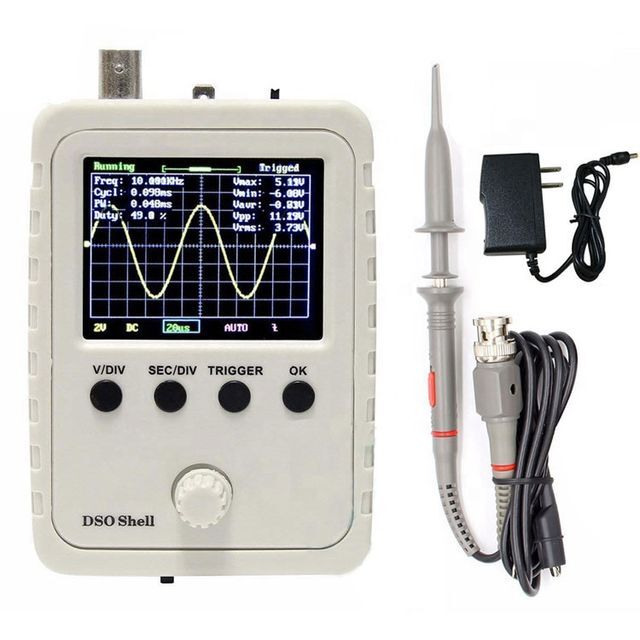

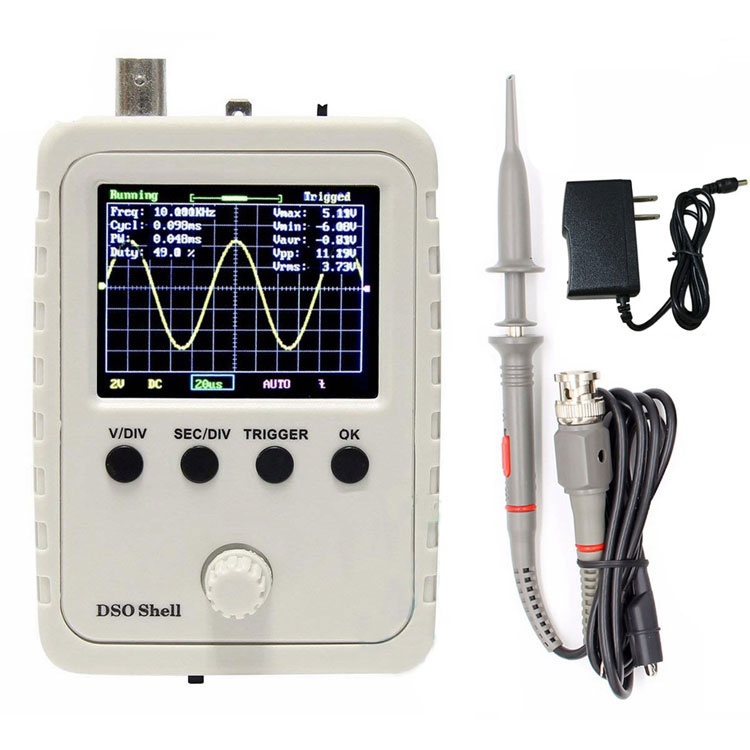

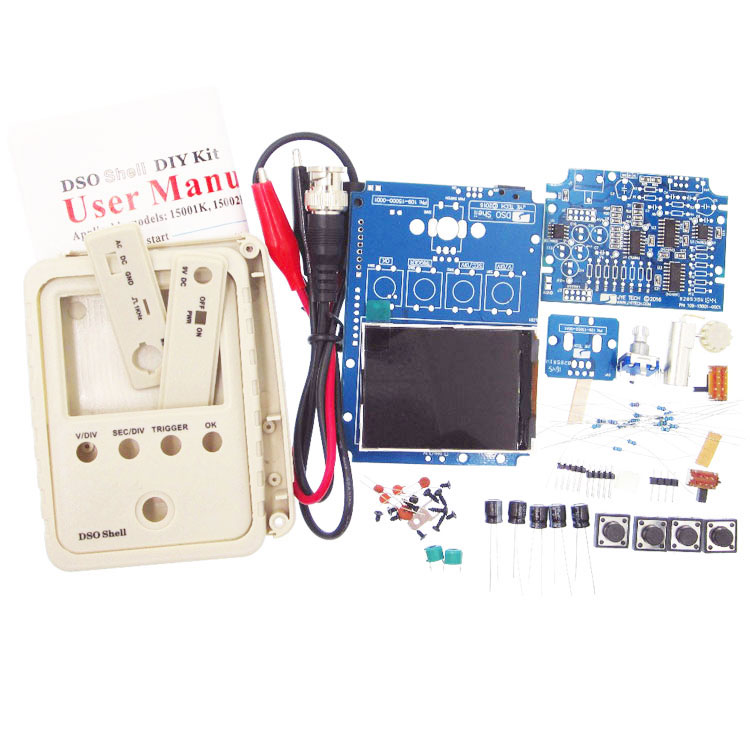

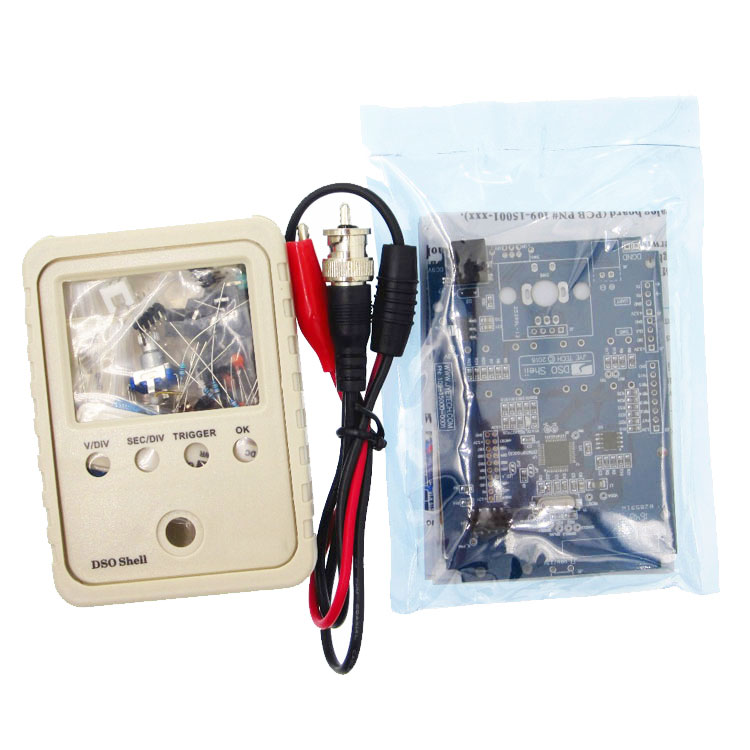

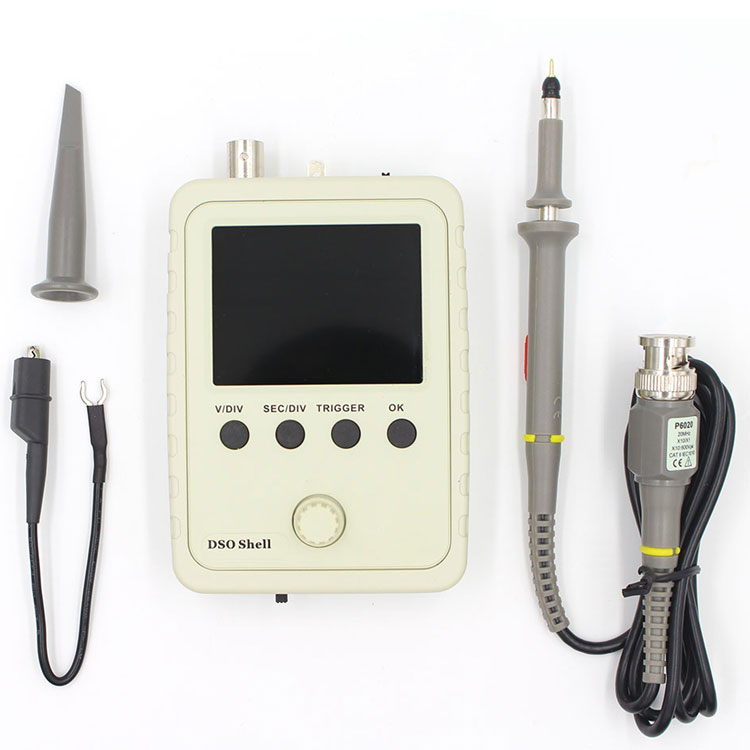

DIY Kit Hand Oscilloscope

Supplier: Shenzhen Ruize Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Eden Li
Price: $12.39 /piece
Min. Order: 1 piece

Click here to contact

Product details

Analog Bandwidth:	0-200khz;	Packaging Details:	Pallet packaging or tape and reel packaging;
accuracy:	12 bits;	Maximum input voltage:	50Vpp (1:1 probe), 400Vpp (10:1 probe);
screen size:	2.4-inch high-definition TFT LCD screen;	Sample buffer depth:	1024 bytes;
payment terms:	L/C, T/T, Western Union, PayPal;	port:	Shanghai, Ningbo, Hong Kong, Shenzhen or any other Chinese port;
Supply capacity:	1000 pieces per day;	input resistance:	1 mΩ;

Product Description

Indicator features:
Number of channels: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12 bit
Input Impedance: 1M ohm
Maximum input voltage: 50Vpk
Coupling: DC, AC, Ground
Maximum real-time sampling rate: 1Msps
Time base: 10us/Div - 500s/Div
Record length: 1024
Trigger Mode: Auto, Normal, Single
Trigger Type: Rising/Falling
Trigger position: 1/2 of fixed buffer size
2.4-inch color TFT LCD with 320 x 240 resolution
Power supply: 9V DC (Please make sure the power supply is 9V, below or above 9V will have problems.)
Supply Current: 120mA @ 9V
Dimensions: 115mm x 75mm x 22mm
Weight: 100 grams (excluding cables and power supply)
