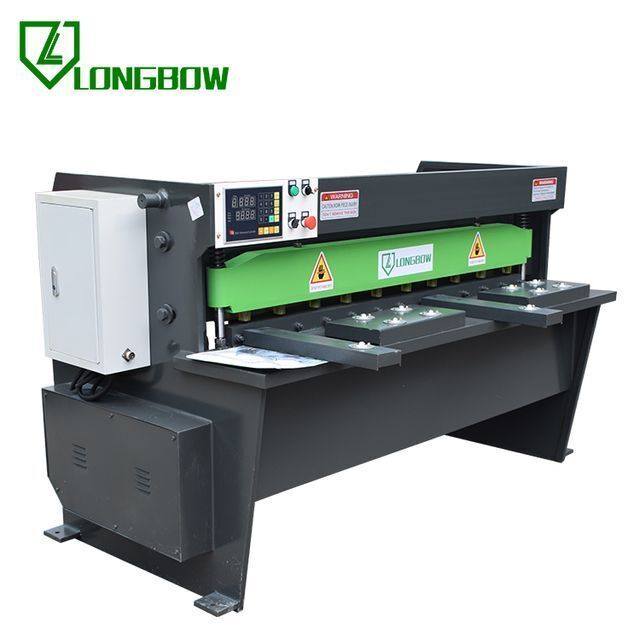

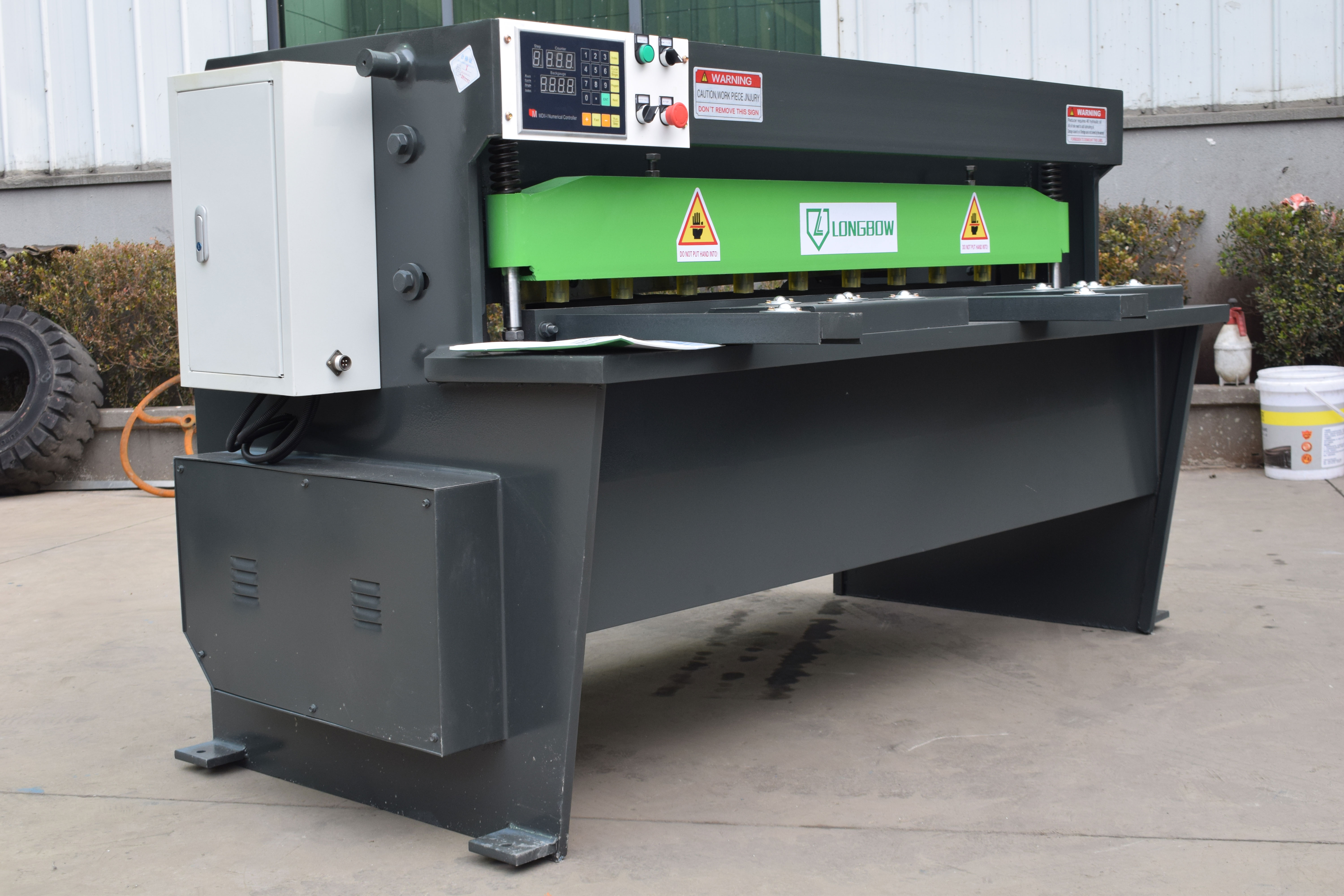

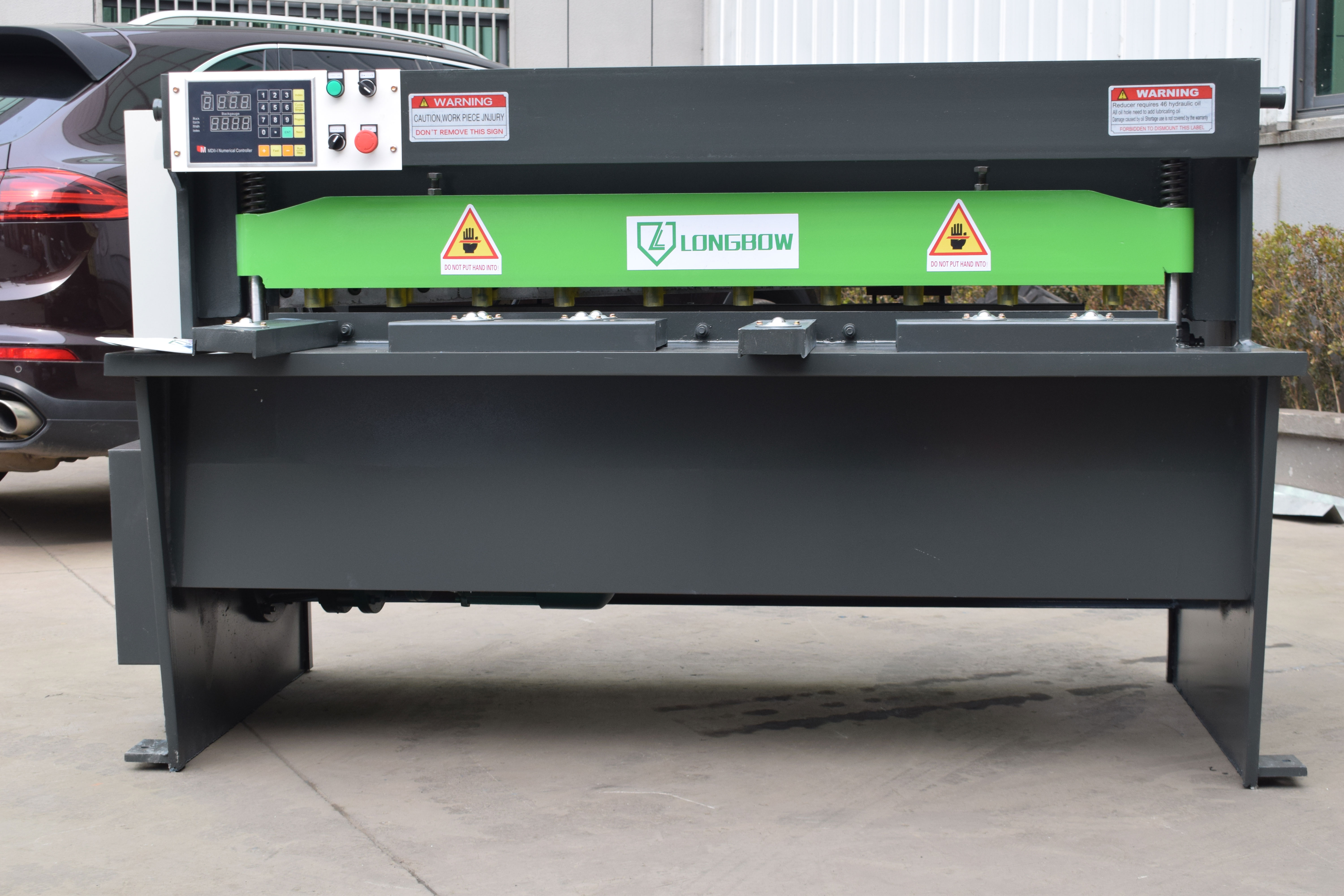

electric cutter manual sheet metal shear small guillotine electric shearing machine for cutting steel plate

Supplier: Maanshan Longbow Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Mr longbow zhang
Price: $2000.00 / 1 - 1 sets
$1850.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

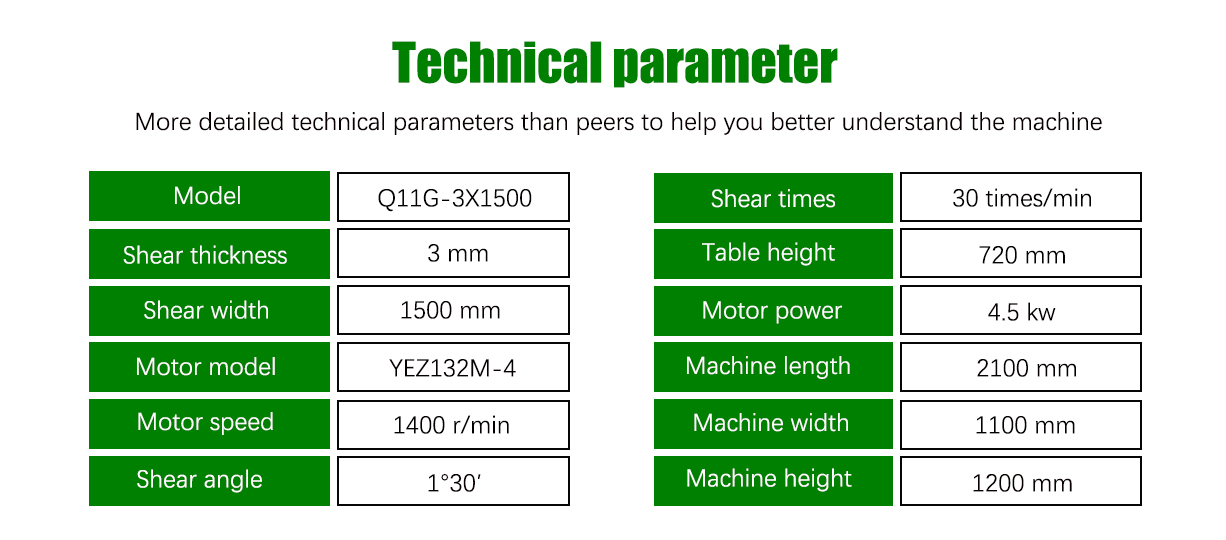

Rated power:	4.5 kw;	Voltage:	220v 380v Optional,220v 380v Optional;
Dimension(LWH):	210011001200 mm,210011001200 mm;	Max sheet thickness:	3 mm;
Supply Ability:	20 Sets per Month;	Condition:	New;
Year:	2022;	Video outgoing-inspection:	Provided;
Place of Origin:	Anhui, China;	Shearing Angle:	1°30;
Core Components:	Motor,Gearbox;	Packaging Detail:	3mm 1300mm electric cutter manual sheet metal shear small guillotine electric shearing machine for cutting steel plate;
Key Selling Points:	High Productivity;	Automatic Level:	Fully Automatic;
Applicable Industries:	Manufacturing Plant,Construction works ;	Marketing Type:	New Product 2020;
Blade Length (mm):	1520 mm;	Material:	steel/galvanized sheet/stainless steel etc;
Warranty of core components:	2 years;	Machinery Test Report:	Provided;
Weight (KG):	920 KG;	Backgauge Travel (mm):	0.1 - 350 mm;
Max. Cutting Width (mm):	1500 mm;	Brand Name:	LONGBOW;
Model Number:	Q11G-3*1500;	Number of stroke:	30/min;
Port:	shanghai;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Throat Depth (mm):	50 mm;	Max. Cutting Thickness (mm):	3 mm;
Certification:	CE SGS BV CQC;	Plate width:	1500 mm;
Weight:	920 kg;	Warranty:	2 years;
Power (kW):	4.5 kW;	Showroom Location:	None;

1. Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.

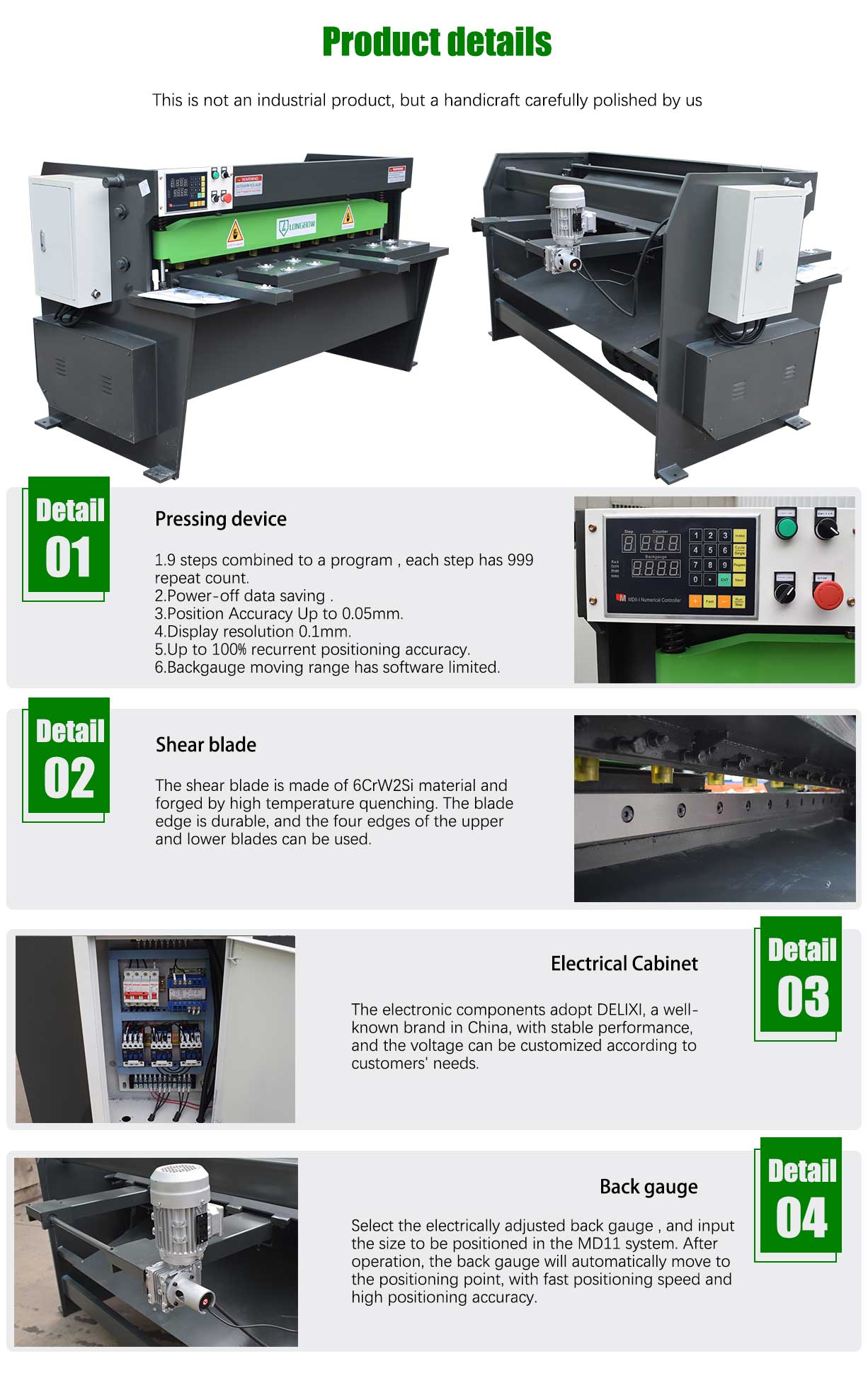

2. Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing. 3. Electric shearing machine base is steel- welding , the structure is compact, good rigidity.

4.Track of blade movement is precision casting copper,less friction.

5. Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth.

6. Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.

7. Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact structure, gear have good lubrication, low noise and long life.

8. Electric shearing machine equipped with pneumatic clutch device.
