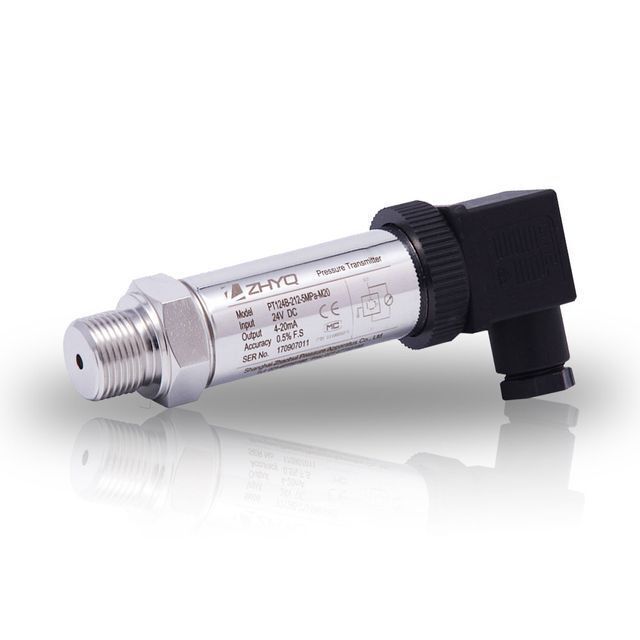

ZHYQ CE Low Cost Price Industrial Water Air Gas micro vacuum negative piezo liquid pressure sensor
- 45.32 1 - 9 pieces
- 38.99 10 - 29 pieces
- 35.89 >=30 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Electrical connector: | Bendix, Hischman DIN, Gland lead; | Over load: | 150%FS; |
| Supply Ability: | 6000 Pieces per Month high accuracy diffused silicon hydraulic Pressure Sensor; | Output: | 4-20mA,0-5V, 0-10V,1-5V; |
| Warranty: | 18 months; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Name: | high accuracy diffused silicon hydraulic Pressure transmitter; | Brand Name: | ZHYQ; |
| Temperature compensation: | 0-75 Deg C; | Certification: | ce,rohs; |
| Place of Origin: | Shanghai, China; | Process connection: | M20 ,G/2 ,G1/4 optional; |
| Packaging Detail: | 1 pcs high accuracy diffused silicon hydraulic Pressure transmitter/ inner box , including data sheet and calibration sheet .; | Operating temperature: | -20~80 Deg C; |
| Power supply: | 24V DC(12~36V); | Port: | Shanghai; |
| Model Number: | PT124B-212; | Customized support: | OEM,ODM,OBM; |
| Pressure Range: | -1~0~5bar; | Element: | Diffused silicon; |
Product Information

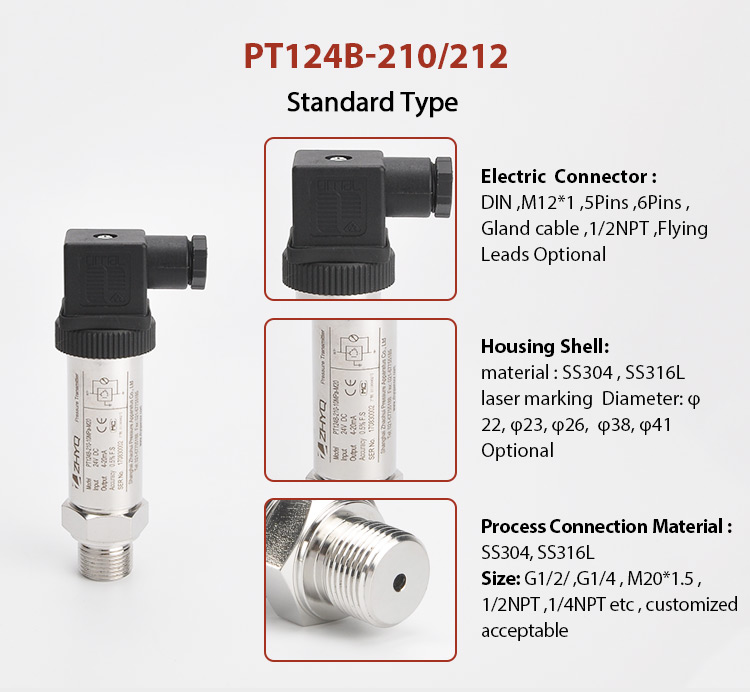

Details Images
Product Specification
Name | high accuracy diffused silicon hydraulic Pressure transmitter |
Model | PT124B-212 |
Range: | -1~0-5bar |
Accuracy: | 0.5%FS; 1%FS -1~0~50bar |
Nonlinearity: | 0.2%FS |
Reliability: | 0.2%FS |
Output: | 4-20mA,0-10V, 0-5V, 0.5-4.5V |
Input voltage: | 24VDC ( 4-20mA,0-10V, 0-5V output ) 5 V DC ( 0.5-4.5V output ) |
Operate Temperature: | -20~80°C |
Compensated temperature: | 0~75°C |
Overload pressure: | 150%FS |
Medium material: | stainless steel (SS304 or SS316) |

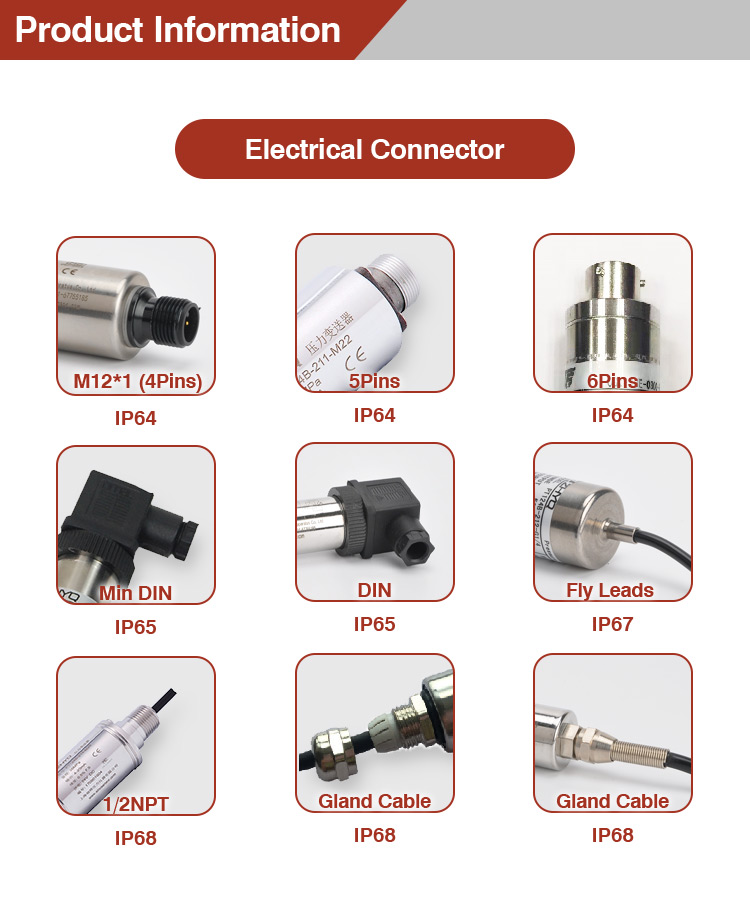

Electric connector: | Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional |
Process connector: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: | 22mm,23mm , 26mm ,38mm optional |

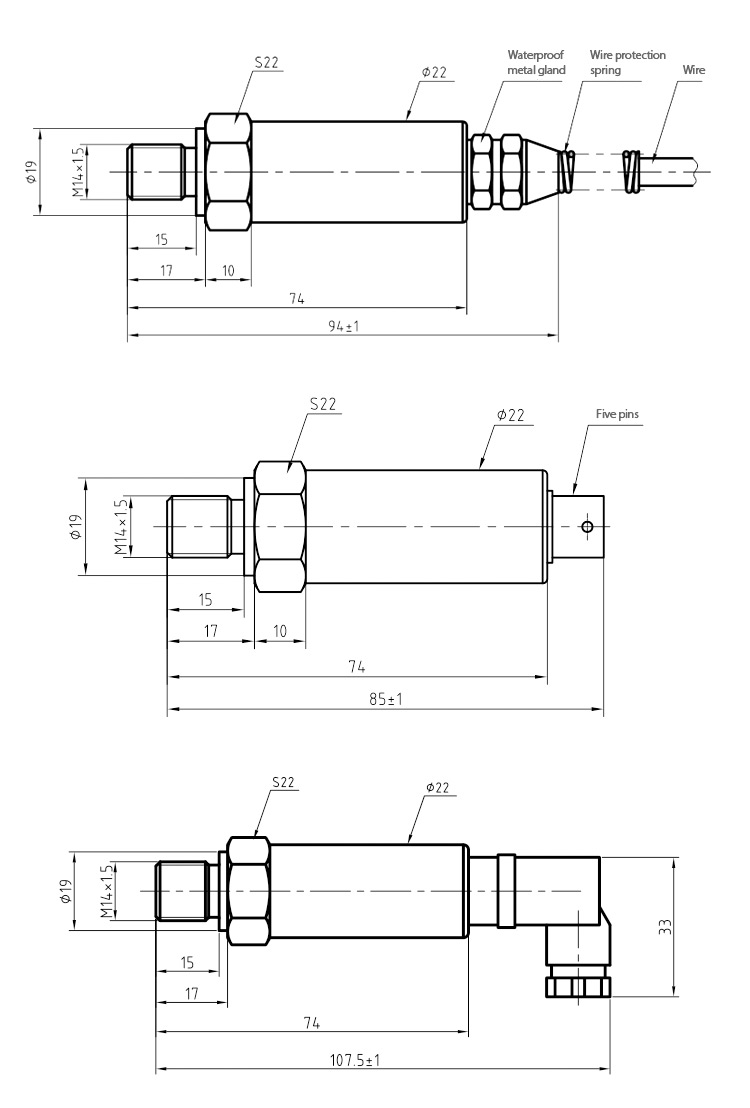

Drawing

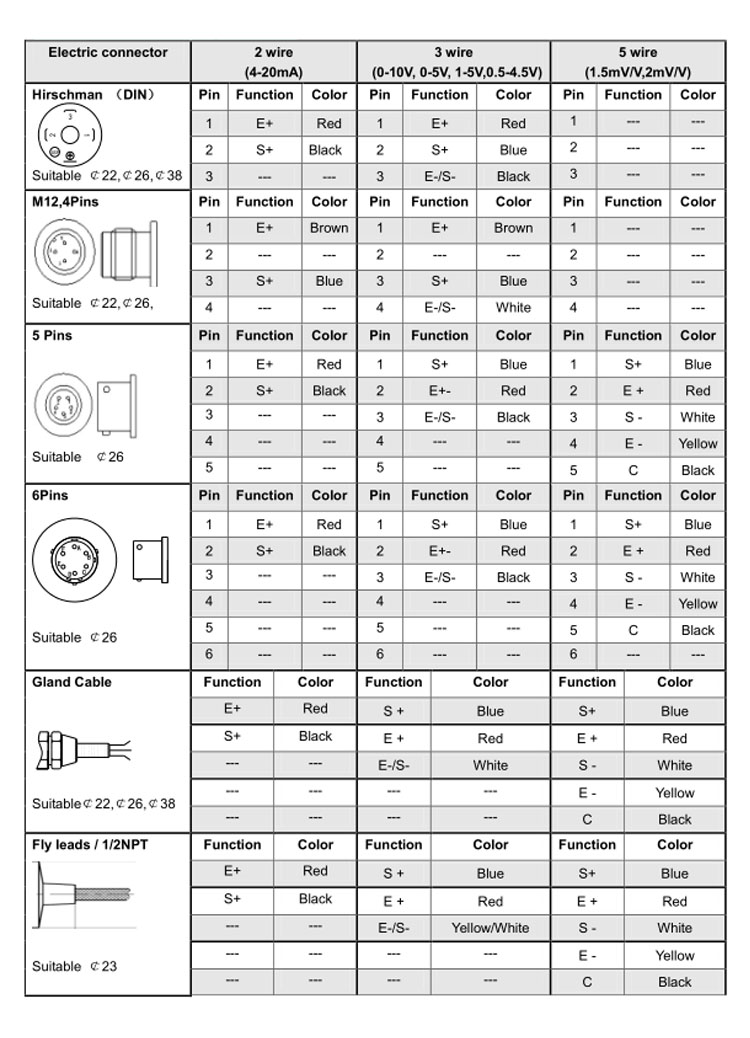

Wiring Code

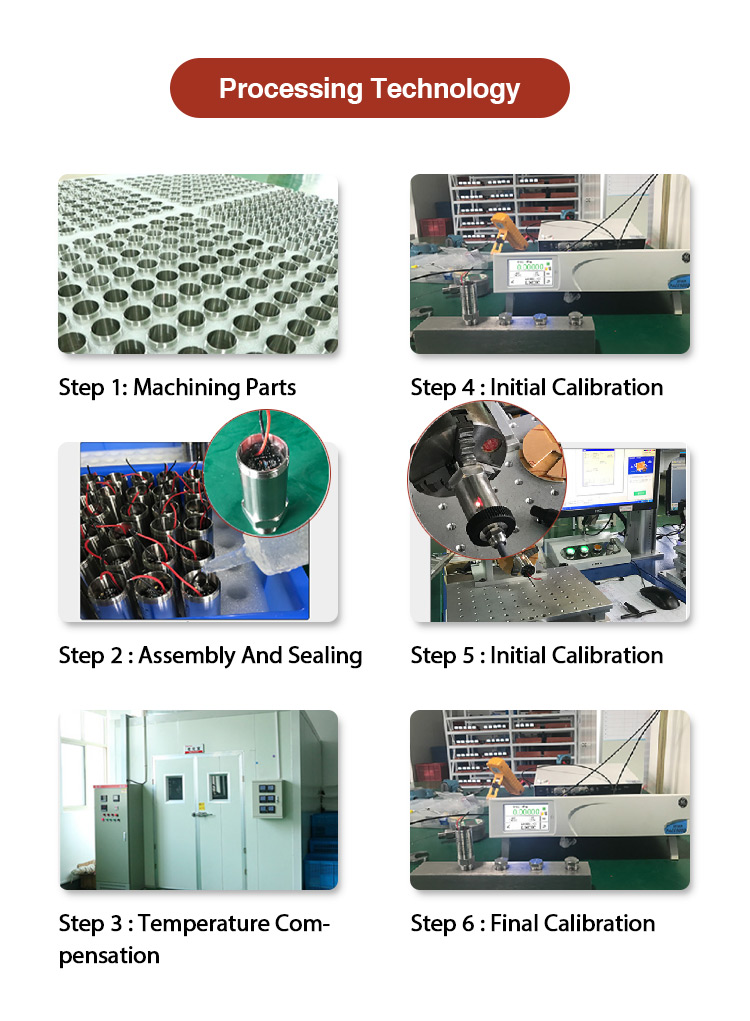

Production Process

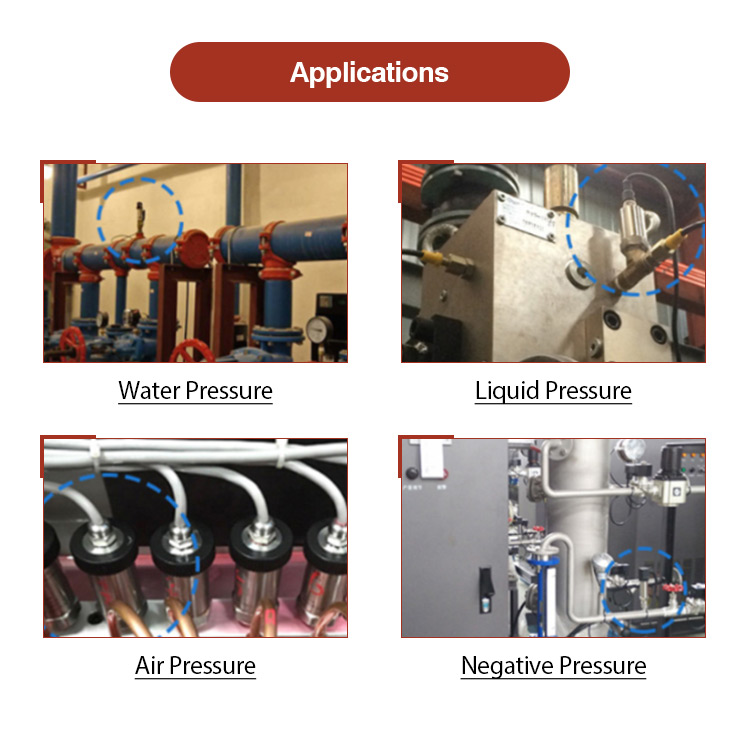

Application
Promotions
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, ZHYQ brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms: EXW, FOB, CFR, CIF for your convenient
Payment terms: 100% T/T or credit card or paypal advance before shipment.
Q3. Will you supply the free sample?
A: Yes, buyer only need to pay the courier cost.
Q4. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
