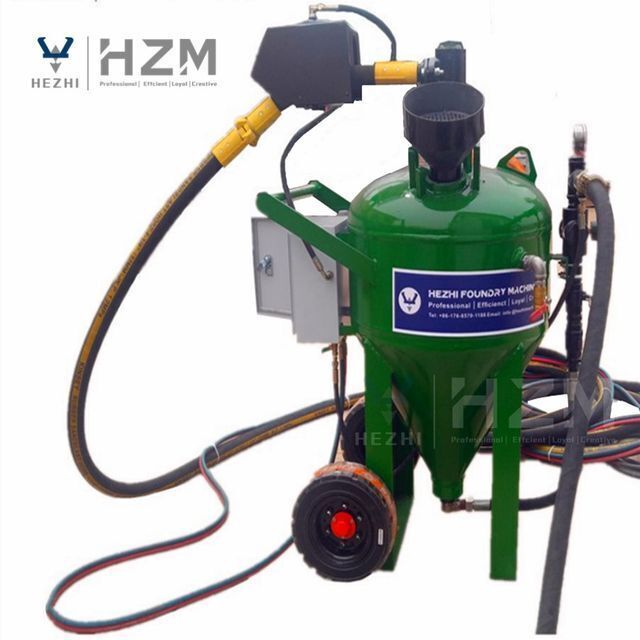

Portable dustless water wet Sand Blasting Machine, Sand Blaster Pot with mobile wheel

Supplier: Qingdao Hezhi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Zhang
Price: $1000.00 / 1 - 2 sets
$850.00 / 3 - 4 sets
$700.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Professional Team ,Competitive Price and life time service;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,for sand blasting pot machine;
Machinery Test Report:	Provided;	Blasting Capacity:	1-30 cuft;
Use:	Steel Metal cleaning and blasting;	Hose length:	10-20m or cusotmised;
Weight (KG):	200;	Brand Name:	Hezhi;
Warranty:	12 months;	Certification:	ce /ISO;
Function:	Remove and clean Rust Dust Oil;	Video outgoing-inspection:	Provided;
Material:	steel,Metal,;	Condition:	New;
Blasting time:	Min 15mins;	Weight:	Min120 kg;
Packaging Detail:	in 20' /40' container for sand blasting tank machine;	Blasting Hose Diameter:	ID32,OD48mm;
Place of Origin:	Shandong, China;	Fuel:	Electric;
Cleaning Type:	blasting gun by manual;	Supply Ability:	50 Sets per Month;
Dimension(LWH):	Depends on sand blasting machine models;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Port:	Qingdao /Ningbo/Tianjin/Shenzhen/Shanghai Port;	Air Pressure:	6-8 bar;
Machine Type:	Sandblaster;	Marketing Type:	New Product 2020;
Power:	Depends on sand blasting machine models;	Air consumption:	Min 3.5M3/Min;
Warranty of core components:	1 Year;	Package Preview:	;
Showroom Location:	None;	Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Retail,Construction works ;
Cleaning Process:	Sand shot;	After Warranty Service:	Online /Video technical support/Field maintenance and repair service;

Portable water Sand Blasting tank is a necessary tool for traditonal corrosion resistance operation, such as marine repair,rust removal of piping and tank body,renewal of container etc.which directly affect the

cleaning effect of the workpiece. According to the requirements of work efficiency, the size of abrasives, etc., the sand-blasting tank of appropriate specifications can can be selected. Automatic spray guns can be configured for automated cleaning. All Auto Portable Industrial portable sand blasting kettle Cleaning Equipments/Sand Blaster For Sale are suitable for connection to pneumatic or electro-pneumatic remote control systems and pneumatic remote control system with air blast and blow function.

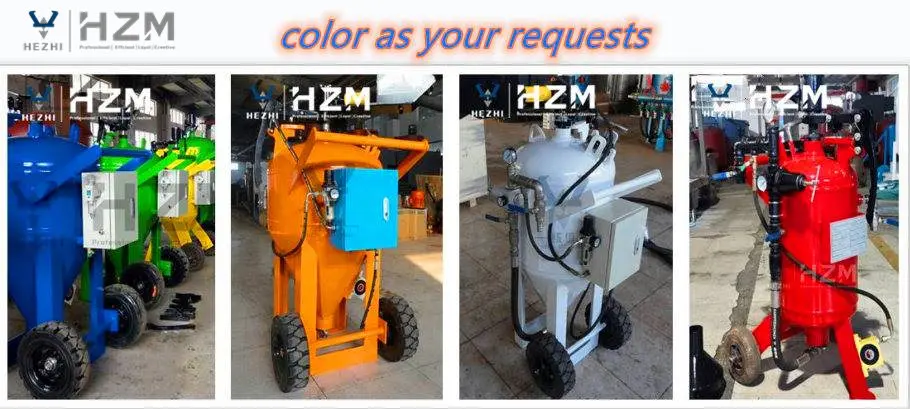

Customized different capacity ,different configurations and different color

Portable water sand blasting tank usage:
1.Structural steel cleaning 6.Deburring

2.Rust removal for large scale equipment 7.Pre-plating treatment 3.Rust removal for bridge & ship surface 8.Pre-painting treatment 4.Surface treatment of glass 9.Spraying decoration

5.Texture handing of steel,carving &wood 10.Descaling 11.Automobile chassis refurbishment

Before After Before After

Portable Dustless Sand Blasting Machines / Pots Clean Scope 1.Metal 4.Plastics

2.Fiberglass 5.Carbon fiber

3.Wood 6.Similarly soft material

Type	DB150	DB225	DB500	DB800	DB1500	DB3000
Capacity	1 Cuft	2 Cuft	5 Cuft	8 Cuft	15 Cuft	30 Cuft
Blast time	15 min	30 min	60 min	90 min	2-3 hour	4-6 hour
Hose	50 ft.	50 ft.	50 ft.	50 ft.	100 ft.	100 ft.
Weight KG	~72	~120	~167	~194	~380	~554
Compressor	120CMF	120 CFM	185CFM	300+ CFM	425+ CFM	425+ CFM
Operating Pressure	30-150 PSI	30-150 PSI	30-150 PSI	30-150 PSI	30 to 150 PSI	30-150 PSI
Blasting Hose	10-15M	10-15M	10-15M	10-20M	15-30 M	15-30M

Mark 1. Blasting hose length can be lengthen or shorten accordingly.

Mark 2. Blasting nozzle diameter 8mm,10mm, 12mm for your choice.

Mark 3. Requirement for air compressor 4-10 bar, 60-3755 CFM, 30-150 PSI, 0.2-1.0 Mpa.

Mark 4. Equip with fill funnel

Mark 5. Spare parts & Abrasive are Available

Consumables list of portable dustless sand blasting machine per batch

Type	Water	Abrasive	Rust Inhibitor
DB150	5gal (19L)	50lbs (22.68kg)	7oz (207g)
DB225	10gal (38L)	100lbs (45.36kg)	14oz (414g)
DB500	20gal (76L)	200lbs (90.72kg)	28oz (828g)
DB800	30gal (114L)	300lbs (136.08kg)	42oz (1242g)
DB1500	75gal (284L)	750lbs (340.2kg)	105oz (3105g)
DB3000	150gal (568L)	1500lbs (680.4kg)	1.5gal (5.68L)

Main Advantages of DB series portable sand blasting machine: 1. Wet sandblasting machine, cleaning efficiency, large volume.

2. Applicable to a variety of materials and grain size of the abrasive

3. Liquid sandblasting is with high efficiency, less abrasive consumption, can improve the surface finish of the workpiece, improve the surface strength, and fundamentally changed the environmental pollution

4.The surface of the parts is not contaminated and the abrasive will not react chemically with the part material;

5.Simple operation, easy maintenance; less wearing parts, low failure rate.

Feature of portable wet abrasive sand blasting equipment:
1. Abrasive filling convenient, wheel structure, moving flexible
2. Electric control, pneumatic control, multiple controling ways, distant quick control
3. Hopper inside design, low hopper easy to fill with abrasives
4. Simple operation, low investment, easy maintenance

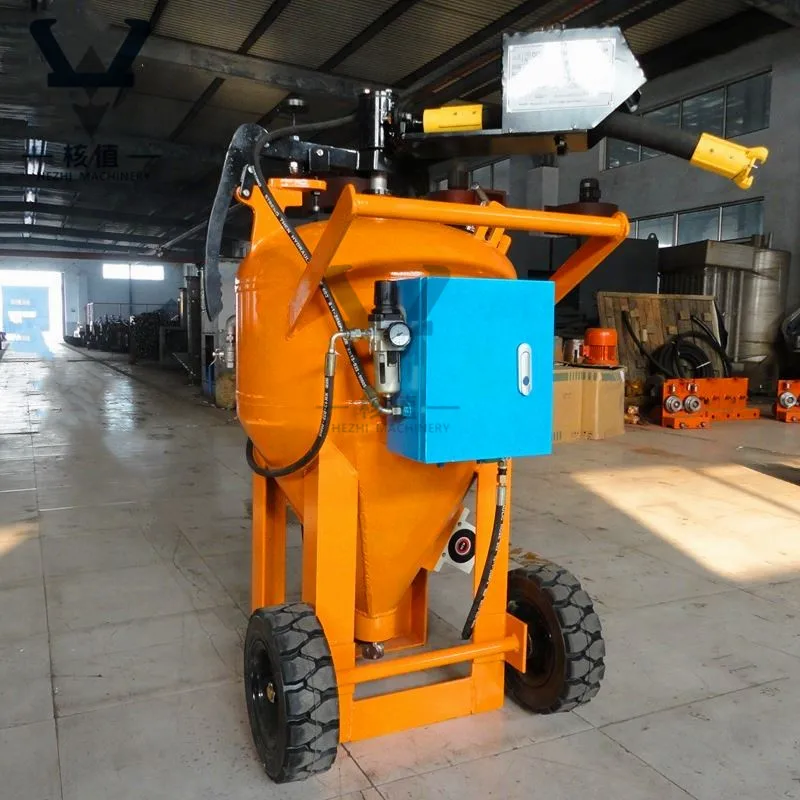

Finished Sand Blasting tank wait for delivery

Qingdao Hezhi Machinery Group

Qingdao Hezhi Machinery Group located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .

We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating casting machinery, surface shot blasting machine, sand treatment,and automation equipment research, development, production, operation, export and service. We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension.
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.

Choose Hezhi,Get factory price and reliable shot blasting Machinery!

a. How many days do you need to produce this machine?

This is specially designed machine according to your specific requirement. From engineers designing to production completion, it
needs about 10-20 days.

b. What does your factory do regarding quality control?

We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before
shipment.

c. What’s your machine quality guarantee?

Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.

d. Could you give installation and commissioning overseas? How long will it take?

Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.

Small machines usually takes 5 days, while large machines usually takes about 20 days.

e. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is
innovation, quality, integrity and efficiency.

f.How many operators are needed to run roller conveyor shot blasting machine ?
1 operator.

More questions please contact Anna, my phone No. is 0086 1995325 9235
