Q69 continuous pass through roller conveyor type shot blasting machine

Product details
Machinery Test Report:Provided;Warranty:1 Year;
Key Selling Points:Reliable quality,Factory Price,.Auto operation;Video outgoing-inspection:Provided;
Dimension(L*W*H):Min: L 5m*W 2m*H 6m / Customized;Surface finish level:SA2.5 to SA3.0;
Port:Qingdao /Ningbo/Tianjin/Shenzhen/Shanghai Port;Material:Metal / Coil , Steel and Iron;
After-sales Service Provided:Field installation, commissioning and training;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,shot blaster;
Certification:ce,ISO;Dust collector:Cartridge/Bag type filter pulse reverse;
Spare parts:Chrome&Mn Alloy Standard Part;Local Service Location:None;
Packaging Detail:in 20' /40' container for the roller conveyor shot blasting machine;Condition:New;
Package Preview:;Operate:Fully Automatic Continuous blasting cleaning;
Machine Type:Abrator;blast cleaning speed:0.5-4 m/min;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Gear,Pump;Cleaning Type:Shot blasting / Wheel blasting By motor driving;
Cleaning Process:steel Shot / Grits / Cut Wire;Showroom Location:None;
Marketing Type:New Product 2020;Roughness:25-130um;
Brand Name:Hezhi;Feeding Type:Roller Conveyor type shot blaster;
Fuel:Electric;Advantages:1.Various for plate,beam,pipe,sheet 2.Fully Automatic;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail,Construction works ,Foundry casting industry;Weight (KG):1000;
Supply Ability:20 Set/Sets per Month;Place of Origin:Shandong China;
Warranty of core components:1 Year;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
PLC:Siemens, Omron or famous brand in china;Power:Min 50KW;
Use:Shot Blasting /Sand Blasting / metal cleaning;Blast chamber:10mm shell &10mm Mn Alloy liner;

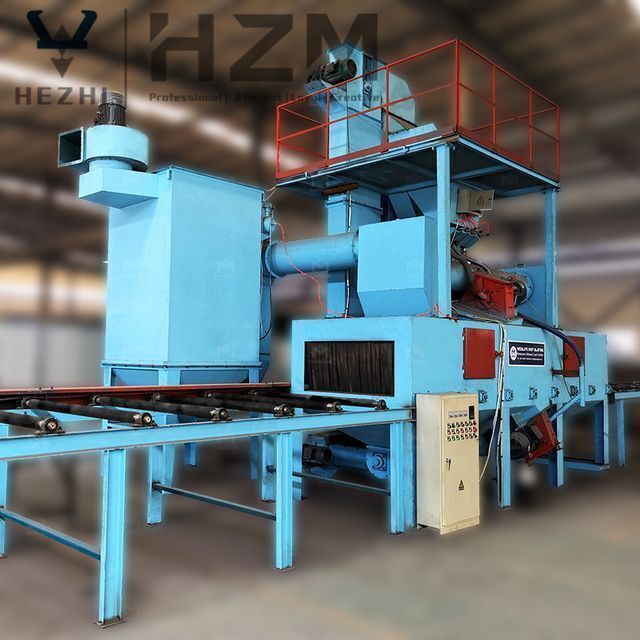

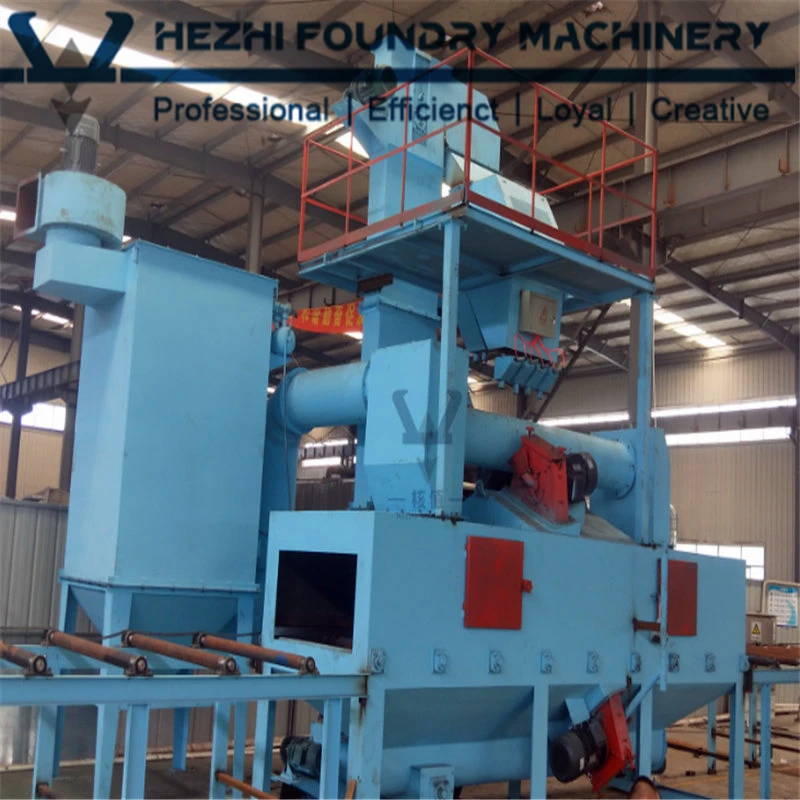

Roller conveyor type shot blasting machine

Roller conveyor shot blasting machine is heavy duty blast cleaning equipment. Roller conveyors are made of three parts, feeding rollers, middle rollers and out-feeding rollers. Feeding rollers deliver work pieces to middle rollers in blasting chamber where work pieces will be blasted by blasting wheels mounted on the blasting chamber walls. Out-feeding rollers deliver blasted and finished work pieces out of blasting chamber for unloading.


Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finis
h level.


Customized

Model
Q698
Q6912
Q6915
Q6920
Q6930
Q6940
Max width
800mm
1200mm
1500mm
2000mm
3000mm
4000mm
Max height
300mm
400mm
500mm
500mm
500mm
500mm
Speed
0.5-4m/min
0.5-4m/min
0.5-4m/min
0.5-4m/min
0.5-4m/min
0.5-4m/min
Wheels
4 pcs
4 pcs
4 pcs
6 pcs
6 pcs
8 pcs
Capacity
4x125kg/s
4 x125kg/s
4 x125kg/s
6 x125kg/s
6 x125kg/s
8 x125kg/s
Air volume
17560 m3/min
19000 m3/min
19550 m3/min
27758 m3/min
28050 m3/min
38000 m3/min
Power
78kw
113kw
156kw
224kw
204kw
293kw
Dimension
12180x4250x7095mm
15200x5370x6797mm
30650x6850x9095mm
31200x6850x9095mm
44020x6385x7758mm
4500x7830x11117mm

Roller conveyor type shot blasting machine is heavy duty and versatile wheel blast cleaning equipment.

Work pieces include H beans, I beams, steel plate, sheets and strips, square tubes, tubes and pipes, bars and rebars. Fabricated steel works and structural steel works can be blasted thoroughly to reach SA 2.5 or even SA 3.0 ready for priming and coating.

We can design and manufacture all kinds of non-standard roller conveyor shot blaster machine,

According to customers' different work piece detail requirement ,weight and productivity .


Work effect of roller conveyor shot blasting machine:


      Before               After                Before                         After

          ↓                        ↓                         ↓                               ↓

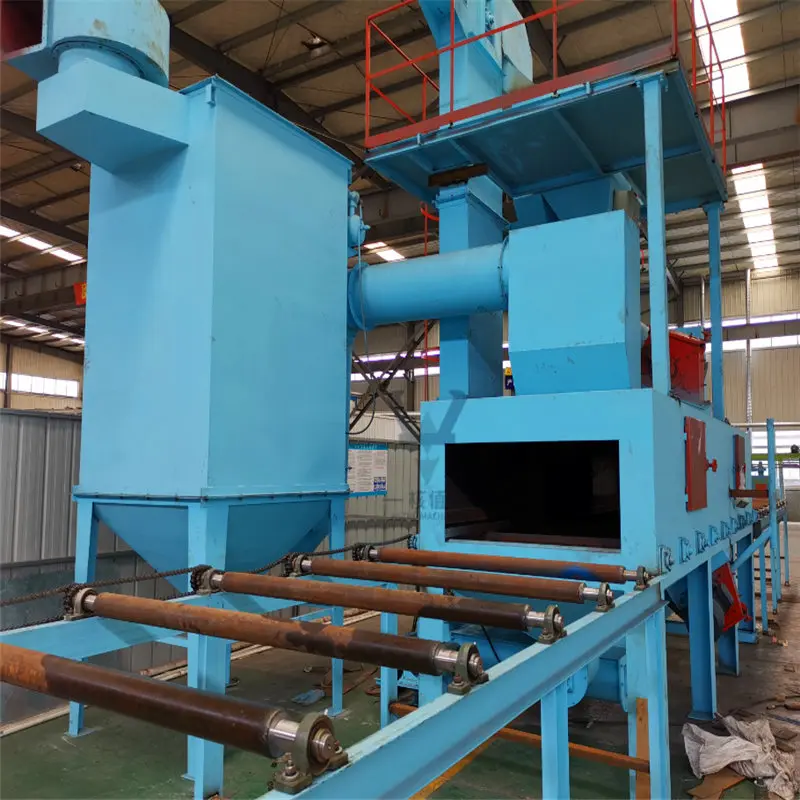

Roller Conveyor Systems

Composition: Feeding rollers, middle rollers, out-feeding rollers.

Loading capacity: 2 tons per meter.
Rollers Distance:
1 m.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer.

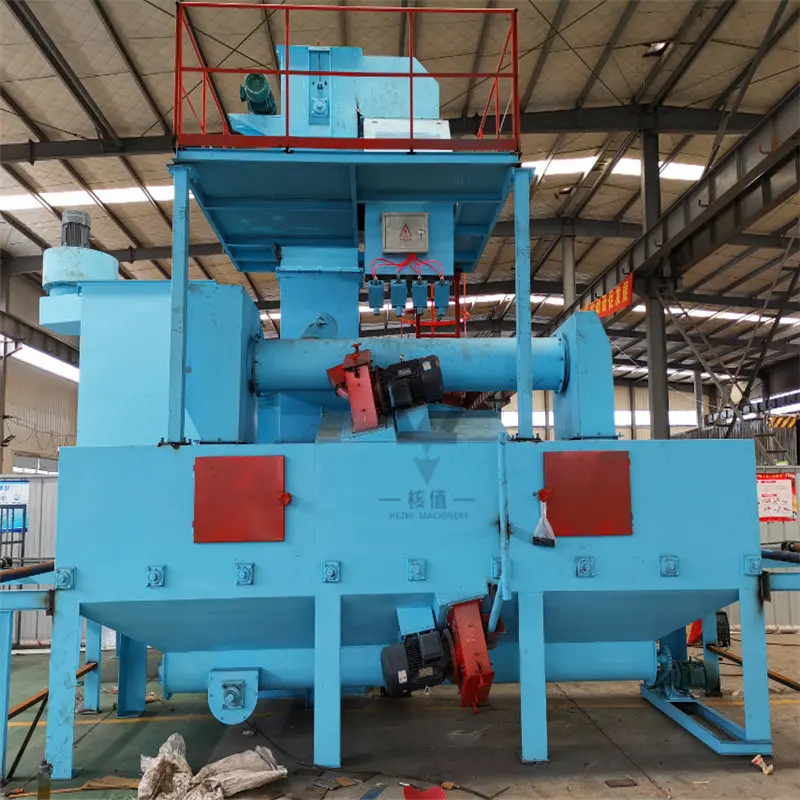

Blasting Chambers

Composition: Main blasting chamber, 2 auxiliary blasting chambers.

Auxiliary Blasting Chamber:Four layers rubber curtains

Main Blasting Chamber: blasting wheels are mounted on chamber in different angles

Divided & Modular Chambers: Designed accordingly

Abrasive Recycling System

Longitude Screw: collect abrasive at the bottom.
Horizontal Screw: Delivery abrasive from longitude screw to bucket elevator.
Bucket Elevator:Lift abrasive to separator.

Separator:Separate & get qualified abrasive

Dust Collection System

Filtration Rate: 99.9%, dustless

Cyclone Dust Collector: first sate dust collection.
Dust Collector:
Cartridge or bag type
Fan Extractor:
Extract dusts from piping to dust collector.
Ventilation Piping:
Collect dusts from shot blasting chambers &separators.

Electric Control System

Model: Automatic or manual type

Control Unit: PLC .

P L C : Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors .
Power Indicator:
available on control panel .

Q:What is basting speed of roller conveyor shot blasting machine ?
A:0.5-1.5 m per minute.

Q:What is max weight of rollers of roller conveyor shot blasting machine ?
A:2 tons per 1 meter.

Q:What kind of abrasives to be used for roller conveyor shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.

Q:Is it necessary to dig pit for installation of roller conveyor shot blasting machine ?
A:It depends on the rollers height and work piece size.

Q:How to clean small work pieces shorter than 1 meter ?
A:To make tooling on roller.

Q:How many operators are needed to run roller conveyor shot blasting machine ?
A:1 operator.


More questions please contact Anna, my phone No. is 0086 1995325 9235
